Hardware Overview

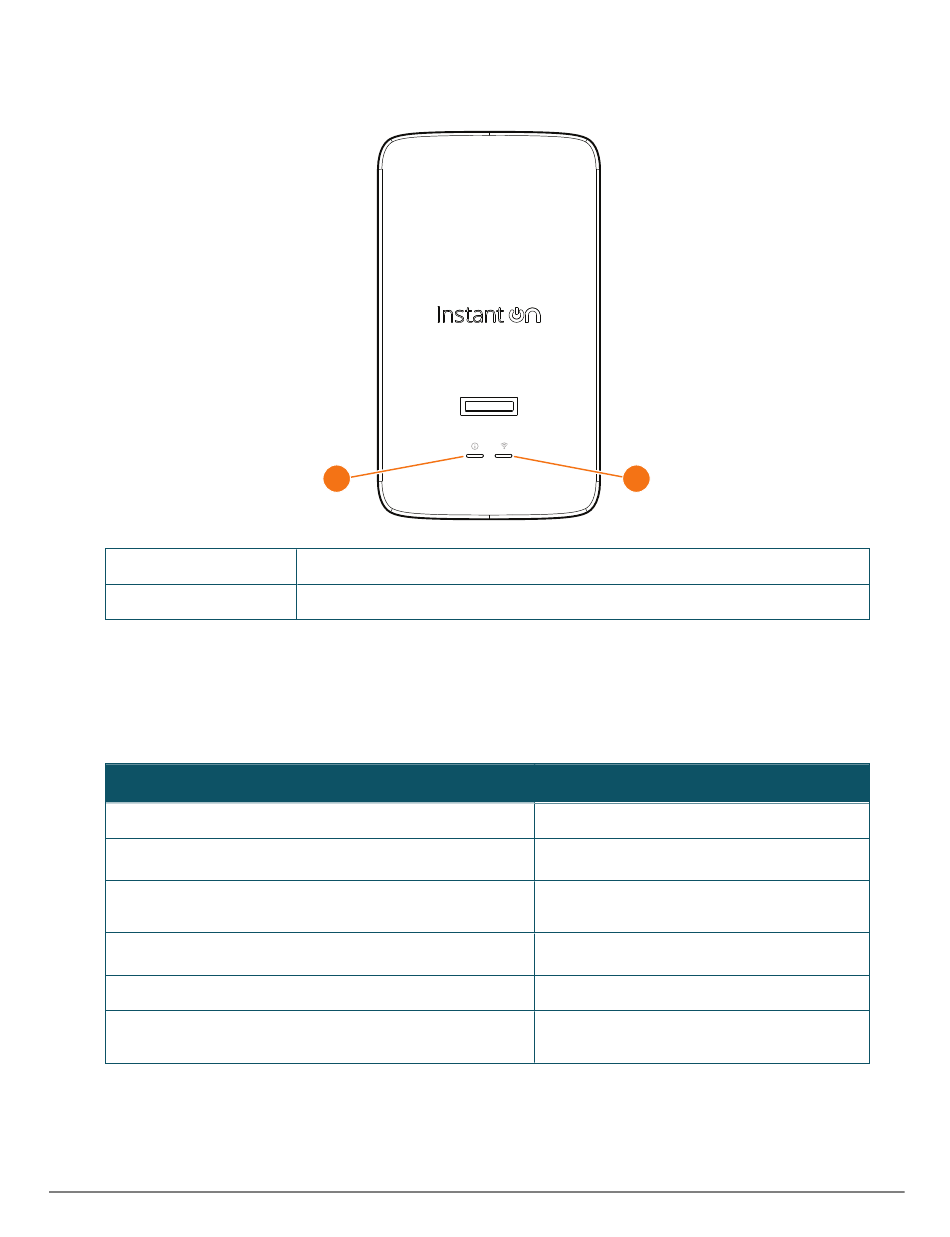

Figure 1 Front View
1
2
The system and radio status can be turn on or off by the system management software.

System Status LED

Table 2: System Status LED
Color/State
No lights
Green- blinking 1
Green- solid
Green/Amber - alternating
Amber- solid
Red- solid
1. Blinking: one second on, one second off, 2-seconds cycle.
2. Alternating: one second for each color, 2-second cycle.
1
System Status LED
Radio Status LED
2
2
Meaning
The AP has no power.
The AP is booting, not ready.
The AP is ready, fully functional, no network
restrictions.
The AP is ready for configurations.
The AP has detected a problem.
The AP has an issue - immediate action
required.
