ETC echoflex MOS-IR A Series Installation Manual

Echoflex Installation Guide
Ceiling & High Bay Occupancy Sensor
Overview
The Ceiling & High Bay Occupancy Sensor (MOS) is a wireless, energy
harvesting sensor that is available as either a passive infrared (PIR) or a
Dual Technology model. The Dual Tech sensor uses PIR and passive
microphone technology to provide full coverage of audible human activity
across the entire PIR detection range. Innovative noise filtering prevents
false triggers that could keep lights on in empty spaces.

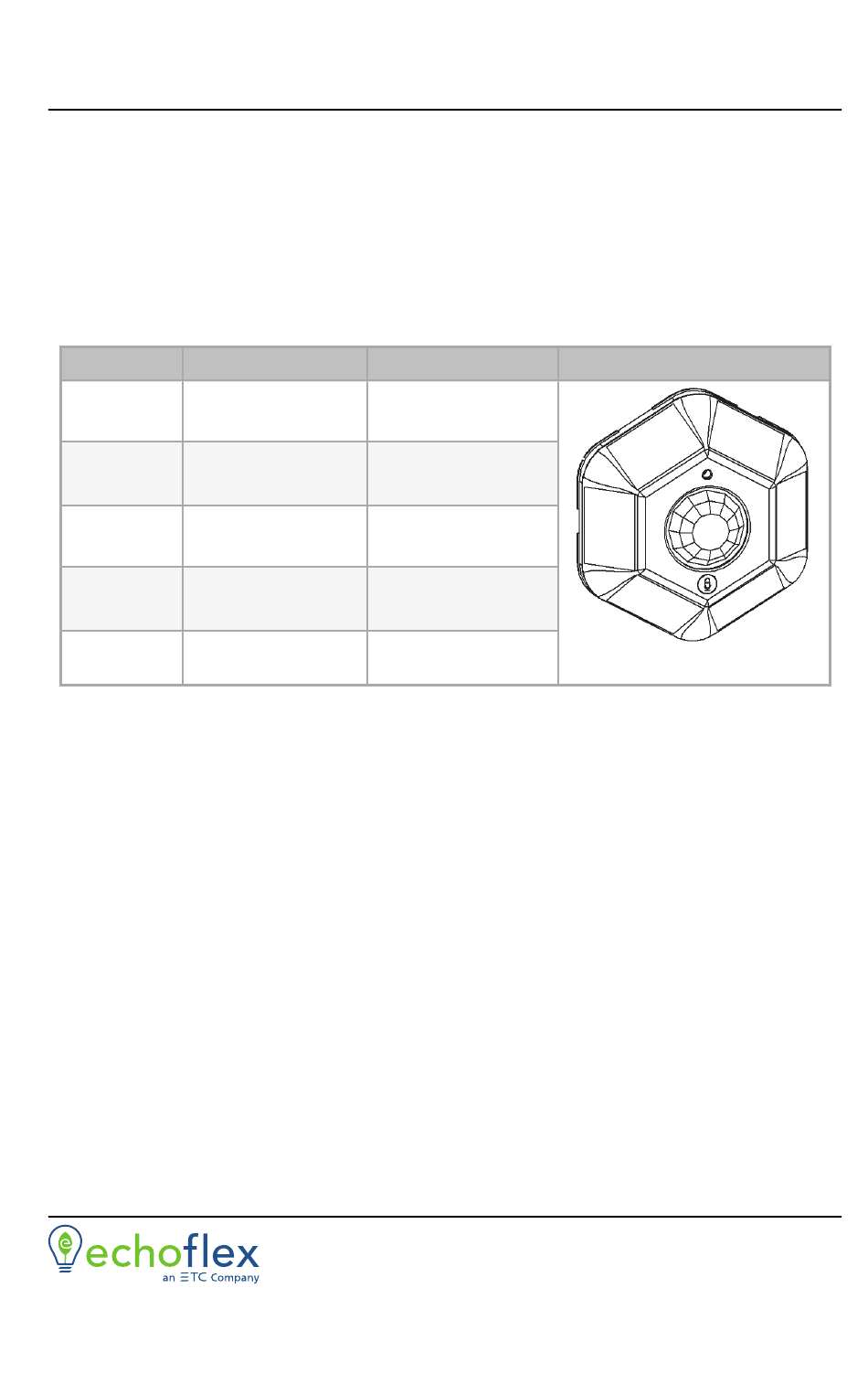

Model
Lens A: small motion,
MOS-IR-xA*
short range
Lens B: large motion,
MOS-IR-xB*
broad range
Lens C: high bay
MOS-IR-xC*
coverage
Lens A: small motion,
MOS-DT-xA*
short range, & audio
Lens B: large motion,
MOS-DT-xB*
broad range, & audio
*Where x is the radio frequency: U=902 MHz and Y=868 MHz.
This document covers installation, testing, and settings that apply to all
MOS models. The product package includes the sensor, lens mask
stickers, mounting plate with integrated magnets, and two wire staples.
Prepare for Installation
To ensure optimal function, consider the installation environment and the
following guidelines:
For indoor use only. Operating temperature -10°C to 45°C
•
(14°F to 113°F), 5%–92% relative humidity (non-condensing).
High density construction materials and large metal appliances or
•
fixtures in the space may disrupt wireless transmissions.
Install the sensor within range of linked receivers or controllers,
•
24 m (80 ft). Consider adding a repeater to extend reception range.
Install on a finished ceiling surface or suspended ceiling tile.
•
Ensure the sensor model's lens is suitable for your ceiling height.
•
Corporate Headquarters n Middleton, WI, USA | +1 608 831 4116
Web echoflexsolutions.com
©2023 Echoflex Solutions, Inc. Trademark and patent
Product information and specifications subject to change.
Echoflex intends this document to be provided in its entirety.
8188M2105 Rev B Released 2023-03
Detection
93 m
(1000 ft
176 m
(1900 ft
585 m
(6300 ft
93 m
(1000 ft
176 m
(1900 ft
| Email info@echoflexsolutions.com
Coverage
2
at 2.4 m
2
at 8 ft)
2
at 2.7 m
2
at 9 ft)
2
at 12 m
2
at 40 ft)
2
at 2.4 m
2
at 8 ft)
2
at 2.7 m
2
at 9 ft)
| Support service@echoflexsolutions.com
info: echoflexsolutions.com/ip
MOS
Dual Tech Model
