Sohrana Dual Tech Occupancy Sensor
Overview
Sohrana Dual Tech Occupancy Switch Sensors feature built-in passive infrared
(PIR) and high frequency doppler (HFD) sensing technology, providing reliable
occupancy and vacancy sensing for lighting control. The sensors are line
voltage and install into a standard NEMA flush or surface-mount wall box.
One-pole and two-pole models are available.
You can configure the sensor using DIP switches on the device. See
Settings on page 7
The Dual Tech Occupancy Sensor also features an ambient light sensor that
manages the controlled lighting levels according to ambient light levels,
inhibiting artificial lighting when ambient light levels are higher than
required. You can set the ambient light level (Lux) threshold using rotary
switches on the device. See
The sensor is zero-cross switching and easily controls a high inrush current
load while switching On. This includes loads such as multiple LED lamps or
compact fluorescent lamps connected in parallel.

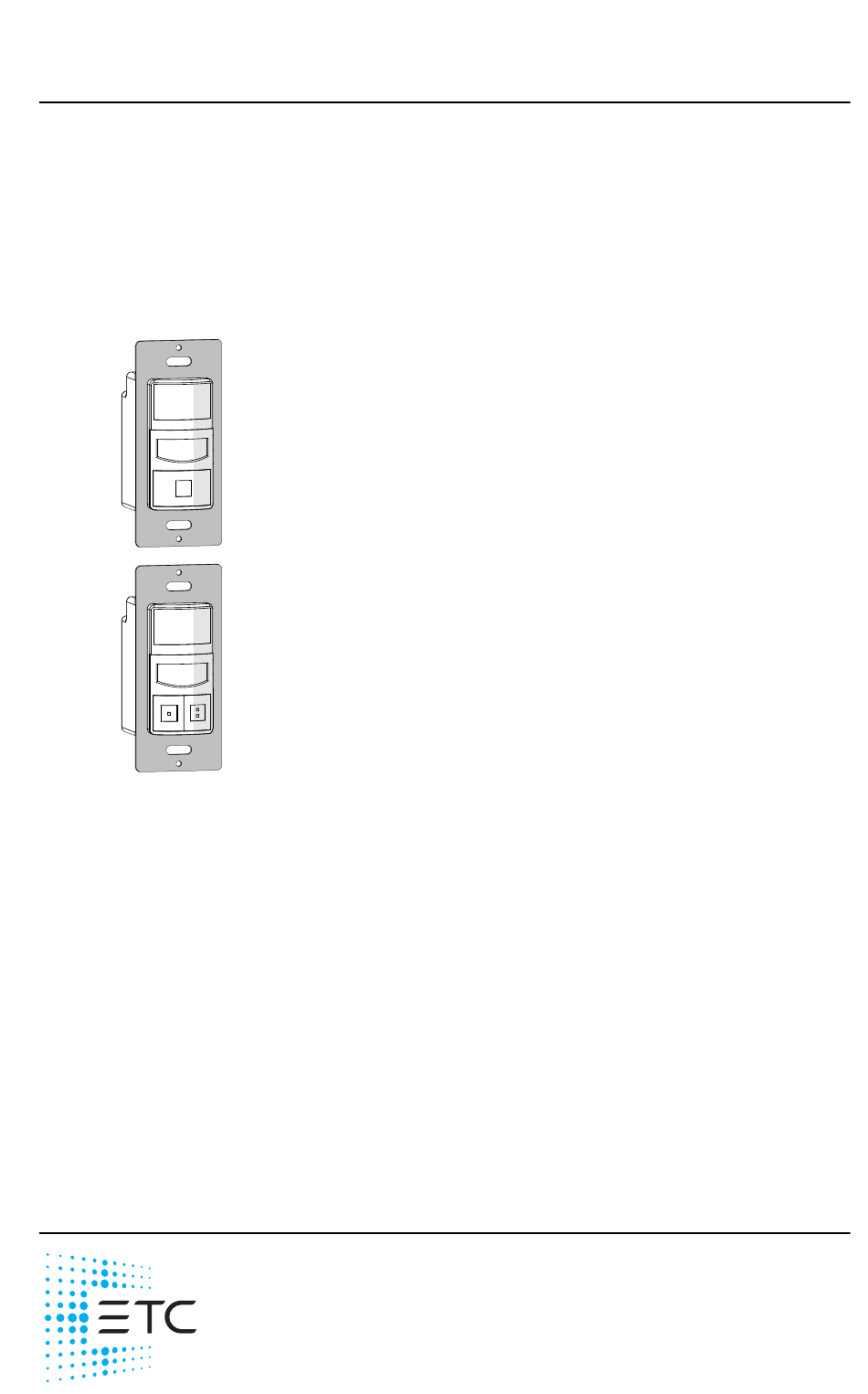

The one-pole model (US-DOC-SM1) includes a single
push button for controlling one lighting load. By default
the sensor is configured to turn on the lighting load
automatically when the sensor detects occupancy and
turn off the load when vacancy is detected.
The two-pole model (US-DOC-SM2) includes two push
buttons for independent control of two lighting loads or
circuits. By default, the primary load (pole 1) is
configured for occupancy sensing mode and the
secondary load (pole 2) is configured for vacancy sensing
mode.
for more information.
Rotary Switches on page 10
