YABER Pro U6 - Projector Manual

Yaber Lifetime Professional Support

Dear customer,
Thank you for your support of YABER! Before using your projector, please take a moment to read through the manual thoroughly. Should you encounter any issues, simply email aftersales@yaber.com with your order number and a brief explanation of the problem.

Our team will respond within 24 hours with a fast and effective solution.

Many common issues such as signal or sound problems, failed Bluetooth or WiFi connections, dark spots, or choppy animations can often be resolved through simple adjustments to the settings. Rest assured that all of our projectors have undergone a rigorous 100% inspection and packaging process prior to shipping.

If you have any further questions or concerns, please don't hesitate to contact us. We welcome the opportunity to improve and guarantee that we will work with you to find a satisfactory solution.

Thank you for your understanding and for choosing YABER!

Best regards, TheYABER ServiceTeam.

TIPS

1. Do not place projector in too warm or too cold room, because the high temperature or low temperature will shorten lifespan of the device. The working environment would be 5°C~35°C better.
2. The ventilation is equipped for the projector to work stably. Don't cover the vent with cloth, blanket or other things. Don't insert anything into the slit of the projector, or it may produce a short circuit or an electric shock to your device and cause damage.
3. The projector shall be strictly protected from strong impact, extrusion and vibration. Do not try to move and on strong impact, extrusion and vibration. Do not try to move and the internal circuit faults.
4. Lens, as the core component of the projector, is directly related to the picture definition and effect. The excessive dust thereon will affect image quality. The dirty lens shall be wiped with soft cotton cloth for the glass lens surface. Hard cloth or abrasives shall not be used.

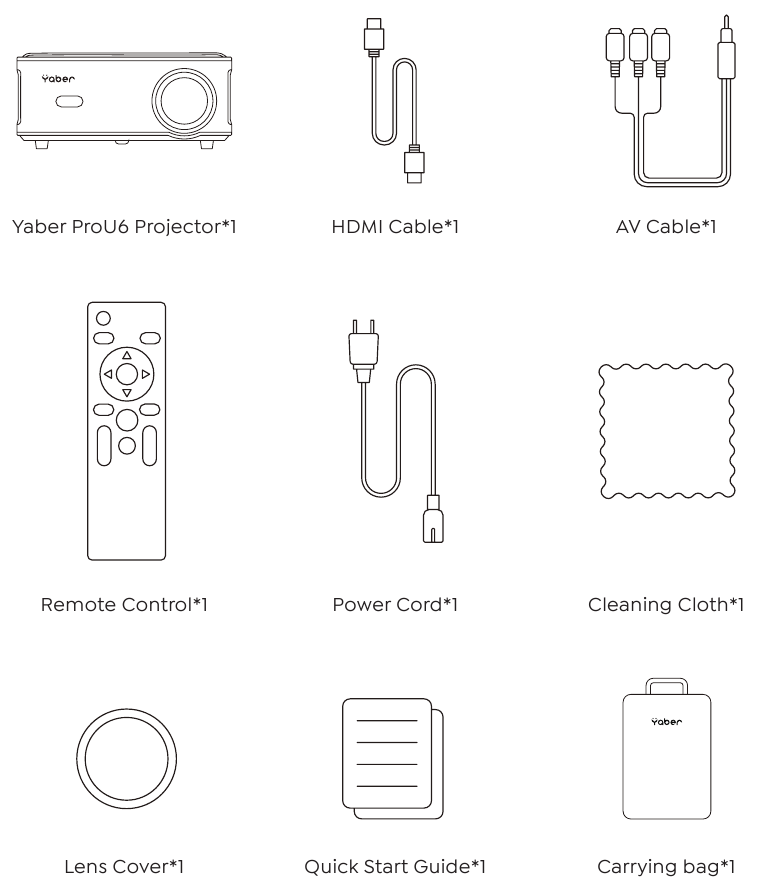

PACKAGE LIST

PROJECTOR SPECIFICATIONS

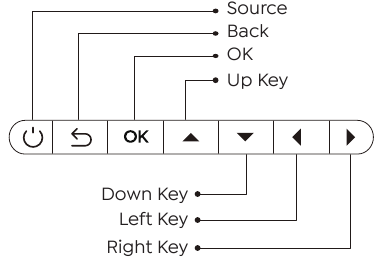

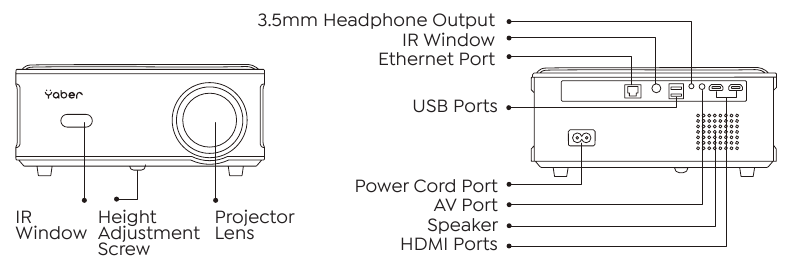

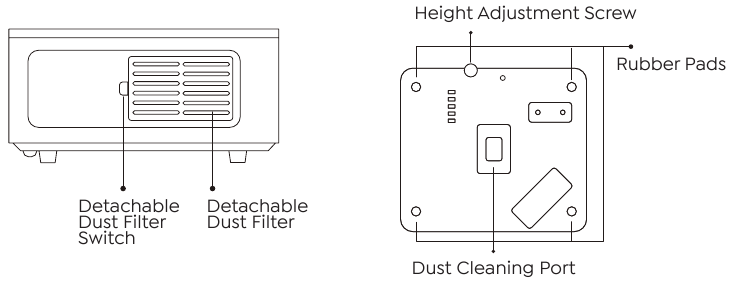

PROJECTOR OVERVIEW

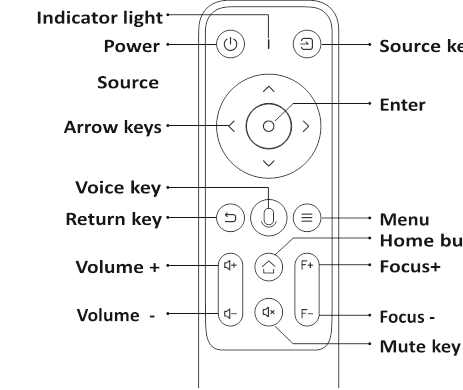

REMOTE CONTOL

Note:

1. Install 2 pieces of AAA batteries into the remote controller before using it. Do not combine new batteries with old ones in remote controller, which can cause operation failure due to insufficient power supply.
2. When using the remote controller, please make sure that the signal transmitter of the remote controller aims at infrared signal receiver of the projector.
3. If you are not using the remote controller for an extended period, please take out batteries to prevent batteries leakage.

INSTALLATION

Installation Method

The projector can be hanged on the ceiling with special hanger frame, and placed on the stable desk to project the image according to the operating environment and requirements. In addition, the projector can be installed with following methods:

Projection Distance and Size

The recommended projection distance is about 8ft -10ft.

The image size depends on the distance between projector and screen, there may be 3% deviation among above listed data. Different settings cause various distances.

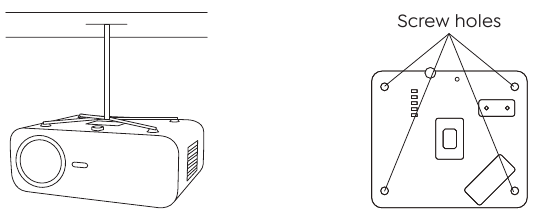

Install on the Ceiling

Note: Please purchase an universal projector ceiling mount, attach the projector with 1/4 inch screws.

USE THE PROJECTOR

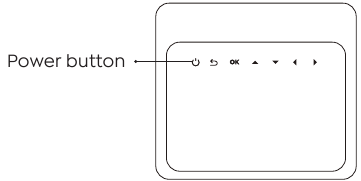

Turn on/off the projector

Connect the projector to the power supply, the projector will enter the standby state, and the signal indicator light on the cover will be red.

Power on: Press the power button on the body, or the power button on the remote control, and the indicator light turns blue to enter the working state.

Shutdown: In the working state, press the power button on the body, or the power button on the remote control, the indicator light will change from blue to red, and the projector will be turned off.

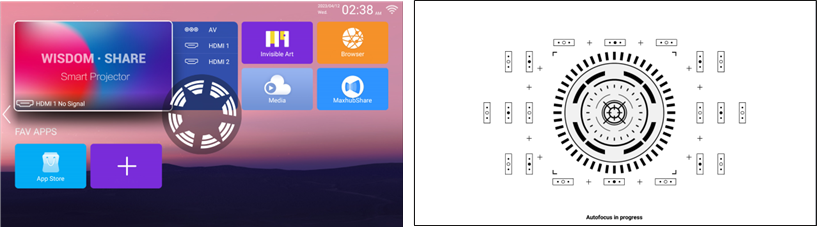

Focus Adjustment

* When starting the ProU6 projector for the first time, please wait patiently for 2 -3 seconds, the projector will automatically adjust the focus. If the image is not clear, you can press the focus button "F+", "F -" to adjust the focal length of the lens, click or long press the focus button until the image is clear.

Note: If it's still blurry, try adjusting the throw distance.

Keystone Correction Adjustment

* When the ProU6 projector is started for the first time, the projector will automatically perform keystone correction. Or you can also use the digital 4P keystone correction of the projector to change the image to be rectangle(vertical and horizontal). Detail please refer the page XX of this manual.

SETTING UP THE PROJECTOR

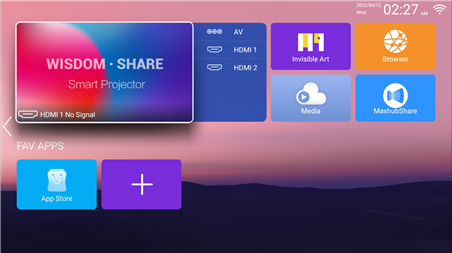

The projector's home page is as follow.

Select The Insert Signal Source

Select the desired insert signal source (AV/HDMI1/HDMI2) on the home -page.

Note: If you connect the external device (Such as TV box, Fire TV Stick, DVD Player, USB flash disk, Computer etc.), please must select the corresponding signal source. If you choose wrong, the projector will show no signal.

USB Disk Input Mode

Play Video/Audio/Image/Office in the USB Disk Input Mode

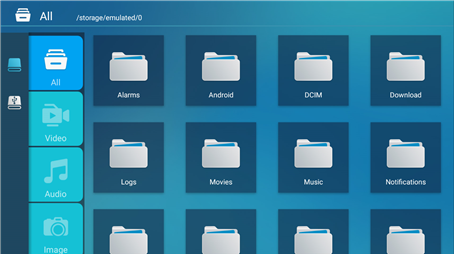

1. Insert the USB Disk, Select the icon [Media]
2. Select the option [All/Video/Audio/Image]
3. Select the desired file (or folder to enter the subfolder) in the USB disk, then press the [OK] button to play it.

Notice: Yaber ProU6 projector supports USB disk to directly play PPT, Word, Excel files.

Warm Tips: If the projector cannot recognize the USB disk, please refer to the following methods to solve the problem.

Please confirm whether your USB disk meets the following formats.

1. FAT32: 8G/16G/32G
2. NTFS: 64G

If it is not, please format the USB disk. Before you format the USB disk, if you have anything on your USB disk, make sure to backup everything. After these steps, everything will be lost forever.

How to convert USB disk format to FAT32 format?

1. Plug -in your usb disk into the computers USB port.
2. Open up File Explorer and right -click on the drive.
3. Choose Format.
4. In the File System dropdown, please choose the FAT32 format.
5. Click Start and close this window when finished.

If the problem is still not solved, please send your problem to this email: aftersales@yaber.com

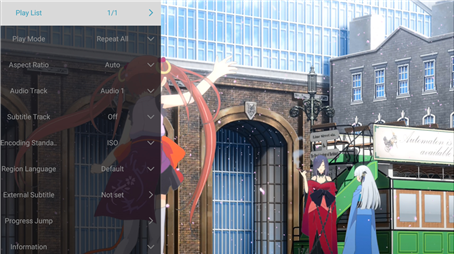

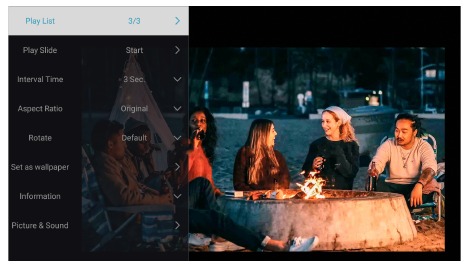

Play Interface

Select the desired insert signal source (AV/HDMI1/HDMI2) on the home -page.

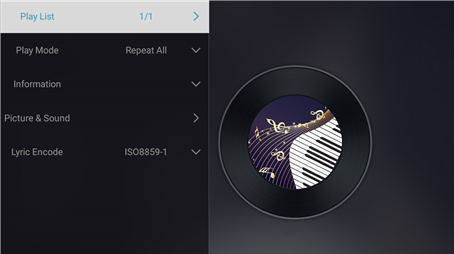

Music Play Interface

WiFi Setting

Wireless Connection
Warming Tips:

1. The fluency of screen mirroring with wireless connection will be affected by the network environment. A bandwidth of 100Mbit or more is recommendedwhen using screen mirroring.
2. Make sure your mobile device is close to the projector when using wireless connection. A distance within 1 meter is recommended.
3. Some mobile devices may not support screen mirroring due to the compatibility.
4. Any questions, please feel free to email YABER via aftersales@yaber.com.

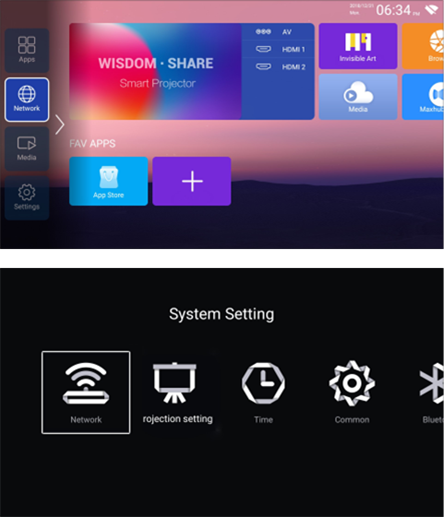

iOS Cast (for iOS Devices)

1. Go to home page - Press the left button - Select the [ Network ] menu - Select [ Wireless Net Mode ] - Select your home WiFi from the list - Connect the Yaber ProU6 projector to your home WiFi

2. Select the [ Settings ] menu on your iOS device - Turn on the [ Wi -Fi ] function - Connect your iOS device to the same home network as the projector.
3. Open the [ Control Center ] on your iOS device - Select the [ Screen Mirroring ] function - Select and connect the iOS Cast receiver named [ TV -XXXX ] - your iOS device screen will be displayed on the projection screen after 3 seconds.

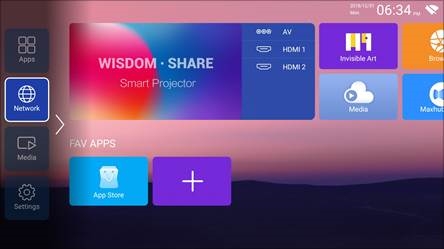

Miracast ( for Android Devices )

1. Make sure Yaber ProU6 projector and your Android device are connected with the same Wi Fi, operations refer to the [1] and [2] from iOS Cast (for iOS Device)

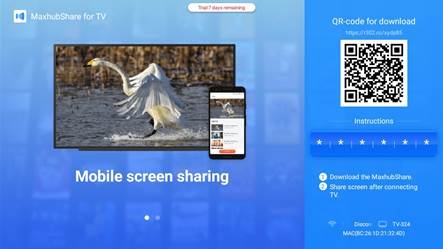

2. Go to home - Select the [ MaxhubShare ] app - Press the OK button to enter the [ MaxhubShare ] app.

3. Scan the QR code and download the app on your Android device
4. Open [MaxhubShare] app on your Android device - Select TV named [ TV -XXXX ] - Your Android device screen will be displaed on the projection screen after 3 seconds.


Note:

1. Different brands of Android phones have different operations for select Screen Mirroring Display, please refer to your phone's manual. [ Multiscreen/Wireless display/WLAN display/ Screen mirroring/Wireless projection/Smart view etc. ]
2. Not all Android phones support this function. Please make sure it is supported before use.

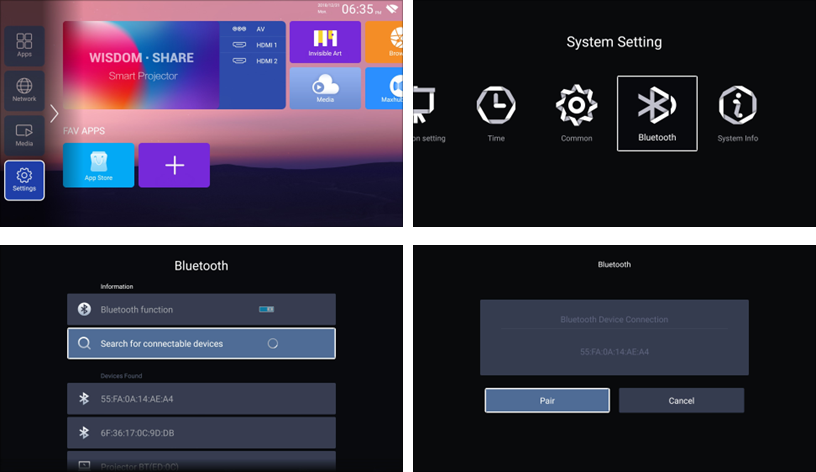

Bluetooth Setting

Go to home page - - Select the [] menu - - Select the [ Bluetooth ] Option - - Open the Bluetooth function and your Bluetooth device - - Scan the Bluetooth devices nearby automatically - - Choose the Bluetooth device desired - - it will be paired and connected automatically.

Note:

1. The Yaber ProU6 projector is compatible with the Bluetooth headsets, Bluetooth speakers and Air Pods, but not the Bluetooth keyboards or Bluetooth phones.
2. If you have any question, please feel free to contact us via aftersales@yaber.com

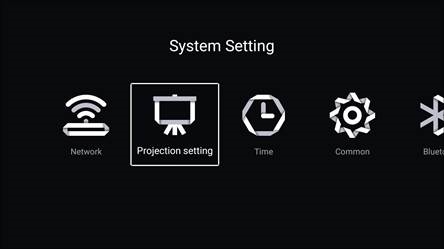

Projector System Setting

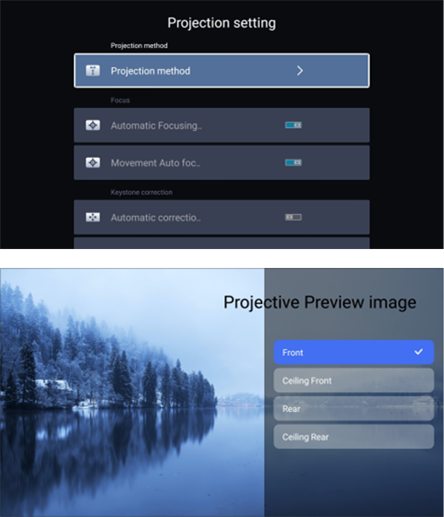

Projection Mode

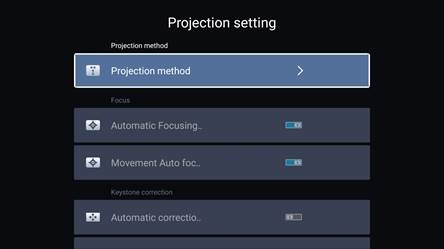

Focus

Automatic Focusing after boot

Turn on this button, when you start the projector, please wait patiently for 2 -3 seconds, the projector will automatically focus after powering on.

Movement Auto focus

Turn on this button, the projector will automatically focus when changing the position.

Notice:

1. Use autofocus when your setting up your projector or when you need to quickly adjust the focus of your image.
2. Use manual focus mode when you need more precise control over the focus of your image. Long press the focus button "F+", "F -" until the image is clear.

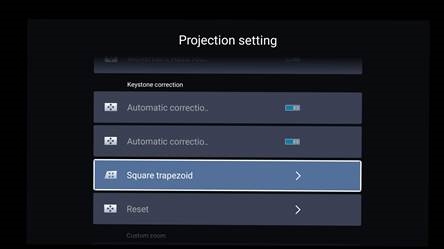

Keystone Correction

Automatic Correction after boot

Turn on this button, when you start the projector, please wait patiently for 2 -3 seconds, the projector will adjust keystone automatically.

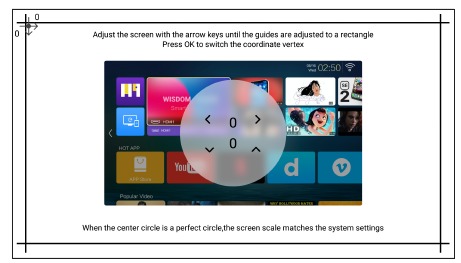

Automatic Correction after displacement

Turn on this button, the projector will automatically keystone correction when changing the position.

Notice: If you are not satisfied with the automatically corrected image, the projection screen is not rectangular, you can adjust it by 4 -point keystone correction.

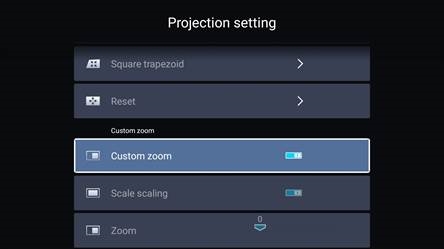

Zoom

* Select the [Custom Zoom] option, press the "OK" button on the remote controller to enter the submenu [Scale scaling], press the "OK" key to select this button to enter a three -level menu [Zoom], you can adjust the projection size by adjusting the parameters, zoom range is 50%—100%.

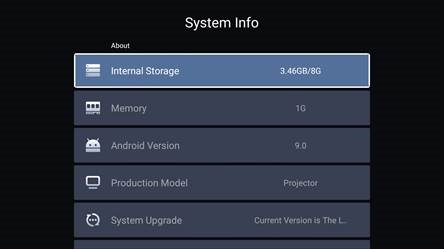

System Update

Go to home page - - Select the [ Setting ] menu - - Select the [ System Info ] Option - - Select the [ System Upgrade ]

Notice: If the software currently is the latest, you do not need to upgrade the software. During the upgrade process, if you have any question, please feel free to contact us via aftersales@yaber.com

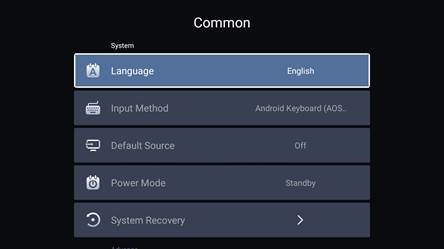

Common

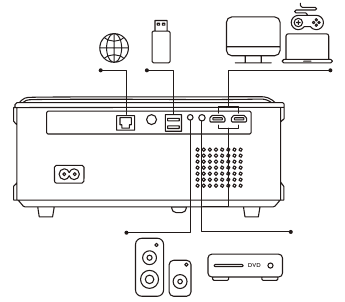

Signal Lines Connection

Yaber ProU6 projector has 7 interfaces, HDMI port*2/ USB port*2/ 3.5mm headphone output*1/ Network port*1/ AV port*1, please select the correct port to connect your device (PC, DVD Player, Fire TV stick, TV box, Sound bar, USB disk, PS4 etc.)

1. Connect the Devices via the HDMI ports
   1. Connect your Fire TV stick ( or PC, TV box, PS4 etc.) to the HDMI port of the projector;
   2. Enter the home page to select the corresponding HDMI as the signal source.
2. Connect to the DVD Player
   1. Turn on your DVD player and the projector;
   2. Connect to the DVD Player and the projector with the HDMI cable
   3. Enter the home page to select the corresponding HDMI as the signal source.

Note: When the projector is connected to the DVD player via the HDMI cable, if there is no sound, it may be that the output signal of the HDMI port of the DVD player is not compatible with HDCP, please try to connect your Sound bar/Speaker.

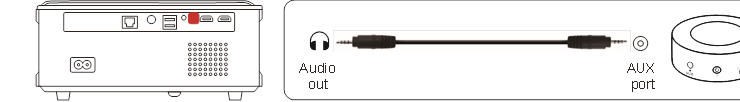

3. Connect to the Sound bar/Speaker
   If your speaker has AUX port, please use your 3.5mm audio cable connect the projector and your speaker as the picture shows, enter the home page to select [ AV ] as the signal source.

4. Connect to the Computer
   1. Connect to the computer and ProU6 projector with the HDMI cable (Included).
   2. Select the HDMI source to project any files on your computer;

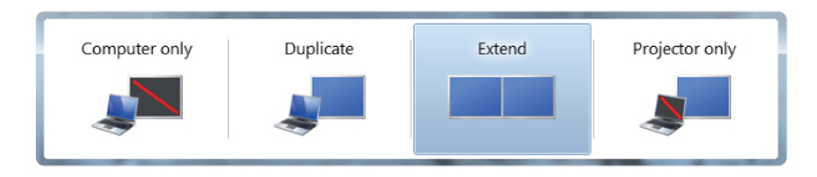

   3. On your laptop, hold down the key "Win+P" board keys to change your display mode.


Computer only: it is the default option – only displays on the main monitor.

Duplicate: makes all the monitors display the same thing duplicating the desktop on each monitor.

Extend: makes all your monitors act like one big monitor extending the desktop across all of them.

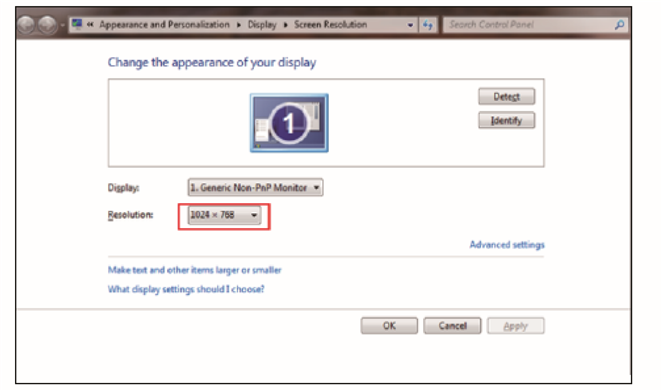

Projector only: Displays only on the secondary monitor like a projector. You can change the screen resolution on the Projector Only Mode

Step: Start > Control Panel > Appearance and Personalization > Adjust Screen Resolution
