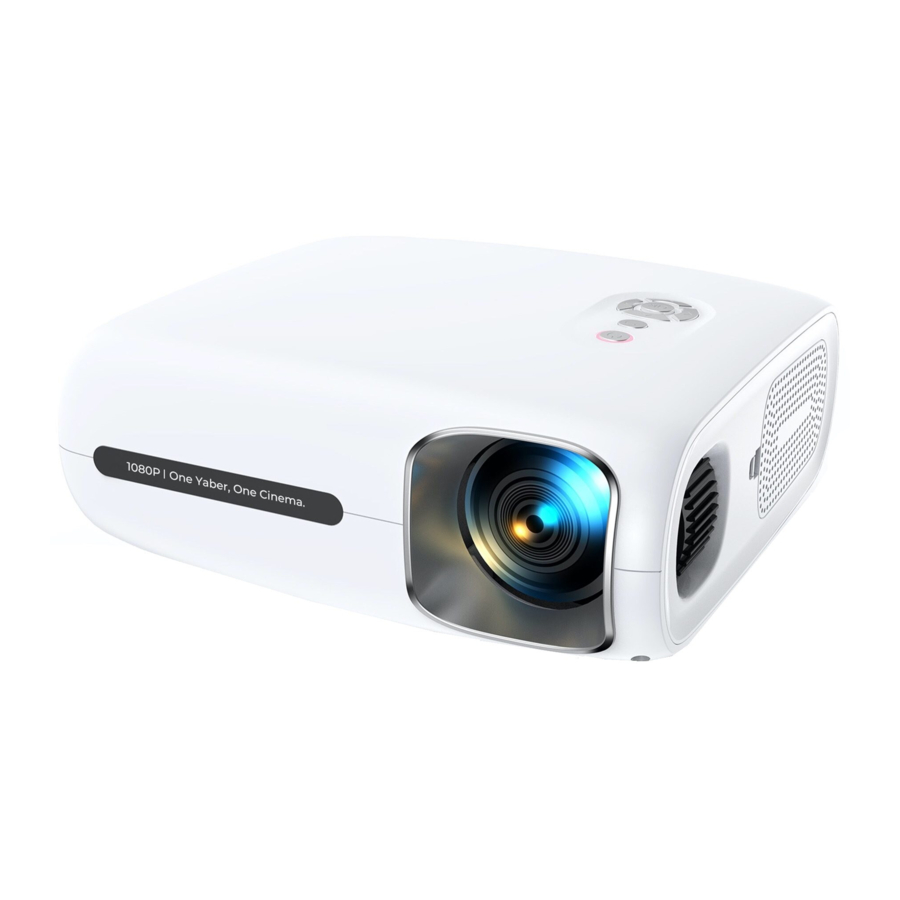

YABER Pro V7 - 1080P Projector Manual
YABER Lifetime Professional Support
Please read this manual thoroughly before using the projector, If you have any Issues, email your order number and the problem to Support@yabertech.com. We Will provide a fast solution in 24 hours.
Actually, many problems can be easily solved by setting, such as no signal, no sound, bluetooth connection failed, WiFi connection failed, dark spots, choppy animation etc. We promise all the projectors have been 100% carefully checked and packaged before shipping.
If you have any questions, could you please contact us so that the problem can been solved. And give us an opportunity to improve. We guarantee we will provide you a satisfactory solution.
Thanks for your understanding!
YABER Service Team
TIPS
- Do not place projector in too warm or too cold room, because the high temperature or low temperature will shorten lifespan of the device. The working environment would be 5°C-35°C better.
- If there are black spots on the projection screen, please don't worry, please contact Support@yabertech.com via email, we can send you a video about how to remove the dust.
- The ventilation is equipped for the projector to work stably. Don't cover the vent with cloth, blanket or other things. Don't insert anything into the slit of the projector, or it may produce a short circuit or an electric shock to your device and cause damage.
- The projector shall be strictly protected from strong impact, extrusion and vibration. Do not try to move and on strong impact, extrusion and vibration. Do not try to move and the internal circuit faults.
- Lens, as the core component of the projector, is directly related to the picture definition and effect. The excessive dust thereon will affect image quality. The dirty lens shall be wiped with soft cotton cloth for the glass lens surface. Hard cloth or abrasives shall not be used.
PACKAGE LIST
YABER V7 Projector*1 | Remote Control*1 | Power Cord*1 |
HDMI Cable*1 | 3-in-l1AV Cable | Lens Cover*1 |
Cleaning Cloth*1 | User Manual*1 | Cleaning Kit*I |
PRODUCT SPECIFICATIONS
Model No. V7 |
Native Resolution | 1920*1080P | Keystone Correction | 6D Keystone Correction & Manual Vertical/Horizontal |
Display Technology | LCD | Light Source | LED |
Color Gamut | 16.7M Full | Aspect Ratio | 4:3/16:9 |
Recommended Projection Distance | 7.8-13ft | Minimum Projection Distance | 5.5ft |
Power Voltage | AC100-240V | Projector Weight | 4.8lb |
Picture File | JPG/JPEG/ BMP/PNG | Interfaces | HDMl'2/USB*2/3.5mm Headphone jack/AV |
Projection Method | Front/Rear on Desk, Front/ Rear on Ceiling |
Video File | 3GP/AVl/FLV/MP4/MPG/VOB/TS/M2TS/DAT/MKV |
Audio File | MP3/APE/AAC/FLAC/OGG/WAV/WMA/MlD/DTS/M4A |
DEVICE OVERVIEW
1/18 | Height Adjustment Screw | Adjust the height of the projector |
2/5 | IR Window | Infrared signal receiver |
3 | Projector lens | Optical coated glass lens |
4 | Power Cord Port | Power Cord Port |
6 | Headphone Jack | 3.5mm Headphone Output |
7/10 | HDMI Ports | HDMI 1 input HDMI 2 input |
8 | USB Ports | USB port above USB port below: USB-T port |
9 | AV Port | Audio input |
11 | Speakers | Speakers stereo 5w |
12 | Vents | Prevent the projector from overheating |
13 | Focus Ring | Adjust the focus ring to get the clearest image |
14 | Detachable Dust Filter Switch | Push the switch from the right to open the detachable dust filter |
15 | Detachable Dust Filter | Clean the dust (if the screen has a black spot) |
16 | Bottom label | Nameplate on the bottom of the projector |
17 | Rubber Pads | Protective pads/remove to install ceiling mount |
- Power Key
- Back
- OK Key
- Arrow Key
1 | Power | Turn on/off the power |
2 | Back | Return to the previous menu |
3 | OK | Confirm the option/6D Function |
4 | Arrow Keys | Used to adjust the parameter of the projector in the menu mode |
REMOTE CONTROL
- Power
- Source
- Arrow keys
- Menu
- 6D Function
- Volume +
- Volume -
- Mute
- Homepage
- Confirmation key (Play and Pause)
- Return
- Previous
- Next
1 | | Turn on/off the power |
2 | | Select the input signal source |
3 | | Used to adjust the parameter of the projector in the menu mode |
4 | | Press once: Back to the menu interface Press twice in succession: select 16:9/4:3 projection |
5 | | Press once: 6D function mode 1 Long press for 3 seconds: 6D function mode 2 |
6 | | Volume up |
7 | | Volume down |
8 | | Close the sound |
9 | | Back to main menu |
10 | | Confirm the option/Play or pause the video |
1 1 | | Return to the previous menu |
12 | | Switch to the previous video |
13 | | Switch to the next video |
Note:
- Install 2 pieces of AAA batteries into the remote before using it. Do not combine new batteries with old ones in remote controller, which can cause operation failure due to insufficient power supply.
- When using the remote controller, please make sure that the signal transmitter of the remote controller aims at infrared signal receiver of the projector.
- If you are not using the remote controller for an extended period, please take out batteries to prevent batteries leakage.
INSTALLATION
Installation Method
The projector can be hanged on the ceiling with special hanger frame, and placed on the stable desk to project the image according to the operating environment and requirements. In addition, the projector can be installed with following methods:
- Front projection Ceiling mount
| - Rear projection Ceiling mount
|
- Front projection Table mount
| - Rear projection Table mount
|
Keep the projector at a height where its lens is axial symmetry to the screen. If this is not possible, use the keystone correction function to adjust the projection image.
If you want to get a free projection screen, please contact us via Support@yabertech.com
Aspect Ratio: 16:9 |
Distance (ft.) | Screen Size |
5.50 | 50" |
7.80 | 70" |
11.0 | 100" |
13.0 | 120" |
16.4 | 150" |
21.8 | 200" |
The recommended projection distance is about Il ft, the shortest projection distance is 5.5ft.
The image size depends on the distance between projector and screen, there may be 3% deviation among above listed data. Different settings cause various distances.
Install on the Ceiling
- Please purchase an universal projector ceiling mount;
- Remove the four rubber pads on the bottom of the projector, you will see the screw holes and use the M5*11mm screws for installing the ceiling, and then install It.
STARTING THE UNIT
- Press the power key on the remote or projector, the indicator light will turn blue;
- Adjust the focus ring on the left side of the projector to get the best image performance, (If it is still blurry, please try to adjust the projection distance.)
- Use the 6D keystone function of the projector to get a rectangle projection screen;
- Connect the external device (Smart phone, iPad, Amazon Fire TV, TV box, DVD player Computer, etc.) in the corresponding interfaces of the projector, please be sure to select the corresponding source. If you do not select the correct source, the projector will not be able to detect the signal.
- Select the [Setting] menu, enter the [Options] menu, and then you can select the option [OSD Language] to set the preferred language of your main system
PS: Select the [Screen Mirroring] menu, enter the [Settings] menu-[System Setting] menu, then you can select the option [Language] to set the preferred language of your Screen Mirroring system.
IMAGE ADJUSTMENT
When using the projector for the first time, it normally displays an unclear image. This is due to the lens being out of focus or the incorrect trapezoid setting.
Please follow the below Steps to correct:
Focus Adjustment
Rotate the focus ring slowly. At the same time, check the focus point carefully.
The best focus point for the lens would be where the image most clear.
Note: If it is still blurry, please try to adjust the projection distance.
Auto 6D keystone Correction Function
Turn on the projector. Make sure the lens (A) is facing at the screen/wall (B).
Mode 1:
- Press the 6D button on the remote control once to enter Auto 6D keystone correction mode 1.
- Adjust the projection direction, the projection screen will automatically restore to a rectangle.
- Press the 6D button on the remote control again, the four corners of the projection screen will disappear and exit Auto 6D keystone correction mode.
Mode 2:
- Long press the 6D button on the remote control (or press and hold the OK button on the projector) to enter 3D keystone correction mode 2.
- Adjust the projection direction, the projection screen will automatically restore to a rectangle.
- Long press the 6D button on the remote control to exit 6D keystone correction mode.
Note:
- In mode 1 and mode 2, the auto 6D keystone correction function will work automatically.
- If you are not satisfied with the projection effect after correction please disable the auto 6D keystone correction function, short press the 6D button on remote control to reopen mode 1 and repeat the above operation.
- The above operation must be repeated every time after the machine is turned on.
- The projector cannot perform manual keystone correction in Auto 6D keystone correction mode.
- The 6D function supports side projection. However, if the side projection angle is too large, some pixels will be lost on the side, please understand!
SETTING UP THE PRODUCT
The projector's home page is as follow.
Select the desired input signal source (HDMI1/HDMI2/AV) on the home-page
- Input the USB Disk. select [USB] on the homepage and enter;
- Select the option [Movie/Music/Photo/TXT]
- Select the desired file (or folder to enter the subfolder) in the USB disk, then press the [OK] button to play it.
PS:
- lf you enter from the [Movie] menu, you can only play the video. The same as other 3 option.
- U disk cannot play PPT files, but you can play PPT files by connecting to a computer.
Play Interface
Menu | Function |
| Select play mode (Directory play/single cycle/directory loop) |
| Switch to the previous video |
| Fast Backward, rewinds the video back quickly while playing it. The rewinding speed ranges from 2X to 32X |
| Play or pause the current video |
| Fast Forward, pushes the video to move forward quickly while a in it. The forward speed ranges from 2X to 16X |
| Switch to the next video |
| Select all playlists in the current folder |
| TV setting |
Menu | Content | Mode | Function |
Picture Mode | User/Standard/Vivid/Soft | Brightness | Modify the picture parameters in the range 0-100 |
Contrast |
Saturation |
Sharpness |
Sound Mode | User/Standard/News/Music/Sport | 120Hz | Modify the sound parameters in the range 0-100 |
500Hz |
1.5KHz |
5KHz |
10KHz |
WiFi Setting
Wireless Connection
Warming Tips:
- The fluency of screen mirroring with wireless connection will be affected by the network environment. A bandwidth of 100Mbit or more is recommended when using screen mirroring.
- Make sure your mobile device is close to the projector when using wireless connection. A distance within 1 meter is recommended.
- Some mobile devices may not support screen mirroring due to the compatibility.
- Any questions, please feel free to email YABER via Support@yabertech.com.
iOS Cast (for iOS Devices)
- GO to home page — Select the [Screen Mirroring] menu Select the [Settings] Select the [Network Setting] menu — Open the WiFi function — Select your home WiFi from the list — Connect the V7 projector to your home WiFi.
- Back to [Screen Mirroring] menu — Select [iOS Cast] menu — Press the OK button to enter the [iOS Cast] menu.
- Select the [Settings] menu on your iOS device — Turn on the [Wi-Fi] function — Connect your OS device to the same home network as the projector.
- Open the [Control Center] on your iOS device — Select the [Screen Mirroring] function — Select and connect the iOS Cast receiver named (V7-iOSCast-xxxx] your iOS device screen will be displayed on the projection screen after 3 seconds.
Miracast (for Android Devices)
- Go to [Screen Mirroring] menu — Select the [Miracast] menu — Press the OK button to enter the [Miracast Setting] Menu.
- Select the [Settings] menu on your Android device — Select the [Screen mirroring] function — Select your Miracast receiver named [V7-AnCast-XXXX]— your Android device screen will be displayed on the projection screen after 3 seconds.
- On your Android device, tap [Settings] - [WLAN Display] - Turn [Wi-Fi] ON, Connect your home WiFi.
Note:
- Different brands of Android phones have different operations for select Screen Mirroring Display, please refer to your phone's manual.
[Multiscreen Wireless display/WLAN display/Screen mirroring/Wireless projection/Smart view etc. ] - Not all Android phones support this function. Please make sure it is supported before use.
Wired Screen Mirroring
for iOS Device
- Go to [Screen Mirroring] menu — Select the [iOS Cable Cast] menu — Press the OK button to enter the [Wired Screen Mirroring Setting] Menu.
- Plug the original cable of your IOS equipment to the USB-T Port.
- Show with "Do you trust this equipment?", tap "Trust".
for Android Devices
- Go to [Screen Mirroring] menu — Select the [Miracast] menu — Press the OK button to enter the [Wired Screen Mirroring Setting] Menu.
- Plug the original cable of your Android equipment to the USB-T Port,
- Android devices settings:
- Enter the [Setting] page of your device, click [About phone], click [Build number] 5 times;
- Return to the [Setting] page, click [System & updates], and enter Developer options;
- Open the [USB debugging], tap OK in the pop-up window.
Note:
The USB cable MUST be the ORIGINAL cable or the cable which can transfer the data, otherwise screen mirroring may fail. You can plug the cable into your laptop to check the availability of transferring the data
Bluetooth Setting
- Go to home page Select the [Setting] menu — Select the [OPTION] menu — Select the [BT Setting].
- Open the Bluetooth function and your Bluetooth device.
- Select [Available Device], click to begin/stop search the bluetooth devices nearby.
- Choose the Bluetooth device desired and press OK, wait a few seconds for a successful Bluetooth connection.
Note:
- The V7 projector is compatible with the Bluetooth headsets, Bluetooth speakers and Airpods, but not the Bluetooth keyboards or Bluetooth phones.
- If you have any question, please feel free to email YABER via: support@yabertech.com
- Select [Setting] menu on the projector's home page.
- Press " " key, the menu will move to "PICTURE" > *SOUND" > "TIME">>"OPTION".
- Select the adjust interface, use " " key to choose the wanted item.
- Press "OK" or " " to adjust the item parameter.
PICTURE MENU | MODE | FUNCTION |
Picture Mode | Medium, Soft, User, Vivid | Switch among the image mode |
Color Temperature | Medium, Warm, User, Cool | Switch among the color |
Aspect Ratio | 16:9/4:3 | Set up the aspect ratio of the image |
Noise Reduce | Off/Low/Middle/High | Noise adjustment |
Reduce Display Size | 50%-100% | Reduce the screen size from 100% to 50% |
Projection Direction | Front/Rear on Desk, Front/ Rear on Ceiling | Set up the projection mode |
FourPoint Correct on Setting | H Zoom: 0-50% V Zoom: 0-50% | |
Keystone Correct on Setting | -30-+30 | |
Infinity Zoom Setting | H Zoom: 70%-100% V Zoom: 70%-100% | Adjust H/V Zoom Setting |
Correction Resetting | | Reset the correction mode |
Reduce Display Size
- Press the button to select the [Reduce Display Size] menu, then press the [OK] bottom to enter the submenu.
- By pressing the button on the remote or projector, you can reduce the height and width of projection size up to 50%.
Projection Direction
- Front projecton Ceiling mount
| - Rear projection Ceiling mount
|
- Front projection Table mount
| - Rear projection Table mount
|
FourPoint Correction Setting
When the projection screen is not rectangular, it can be adjusted by 4-point keystone correction
- Press the button to select the [FourPoint Correction Setting[ menu, then press the [OK] bottom to enter the submenu.
- Keep pressing the OK button on the remote control or projector to select the point
- Press the arrow keys on the remote or projector to adjust the horizontal or vertical parameters, until the projection screen becomes the desired rectangle.
- Press the arrow keys on the remote or projector to adjust the horizontal or vertical parameters, until the projection screen becomes the desired rectangle.
: Keep pressing the OK button on the remote control or projector; until the positioning icon appears at the point desired, then release the button immediately.
: Press the arrow keys on the remote control or projector to adjust the horizontal or vertical parameters.
: Press the keys on the remote control to restore the original parameters.
Keystone Correction Setting
- Press the button to select the [Keystone Correction Setting] menu, then press the [OK] bottom to enter the submenu
- If the projection Image shows as (1) press the button on the remote or projector to increase the vertical parameter (-50~0), until to achieve the projection image (2).
- If the projection image shows as (3), then press the button on the remote or projector, and decrease the vertical parameter (0~50), until to achieve the projection image (4).
: Keep pressing the button on the remote control or projector to choose Hore Nere Correction or Rotate, then release the button immediately
: Press the button on the remote control or projector to adjust the horizontal or vertical parameters.
: Press the keys on the remote control to restore the original parameters
Infinity Zoom Setting
- Press the button to select the [Infinity Zoom Setting] menu, then press the [OK] bottom to enter the submenu.
- By pressing the button on the remote or projector, you can reduce the height or width of projection size up to 70%,
SOUND MENU | MODE | FUNCTION |
Sound Mode | Music, Movie, Sports, User; Standard | Set up the sound mode |
Balance | -50-+50 | Adjusting the balance |
Surround Sound | Off/Surround | Set up the surround mode |
SOUND MENU | MODE | FUNCTION |
Clock | | |
Sleep Timer | Off/10min/20min/30min/60min/90min | |
OPTION MENU | MODE | FUNCTION |
OSD Language | English. France, Italian, Spanish, etc. | Set up the language displayed in the operation interface |
BT setting | On/Off | Connect the Bluetooth Devices |
Restore Factory Default | | Reset the projector |
Color Range | Auto | |
Software Updates (USB) | Update software | Update the projector's software version |
Screen Mirroring System Update
System Settings Menu | MODE | FUNCTION |
Language | English, France, Italian, Spanish, etc. | Set up the language displayed in the screen mirroring system |
Local Update | Please press OK | Local update for screen mirroring system setting |
Online Update | Please press OK | Online update screen mirroring system setting |
Software Version | | |
Restore Factory Default | Please press OK | Restore user operation application configuration and screen minting system setting |
SIGNAL LINES CONNECTION
YABER V7 projector has 6 interfaces HDMI ports*2/USB ports*2/3.5mm headphone output/AV output. Please select the correct connecting port to connect your device (PC, Phone, DVD Player, Sound bar, USB, PS4 etc.)
Connect USB Disk
- Insert the U disk into either of the two ub input ports;
- You can directly enter the start-up screen on the home page, select the option [Movie/Music/Photo/TXT]
- Select the desired file (or folder to enter the subfolder) in the USB disk, then press the [OK] button to play it.
Connect the Devices via the HDMI ports
- Connect your TV stick or laptop to any HDMI port of the projector;
- Enter the home page to select the corresponding HDMI1 or HDMI2 as the signal source.
Connect to the DVD Player
Use the 3-in-1 AV cable in the package
- Tum on your DVD player and the projector;
- Connect the colorful female connectors to your DVD players RCA cable with the 3-in-1 AV cable in the package;
- Connect the black connector to the AV port of the projector, enter the home page to select [AV] as the signal source.
Or connect to the DVD Player with the HDMI cable in the package.
Connect to the Sound bar/Speaker
If your speaker has AUX port, please use your 3.5mm audio cable connect the projector and your speaker as the picture shows, enter the home page to select [AV] as the signal source.
SAFE SHUTDOWN
- Press the button on the projector or remote.
- Unplug the power cord of the projector.
- Cover the lens and store the projector in a cool and dry place.
TROUBLESHOOTING
Problems listed below might occur during the operation of your projector. Please refer to the possible factors which might cause the issue to do troubleshooting.
- When turning on the power switch, the indicator light does not work.
- The power might not be connected well.
- Check the over-heat protection system.
- The remote control does not communicate with the projector.
- The power switch at the back of the projector is turned on or off?
- The remote control's batteries are depleted?
- Something obstructing the signal between the remote and IR
- Strong light on IR directly.
- No image on the screen.
- Is the channel set-up correct?
- Is there an input signal?
- Is the input cable plugged well?
- Under PC mode, is the refresh rate > 75KHz?
- Blue screen, no picture, no sound.
Input cables connected right? - Picture right no sound.
- Input cables connected right?
- Volume at min or on Mute.
- Cant play the movies.
- The format of the video is right?
- Files are broken?
- Device is broken?
- There is picture, no sound?
The decode system doesn't match. - Can't find devices when connected with hard drive or flash drive.
Check if the device is broken. - Auto-off after working for a while.
- The projector ventilation is blocked
- The voltage is not stable.
- The over-heat protection system.
Documents / ResourcesDownload manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
Download YABER Pro V7 - 1080P Projector Manual
Need Assistance?
Do you have a question about the Pro V7 that isn't answered in the manual? Leave your question here.
