YABER V10 - 1080P Projector Manual

TIPS

1. Do not place projector in too warm or too cold room, because the high temperature or low temperature will shorten lifespan of the device. The working environment would be 50^oC~350^oC better.
2. If there are black spots on the projection screen, please don't worry, please contact Support@yabertech.com via email, we can send you a video about how to remove the dust.
3. The ventilation is equipped for the projector to work stably. Don't cover the vent with cloth, blanket or other things. Don't insert anything into the slit of the projector, or it may produce a short circuit or an electric shock to your device and cause damage.
4. The projector shall be strictly protected from strong impact, extrusion and vibration. Do not try to move and on strong impact, extrusion and vibration. Do not try to move and the internal circuit faults.
5. Lens, as the core component of the projector, is directly related to the picture definition and effect. The excessive dust thereon will affect Image quality. The dirty lens shall be wiped with soft cotton cloth for the glass lens surface. Hard cloth or abrasives shall not be used.

PACKAGE LIST

V10 Projector - 1
HDMI Cable - 1
Cleaning Cloth - 1
Remote Control - 1
3-in-1 AV Cable
User Manual - 1
Power Cord - 1
Cleaning kit - 1

PROJECTOR SPECIFICATIONS

Model V10

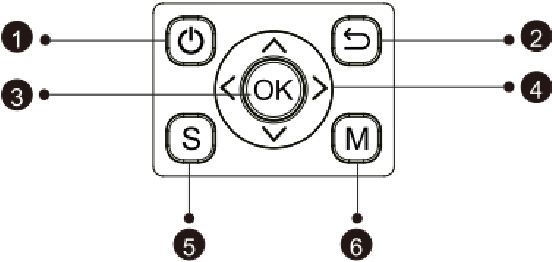

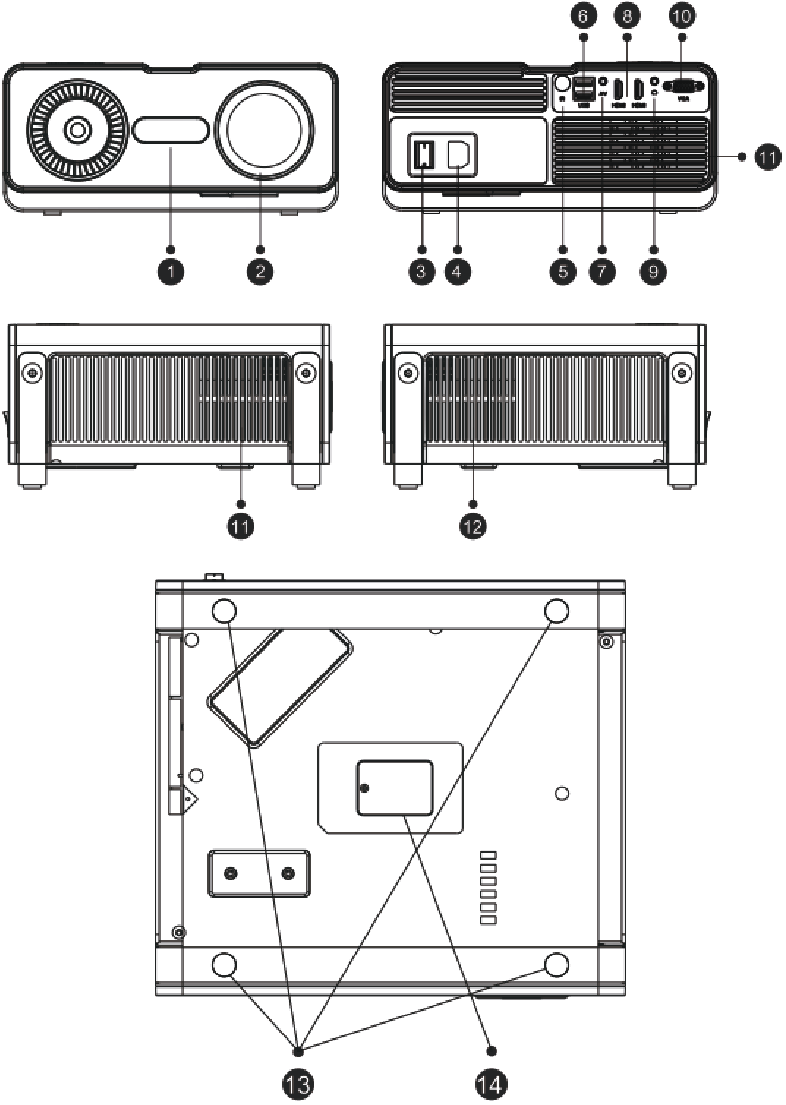

PROJECTOR OVERVIEW

1. Power
2. Back
3. OK
4. Arrow Keys
5. Source
6. Menu

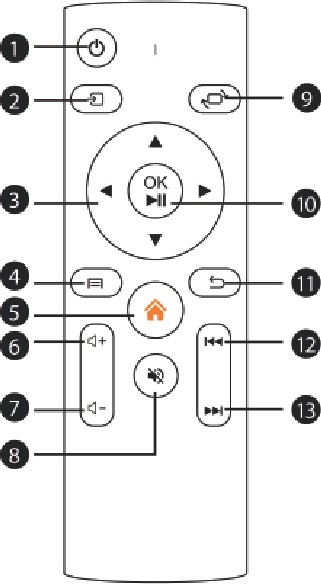

REMOTE CONTROL

1. Power
2. Source
3. Arrow keys
4. Menu
5. Homepage
6. Volume +
7. Volume -
8. Mute
9. Picture flip
10. Confirmation key (Play and Pause)
11. Return
12. Previous
13. Next

1		Turn on/off the power
2		Select the input signal source
3		Used to adjust the parameter of the projector in the menu mode
4		Press once: Back to the menu interface Press twice in succession: select 16:9/4:3 projection screen ratio
5		Enter the home page
6		Volume up
7		Volume down
8		Close the sound
9		Picture flips
10		Confirm the option/Play or pause the video
11		Return to the previous menu
12		Switch to the previous Video
13		Switch to the next Video

Note:

1. Install 2 pieces of AAA batteries into the remote before using it. Do not combine new batteries with old ones in remote controller, which can cause operation failure due to insufficient power supply.
2. When using the remote controller, please make sure that the signal transmitter of the remote controller alms at infrared signal receiver of the projector.
3. lf you are not using the remote controller for an extended period, please take out batteries to prevent batteries leakage.

INSTALLATION

Installation Method

The projector can be hanged on the ceiling with special hanger frame, and placed on the stable desk to project the image according to the operating environment and requirements. In addition, the projector can be installed with following methods:

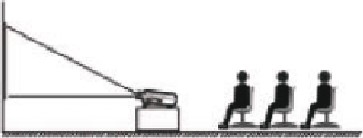

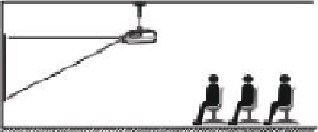

1. Front projection Ceiling mount

2. Rear projection Ceiling mount

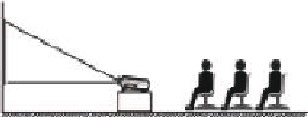

3. Front projection Table mount

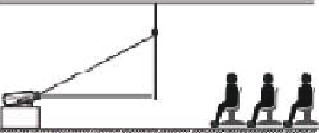

4. Rear projection Table mount


Keep the projector at a height where its lens is axial symmetry to the screen. If this is not possible, use the keystone correction function to adjust the projection image.
If you want to get a free projection screen, please contact us via Support@yabertech.com

Projection Distance and Size

The recommended projection distance is about 9ft, the shortest projection distance is 4.5ft.

The image size depends on the distance between projector and screen, there may be 3% deviation among above listed data. Different settings cause various distances.

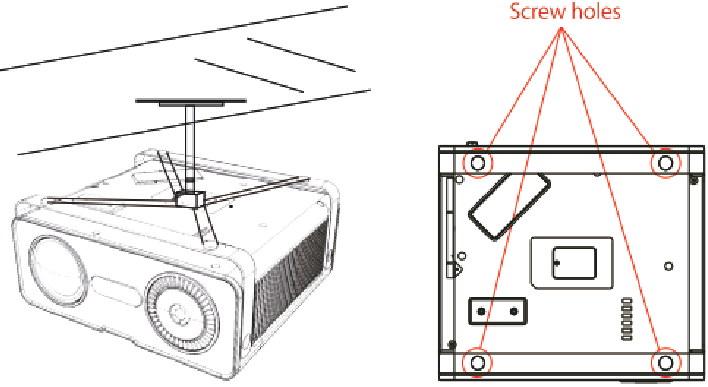

Install on the Ceiling

1. PIease purchase an universal projector ceiling mount;
2. Remove the four rubber pads on the bottom of the projector, you will see the screw holes and use the M4 screws for installing the ceiling and then install it.

STARTING PROJECTOR

1. Press the power key on the remote or projector, the indicator light will tum Green;
2. Adjust the focus ring on the left side of the projector to get the best image performance; (If it is still blurry, please try to adjust the projection distance.)
3. Use the 4D keystone function of the projector to get a rectangle projection screen;
4. Connect the external device (Smart phone, iPad, Amazon Fire TV, TV box, DVD player, Computer, etc.) in the corresponding interfaces of the projector, please be sure to select the corresponding source. If you do not select the correct source, the projector will not be able to detect the signal;
5. Select the "" menu, then you can select the option [ Language ] to set your preferred language.

IMAGE ADJUSTMENT

When using the projector for the first time, it normally displays an unclear image. This is due to the lens being out of focus or the incorrect trapezoid setting.

Please follow the below steps to correct:

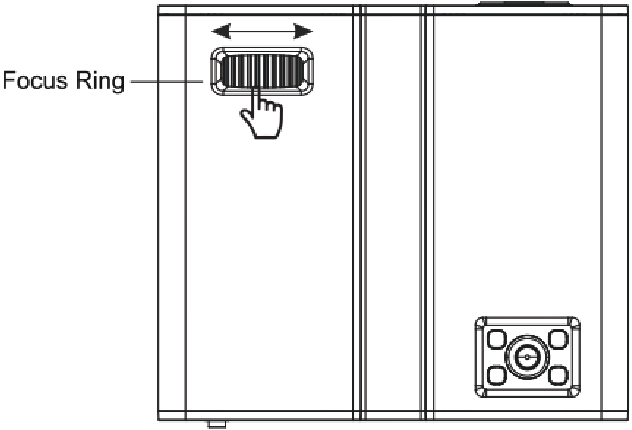

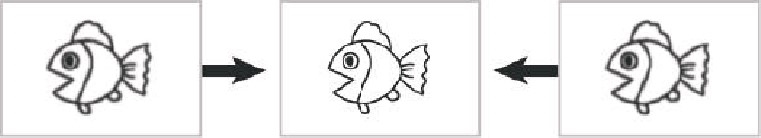

1. Focus Adjustment



Rotate the focus ring or lens slowly. At the same timet check the focus point carefully. The best focus point for the lens would be where the image most clear.

Note: If it is still blurry, please try to adjust the projection distance.

2. Digital 4D Keystone Correction.
   Use the digital 4D keystone correction of the projector to change the image to be rectangle(vertical and horizontal). Detail please refer in this manual.

SETTING UP THE PROJECTOR

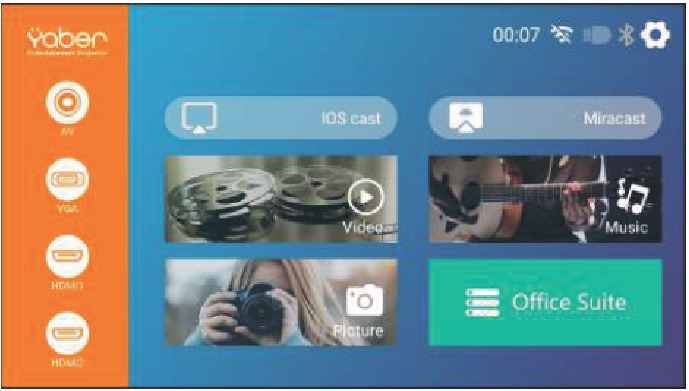

The projector's home page is as follow.

Select The Input Signal Source

Select the desired input signal source (HDMI1/HDMI2/AV) on the home-page

USB Disk Input Mode

Play Movie/Music/Photo/Office Suite in the USB Disk Input Mode

1. lnput the USB Disk, select [Office Suite] on the homepage and enter;
2. Select the option [Movie/Music/Photo/Office Suite]
3. Select the desired file (or folder to enter the subfolder) in the USB disk, then press the [OK] button to play it.

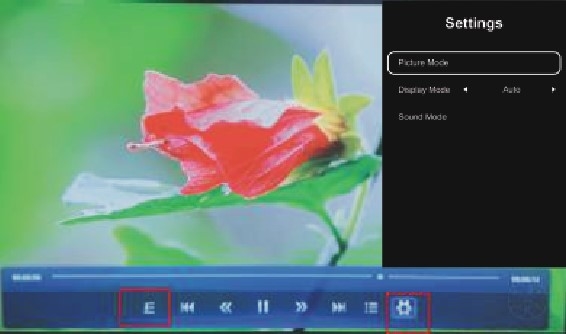

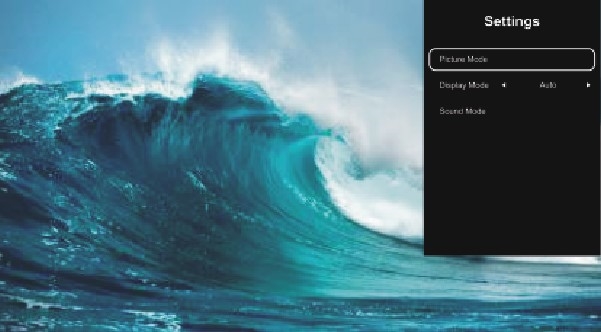

Play Interface

Menu	Function
	Select play mode (single cycle/directory loop)
	Switch to the previous video
	Fast Backward, rewinds the video back quickly while playing it. The rewinding speed ranges from 2X to 32X
	Play or pause the current video
	Fast Forward, pushes the video to move forward quickly while playing it. The forward speed ranges from 2X to 16X
	Switch to the next video
	Select all playlists in the current folder
	TV setting

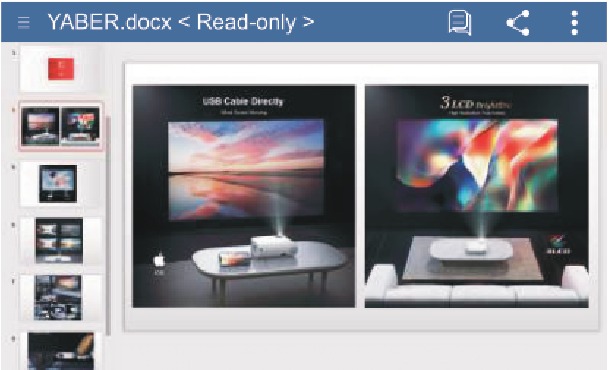

Office Suite Play Interface

By pressing the button on the remote to enter the menus.

( Note: the Office version may be automatically updated, then the updated functions may change. Due to copyright, some functions are temporarily unavailable. Please refer to the actual version. )

Menu			Content	Function
			Invalid key, please ignore.	/
			Invalid key, please ignore.	/
			Export to PDF	Export to PDF
			Protect	/
			Start slide show	From the current slide
			Advance slides	/
			Cast Presentation	/
			Go to Slide	Quickly select the desired page
			Zoom	Fit/Fit width/ActuaI size
			Properties	View the properties of file
			Help	Help instructions

WiFi Setting

Wireless Connection

Warming Tips:

1. The fluency of screen mirroring with wireless connection will be affected by the network environment. A bandwidth of 100Mbit or more is recommended when using screen mirroring.
2. Make sure your mobile device is close to the projector when using wireless connection. A distance within 1 meter is recommended.
3. Some mobile devices may not support screen mirroring due to the compatibility.
4. Any questions, please feel free to email YABER via Support@yabertech.com.

iOS Cast (for iOS Devices)

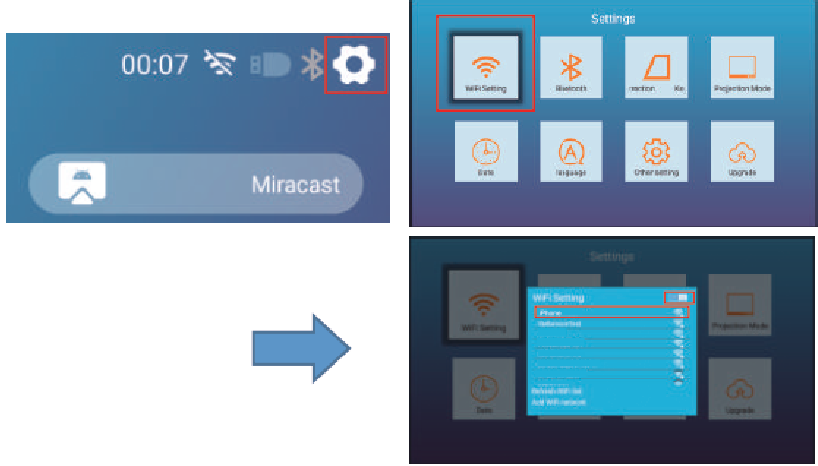

1. Go to home page — Select the [] menu — Select the [WiFi Setting] menu — Open the WiFi function — Select your home WiFi from the list — Connect the V10 projector to your home WiFi.

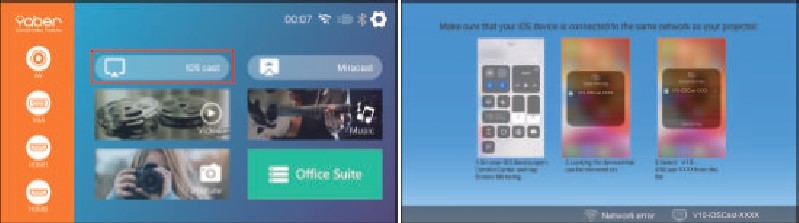

2. Back to home page — Select [ iOS Cast ] menu — Press the OK button to enter the [ iOS Cast ] menu.

3. Select the [ Settings ] menu on your iOS device — Turn on the [ Wi-Fi ] function — Connect your iOS device to the same home network as the projector.
4. Open the [ Control Center ] on your iOS device — Select the [ Screen Mirroring ] function — Select and connect the iOS Cast receiver named [ V10-iOSCast-xxxx ] - your iOS device screen will be displayed on the projection screen after 3 seconds.

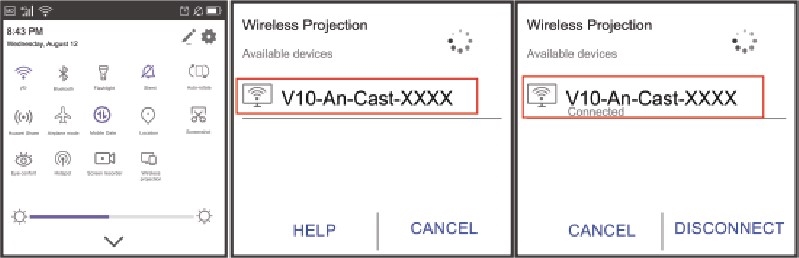

Miracast (for Android Devices)

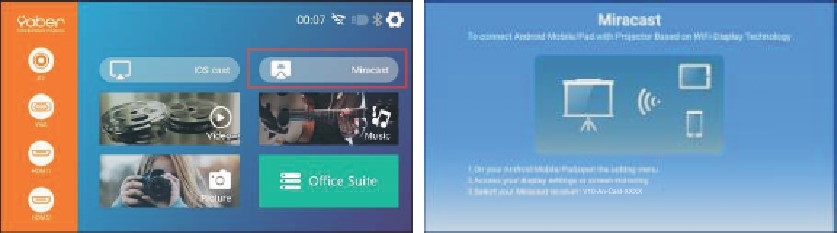

1. Go to home page — Select the [ Miracast ] menu — Press the OK button to enter the [ Miracast Setting ] Menu.

2. Select the [ Settings ] menu on your Android device — Select the [ Screen mirroring ] function Select your Miracast receiver named [ V10-An-Cast-XXXX ] — your Android device screen will be displayed on the projection screen after 3 seconds.

3. On your Android device, tap [ Settings ] - [WLAN Display ] -Tum [ Wi-Fi ] ON, Connect your home WiFi.

Note:

1. Different brands of Android phones have different operations for select Screen Mirroring Display, please refer to your phone' s manual. [ Multiscreen/Wireless display/WLAN display/Screen mirroring/Wireless projection/Smart view etc.]
2. Not all Android phones support this function. Please make sure it is supported before use.

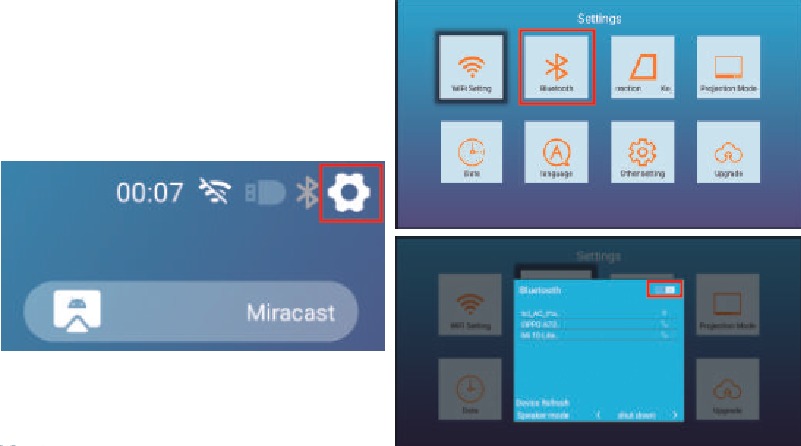

Bluetooth Setting

Go to home page — Select the [ ] menu — Select the [ Bluetooth Setting ] Option — Open the Bluetooth function and your Bluetooth device — Scan the Bluetooth devices nearby automatically — Choose the Bluetooth device desired — it will be paired and connected automatically.

Note:

1. The V10 projector is compatible with the Bluetooth headsets, Bluetooth speakers and Airpods, but not the Bluetooth keyboards or Bluetooth phones.
2. If you have any question, please feel free to email YABER via: support@yabertech.com

Projector Image Setting

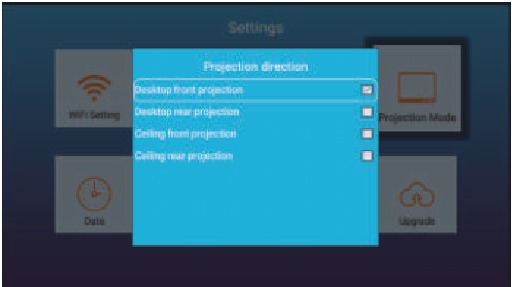

Projector Mode

Go to home page - Select the [] menu - Select the [Projector Mode] Option —- then select the four projection Direction you like.

1. Desktop front projection

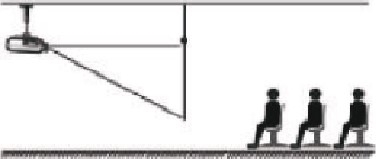

2. Desktop rear projection


3. Ceiling front projection


4. Ceiling rear projection

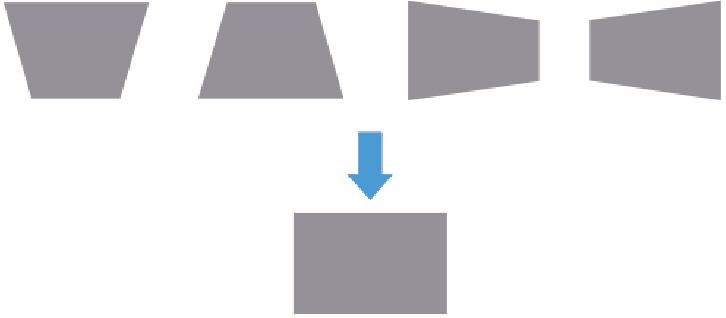

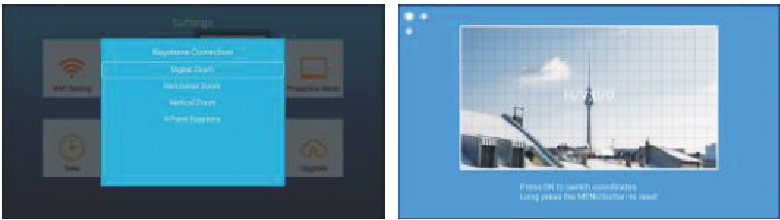

Four Point Keystone Correction

When the Projection screen is not rectangular, it can be adjusted by 4-ponit keystone correction.

Step 1: Go to home page — Select the [ ] menu — Select the [Keystone Correction] Menu;

Step 2: Press the button to select the [ 4-Point Keystone ] menu, then Press the [OK] button to enter the submenu.

OK Pick point: Keep pressing the OK button on the remote control or projector; until the positioning icon appears at the point desired, then release the button immediately.

Adjustment: Press the arrow keys on the remote control or projector to adjust the horizontal or vertical parameters.

Back: Press the key on the remote control to back to home page.

Reset: Long press the MENU button on the remote to restore the original parameters.

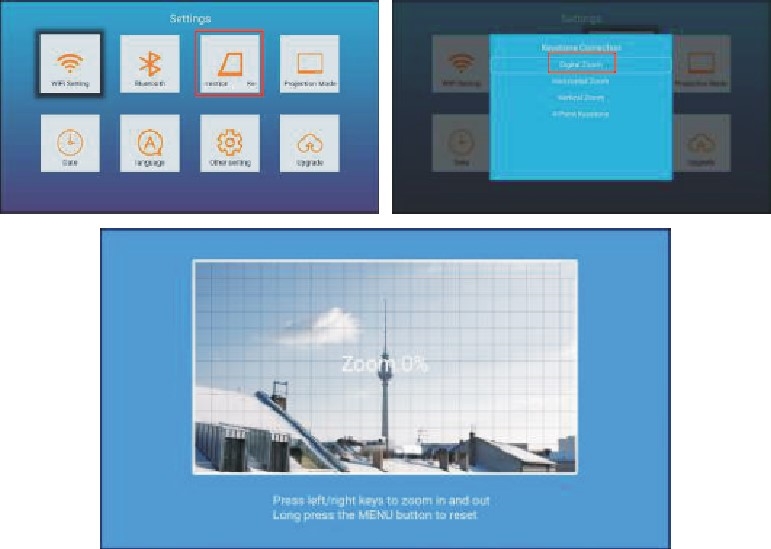

Digital Zoom

Step 1 :Go to home page — Select the [] menu — Select the [Keystone Correction] Menu.

Step 2: Press the button to select the Digital Zoom ]menu, then Press the[OK]button to enter the submenu.

Step 3: By pressing the button on the remote or projector, you can reduce the height and width of projection size up to 50%.

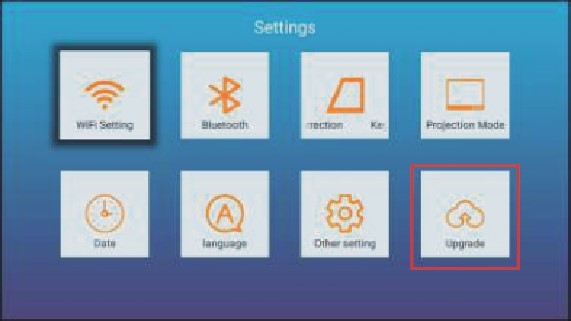

System Update

Step 1: Contact Yaber to get the latest file update (Support@yabertech.com), download the software.

Step 2: Copy the software <update.zip> to the root directory of the U disk, then insert the U disk into the projector and tum on the power switch. After booting up, go to settings, system upgrades, select the U disk storing update.zip, click to confirm the upgrade, it will automatically enter the upgrade, and it will automatically restart after the upgrade is completed.

Other Setting

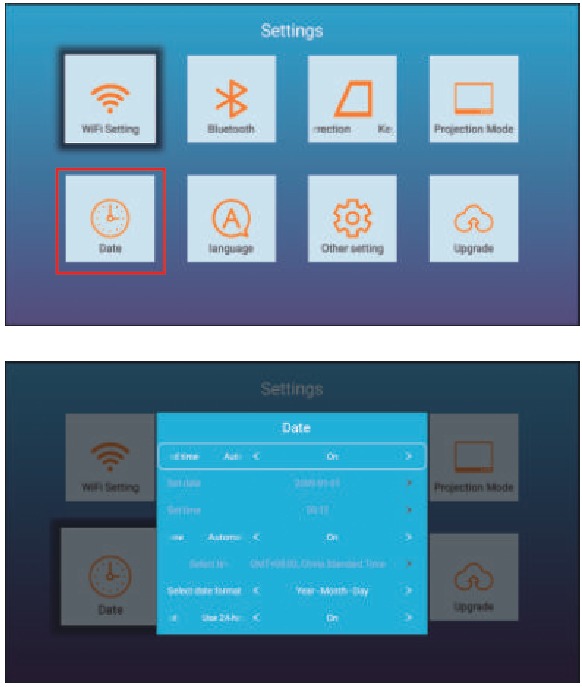

Date

Step 1: Go to home page — Select the [] menu — Select the [Date] Menu, then Press the [OK] button to enter the submenu.

Step 2: By pressing the button on the remote or projector, you can adjust the time and date.

About

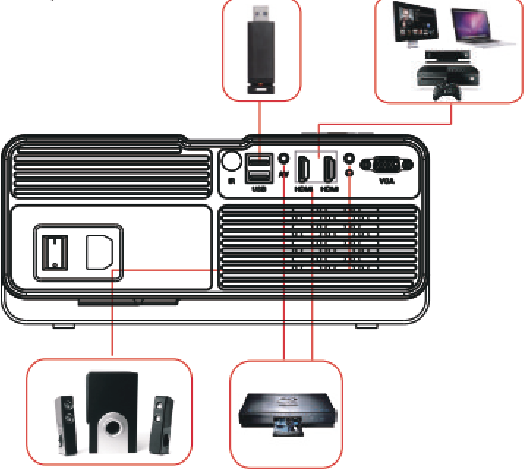

SIGNAL LINES CONNECTION

YABER V10 projector has 7 interfaces, HDMI ports*2/ USB ports*2/ 3.5mm headphone output/ AV output/ VGA interface*1. Please select the correct connecting port to connect your device (PC, Phone, DVD PlayerSound bar, USB, PS4 etc.)

Connect USB Disk

1. Insert the U disk into either of the two usb input ports;
2. You can directly enter the start-up screen on the home page, select the option [ Movie/Music/Photo/Office Suite]
3. Select the desired file (or folder to enter the subfolder) in the USB disk, then press the [ OK ] button to play it.

Connect the Devices via the HDMI ports

1. Connect your TV stick or laptop to any HDMI port of the projector;
2. Enter the home page to select the corresponding HDMI1 or HDMI2 as the signal source.

Connect to the DVD Player

Use the 3-in -1 AV cable in the package

1. Tum on your DVD player and the projector;
2. Connect the colorful female connectors to your DVD player's RCA cable with the 3-in-1 AV cable in the package;
3. Connect the black connector to the AV port Of the projector, enter the home page to select [AV] as the signal source.

   Or connect to the DVD Player With the HDMI cable in the package.

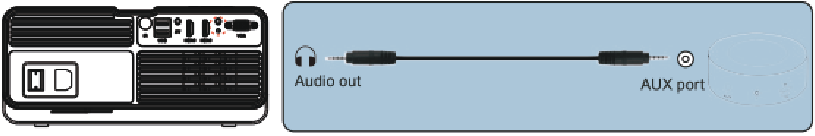

Connect to the Sound bar/Speaker

If your speaker has AUX port, please use your 3.5mm audio cable connect the projector and your speaker as the picture shows, enter the home page to select [ AV ] as the signal source.

SAFE SHUTDOWN

1. Press the button on the projector or remote.
2. Unplug the power cord of the projector.
3. Cover the lens and store the projector in a cool and dry place.

TROUBLESHOOTING

Problems listed below might occur during the operation of your projector. Please refer to the possible factors which might cause the issue to do troubleshooting.

1. When turning on the power switch, the indicator light does not work.
   1. The power might not be connected well.
   2. Check the over-heat protection system.
2. The remote control does not communicate with the projector.
   1. The power switch at the back of the projector is turned on or off?
   2. The remote controls batteries are depleted?
   3. Something obstructing the signal between the remote and IR
   4. Strong light on IR directly.
3. No image on the screen.
   1. Is the channel set-up correct?
   2. Is there an input signal?
   3. Is the input cable plugged well?
   4. Under PC mode, is the refresh rate > 75KHz?
4. Blue screen, no picture, no sound.
   Input cables connected right?
5. Picture right, no sound.
   1. lnput cables connected right?
   2. Volume at min or on Mute.
6. Cant play the movies.
   1. The format of the video is right?
   2. Files are broken?
   3. Device is broken?
7. There is picture, no sound?
   The decode system doesn't match.
8. Can't find devices when connected with hard drive or flash drive.
   Check if the device is broken.
9. Auto-off after working for a while.
   1. The projector ventilation is blocked.
   2. The voltage is not stable.
   3. The over-heat protection system.
