In-back/Out-back Cooling Kit for FK09a/FB09a and FK10a/FB10a
Installation Guide

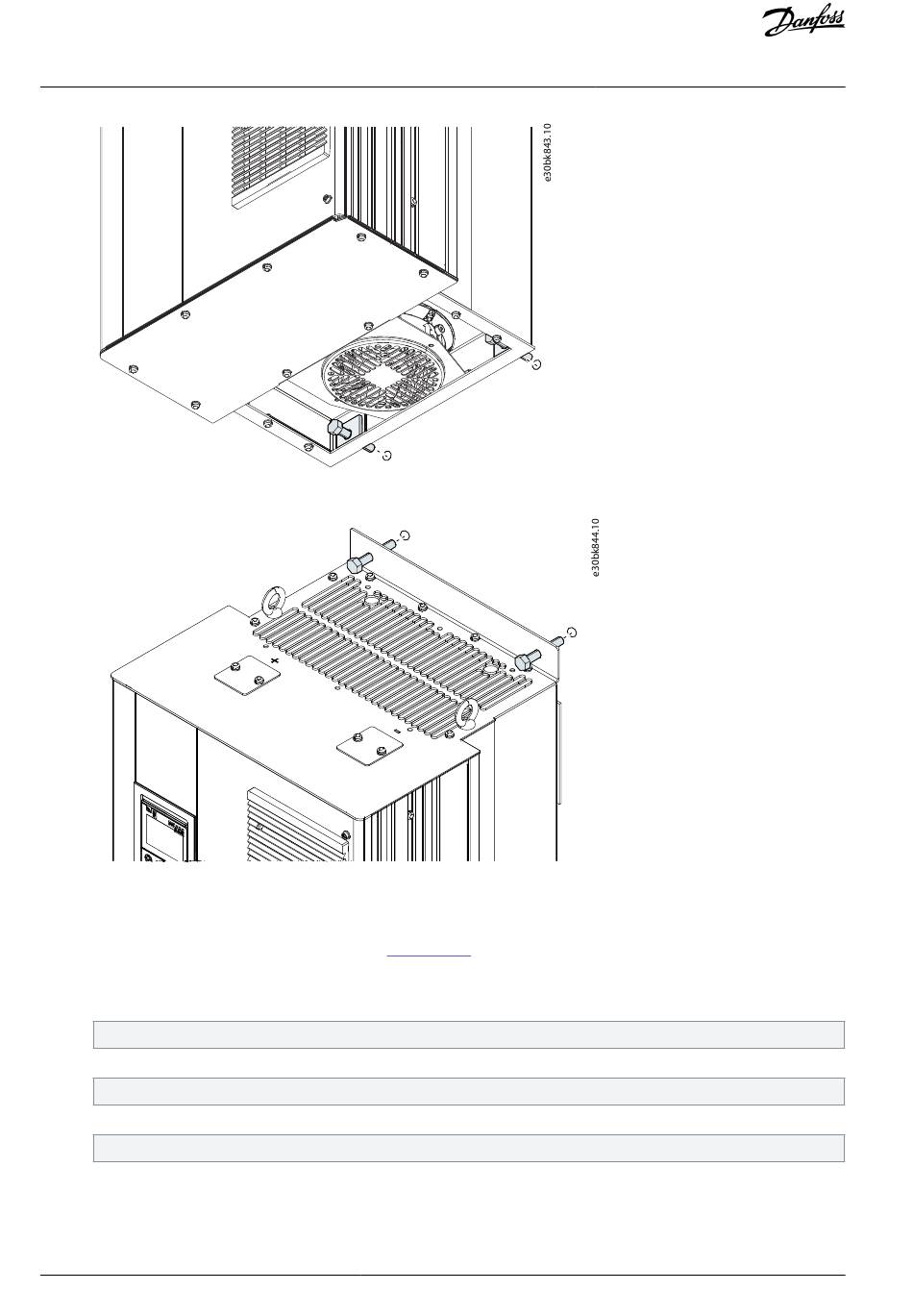

Illustration 8: Lower Mounting Screws with Seal Plates
Illustration 9: Upper Mounting Screws
2.6 Assembling the Lower Duct
To assemble the lower duct, use the following steps. See
Procedure
1. Peel the paper from the left and the right side gaskets, and press to attach the gaskets to the duct frame.
Align the holes in the side gaskets with the holes in the back opening of the duct frame.
2. Place the back grill over the left and right side gaskets.
The threaded studs in the grill go through the middle holes in the gasket and into the duct frame.
3. Secure the back grill to the duct frame using 1 M5 nut on each stud.
Torque to 2.3 Nm (20 in-lb).
4. Affix the grill gasket to the outer side of the back grill.
5.
Affix the bottom cover gasket to the bottom cover plate.
10 | Danfoss A/S © 2023.09
Illustration 10 .
