- Page 1 LynxPro User Guide 6 Warner Rd | Warner NH | 03278 603.456.2011 info@madgetech.com madgetech.com...
-
Page 2: Table Of Contents
LynxPro Overview App Overview Home/Devices Page Add Devices Page Reports Page Top Navigation Bar Settings Device Summer Page Device Settings Quick Start With MadgeTech App Quick Start With MadgeTech 4 Data Logger Software Battery Change Procedure 14-15 Support 603.456.2011 info@madgetech.com madgetech.com... -
Page 3: Lynxpro Overview

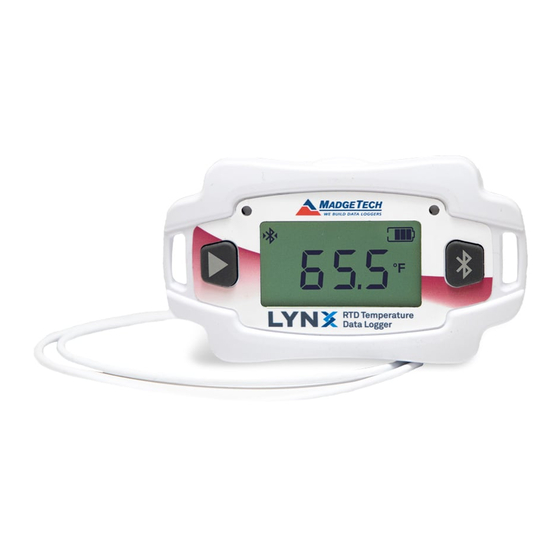

Displays current status and readings Connected via USB to power source Battery Door: Battery: User replaceable CR2450 battery Health monitor of the device battery Alarm: Current Reading: Alarm is activated The last reading the LynxPro has taken 603.456.2011 info@madgetech.com madgetech.com... -
Page 4: App Overview
Start which requires starting via the Play button on the logger or in delayed start waiting to start automatically when the delay start time is reached. To remove a device from your list, slide to the left. 603.456.2011 info@madgetech.com madgetech.com... -
Page 5: Add Devices Page
To share a report, click on the desired report. Determine whether to use defaults to send to contacts set in App Settings or Select App to share to other contact(s). To delete a report, slide left. 603.456.2011 info@madgetech.com madgetech.com... -
Page 6: Top Navigation Bar
If Automatic Report Generation and Automatic Report Sharing are also enabled, Quick Connect will automatically connect, download data, generate a report and share the report to the default contact. 603.456.2011 info@madgetech.com madgetech.com... -
Page 7: Settings
Specify the address to receive reports. For nonautomatic report sharing, alternate numbers may be used. Automatic Sharing: Automatically share report upon creation to the number and/or email above. Note that only successfully downloaded reports are shared automatically. 603.456.2011 info@madgetech.com madgetech.com... - Page 8 Specify how long after the initial warning all subsequent notification should be sent Calibration Period: Specify your calibration interval, as stated in your Standard Operating Procedure (SOP) Prior Warning: Specify how many days in advance you would like to receive a calibration reminder. 603.456.2011 info@madgetech.com madgetech.com...
- Page 9 Generate a report from the current data set. You will then be prompted to specify the report format, file name and the number and/or email address to automatically share to. Reports can also be shared from the Reports page after they are created. 603.456.2011 info@madgetech.com madgetech.com...
-
Page 10: Device Settings
Cumulative Alarm Delay: Count the cumulative time from the start of record that the temperature and/or humidity is outside of the specified range to trigger an alarm. 603.456.2011 info@madgetech.com madgetech.com... - Page 11 Applies the settings to the currently connected device. Create Profile: Creates a saved profile of the current Trigger Settings and Start/Stop Settings so that they can be applied to additional devices. Once pressed, you will be prompted to name your profile. 603.456.2011 info@madgetech.com madgetech.com...
-
Page 12: Quick Start
Install the MadgeTech Mobile App using one of A list of nearby devices will be presented. the QR Codes below. From this list, locate the LynxPro of interest and tap the desired device to add to your Devices/Home Page. Once installed, open the MT Mobile App. By default, you’re presented with the Home Screen. -
Page 13: Quick Start
LynxPro device with a Micro USB cable, ensuring Bluetooth is disabled. Once connected, the LynxPro should be listed in the Connected Devices panel. Once you see the device, select it and click Custom Start to launch the Start Device window. -
Page 14: Battery Change Procedure
Battery Change Procedure The LynxPro family of data loggers run on a CR2450 coin-cell battery, which is easy to find. These batteries are initially installed at the factory, but you can replace them yourself. The battery’s status is shown on the LCD display. When you see four bars, it’s a new or fully charged battery. As the battery’s life decreases, you’ll see fewer bars, and if there are no bars, you need to change the battery... -
Page 15: Support
With a new, fresh, CR2450 battery, position the battery with the “+” symbol up towards you. Deposit the battery into the LynxPro. You may find some reluctance due to a tight fit. The battery should be snug but not require significant force. - Page 16 Tips and Troubleshooting Unable to Find the Logger Anomalies – Alarms, Alerts and Warnings • Check for the Bluetooth indicator on the logger. If that is • In the device main the Status/Alarms is nominally green not present, hold down the Bluetooth button on the device indicating no reported issues.
