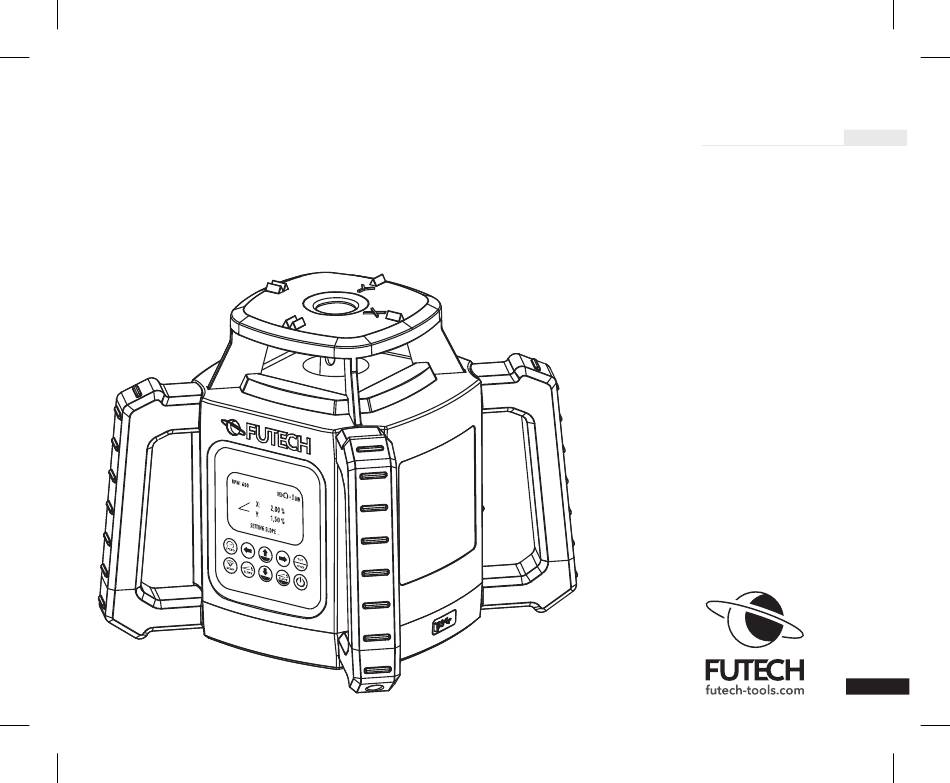

- Page 1 USER MANUAL EN ENGLISH 052.05R PARA DS RED Manual 052.05G PARA DS GREEN in your language? Check the back cover...
- Page 2 OVERVIEW...
-
Page 3: Remote Control
HOUSING KEYPAD REMOTE CONTROL 01 Laser head Power button Power / standby button 02 Plumb point up (Z-axis) Arrow UP button / Arrow UP button / Turn RIGHT button Turn RIGHT button 03 Keypad Arrow DOWN button / Arrow DOWN button / 04 X-axis Turn LEFT button Turn LEFT button... - Page 4 QUICK START GUIDE Power button Press Switch ON/OFF the device. Arrow UP button / Press (Man. slope, H) Change the slope. Y-axis rises on the side indicated by the arrow. Turn RIGHT button Press (Man. slope, V) Change the slope. Z-axis rises. Press (Digital slope) Increase the slope of the Y-axis.
- Page 5 Speed button Press Change spinning speed 0 – 120 – 300 – 600 – 800 RPM Scan button Press Use and change scan modus 0° - 10° - 45° - 90° - 180° f / g Tilt / Wind button Press H or hold f Switch ON/OFF Tilt security Hold H or hold g...
-
Page 6: Automatic Functions
SAFETY AUTOMATIC FUNCTIONS Please read the safety instructions provided as a AUTO-LEVELLING separate booklet with the device. This rotation laser first levels itself automatically LASER RADIATION – Class 2 Laser product. – Do after turning on the device. After being levelled, not stare into beam the laser starts spinning. The laser can level itself within an operating angle of approx. -
Page 7: Basic Mode
TILT SECURITY BASIC MODE (TILT-SECURITY AND WIND FUNCTION OFF) The tilt-security avoids measuring errors. By default, the laser will be active with the tilt-secu- In the basic mode the laser will stop spinning rity activated. After turning on the laser or after if the sensors detect a slight shock, such as a activating the tilt-security, the tilt-security will be vibration or gust of wind. - Page 8 WHAT IF MY (NEW) REMOTE CONTROL DOES NOT COMMUNICATE WITH MY DEVICE? · Press the power button [A] to activate the In normal circumstances, the supplied remote device. control is paired with the device. In exceptional · Press the power / standby button [a] to activate cases, or when you need to replace the remote the remote control.
-
Page 9: Horizontal Alignment
HORIZONTAL ALIGNMENT PLUMB LINE Thanks to the plumb line, which is projected via After turning on the device, the laser light blinks Plumb point up [02] and Plumb point down [08], without spinning. “Levelling” is shown on the this device can also be used to bring a plumb LCD screen [15]. - Page 10 Put the device on its feet vertical mode [10] for · Use the arrow LEFT button [D, d] or arrow vertical alignment (keypad should be at the top). RIGHT button [E, e] to move the vertical laser “Levelling” appears on the LCD display [15]. line.
-
Page 11: Scan Function
SPINNING SPEED SCAN FUNCTION 0 RPM 0 ° 120 RPM 10° 300 RPM 45° 600 RPM 90° 800 RPM 180° This device has multiple spinning speeds. 0, 120, The scan function allows to limit the laser beam 300, 600 and 800 RPM (rotations per minute). to an angle instead of the complete 360°... - Page 12 TILT SECURITY TILT TILT ALARM When this happens, you need to check if the 3 sec. laser is still in its correct position. TILT security avoids measuring errors when the tilt security detector had detected a small shock · Deactivate the Tilt security pressing the Tilt/ (e.g.
- Page 13 WIND FUNCTION BASIC MODE When both Tilt security and Wind function are WIND switched off, the laser device will use the Basic function. 3 sec. 3 sec. After levelling, the laser starts spinning. When the The wind function is often used when you need sensors detect a slight shock, such as a vibration to work on a vibrating surface or in windy condi- or a gust of wind, the laser will stop spinning and...
- Page 14 DIGITAL SLOPE, HORIZONTAL, <5° · Increase the slope percentage for the X-axis using the Arrow RIGHT button [E, e]. Use digital slope when you know the percentage of slope you need to set. (for example: 2% for · Reduce the slope percentage for the Y-axis drainage) using the Arrow DOWN button [C, c].
- Page 15 · Place the laser in its horizontal (normal) posi- tion. · Position the x-axis [04] and y-axis [05] of the SLOPE X SLOPE X laser device (shown on the metal window cover [18]) exactly in the parallel with the direction of the slope(s) you want to make.
- Page 16 · Turn on the device and wait until it is levelled In case you use this slope adapter: “Levelled” is visible on the LCD screen [15]. · Place the laser in its horizontal (normal) position on the slope adapter. Make sure the slope ·...
- Page 17 In some cases, unwanted reflections may occur while using a laser, for example when the laser beam shines on glass. This can lead to inaccurate measurement results and affect the proper functioning of the laser receiver. It is possible to shield part of the laser beam along the side where the reflection may occur. To do this, use the supplied anti reflection clip [16] by sliding them into the metal window cover [17].
-
Page 18: Specifications
SPECIFICATIONS 052.05R 052.05G PARA DS RED PARA DS GREEN Visibility Precision 1mm / 10m Range (with receiver) 2x ± 300m Dust- and water resistance IP65 Levelling Motorised Plumb bob ✔ Rotations per minute 0, 120, 300, 600, 800 Scan function 0°, 10°, 45°, 90°, 180°... -
Page 19: Declaration Of Conformity
NOTES DECLARATION OF CONFORMITY Futech (Belgium) declares under its own responsibility that this device: - 052.05R, PARA DS RED - 052.05G, PARA DS GREEN is in conformity with the standards EN 61000-6-3:2007+A1:2011, EN 61000-6-1:2007, EN 60825-1:2014, EN 61010-1:2010, following the provisions of... - Page 20 USER MANUAL other languages: DANSK ITALIANO DEUTSCH NEDERLANDS ESPAÑOL NORSK EESTI KEEL PORTUGUÊS SUOMEN KIELI SL SLOVENŠČINA FRANÇAIS SVENSKA ÍSLENSKA Facebook @futechtools LinkedIn futechtools World Wide Web futech-tools.com YouTube @futechtools...
