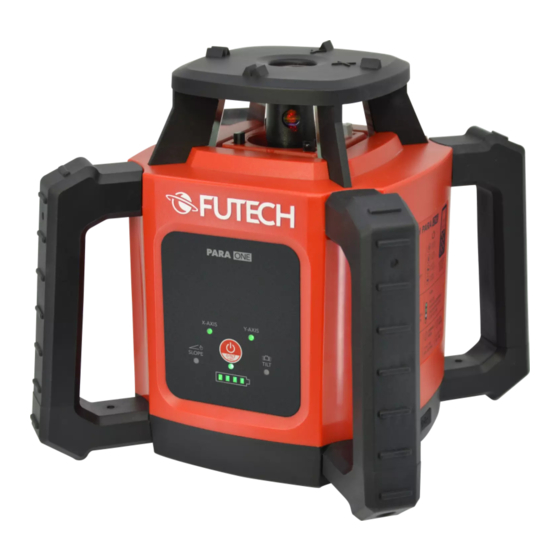

- Page 1 USER MANUAL EN ENGLISH 052.01R PARA ONE RED Manual 052.01G PARA ONE GREEN in your language? Check the back cover...
- Page 2 OVERVIEW...
- Page 3 HOUSING KEYPAD REMOTE CONTROL 01 Laser head Power button / Tilt Power / standby button 02 Plumb point up LED indicator X-axis Arrow UP button / Turn RIGHT button 03 Keypad LED indicator Y-axis Arrow DOWN button / 04 X-axis LED Slope indicator Turn LEFT button 05 Y-axis...
- Page 4 QUICK START GUIDE Power button Press short Switch ON/OFF the device Hold 3 sec. (de-)activate TILT security Power button Hold 3 sec. Set device in standby modus (no laser, no rotation, keep settings) Arrow UP button / Press Change the slope. Turn RIGHT button (in slopemodus) Y-axis rises on the side pointed by the arrow of the y-axis.
- Page 5 LED indicator Y-axis Green, continuous Levelled Green, flashing Levelling in progress Levelling not active Red, continuous Levelling not active, a slope was selected. LED Slope indicator Slope modus OFF Red, continuous Slope modus ON Red, flashing Laser out of levelling range LED Tilt/Wind indicator Tilt security &...
-
Page 6: Automatic Functions
SAFETY AUTOMATIC FUNCTIONS Please read the safety instructions provided as AUTO-LEVELLING separate booklet with the device. This rotation laser always levels itself automati- LASER RADIATION – Class 2 Laser product. – Do cally after turning on the device. After being lev- not stare into beam elled, the laser starts spinning. -
Page 7: Horizontal Alignment
start before the Tilt-security is active. Tilt-security is the best choice if accuracy is the NOTE most important. The Para One is a single button device. There are extra functionalities (slope, scan,...) available BASIC MODE (TILT-SECURITY AND WIND when using the provided remote control. FUNCTION OFF) In the basic mode the laser will stop spinning if the sensors detect a slight shock, such as a... - Page 8 When levelled, the laser beam and the LED · Place the laser beam exactly on this starting indicators X-axis [J] and Y-axis [K] will light point. (We recommend to use a tripod) continuously and the laser will start spinning at ·...
-
Page 9: Scan Function
0° - 10° - 45° - 90° - 180° - 0° - 10° - … NOTE The slower the rotational speed, the better the You can move the position of the light intensive visibility with the human eye. A faster rotation segment by holding the arrow up/turn LEFT speed is necessary to use a laser receiver. - Page 10 · Position the x-axis [04] and y-axis [05] of the Now we set the slope over the y-axis. laser device (shown on the metal window cover · Position the receiver in line with the y-axis at [17]) exactly in the parallel with the direction of the desired height on the rod to set the slope the slope(s) you want to make.
- Page 11 adapter is at is 0% position. functioning of the laser receiver. · Position the laser in the correct axis-direction, It is possible to shield part of the laser beam parallel with the slope line you like to make. along the side where the refl ection may occur. To do this, use the supplied anti refl ection clip [14] ·...
-
Page 12: Specifications
SPECIFICATIONS 052.01R 052.01G PARA ONE RED PARA ONE GREEN Visibility Precision 1mm / 10m Range (with receiver) 2x ± 300m Dust- and water resistance IP66 Levelling Motorised Plumb bob ✔ Rotations per minute 0, 60, 300, 600, 800 Scan function 0°, 10°, 45°, 90°, 180°... - Page 13 DECLARATION OF CONFORMITY Futech (Belgium) declares under its own responsibility that this device: - 052.01R, PARA ONE RED - 052.01G, PARA ONE GREEN is in conformity with the standards EN 61000-6-3:2007+A1:2011, EN 61000-6-1:2007, EN 60825-1:2014, EN 61010-1:2010, following the provisions of Directive(s) 2014/30/EU, 2014/35/EU.
- Page 14 NOTES...
- Page 16 USER MANUAL other languages: DANSK ITALIANO DEUTSCH NEDERLANDS ESPAÑOL NORSK EESTI KEEL PORTUGUÊS SUOMEN KIELI SL SLOVENŠČINA FRANÇAIS SVENSKA ÍSLENSKA Facebook @futechtools LinkedIn futechtools World Wide Web futech-tools.com YouTube @futechtools...
