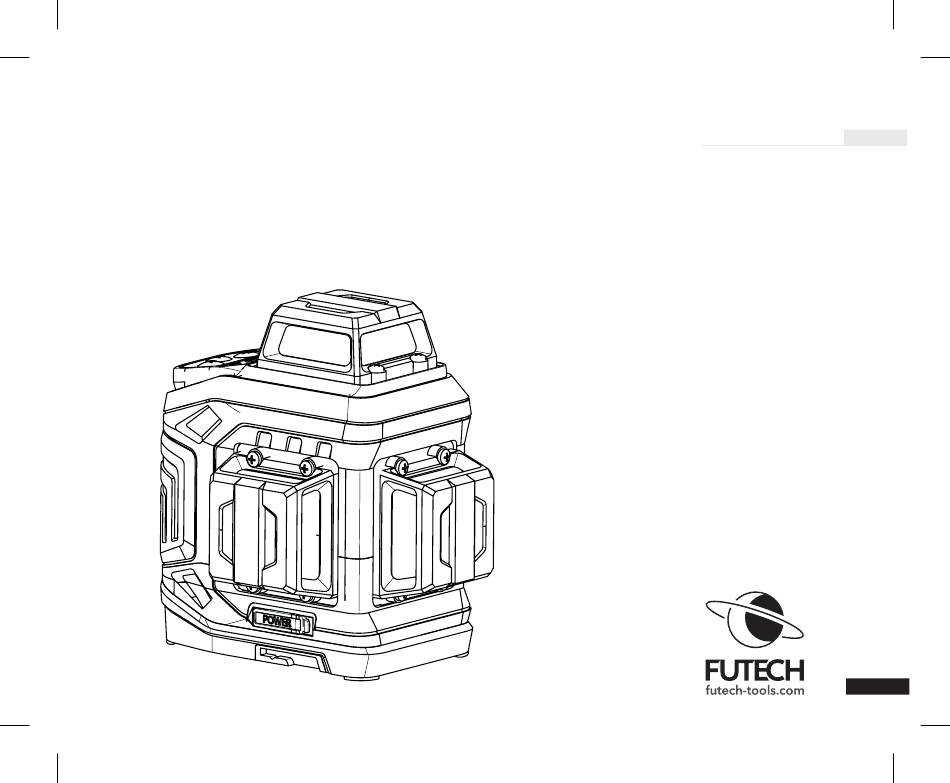

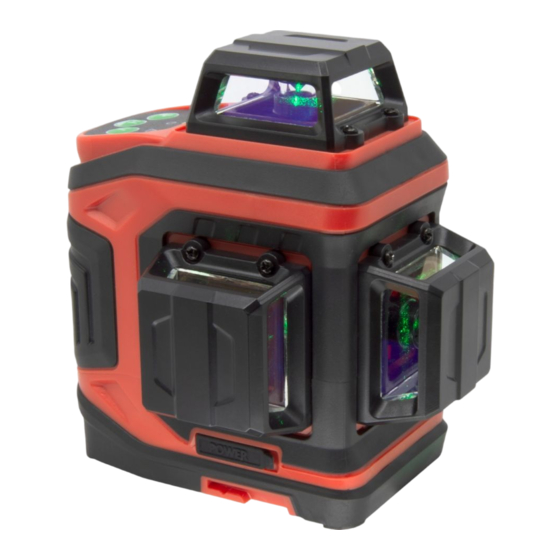

- Page 1 USER EN ENGLISH MANUAL 027.03D MULTICROSS 3D BRAVE GREEN Manual in your language? Check the back cover...
- Page 2 OVERVIEW CASE 01 Horizontal laserexit 02 Front vertical laserexit (V1) KEYPAD 03 Side vertical laserexit (V2) H-button for horizontal lines / Power button 04 On/Off/Transport security switch V-button for vertical lines 05 Battery compartment Receiver button 06 Tripod thread 1/4” D Power indicator 07 Power socket Receiver indicator...
- Page 3 TURNING TABLE OPTIONAL ACCESSORY ART.NR.: H027.TUR Rotation point Fine tuning Shifting plate Tripod thread 5/8” · Slide the device onto the turning table · Manually rotate the laser to the desired position · Using the fine tuning [b] the shifting plate [c] will move and brings the laser line is the exact position.
-
Page 4: First Time Usage
SAFETY Slide the On/Off/Transport security switch [04] to the “ON” position. The laser is switched on, the Please read the safety instructions is provided in pendulum levelling mechanism is released, and the separate booklet provided with the device. the instrument is able to level itself. LASER RADIATION –... - Page 5 VERTICAL LASER LINES The warning indicator [F] will flash fast and the laser lines will turn off. To change the projected vertical laser lines, press Place the laser device on a flatter surface, within the V-button for vertical lines [B]. the levelling range of 3°...
- Page 6 MANUAL SLOPE a laser receiver. Press the receiver button [C] again to turn off the receiver mode (pulse). NOTE All Futech laser will use 10Khz as frequency in receiver mode. Only receivers that can detect laser lines at 10KHz are compatible.
-
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS 027.3DG MULTICROSS 3D BRAVE GREEN DECLARATION OF CONFORMITY Visibility Futech (Belgium) declares under its own responsibility that Accuracy ± 2 mm / 10 m this device: - 027.3DG, MULTICROSS 3D BRAVE GREEN Range with receiver 2x 40 m Levelling range ±... - Page 8 USER MANUAL other languages: DANSK ITALIANO DEUTSCH NEDERLANDS ESPAÑOL NORSK EESTI KEEL PORTUGUÊS SUOMEN KIELI SLOVENŠČINA FRANÇAIS SVENSKA ÍSLENSKA Facebook @futechtools LinkedIn futechtools World Wide Web futech-tools.com YouTube @futechtools...
