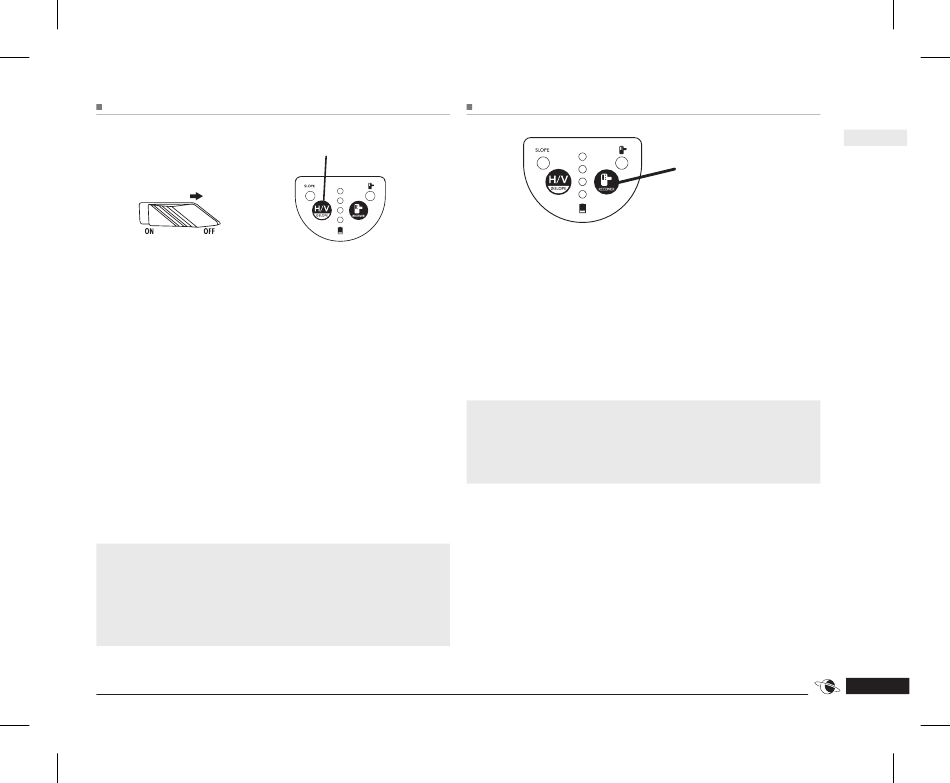

SLOPE MODE
&
Slide the on/off switch [04] to "OFF" so the laser
beams are turned off and the transportationlock
is active.
Press 3 seconds on the H/V button [A]. The hori-
zontal laser line H [01] will switches on and the
slope indicator [C] will light up. Now sloped lines
can be shown by balancing the laser device.
In order to use vertical lines, press the H/V button
[A] to activate laser line V1 [02]. Press a second
time in order to activate laser lines V1 [02] and
V2 [03]. Press another time to activate all laser-
lines.
Pressing a next time will switch off the laser.
IMPORTANT
In slope mode, the laser lines no longer levelled
automatically. A slow flashing laser lines will
remind you that the laser is not in automatic
leveling mode.

RECEIVER MODE

3 sec.
Press the receiver button [B] to turn on the receiv-
er mode (pulse). When this mode is activated, the
receiver indicator [D] will light up. At this
moment, laserlines can be picked up by
a laser receiver.
Press the receiver button [B] again to turn off
the receiver mode (pulse).
NOTE
All Futech laser will use 10Khz as frequency in
receiver mode. Only receivers that can detect
laser lines at 10KHz are compatible.
