MULTICROSS 3D COMPACT
MANUAL
030.03D
040.03D

Advertisement

loading
Need help?

Need help?

Do you have a question about the MULTICROSS 3D COMPACT 030.03D and is the answer not in the manual?

Questions and answers

Related Manuals for Futech MULTICROSS 3D COMPACT 030.03D

Summary of Contents for Futech MULTICROSS 3D COMPACT 030.03D

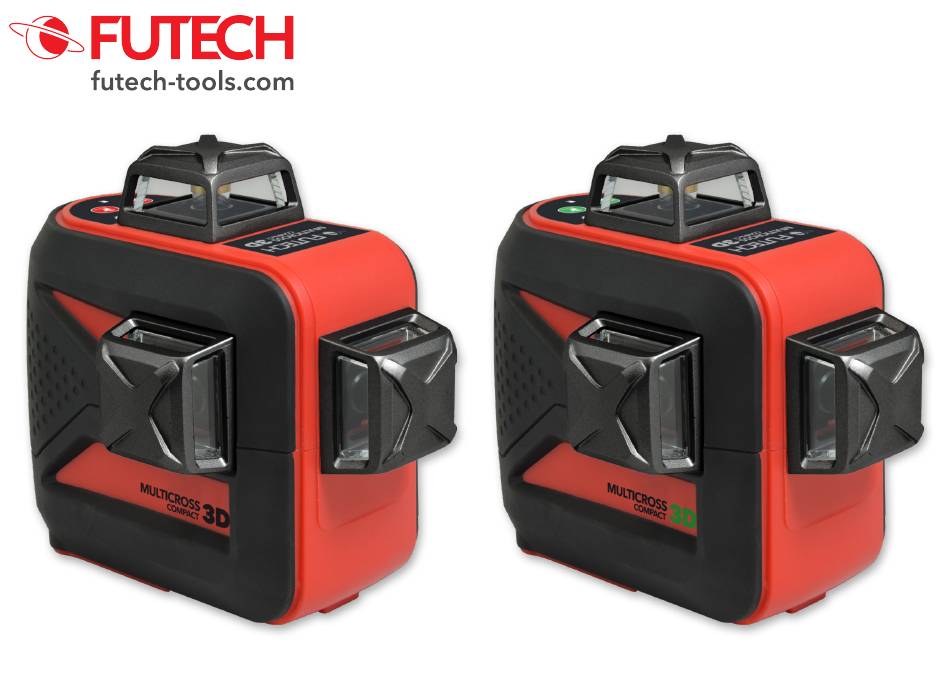

  • Page 1 MULTICROSS 3D COMPACT MANUAL 030.03D 040.03D...
  • Page 2 Congratulations! On choosing this FUTECH instrument. FUTECH provides measuring instruments of precision and quality. Contributions from professional end users enable us to offer innovative, easy-to-use equipment. IMPORTANT! Read the instructions for use carefully before using the instrument. Keep them in a safe place for consultation when necessary.
  • Page 3 MULTICROSS 3D COMPACT MANUAL Case Horizontal laserexit Vertical laserexit (V1) Vertical laserexit (V2) Switch On/Off / Transportlock Battery compartment Tripod thread 1/4” & 5/8” Slope indicator Line selecion button / Slope button Power indicator 10. receiver indicator 11. receiver button 12.
  • Page 4 First use Remove any protective films where applied. Open the battery compartment (5) and insert the li-ion battery. When you use 4x AA alkaline batteries, please take care to respect the indicated polarity. Shift the transport lock (4) to the “ON” position. The laser is switched on, the pendulum levelling mechanism is released, and the instrument is able to align itself on its own.
  • Page 5 MULTICROSS 3D COMPACT MANUAL Horizontal and vertical alignment ON: H After releasing the transportlock, and provided the instrument is within its levelling 1x: V1 2x: V1 + V2 range, the horizontal line is automatically levelled. You can activate or deactivate the 3x: H + V1 + V2 horizontal and vertical lines using the H/V-button (8).
  • Page 6 Receiver mode Press the receiverbutton (11) to turn on the receiver mode (pulse). When this mode is activated, the receiverindicator (10) will show. At this moment, laserlines can be push picked up by a laser receiver. Press the receiverbutton (11) again to turn off the receiver mode (pulse).

  • Page 7: Limits Of Use

    ∙ To inform FUTECH immediately if the ∙ Use with accessories from other manu- uations by the person in charge of the product and the application becomes facturers without the prior explicit ap- product.
  • Page 8 HAZARDS OF USE by lightning. international rules and regulations are WARNINGS ∙ Do not use the product in a thunder- observed. Before transportation or ∙ The person responsible for the product storm. shipping contact your local passenger must ensure that it is used in accord- ∙...

  • Page 9: Laser Classification

    MULTICROSS 3D COMPACT MANUAL environmental contamination. ∙ special warning signs in the laser distance should be multiplied by 2. By disposing of the product irrespon- working area Hence, if the instrument has an accura- sibly you may enable unauthorized if used and operated as defined in this user cy of 1 mm / 10 m, then in our example persons to use it in contravention of manual due to the low eye hazard level.
  • Page 10 Notes ................................... .

  • Page 11: Technical Specifications

    MULTICROSS 3D COMPACT MANUAL TECHNICAL SPECIFICATIONS accuracy ± 3mm / 10m range with receiver 2x 50m levelling range ± 3° levelling pendulum levelling slope fucntion manual (via pendulum lock) tripod thread 1/4” and 5/8” laser wavelenght 030.03d (red): 638nm 040.03d (green): 515nm laser classification class ii power supply...

This manual is also suitable for:

Multicross 3d compact 040.03d
