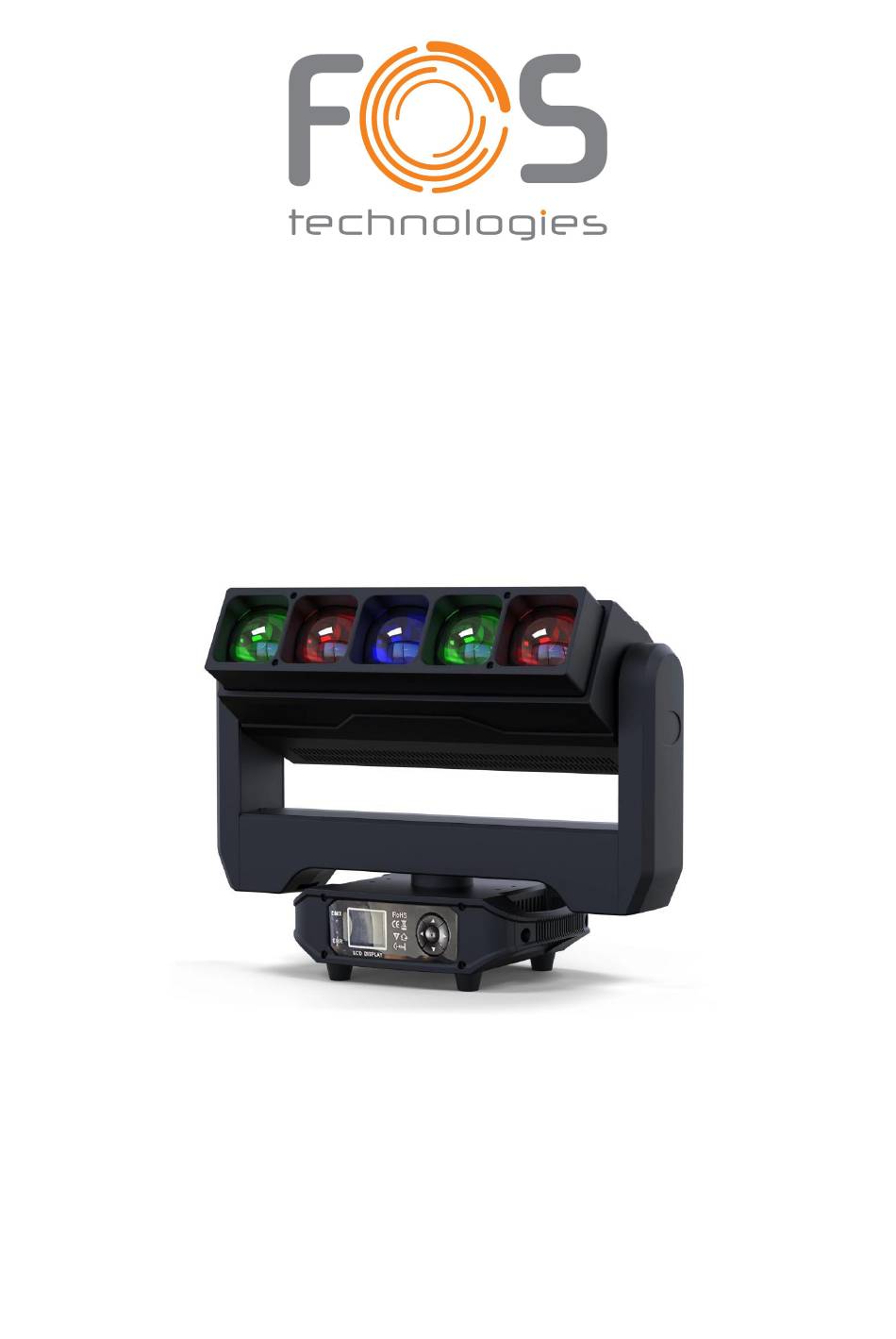

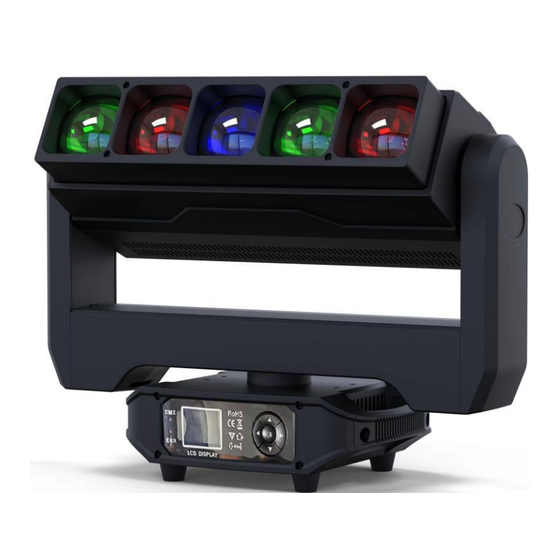

- Page 1 FOS Pixel Blade Ultra User Manual Please read this user manual before using this product...
-
Page 2: Safety Instruction
1. Checking before using Quan Item Unit tity Light piece Power cable with blue head piece User manual piece ★For security reasons and in accordance with the terms, reassemble or modify the product is not allowed without permission. Please note that due to human damage caused by improper use of the product, it will break the warranty qualification. -
Page 3: Product Specification
7. Don't touch any electrical wiring in the process of operation to prevent the risk of electric shock. 8. To make sure the light working environment temperature, the highest do not exceed 40℃, the lowest do not exceed - 20 ℃. 9. - Page 4 4. Display Main Function Address 1-512 DMX512 Auto CH24 DMX MODE CH62 DISPLAY No/Yes Signal Keep No/Yes Slave No/Yes INFO Version Vx.xx Tilt MANUAL Strobe RESET All Reset No/Yes 5. LCD Display Function Instruction...
- Page 5 6. DMX 512 Channel-24CH 24CH Function DMX Value Description 0-255 0-100% Pan Fine 0-255 0-100% Tilt 0-255 0-100% Tilt Fine 0-255 0-100% Pan Tilt speed 0-255 0-100% Zoom 0-255 0-100% Pan Infinite 0-255 0-100% Tilt Infinite 0-255 0-100% Dimmer 0-255 0-100% 0-19 No Function...
- Page 6 241-250 Show 24 251-255 Show 1-24 Show Speed 0-255 Show speed from slow to fast Auxiliary-Light 0-255 0-100% Dimmer 0-19 No Function Auxiliary-Light Strobe 20-255 Strobe from slow to fast Auxiliary White 0-255 0-100% 0-10 No Function 11-20 Show 1 Auxiliary-Light ：...
- Page 7 Pan Tilt Speed 0-255 0-100% Zoom 0-255 0-100% Pan Infinite 0-255 0-100% Tilt Infinite 0-255 0-100% Dimmer 0-255 0-100% 0-19 No Function Strobe 20-255 Strobe from slow to fast 0-255 0-100% Green 0-255 0-100% Blue 0-255 0-100% White 0-255 0-100% 0-10 No Function Background Color...
- Page 8 Dimmer 0-19 No Function Auxiliary-Light Strobe 20-255 Strobe from slow to fast Auxiliary White 0-255 0-100% 0-10 No Function 11-20 Show 1 Auxiliary-Light ： ： Show 241-250 Show 24 251-255 Show 1-24 Auxiliary-Light 0-255 Show speed from slow to fast Show Speed 0-250 No Function...
- Page 9 Green 3 0-255 0-100% Blue 3 0-255 0-100% White 3 0-255 0-100% Red 4 0-255 0-100% Green 4 0-255 0-100% Blue 4 0-255 0-100% White 4 0-255 0-100% Red 5 0-255 0-100% Green 5 0-255 0-100% Blue 5 0-255 0-100% White 5 0-255 0-100%...
- Page 10 Auxiliary White 12 0-255 0-100% Auxiliary White 13 0-255 0-100% Auxiliary White 14 0-255 0-100% Auxiliary White 15 0-255 0-100% Auxiliary White 16 0-255 0-100% Auxiliary White 17 0-255 0-100% Auxiliary White 18 0-255 0-100%...
