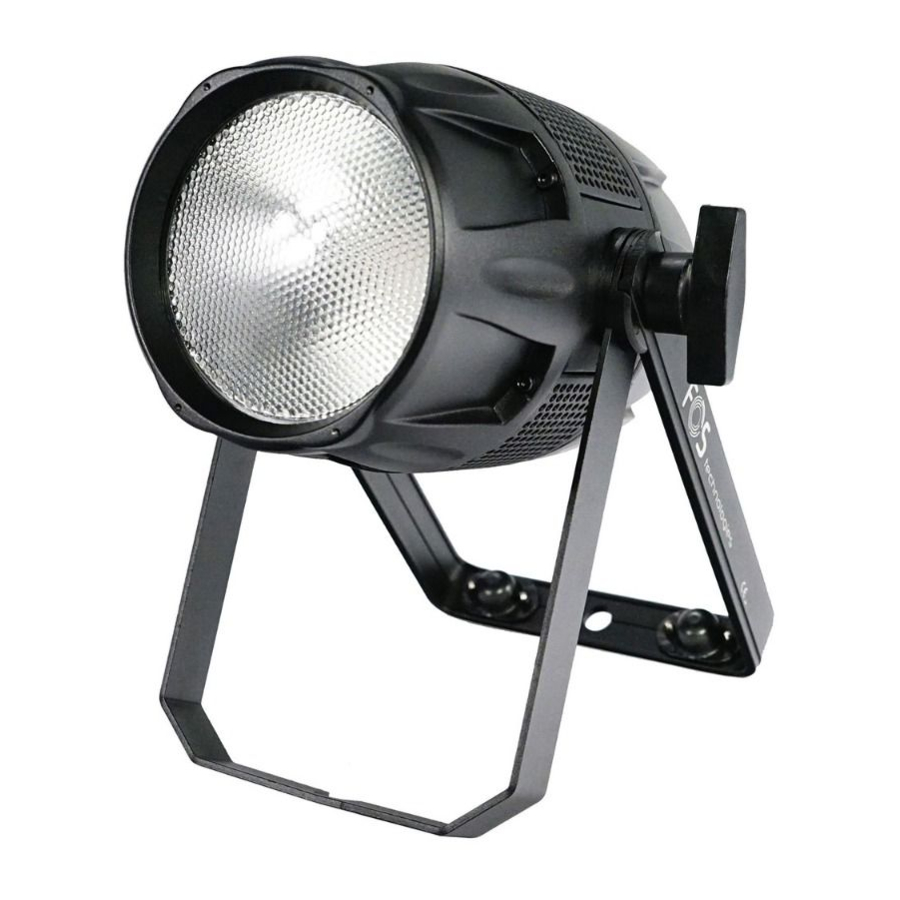

FOS Tour PAR 150
Thank you for choosing our goods please read this manual carefully before
your operating and keep this manual for future needs.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tour PAR 150 and is the answer not in the manual?

Questions and answers

Related Manuals for FOS Technologies Tour PAR 150

Summary of Contents for FOS Technologies Tour PAR 150

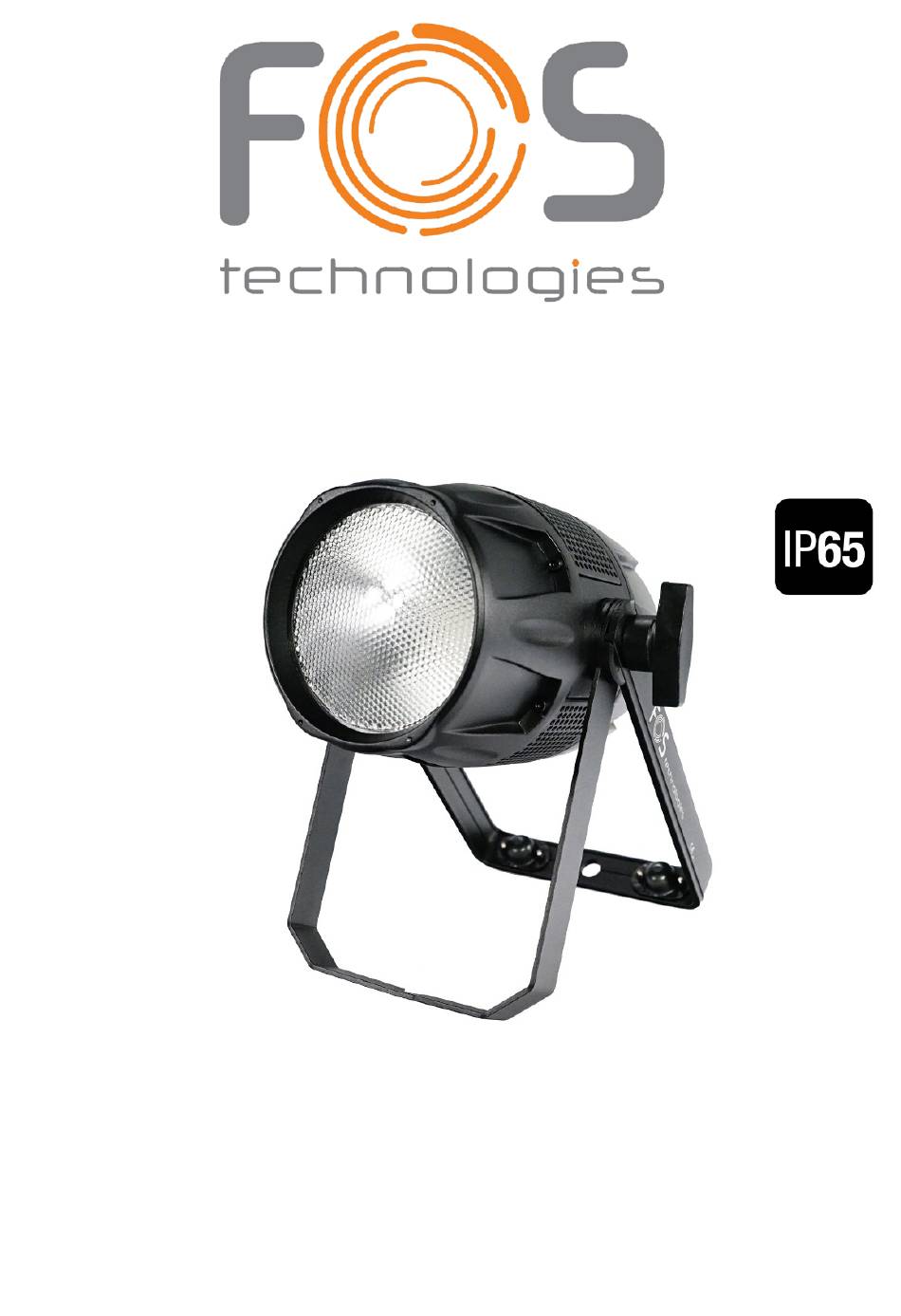

  • Page 1 FOS Tour PAR 150 Thank you for choosing our goods please read this manual carefully before your operating and keep this manual for future needs.
  • Page 2 Thank you for purchasing FOS Tour Par 150, Every unit has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit has arrived intact.

  • Page 3: Installation

    ● Please consider that damages caused by manual modifications to the device are not subject to warranty. Installation The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is rigidly fixed to avoid vibration and slipping while operating.
  • Page 4 • Size: 307x234x247mm • Net Weight: 3.5KG Product View Product Description 1. Menu 2. Pressure valve 3. DMX IN/ DMX OUT...
  • Page 5 4. POWER IN/POWER OUT Control Panel The control panel is the mechanism for configuring the LTP150 settings. It has a small LCD screen and four buttons, which are described below. Button Function Menu Scrolls through the first level of options, or Structure exits from the current menu or <MENU>...
  • Page 6 11CH Program 1 000-255 Program 2 Speed 000-255 Auto Program 3 ..Program 17 MIXED Color Off 000-005 ColorMacro Color1~46 006-255 Stand 000-255 Dimmer Alone Strobe 0~30Hz 000-255 000-255 Green Manual 000-255 Blue White 000-255 3000K/3500K/4500K/5500K/7500K Display Display Reverse Reverse Normal Normal Display...
  • Page 7 Dimmer 0.1-0.9s ~ 1- Speed Only for stage2 curve AutoLock Smart Fan Mode Silent 900Hz 1000Hz 1100Hz 1200Hz 1300Hz 1400Hz PWM Rate 1500Hz 2500Hz 4000Hz 5000Hz 6000Hz 10000Hz Code: down, down, down, up, Reset Passcode down, down,down, up Service Code: down, up, down, up, down, down, down, down.

  • Page 8: Master Dimmer

    000-255 Blinder Mode Channel 0%-100%, RedShift. Override other dimmer channel. 2 DMX Channels: VALUES FUNCTIONS 2 CH 000-255 MASTER DIMMER 0%-100% COLOR MACROS 000-007 No Effect 008~255 Color 1 ~46 4 DMX Channels: VALUES FUNCTIONS 4 CH RED 0%-100% 000-255 GREEN 0%-100% 000-255 BLUE 0%-100%...

  • Page 9: Color Macros

    COLOR MACROS 000-007 No Effect 008~255 Color 1 ~46 SHUTTER & STROBING 000-031 LED Off 032-063 LED On 064-095 Strobing Slow - Fast 096-127 LED On 128-159 Pulse Strobing 160-191 LED On 192-223 Random Strobing Slow - Fast 224-255 LED On 8 DMX Channels: VALUES FUNCTIONS...
  • Page 10 096-127 LED On 128-159 Pulse Strobing 160-191 LED On 192-223 Random Strobing Slow - Fast 224-255 LED On Blinder Mode Channel 0%-100%, RedShift. Override other 000-255 dimmer channel. 11 DMX Channels: VALUES FUNCTIONS 7 CH 000-255 MASTER DIMMER 0%-100% 000-255 0%-100% GREEN 000-255...

  • Page 11: Dimmer Modes

    000-255 Blinder Mode Channel 0%-100%, RedShift. Override other dimmer channel. COLOR MACROS 000-007 No Effect 008~255 Color 1 ~46 DIMMER MODES 000-020 Standard 021-040 Stage 041-060 061-080 Architectural 081-100 Theatre 101-120 Stage 2 DIMMER DELAY TIME 0.1Sec. 0.2Sec. 0.3Sec. 0.4Sec. 0.5Sec.

  • Page 12: Refresh Rate

    5.0Sec. 6.0Sec. 7.0Sec. 8.0Sec. 9.0Sec. 10Sec. 141-255 Default to Unit Setting REFRESH RATE 000-015 Default to Unit Setting 016-035 900HZ 036-055 1000HZ 056-075 1100HZ 076-095 1200HZ 096-115 1300HZ 116-135 1400HZ 136-155 1500HZ 156-175 2500HZ 176-195 4000HZ 196-215 5000HZ 216-235 6000HZ 236-255 10000HZ Troubleshooting...
  • Page 13 2. Not responding to DMX controller a. DMX LED should be on. If not, check DMX connectors, cables to see if link properly. b. If the DMX LED is on and no response to the channel, check the address settings and DMX polarity. c.
  • Page 14 Warranty The FOS Tour Par 150 fixture is guaranteed against manufacturing defects for the duration of two (2) years from the date of purchase. This warranty does not cover the unit for evidence of physical shock or damage caused by abuse or any use not in accordance with the operating conditions set forth in the present user manual.
