Valcom V-2006A User Manual page 8

66 BLOCK CONNECTIONS FOR THE V-2006A AND V-2006AHF
System Tip
System Ring
Override Tip
Override Ring
Music Input
Music Input
Page Port Access CC
Inhibit
Zone 1-Low Level Output Tip
Zone 1-Low Level Output Ring
-24 Volt Out
GND Out
Zone 2-Low Level Output Tip
Zone 2-Low Level Output Ring
-24 Volt Out
GND Out
Zone 3-Low Level Output Tip
Zone 3-Low Level Output Ring
-24 Volt Out
GND Out
Zone 4-Low Level Output Tip
Zone 4-Low Level Output Ring
-24 Volt Out
GND Out
Zone 5-Low Level Output Tip
Zone 5-Low Level Output Ring
-24 Volt Out
GND Out
Zone 6-Low Level Output Tip
Zone 6-Low Level Output Ring
-24 Volt Out
GND Out
Zone 1-Handsfree Output Tip
Zone 1-Handsfree Output Ring
Zone 2-Handsfree Output Tip
Zone 2-Handsfree Output Ring
Zone 3-Handsfree Output Tip
Zone 3-Handsfree Output Ring
Zone 4-Handsfree Output Tip
Zone 4-Handsfree Output Ring
Zone 5-Handsfree Output Tip
Zone 5-Handsfree Output Ring
Zone 6-Handsfree Output Tip
Zone 6-Handsfree Output Ring
Clock Closure
Clock Closure
UNA Closure
UNA Closure
UNA Ringing
UNA Ringing
* POWER SUPPLIES MAY BE ADDED FOR ADDITIONAL SPEAKERS ON ANY ZONE IF REQUIRED

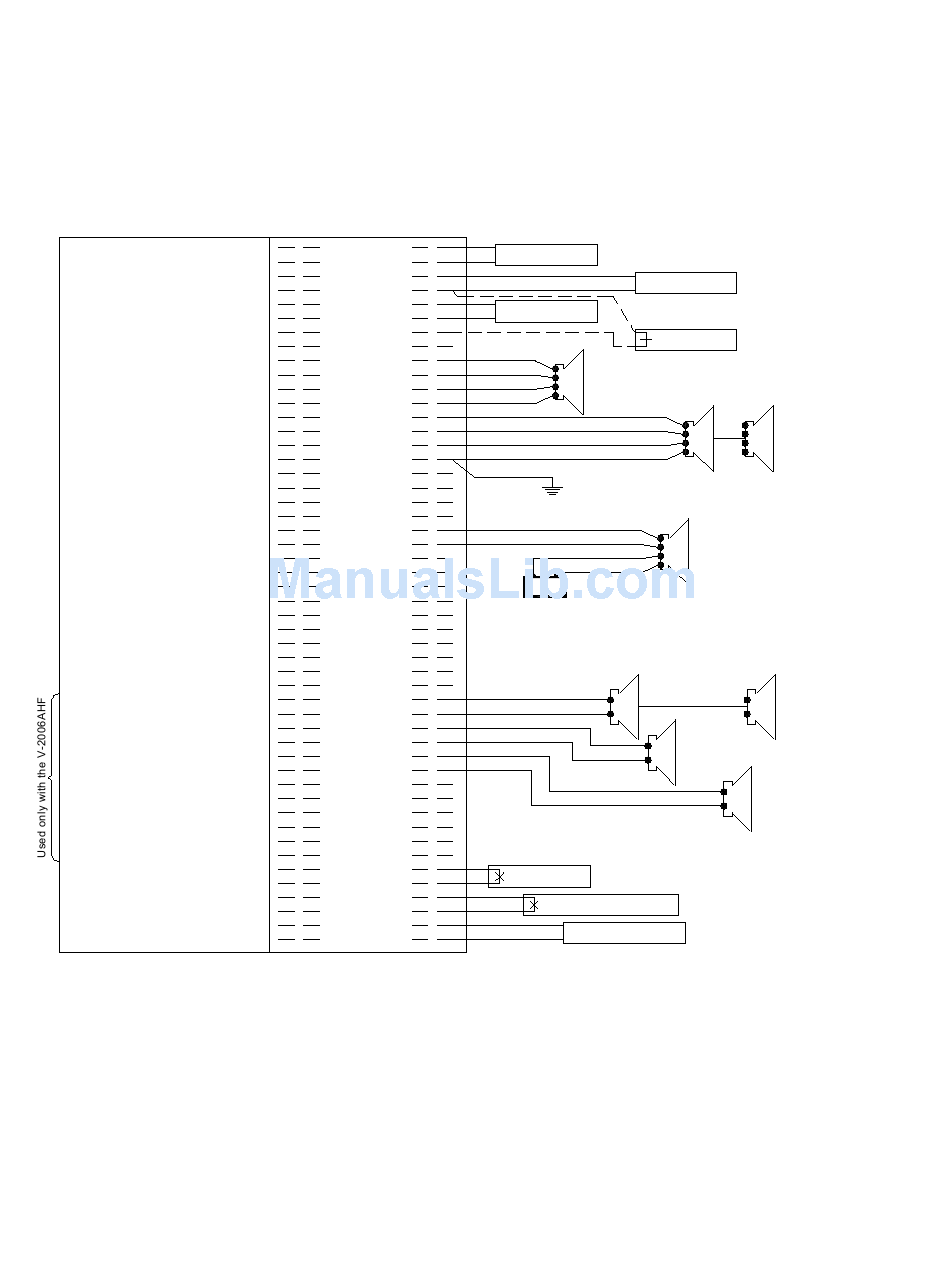

FIGURE 1
26 WH/BL
Loop or GND Start
Trunk or Page Port
1 BL/WH
27 WH/O
2 O/WH
28 W/GR
3 GR/W
29 W/BR
4 BR/W
TIP
30 W/S
RING
5 S/W
-24 VDC
31 R/BL
GND
6 BL/R
32 R/O
7 O/R
33 R/G
8 G/R
34 R/BR
9 BR/R
35 R/S
10 S/R
36 BK/BL
11 BL/BK
37 BK/O
OPTIONAL
12 O/BK
LOCAL
POWER
38 BK/G
SUPPLY
13 G/BK
*
39 BK/BR
14 BR/BK
40 BK/S
15 S/BK
41 Y/BL
16 BL/Y
42 Y/O
17 O/Y
43 Y/G
18 G/Y
44 Y/BR
19 BR/Y
45 Y/S
20 S/Y
46 V/BL
21 BL/S
47 V/O
22 O/Y
48 V/G
Time Clock Dry
Contact Closure
23 G/V
49 V/BR
24 BR/V
50 V/S
25 S/V
8
To Loop or Ground
Start Trunk Override
Low Level
Music Input
Contact Closure
(Page Port)
VALCOM
AMPLIFIED
SPEAKER
TIP
RING
-24 VDC
GND
Appropriate
Telephone
(Ground strap required
System
for Ground Start access)
Ground
TIP
RING
-24 VDC
GND
-
+
-24 VDC
Telephone System Common
Audible Dry Contact Closure
90 VAC Ringing from an
assigned Station Port
VALCOM
AMPLIFIED
SPEAKER
VALCOM 45 ohm
TALKBACK SPEAKERS
(V-2006AHF only)
