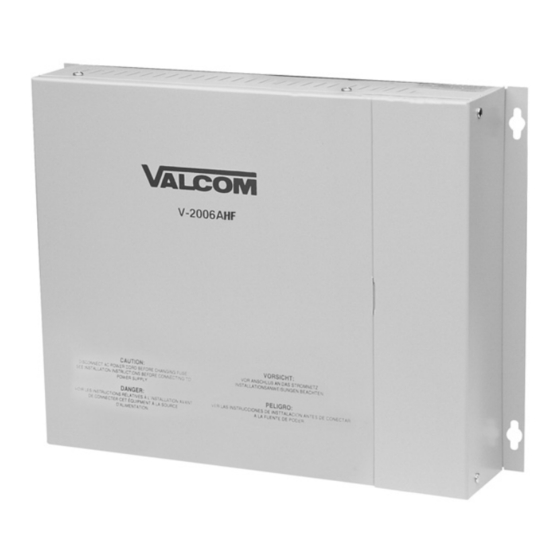

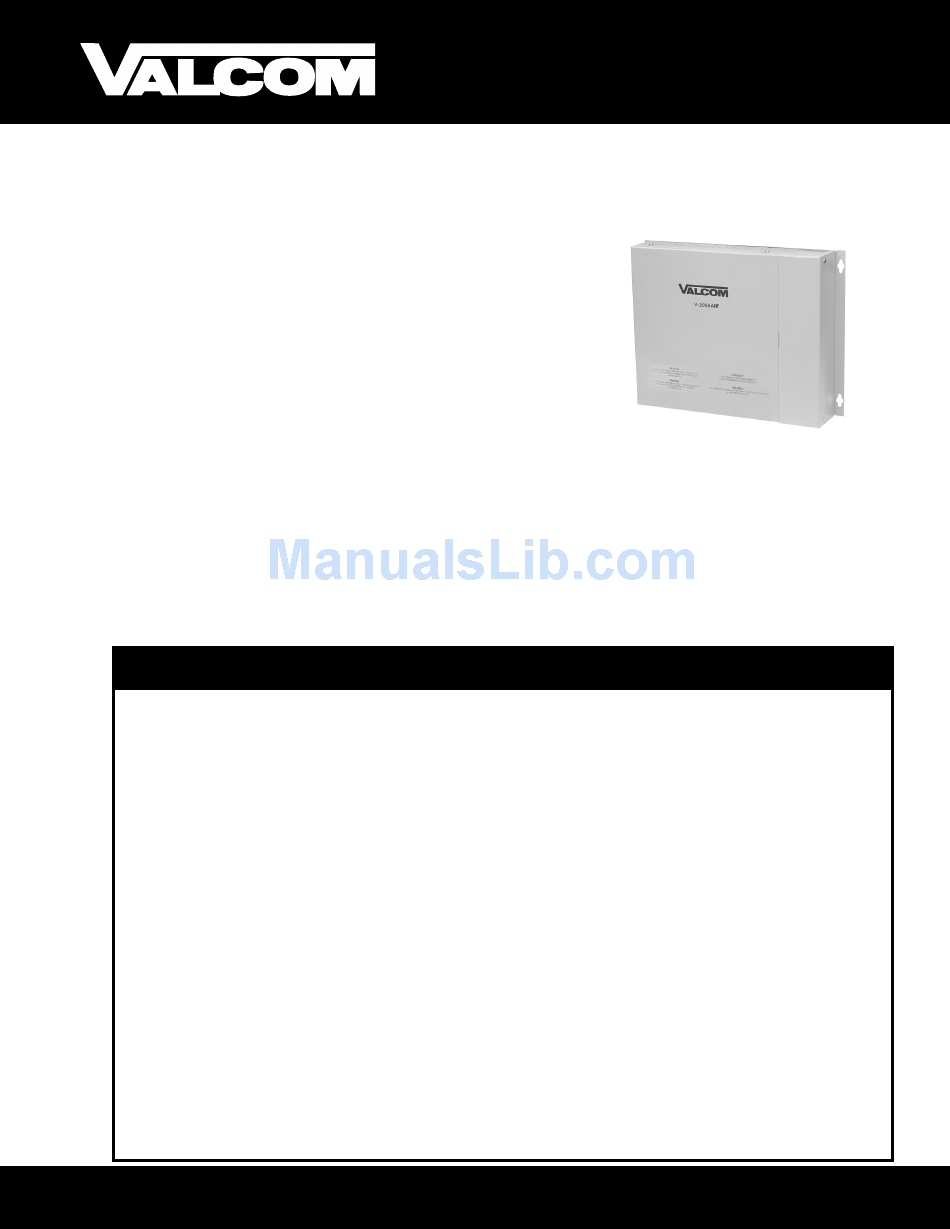

SIX ZONE INTEGRATED TALKBACK PAGE CONTROL

FEATURES:

LOOP START, GROUND START, PAGE PORT ACCESS
SIX ZONES OF HANDSFREE TALKBACK PAGING
ONE-WAY PAGING CAPABILITY
THREE GROUP CALLS AND ONE ALL CALL GROUP
BACKGROUND MUSIC INPUT
INTEGRATED SINGLE/WARBLE TONE GENERATORS
FEATURES PROGRAMMABLE PER ZONE
INTEGRATED POWER SUPPLY
PROVIDES EXTERNAL POWER FOR ONE-WAY AMPLIFIED SPEAKERS
BATTERY BACK-UP COMPATIBLE
PAGE OVERRIDE INPUT
EXPANDABLE ALL CALL

DESCRIPTION:

A telephone-compatible six-zone, handsfree talkback page control unit with integrated power supply,
group call, all call, integrated single/warble tone generator, background music input, priority page input and
expandable all call.
POWER REQUIREMENT
2 Amp at 120 Vac
INPUTS/OUTPUTS
Input Impedance: 600
Music Source Impedance: 8 to 600 ohms
Music Input Level: -10 dBm nominal
Low Level Output Impedance: 8 ohms
Low Level Output Level: -10 dBm nominal
DC Output: -24 Vdc at 1.5 Amp
Additional Talkback Outputs
Output Impedance: 45 ohms
Output Level: 1 watt nominal
Voice Switch Sensitivity: -26 dBm

CONTROLS

Tone Volume
Background Music Volume
All Call Page Volume
AUXILIARY RELAYS
2 Form C make-break contacts
Rated 2 Amps at 30 Vdc
5614 Hollins Road
Roanoke, Virginia 24019
E-Mail: support@valcom.com
MODEL V-2006AHF

SPECIFICATIONS:

CONNECTIONS:

Unit equipped with male 50 pin amphenol connector
for input/output connections. An RJ11 jack is also
provided for tip and ring input connections. A three
prong polarized Molex connector is provided for
battery back-up connection.

ENVIRONMENT

Temperature: +32 to +104
Humidity: 0-85% Non-Condensing

HOUSING AND FINISH

Constructed of gray painted aluminum alloy

DIMENSIONS AND WEIGHT

10.25" (26.67 cm) H x 13.0" (33.02 cm) W x 2.69"
(6.83 cm) D. Shipping Weight: 9.0 lbs (4.09 kg)

ACCESSORIES

Model VPB-260 Battery Back-up Supply
Phone: 540-563-2000
TECHNICAL
SPECIFICATIONS
º
F (0 to +40
Fax: 540-362-9800
www.valcom.com
º
C)
