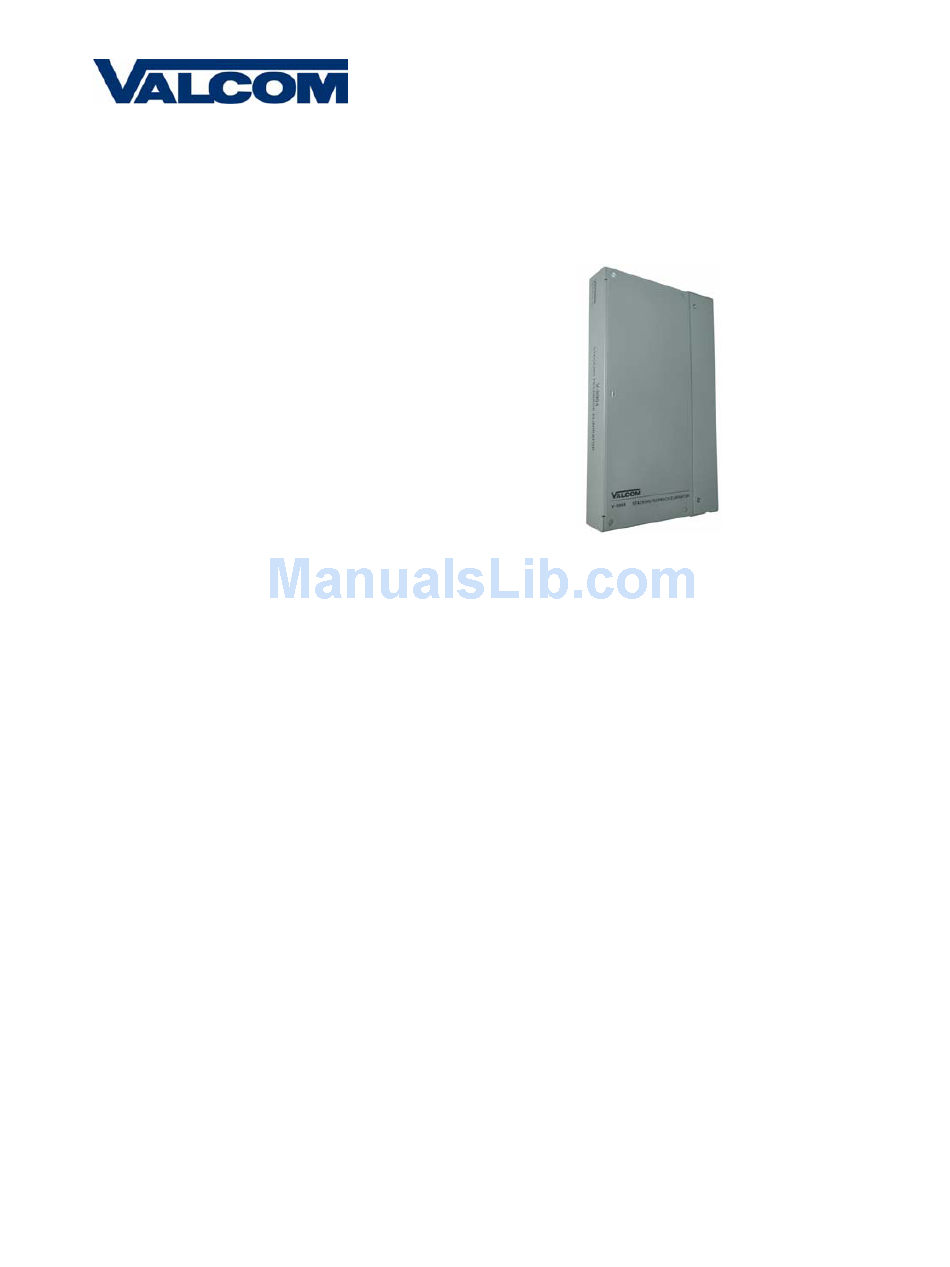

Valcom V-9964 User Manual

Digital Feedback Eliminator/Message Stacker
General Design
The V-9964 is designed to eliminate acoustic
feedback and act as a message stacker. When
a page is made, the message is digitized and
saved. Upon completion of the live page, the
message is released for broadcast over the
speakers. While a message is being broadcast,
a second message may be recorded.
Additionally, up to four V-9964 units may be
chained together to allow up to eight messages
to be simultaneously processed.

Specifications

Features
•
Automatic Gain Control (AGC)
•
Adjustable VOX sensitivity
•
Compatible with Valcom Multi-Zone Control
Units and Station Adaptors
•
Two input channels: Switch selectable
primary and priority, or two channels with
equal priority; both inputs are switch
selectable for Loop Start or VOX operation
•
Two audio outputs:
600 Ohms with loop supervision to a page
control unit or 8 Ohms line level output to
amplified speakers
•
Background music input
•
Total of three normally open relay contacts
for PLAY, RECORD and BUSY modes (one
contact each)
•
LED status indicators for POWER,
RECORD, PLAY and BUSY
•
Dip switch option programming
•
Message abort feature
Access
•
Vacant Loop Start Trunk Port
or C. O. Line Port
•
Page Port
•
Line Level Audio Feed
•
An adaptor is required for C. O. Line or
Station access (see V-9970 or V-9940)

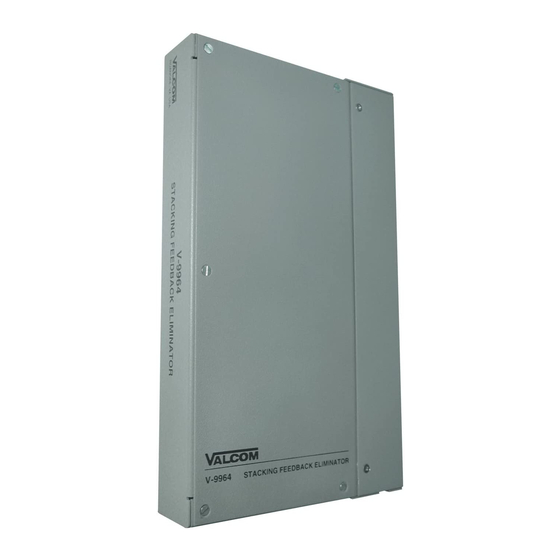

V-9964
Dimensions/Weight
•
11.76" H x 7.10" W x 1.72" D
(29.87cm H x 18.03cm W x .37cmD)
•
2.6 lbs. ( 1.18Kg )
Nominal Specifications
Power requirement: 24VDC 200mA filtered
Input impedance:
Input level:
Loop Output impedance:
Line Output impedance:
Output level:
VOX sensitivity:
Message release time:
Maximum recorded page time:
(30 seconds per page in call stacker Mode)
Frequency response:
Page
Background Music
Environment
Temperature:
Humidity:
1
Issue 3
600 Ohms
-10dBm
600 Ohms
8 Ohms
-10dBm
-20dBm to -35dBm
3 seconds after
Last sensed audio
60
seconds
80Hz to 7kHz
50Hz to 17kHz
0 to +40°C +32 to +104°F
0 to 80% non-precipitating
947059
