Valcom V-2006A Technical Specifications

SIX ZONE INTEGRATED PAGE CONTROL
FEATURES:
LOOP START, GROUND START, OR PAGE PORT ACCESS
SIX ZONES OF ONE WAY PAGE
THREE GROUP CALLS PLUS ALL CALL
BACKGROUND MUSIC INPUT
INTEGRATED SINGLE/WARBLE TONE GENERATORS
FEATURES PROGRAMMABLE PER ZONE
INTEGRATED POWER SUPPLY
PROVIDES EXTERNAL POWER FOR ONE-WAY AMPLIFIED SPEAKERS
BATTERY BACK-UP COMPATIBLE
PAGE OVERRIDE INPUT
EXPANDABLE ALL CALL
FIELD UPGRADE TO TALKBACK
DESCRIPTION:

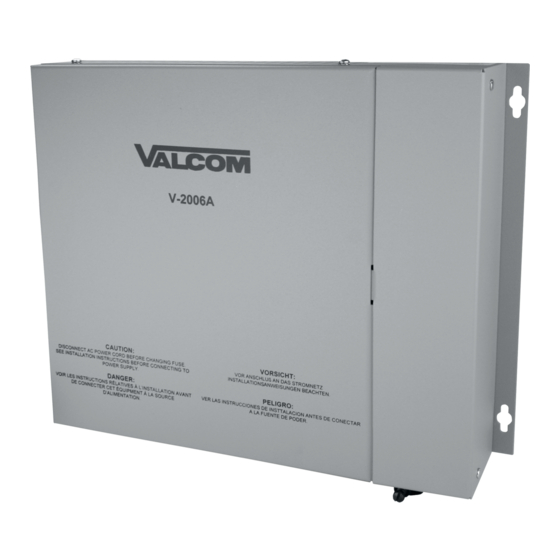

A telephone-compatible six-zone, one-way page control unit with integrated power supply, group call,
all call, integrated single/warble tone generator, background music input, priority page input and expandable all
call.
POWER REQUIREMENT
2 Amp @ 120 Vac
INPUTS/OUTPUTS
Input Impedance: 600 ohms
Music Source Impedance: 8 to 600 ohms
Music Input Level: -10 dBm nominal
Low Level Output Impedance: 8 ohms
Low Level Output Level: -10 dBm nominal
DC Output: -24 Vdc at 1.5 Amp
CONTROLS
Tone Volumes
Background Music Volume
All Call Page Volume
AUXILIARY RELAYS
2 Form C make-break contacts
Rated 2 Amps at 30 Vdc
5614 Hollins Road Roanoke, Virginia 24019
E-Mail: support@valcom.com
MODEL V-2006A
SPECIFICATIONS:
CONNECTIONS:
Unit equipped with male 50 pin amphenol connector
for input/output connections. An RJ11 jack is also
provided for tip and ring input connections. A three
prong polarized Molex connector is provided for
battery back-up connection.
ENVIRONMENT
Temperature: +32 to +104
Humidity: 0-85% Non-Condensing
HOUSING AND FINISH
Constructed of grey painted aluminum alloy
DIMENSIONS AND WEIGHT
10.25" (26.67 cm) H x 13.0" (33.02 cm) W x 2.69"
(6.83 cm) D. Shipping Weight: 9.0 lbs (4.09 kg)
ACCESSORIES
Model V-9956 Plug-in Talkback Module
Model VPB-260 Battery Back-up Supply
Phone: 540-563-2000
www.valcom.com
TECHNICAL
SPECIFICATIONS
º º
F (0 to +40 C)
Fax: 540-362-9800
