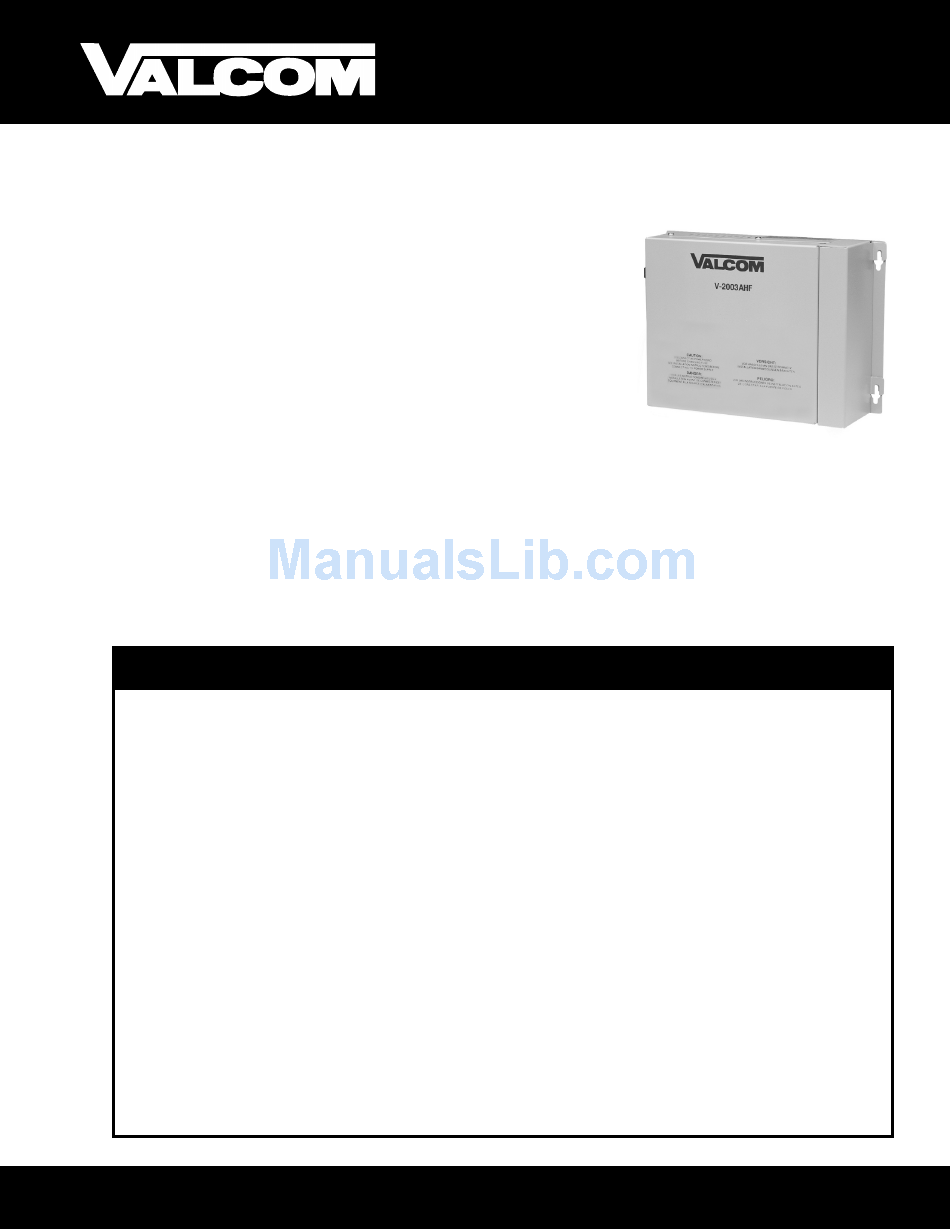

THREE ZONE INTEGRATED TALKBACK PAGE CONTROL

FEATURES:

LOOP START, GROUND START, OR PAGE PORT ACCESS
THREE ZONES OF TALKBACK OR ONE WAY PAGE
ALL CALL
BACKGROUND MUSIC INPUT
INTEGRATED SINGLE/WARBLE TONE GENERATORS
FEATURES PROGRAMMABLE PER ZONE
INTEGRATED POWER SUPPLY
PROVIDES EXTERNAL POWER OUTPUT FOR ONE-WAY AMPLIFIED SPEAKERS
PAGE OVERRIDE INPUT
BATTERY BACK-UP COMPATIBLE

DESCRIPTION:

A telephone-compatible three-zone, handsfree talkback page control unit with integrated power supply,
one-way all call, integrated single/warble tone generator, and background music.

POWER REQUIREMENT

1 AmP @ 120 Vac

INPUTS/OUTPUTS

Input Impedance: 600
Music Source Impedance: 8 to 600 ohms
Music Input Level: -10 dBm nominal
Low Level Output Impedance: 8 ohms
Low Level Output Level: -10 dBm nominal
DC Output: -24 Vdc at 1 Amp
Additional Talkback Outputs
Output Impedance: 45 ohms
Output Level: 1 watt nominal
Voice Switch Sensitivity: -26 dBm

CONTROLS

Tone Volumes
Background Music Volume
All Call Page Volume
5614 Hollins Road
Roanoke, Virginia 24019
E-Mail: support@valcom.com

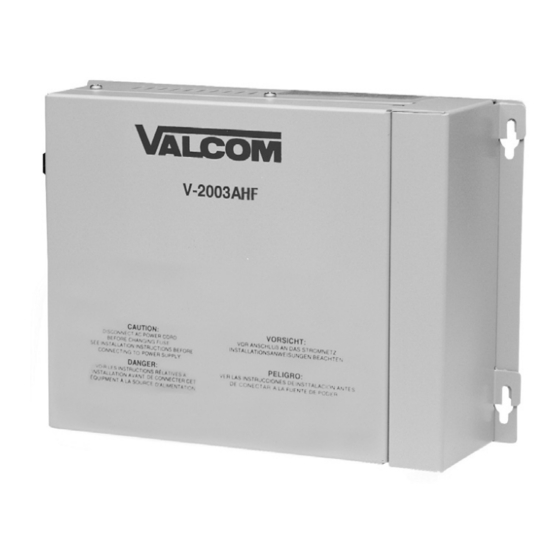

MODEL V-2003AHF
SPECIFICATIONS:

CONNECTIONS:

Unit equipped with male 50 pin amphenol
connector for input/output connections. An RJ11
jack is also provided for tip and ring input
connections. A three prong polarized Molex
connector is provided for battery back-up
connection.

ENVIRONMENT

Temperature: +32
Humidity: 0-85% Non-Condensing

HOUSING AND FINISH

Constructed of grey pained aluminum alloy

DIMENSIONS AND WEIGHT

7.13" (18.09 cm) H x 10.0" (25.4 cm) W x 3.0"
(7.62 cm) D. Shipping Weight: 6.25 lbs (2.38 kg)
ACCESSORIES
Model VPB-260 Battery Back-up Supply
Phone: 540-563-2000
TECHNICAL
SPECIFICATIONS
º
to +104
Fax: 540-362-9800
www.valcom.com
º
º
F (0 to +40
C)
