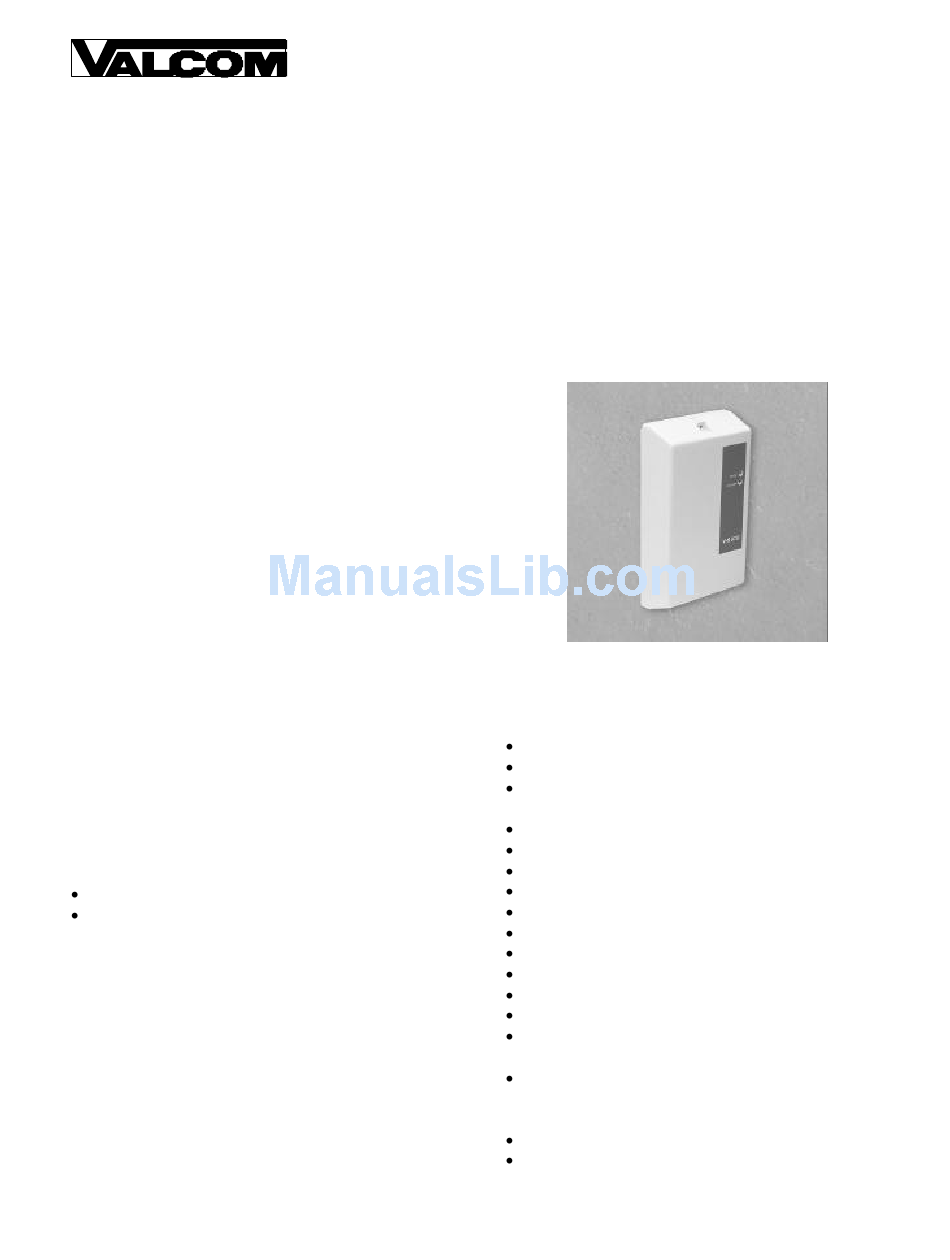

STATION LEVEL PAGE CONTROL
INTRODUCTION

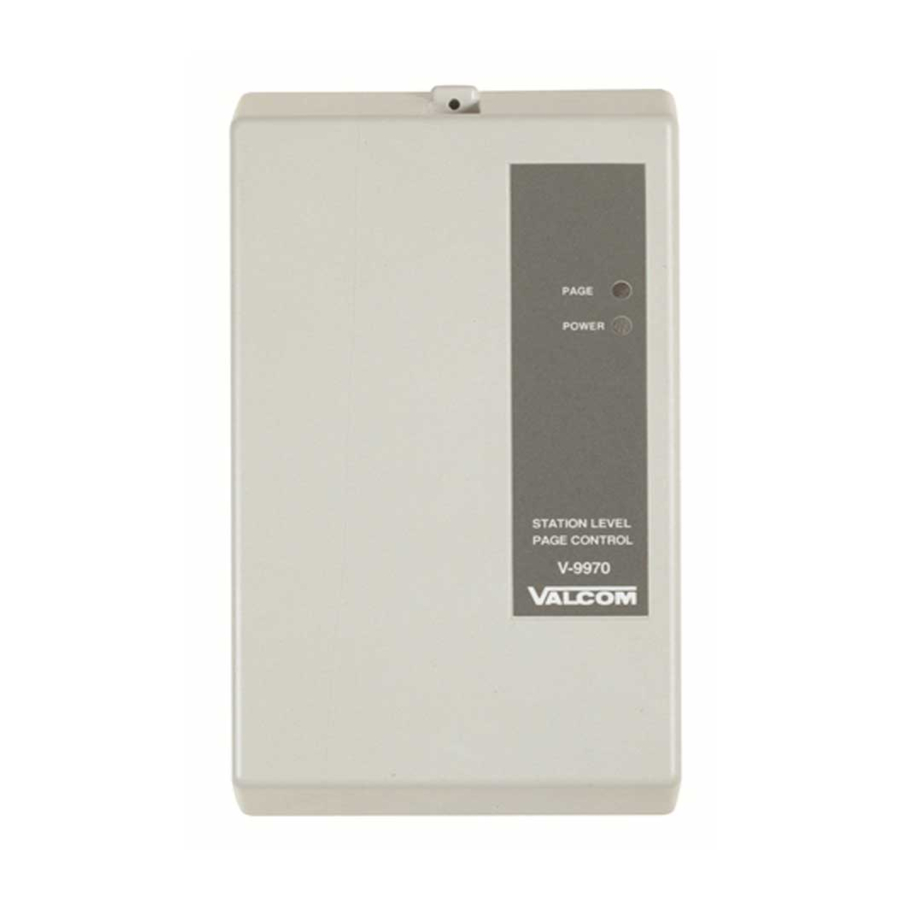

The V-9970 is a Single Zone One-way Station Level
Page Control designed to provide ring trip and page
access circuitry for use on standard telephone lines
(PABX, Centrex or C. O. line connections). These
instructions contain the specifications and
information necessary to install, operate and maintain
the Single Zone One-way Station Level Page Control.
Regulatory Information
This equipment has been tested and found to comply
with the limits for a Class A digital device pursuant to
Part 15 of FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference when this equipment is operated in a
commercial environment. This equipment generates,
uses and can radiate radio frequency energy and if
not installed and used in accordance with the
instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in
a residential area is likely to cause harmful
interference in which case the user will be required to
correct the interference at his/her own expense.
FCC Registration #:
Ringer Equivalence #: AC 0.6B/DC 0.1B
This equipment is to be installed only in restricted
access areas (Such as dedicated equipment rooms or
equipment closets) in accordance with Articles
110-16, 110-17 and 110-18 of the National
Electrical Code, ANSI/NFPA 70.
V-9970
SINGLE ZONE ONE-WAY
BAFUSA-21973-PA-N
SPECIFICATIONS
Features
Automatic Gain Control
Paging from standard phone lines
Suppression of unwanted sounds (Pops and
tones)
Page tone verification
Page disconnect on tones or C.O. open loop
Feedback reduction
Power on LED
Page in progress LED
User contacts provided
-12VDC or -24VDC operation
Background music input
VOX silence disconnect, user selectable
Absolute timeout, user selectable
Connects to telephone line via standard RJ11C
jack
CMOS DSP power efficient green technology
(Uses only 1 Watt average @ 12 Volts when
utilizing a VP-412A - 2 Watts during page)
FCC Part 68 Compliant
UL Listed
1
VSP-9970
Issue 5
947941
Advertisement
Related Manuals for Valcom V-9970
Summary of Contents for Valcom V-9970
- Page 1 SINGLE ZONE ONE-WAY STATION LEVEL PAGE CONTROL INTRODUCTION The V-9970 is a Single Zone One-way Station Level Page Control designed to provide ring trip and page access circuitry for use on standard telephone lines (PABX, Centrex or C. O. line connections). These instructions contain the specifications and information necessary to install, operate and maintain the Single Zone One-way Station Level Page Control.
- Page 2 Humidity: 10 - 90% (Non-condensing) Shock: DESIGN The Valcom V-9970 is designed to provide paging access from a standard analog PABX station number, a C. O. line or analog Centrex line. The Page Control incorporates the latest technology Digital Signal...
- Page 3 This warranty is in lieu of and excludes all other warranties, expressed or implied, and in no event shall Valcom, Inc. be liable for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase, operation or use of the product.
-
Page 4: Dip Switch Settings
DIP SWITCH SETTINGS Silence Timeout Enable, Default No Disconnect on Dial Tone TIMING OPTIONS Silence Timeout or [Absolute Timeout] Off, Default Off, Default Off, Default Off, Default (Selected timing options will be added to determine total time) Loop Detect Disable Changes in dip switch settings will take effect when an idle unit first senses ringing. - Page 5 (Refer to Chart for actual times) 24V Option (If used) COM 24V VP-412A Power Supply Up to 150 Valcom -24VDC Amplified Speakers Power Supply FIGURE 1 - ONE ZONE CONNECTIONS LOCATION OF SCREW TERMINALS, OPTION SWITCHES AND MUSIC VOLUME CONTROL...
- Page 6 24V Option (If used) COM 24V VP-412A Power Supply -24VDC Power Supply * May be provided by V-2003A CONNECTIONS TO A V-2003A FOR 3 ZONES 24V Option (If used) COM 24V VP-412A Power Supply -24VDC Power Supply * May be provided by V-2006A CONNECTIONS TO A V-2006A FOR 6 ZONES Connection made via an RJ11C jack...
