ASSEMBLY INSTRUCTIONS
P.1
P.1
MODEL RTA-BC19
Thanks for purchasing one of our products.
Please read carefully the assembly instructions before the installation.
Please save this manual for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Techni Mobili RTA-BC19 and is the answer not in the manual?

Questions and answers

Summary of Contents for RTA Techni Mobili RTA-BC19

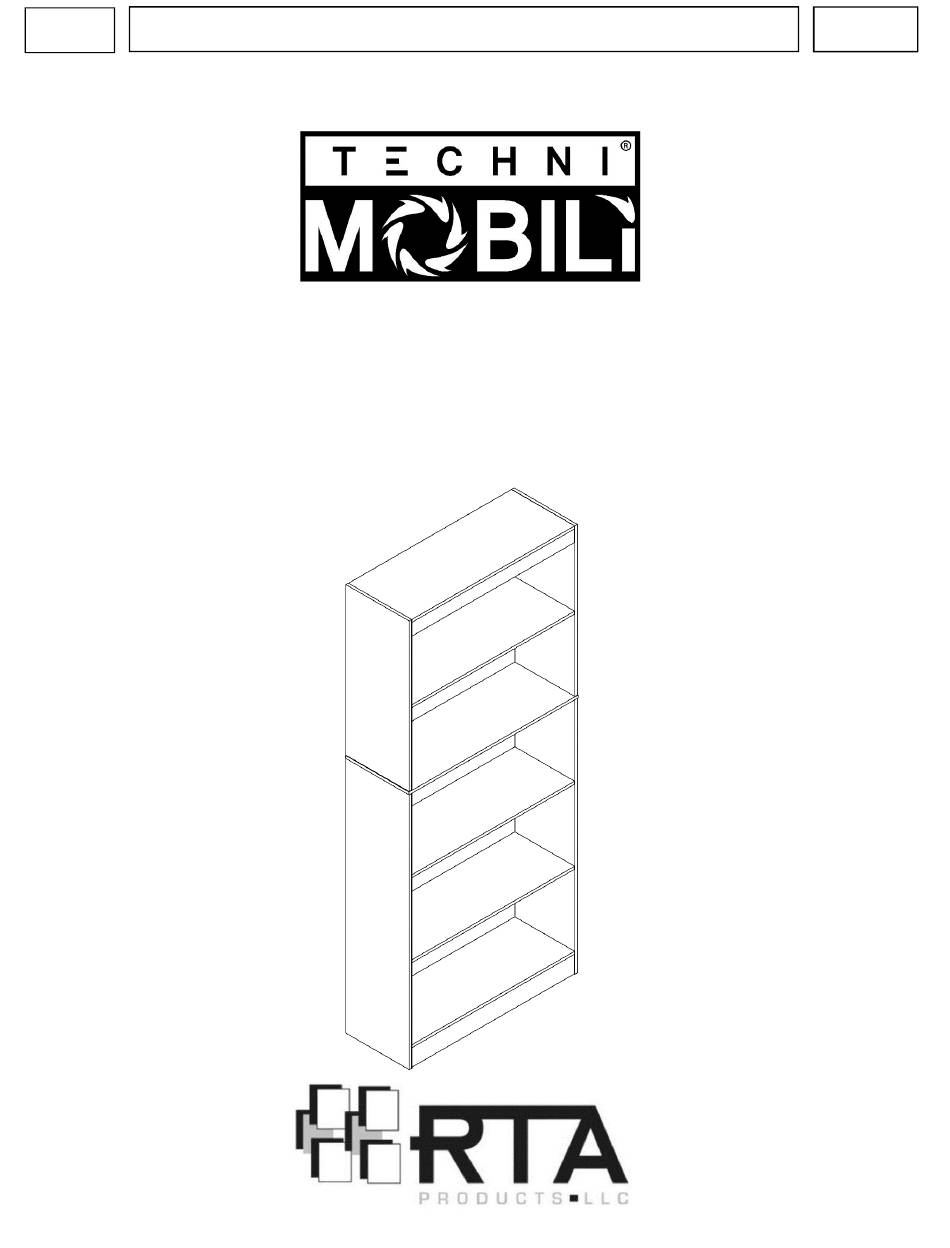

  • Page 1 ASSEMBLY INSTRUCTIONS MODEL RTA-BC19 Thanks for purchasing one of our products. Please read carefully the assembly instructions before the installation. Please save this manual for future reference.
  • Page 2 RTA-BC19 Bottom Shelf, Middle Shelf, Shelves, Top Shelf, Top Horizontal Bottom Horizontal Left Top Side Right Top Side Panel, x1 Panel, x1 Panel, x1 Panel, x1 Back panels, Left Bottom Side Panel, x1 Right Bottom Side Panel, x1...
  • Page 3 RTA-BC19 ⚠ ATTENTION: PLEASE READ THESE TIPS AND WARNINGS BEFORE YOU START THE ASSEMBLY. ☛ Do a quick inventory to make sure the product contains all the parts and hardware. ☛ Missing, damaged and defective parts can be replaced at no cost to you. Please refer to the CONTACT and the WARRANTY cards included with the product.
  • Page 4 RTA-BC19 HOW TO ASSEMBLE PARTS USING CAM BOLTS AND CAM LOCKS. ☛ This is not an assembly step; it is a guide for when you are actually doing the assembly using this kind of hardware. Cam Lock Cam Bolt 1. Screw the bolt into the corresponding panel.
  • Page 5 RTA-BC19 Insert the wooden pins (D) into the corresponding holes on panels (1), (2), (4), (5), (6), (7) and (8) as shown. ☛ Make sure to use the correct holes as the other holes are intended for screws or bolts on other steps.
  • Page 6 RTA-BC19 Join panel (5) to panel (1) as shown. Assemble panel (8) to panels (1) and (2) using screws (C) as shown, then cover the screw holes with (G).
  • Page 7 RTA-BC19 Position the parts assembled in STEP 3 upright, and insert the back panel (11) as shown. Assemble panel (7) to panels (1) and (2) using screws (C) as shown, then cover the screw holes with (G).
  • Page 8 RTA-BC19 Place the parts assembled in STEP 5 as shown, and insert the back panel (11). Screw the bolts (A) to the middle shelf (3) as shown. ☛ Refer to PAGE 4 if you are not sure how to use this kind of hardware.
  • Page 9 RTA-BC19 Assemble the panel (3) to the parts assembled in STEP 6 using screws (C) as shown. ☛ The top section assembled in this step will be used until STEP 14 in PAGE 12. Join panel (6) to panel (4) as shown.
  • Page 10 RTA-BC19 P.10 P.10 Assemble the panel (10) to panels (2) and (4) using screws (C) as shown, then cover the screw holes with (G). Place the parts assembled in STEP 10 as shown and insert the panels (11).
  • Page 11 RTA-BC19 P.11 P.11 Assemble the panel (9) to panels (2) and (4) using screws (C) as shown, then cover the screw holes with (G). Place the parts assembled in STEP 12 as shown and insert the panel (11).
  • Page 12 RTA-BC19 P.12 P.12 1ST: Join the 2 sections that were assembled in steps 8 and 13 as shown. 2ND: Align and insert the cam locks (B) into panels (9) and (10), then turn them to lock the 2 sections together as explained in PAGE 4.
  • Page 13 RTA-BC19 P.13 P.13 Attach the wall brackets ( I) to the top panel (1) using screws (H) as shown. With the help of at least ONE MORE PERSON, carefully lift the unit upright and bring it close to the wall where it will stand.
  • Page 14 RTA-BC19 P.14 P.14 ☛ DO NOT CLIMB ON THE UNIT’S SHELVES!!! Use a ladder if necessary. With a power driller (not provided) open the holes on the drywall that match the holes on the brackets. Then insert the wall anchors in the holes. Then...
  • Page 15 RTA-BC19 P.15 P.15 TIP OVER WARNING ! Please keep your children and yourself safe. Tip-over accidents can result in serious INJURIES or even cause DEATH to small children. PREVENT TIP-OVER ACCIDENTS BY FOLLOWING THESE RECOMMENDATIONS: 1) Secure the unit by anchoring it to the wall. The anchoring device has been provided with the unit, and must be installed by following the instructions shown on PAGES 13 and 14 of this manual.
  • Page 16 RTA-BC19 P.16 P.16 CARE, MAINTENANCE AND WARNINGS: ⚠ Do not expose the surfaces to direct sunlight or to extreme environmental conditions. Damages caused by this kind of exposure is not covered by the product’s warranty. i Clean the surfaces preferable with a soft cloth damped with a solution of mild soap and water, then dry with a clean towel.
