Professional Tracking Camera
Quick Start Guide
Package Contents
Camera unit
Remote control
Cable Fixing
M2 x 4mm
plates(x2)
Screw(x4)
Optional accessory
Ceiling mount
M3 x 6mm
bracket(x2)
Screw(x3)
Din8 to D-Sub9
RS232 In/Out
Cable
Y Cable
* For detail on optional accessories, consult your local dealer.
LED Indicator
LED
Status
Blue(Solid)
Normal Operation
Orange(Blinking)
Camera Initialization
Orange (Solid)
Standby
FW Updating
Red (Blinking)
Cable ties(x5)
Quick Guide
1/4"-20L=6.5mm
Power adapter &
Power cord
Screw(x3)
Wall mount
Camera
bracket
Controller (CL01)
P/N: 300AS910-EF4
Overview
(1)
(2)
(3)

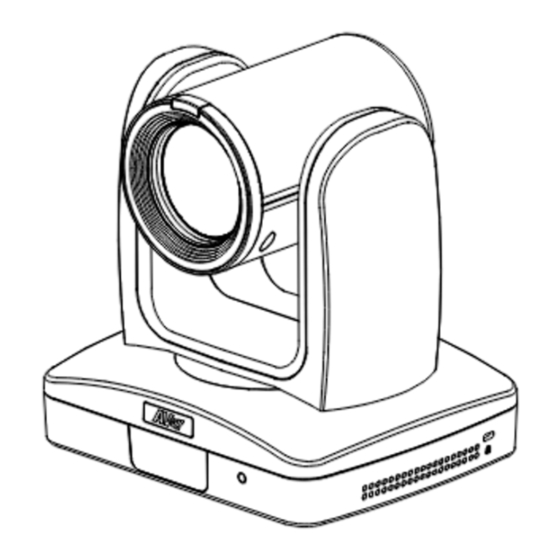

(1) Tally Lamp*
(5) PoE+ IEEE 802.3AT
(2) IR Sensor
(6) RS232 Port
(3) Power Indicator
(7) RS422 Port
(4) Kensington Lock
(8) Audio In
* This feature is not supported on TR310.
Connections
Joystick
(Camera control)
Microphone
Audio input
RS232, RS422 or IP
USB
PoE+
or
HDMI
Camera
LAN
(4)
(5) (6) (7)(8)(9)
(10)
(11)
(9) USB 3.0 Port (Type C)
(10) HDMI Port
(11) DC Power Jack
Laptop
(Management/Presentation/
Video Conference)
Monitor/TV
(Display)
Lecture capture system
(Record)
