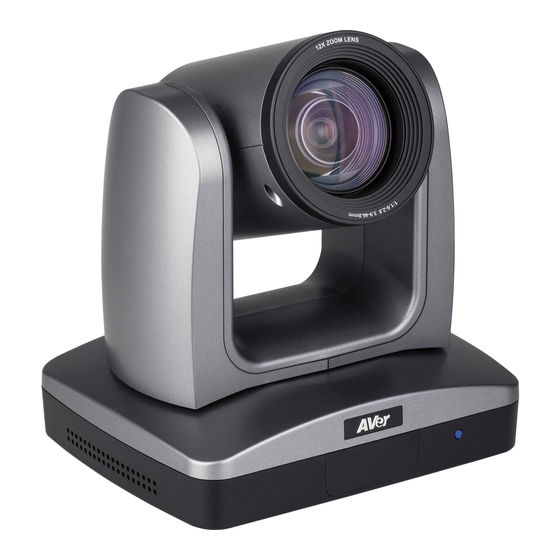

PTZ310/330
Professional PTZ Camera
Control Codes
V.2.0.4

Advertisement

loading
Need help?

Need help?

Do you have a question about the PTZ310 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AVer PTZ310

Summary of Contents for AVer PTZ310

  • Page 1 PTZ310/330 Professional PTZ Camera Control Codes V.2.0.4...

  • Page 2: Table Of Contents

    Contents Product Introduction ................1 Overview ..................1 RS232 and RS422 Connection ............1 OSD Tree ..................4 Camera ..................4 Advanced Setting ............... 4 RS232 Command Table ..............4 Visca over IP Settings ................. 10 ....................... 10...

  • Page 3: Product Introduction

    Product Introduction Overview (5) (6) (7)(8)(9) (11) (10) (12) (1) Camera lens (5) PoE+ port (9) micro-USB port (2) IR sensor (6) RS232 port (10) HDMI port (3) LED indicator (7) RS422 port (11) 3G-SDI port (4) Kensington lock (8) Audio in* (12) DC Power jack *Line input level: 1Vrms (max.).
  • Page 4 RS232(VISCA) cable (Not inculded) Joystick Laptop ● RS232 Port Pin definition ● Din8 to D-Sub9 Cable Pin definition RS232 Pin...
  • Page 5 ◼ RS422 [Note] Use cat5e splitter for multi-camera connection. RS422 Pin Cat5e splitter pin assignment: PTZ310/330 PTZ310W/330W Camera/Joystick Camera/Joystick...

  • Page 6: Osd Tree

    D Tree Camera Go to Advanced Setting -> Control. Make sure the Camera Address, Baud Rate setting is correct. Advanced Setting Advanced Setting Audio Input Type Mic in/Line in Auto Gain Control Off/On Noise Suppression Off/On Audio Volume 0 ~ 10 Control Protocol VISCA/Pelco D/Pelco-P/AW...
  • Page 7 Wide (Variable) 8x 01 04 07 3p FF pqrs: Zoom Position， CAM_Zoom Direct 8x 01 04 47 0p 0q 0r 0s FF PTZ310: 0x0000~0x6f20 PTZ330: 0x0110~0x5490 CAM_DZoom 8x 01 04 06 02 FF Digital zoom ON/OFF CAM_DZoom 8x 01 04 06 03 FF...
  • Page 8 CAM_WB Outdoor 8x 01 04 35 02 FF Out door mode CAM_WB One Push WB 8x 01 04 35 03 FF One Push WB mode CAM_WB Manual 8x 01 04 35 05 FF Manual Control Mode One Push One Push WB Trigger CAM_WB 8x 01 04 10 05 FF Trigger...
  • Page 9 pq: ExpComp (pq: 0x01~0x09 , Value: CAM_ExpComp Direct 8x 01 04 4E 00 00 0p 0q FF -4~ +4 , Each value = 0.3EV) CAM_BackLight 8x 01 04 33 02 FF Back Light Comp ON/OFF CAM_BackLight 8x 01 04 33 03 FF CAM_LR_Reverse 8x 01 04 61 02 FF Mirror Image ON/OFF...
  • Page 10 0 to 2, 0:150/s, 1:250/s, 2: 300/s Set Preset Preset Speed 8x 01 06 20 0p FF (Lumens) Speed p:0 to 5, (AVer) CAM_Power_ON Power On 8x 01 04 00 02 FF CAM_Power_OFF Power Off 8x 01 04 00 03 FF...
  • Page 11 Pan/Tilt PT_Pos_Inq Position 8x 09 06 12 FF Inquiry Zoom Position zoom_Pos_Inq 8x 09 04 47 FF Inquiry...

  • Page 12: Visca Over Ip Settings

    Visca over IP Settings...
