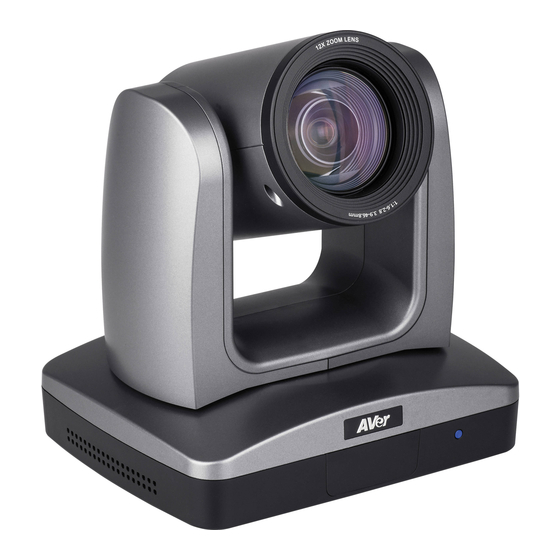

AVer PTZ310 User Manual

Professional ptz camera
Hide thumbs Also See for PTZ310:
Table of Contents

Advertisement

Quick Links

PTZ310/330
Professional PTZ Camera
User Manual
V.1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTZ310 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AVer PTZ310

Summary of Contents for AVer PTZ310

  • Page 1 PTZ310/330 Professional PTZ Camera User Manual V.1.0.0...
  • Page 2 FCC NOTICE (Class A) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 3 © 2018 AVer Information Inc. All rights reserved. All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or specifications are subject to change without prior notice.
  • Page 4 WARNING  To reduce risk of fire or electric shock, do not expose this appliance to rain or moisture. Warranty will be void if any unauthorized modifications are done to the product.  Do not drop the camera or subject it to physical shock. ...

  • Page 5: Table Of Contents

    Setup PTZ310/330 ....................11 OSD Menu ......................11 Setup IP Address of PTZ310/330 ................ 12 OSD Tree ......................13 Web Setup ......................16 Using the AVer IPCam Utility to Find the Camera ..........16 Make a Connection to PTZ310/330 via Browser ..........17...
  • Page 6 Live View ......................18 Camera Settings ....................22 Video & Audio ...................... 22 System ........................ 23 Using RTSP Connect to Camera ................. 24 Firmware Update ....................24 Specification ......................26 PTZ310........................ 26 PTZ330........................ 29...

  • Page 7: Package Contents

    Package Contents Menu PTZ 310/330 unit Power adapter & HDMI cable Remote controller Power cord Quick Guide Cable Fixing plate Cable ties(x5) 4 to 3 pin MIC In cable Batteries(x2) *The power cord will vary depending on the standard power outlet of the country where it is sold.

  • Page 8: Product Introduction

    Product Introduction Overview (5) (6) (7)(8)(9) (11) (10) (12) (1) Camera lens (5) PoE+ port (9) mini-USB port (2) IR sensor (6) RS232 port (10) HDMI port (3) LED indicator (7) RS422 port (11) 3G-SDI port (4) Kensington lock (8) Audio IN (12) DC Power jack LED Indicator Status...

  • Page 9: Pan And Tilt Angle

    Pan and Tilt Angle Device Connection Joystick (Camera control) Laptop (Management/Presention) Microphone Audio input RS232 RS422 3G-SDI Monitor/TV PoE+ (Display) Lecture captuer system HDMI PTZ 310/330 (Record) Web appication (Remote Management)

  • Page 10: Video Output Connection

    Video Output Connection  HDMI Use the HDMI cable to connect with monitor or TV for video output. HDMI cable Monitor/TV  3G-SDI Connect to 3G-SDI monitor for video output. 3G-SDI cable (Not inculded) SDI Monitor [Note] HDMI and 3G-SDI monitors can be connected to camera and output live video simultaneously; Assuming HDMI monitor is well connected before camera turned on, the OSD menu will be displayed on HDMI monitor in default.”...

  • Page 11: Rs232 And Rs422 Connection

    RS232 and RS422 Connection Connect through the RS232 or RS422 for camera controlling.  RS232 RS232(VISCA) cable (Not inculded) Joystick Laptop RS232 Pin...
  • Page 12  RS422 [Note] Use cat5e splitter for multi-camera connection. RS422 Pin Cat5e splitter pin assignment: PTZ310/330 Camera/Joystick Camera/Joystick...

  • Page 13: Audio Input Connection

    Audio Input Connection Connect the audio device for audio receiving. [Note] If use MIC-in device (ex: microphone), please use 3 to 4 MIC In cable to connect camera and MIC-in device. Microphone Auido mixer PoE Connection Connect the camera to the router or switch through the PoE+ port. Ethernet cable (Not inculded) Router/PoE Switch...
  • Page 14 Install Cable Fixing Plate...

  • Page 15: Remote Controller

    Remote Controller Menu (10) (11) (12) (13) (14) (15) (16) (17) Name Function Turn the unit on/standby. (1) Power Select 1~4 PTZ camera. Set the camera ID in OSD menu: System > Camera Selector, ex: (2) Camera Select camera ID is set to 1. Then, press the “camera select” button “1” to control camera.
  • Page 16 Name Function Reset the Pan-Tilt position. (11 ) PT Reset Zoom in/out slow. (12) Zoom Slow Zoom in/out fast. (13) Zoom Fast Enable manual focus. Use Far/Near to adjust the focus. (14) MF/Far/Near Auto focus. (15) AF Pan-Tilt speed adjustment. There are totally 24 levels for pan-tilt speed (16) Pan-tilt Fast/Slow adjustment;...

  • Page 17: Setup Ptz310/330

    Setup PTZ310/330 OSD Menu button on remote controller to call out the OSD menu and use ▲ , ▼ , ,  and Press Menu button to operate the OSD menu.

  • Page 18: Setup Ip Address Of Ptz310/330

    Setup IP Address of PTZ310/330 Static IP 1. Press button on the remote controller to call out OSD menu. Menu 2. Go to Network > Static IP. [Note] Turn the DHCP off before setup static IP (Network > DHCP > Off).

  • Page 19: Osd Tree

    OSD Tree Camera Setup camera parameters – Exposure mode, White balance, Pan-Tilt Zoom, Noise reduction, Frequency, Saturation, Contrast, Sharpness, Mirror, and Flip. Camera Exposure Mode Full Auto Exposure Value/Gain Limit Level/Slow Shutter Shutter Priority Exposure Value/Shutter Speed/Gain Limit Level Iris Priority Exposure Value/Iris Level/Gain Limit Level/Slow Shutter Manual Shutter Speed/Iris Level/Gain Level...

  • Page 20: Video Format

    Video Format Select video resolution. Video Format Auto 1080P/60 1080P/59.94 1080P/30 1080P/29.97 1080I/60 1080I/59.94 720P/60 720P/59.94 1080P/50 1080P/25 1080I/50 720P/50 Network Setup IP mode – DHCP or static IP. Network DHCP Off/On Static IP IP Address Gateway Mask System Preset OSD: Enable/disable Preset status (Save Preset, Call Preset, Cancel Preset) display on screen.
  • Page 21 Audio Camera Input Type Mic in/Line in Auto Gain Control Off/On Noise Suppression Off/Low/Normal Audio Volume 0 ~ 10...

  • Page 22: Web Setup

    Web Setup Connect the camera from remote site through the internet. Using the AVer IPCam Utility to Find the Camera To find the IP address of your cameras, you can execute the IPCam Utility installer. Follow the below steps to find the IP address of camera.

  • Page 23: Make A Connection To Ptz310/330 Via Browser

    Find the IP address of camera. Call out OSD menu and select “System” > “Information” Or use AVer IPCam utility to find the IP address of camera. Open the browser and enter the IP address of the camera. The PC/laptop is required an internet access.

  • Page 24: Live View

    Live View In live view, user can setup zoom in/out, preset, focus (Auto, Manual, One push, and Focus Near Limit), speed of zoom, pan-tilt, and preset and view preset. Pan-Tilt-Zoom Control To operate the PTZ Camera motion. , and to adjust camera view position and use zoom.
  • Page 25 Preset Setup preset position and view preset position. 1. Use , and to adjust camera view position. 2. Enter preset position number (0~255) in Save Preset column and select “Save” to save the position. 3. To call the preset position, enter preset number (0~255) in Load Preset column or select the preset number (0~19) from Quick Call section.
  • Page 26 Focus Switch to auto (AF) or manual (MF) focus. The manual focus use + and – to adjust focus. Press “+” to adjust focus to far end and focusing on a far subject; press “-“to adjust focus to near end and focusing on a near subject.
  • Page 27 Manual Pan-Tile-Zoom and Preset Speed Adjustment Adjust speed of manual Pan-Tilt-Zoom and Preset operation. Enable/Disable the slow mode for manual pan-tilt operation. There are totally 24 levels for manual pan-tilt speed adjustment, and 2 levels (Low/High) for zoom speed adjustment. There are 5 levels for preset speed adjustment. Pan/Tilt Slow: Pan/Tilt Slow: When this option is set as ON, the maximum speed of manual pan-tilt operation is 40°/sec;...

  • Page 28: Camera Settings

    Camera Settings Setup camera related parameters – Full auto, Iris priority, Shutter priority, Exposure, Gain, Saturation, Contrast, Sharpness, Noise, Power frequency, Mirror, and Flip. Video & Audio User can setup Video output, Framerate, Bitrate, I-VOP internal, Encode type, Rate control, Audio input type, Audio volume, and Sampling Rate.

  • Page 29: System

    System The system information of Camera is displayed in this page, including Model name, IP address, MAC address and firmware version. User can update firmware and reset to Factory default in this page. User can also set the OSD display output to HDMI or 3G-SDI interface.

  • Page 30: Using Rtsp Connect To Camera

    Using RTSP Connect to Camera To use RSTP player connecting to camera; please enter the following RTSP URL in your application such as VLC, PotPlayer or Quick Time. “rtsp://IP address of PTZ310/330/live_st1” Firmware Update Web Firmware Update 1. Download the newest firmware from http://www.aver.com/download-center...
  • Page 31 USB Update 1. Download the newest firmware and AVer PTZApp from http://www.aver.com/download-center 2. Connect the camera to PC/Laptop through USB port. 3. Run the AVer PTZApp. 4. Select “Update Now”. 5. Select “Manual update” and locate the firmware to start the process.

  • Page 32: Specification

    Specification PTZ310 Camera 1/2.8” 1080p 60fps Exmor CMOS Image sensor Effective picture elements Approx. 2.1 Megapixels Auto, 1080p/60, 1080p/59.94, 1080p/50, 1080i/60, 1080i/59.94, Output Resolution 1080i/50, 1080p/30, 1080p/29.97, 1080p/25, 720p/60, 720p/59.94, 720p/50 Minimum Illumination 0.4 lux (IRE50, F1.6, 30FPS) S/N ratio >...
  • Page 33 Camera Camera Control - Interface RS232 (DIN8) / RS422 (RJ45) Camera Control - Protocol VISCA/PELCO-D (RS232/RS422/IP), CGI (IP) Image Processing Noise Reduction (2/3D), Filp, Mirror Power Frequency Auto/50Hz/60Hz Audio Audio - Channel 2ch (stereo) Audio - Codec AAC-LC (48/44.1.32.24K), G.711/PCM (16K/8K) Audio - Sample Rate 48/44.1/32/24/16/8Khz Interface...
  • Page 34 IP Streaming Resolution 1920x1080, 1280x720, 960x540, 640x480 Network Video Compress H.264 (High Profile), MJPEG Format Maximum Frame Rate H.264: 60fps (1920x1080), MJPEG: 30fps (1920x1080) Bit-rate Control Mode VBR/CBR (selectable) Range of Bit-rate setting 512Kbps ~ 32Mbps Network Interface 10/100/1000Base-T Multi-stream Capability IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP, DHCP, RTP/RTCP, Network Protocol RTSP, VISCA over IP...

  • Page 35: Ptz330

    PTZ330 Camera 1/2.8” 1080p 60fps Exmor CMOS Image sensor Effective picture elements Approx. 2.1 Megapixels Auto, 1080p/60, 1080p/59.94, 1080p/50, 1080i/60, 1080i/59.94, Output Resolution 1080i/50, 1080p/30, 1080p/29.97, 1080p/25, 720p/60, 720p/59.94, 720p/50 Minimum Illumination 0.3 lux (IRE50, F1.6, 30FPS) S/N ratio > 50dB Gain Auto/Manual TV Line...
  • Page 36 Camera Camera Control - Protocol VISCA/PELCO-D (RS232/RS422/IP), CGI (IP) Image Processing Noise Reduction (2/3D), Filp, Mirror Power Frequency Auto/50Hz/60Hz Audio Audio - Channel 2ch (stereo) Audio - Codec AAC-LC (48/44.1.32.24K), G.711/PCM (16K/8K) Audio - Sample Rate 48/44.1/32/24/16/8Khz Interface Video Output 3G-SDI, HDMI, IP Audio Output 3G-SDI, HDMI, IP...
  • Page 37 IP Streaming Resolution 1920x1080, 1280x720, 960x540, 640x480 Network Video Compress Format H.264 (High Profile), MJPEG Maximum Frame Rate H.264: 60fps (1920x1080), MJPEG: 30fps (1920x1080) Bit-rate Control Mode VBR/CBR (selectable) Range of Bit-rate setting 512Kbps ~ 32Mbps Network Interface 10/100/1000Base-T, Multi-stream Capability IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP, DHCP, RTP/RTCP, Network Protocol RTSP, VISCA over IP...
