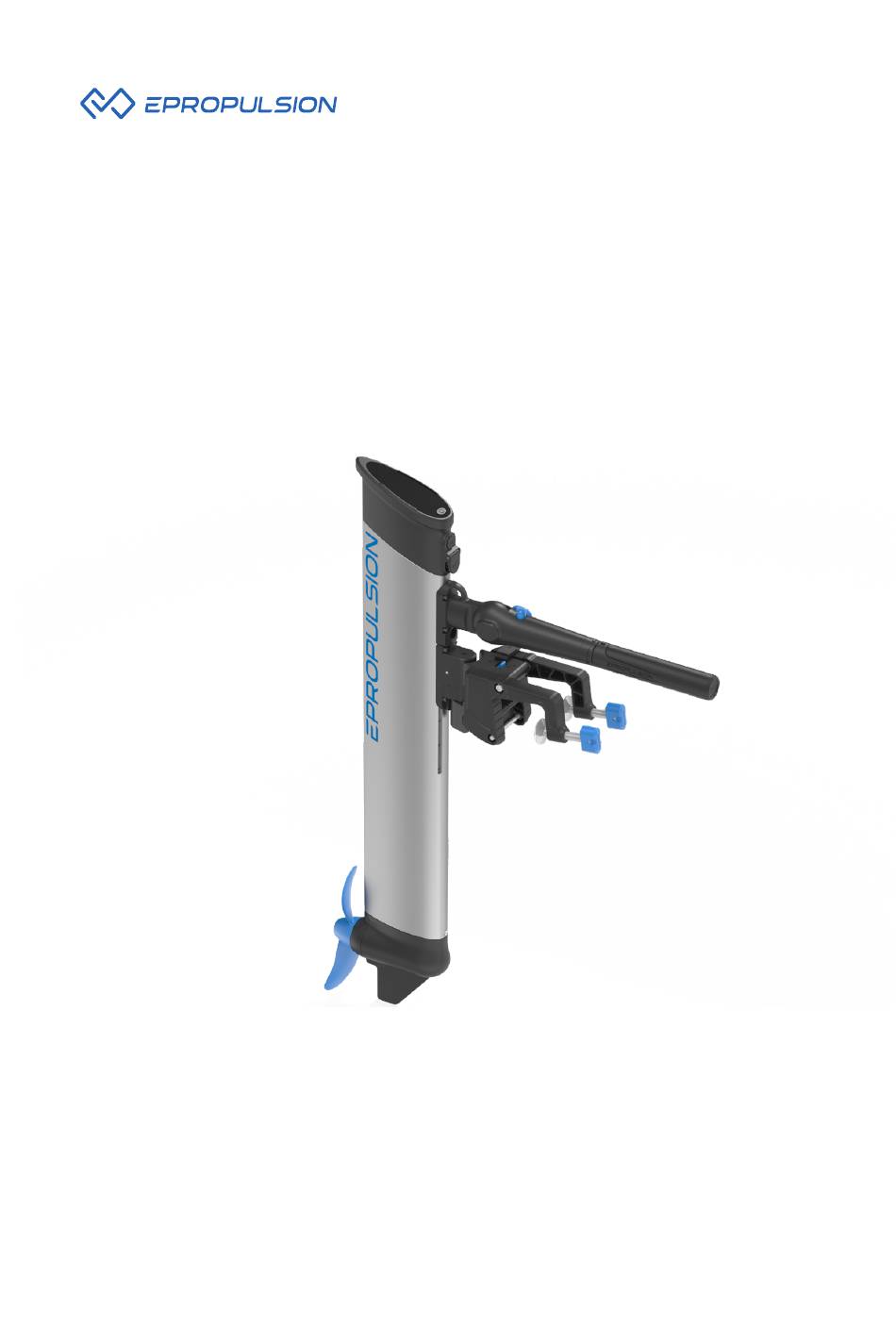

- Page 1 User Manual Model: eLite 2023.12 Version 1.1 Copyright © ePropulsion Technology Limited...
-
Page 3: Acknowledgement
Acknowledgement Thank you for purchasing a product from ePropulsion, world leaders in clean, safe and reliable electric marine propulsion systems. We are sure you'll be pleased with your new motor and welcome your feedback at www.epropulsion.com. Using This Manual Before operating this product, it is essential to carefully read and understand this user guide. - Page 4 Important Warning: When it comes to the installation, operation, maintenance, or servicing of ePropulsion products, various safety risks are involved. It is essential to remain vigilant, execute the necessary operations prudently, and prioritize safety throughout the process.
-
Page 5: Identification And Record Of Serial Number
Please ensure that you keep a note of the serial number in a readily accessible and safe location for future reference. 广东逸动科技有 单位:mm Guangdong ePropulsion Te... -
Page 6: Table Of Contents
Table of Contents Acknowledgement ....................1 Using This Manual ....................1 Safety Precautions and Guidelines ................. 1 Identification and Record of Serial Number ............. 3 1 Product Overview ....................6 1.1 In the Package ......................6 1.2 Parts and Diagram ....................8 1.3 Specification......................9 1.4 Important Notes Before You Start .............. - Page 7 5 Operation......................27 5.1 Checklist before start ..................27 5.2 Starting ......................... 27 5.2.1 Standard Mode ..................27 5.2.2 Sport Mode ....................29 5.3 Stopping........................ 29 5.4 Tilt Up and Release ....................30 5.4.1 Motor Tilt ....................31 5.4.2 Motor Release ................... 31 6 Interface ......................
-
Page 8: Product Overview

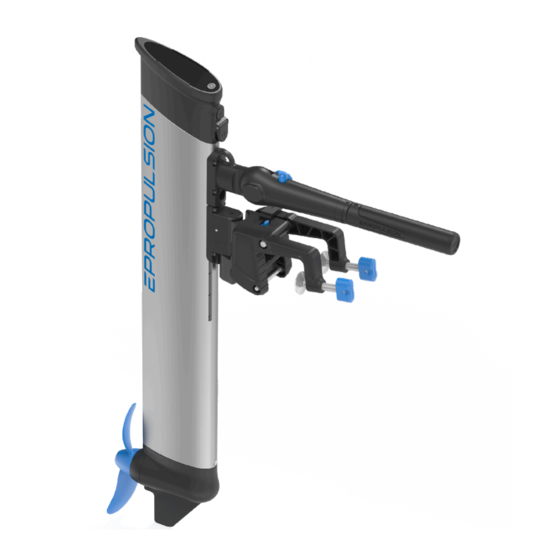

With a power output of up to 750W, it provides reliable propulsion for numerous small boat applications. The eLite has several design features that facilitate transport and storage, and offer greater user convenience, including: •... - Page 9 Items Qty. Figure Function AC Charger Charge the battery For storage and Outboard transportation of the outboard motor 保修卡 快速入门指南 Kill Switch To stop the outboard motor in an emergency Wristband 保修卡 快速入门指南 To adjust the screws of the quick-release 邀请卡...
-
Page 10: Parts And Diagram
1.2 Parts and Diagram Display Power Button USB Type-C Output Charging Port Kill Switch Tiller Tiller Angle Adjustment Toggle Throttle Tiller Extension Relsase Quick Release Mount Bracket Disassemble Button Tighten Clam Propeller C Output t Toggle Beaching Lever ase Mount Tilt Release Lever Clamp Damping Shaft Tightening Handle... -
Page 11: Specification
1.3 Specification Model eLite Rated Input Power 500 W Peak Input Power 750 W Rated input voltage 25.2 Vdc Input voltage range 19.25 Vdc - 29.4 Vdc Weight 6.7 kg (without clamp bracket) Adjustable Shaft Length Range (from top of 282.5 - 401 mm... -
Page 12: Important Notes Before You Start
1.4.2 Users (1) This product must only be operated by adults who have fully read and understood this manual. ePropulsion accepts no liability for any damage or malfunction caused by operations that contradict the content of this manual. (2) You should only use this motor system if you are also familiar with all other aspects of operating your boat. -
Page 13: Specific To This Motor
Check outboard for damage and if you think it’s safe to operate return to the nearest port at slow speed. If you don’t think it’s safe to operate call for assistance and a tow. In either case please get an authorised ePropulsion dealer to inspect your motor before use on future occasions. -
Page 14: Operation Is Subject To The Following Two Conditions
Company Name: Guangdong ePropulsion Technology Limited Company Address: Room 801, Building 1, 11 Daxue Road, Songshan Lake, Dongguan, Guangdong Province, China We declare that the design of the eLite outboard motor complies with the following directives: EMC Directive 2014/30/EU; MD Directive 2006/42/EC;... -
Page 15: Product Disposal
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:... -
Page 16: Tiller
Figure 2.1 2.1.2 Fixed Mode 广东逸动科技有限公司 单位:mm Guangdong ePropulsion Technology Limited Pull out the toggle, and the tiller can be adjusted to any of four fixed positions: -90°, 0°, 45°, and 90°. Push toggle back in to lock it. 90°... -
Page 17: Throttle Rotation
The tiller can be extended by up to 13cm, for more convenient positioning in the boat. To do 广东逸动科技有限公 this, press the button at the end of the tiller and pull it outwards. The tiller will automatically lock 单位:mm Guangdong ePropulsion Technology back in place when it is fully retracted. Tiller Extension Relsase Figure 2.4... -
Page 18: Steering Angle
广东逸动科技有限公司 单位:mm Guangdong ePropulsion Technology Limited The boat is steered by movement of the tiller, which can rotate the motor shaft up to 70° either side of central. The steering friction can be varied, or locked in position, by adjustment to the clamp bracket damping shaft (see section 3.5). -
Page 19: Clamp Bracket & Quick Release Mount
8°, 17°, and 26°. The best position to select 广东逸动科技有限公司 单位:mm Guangdong ePropulsion Technology Limited is the one where the propeller will be closest to vertical when the boat is loaded and in use. 8°... - Page 20 Step 1: Push the trim pin inward and rotate it 180°, with the handle facing upward. Figure 3.4 Step 2: Pull out the trim pin. 广东逸动科技有限公司 单位:mm Guangdong ePropulsion Technology Limited Figure 3.5 Step 3: Adjust the trim angle of the outboard motor as desired and insert the trim pin into the 广东逸动科技有限公司 单位:mm Guangdong ePropulsion Technology Limited corresponding limit hole.
-
Page 21: Shallow Water Mode
广东逸动科技有限公司 单位:mm Guangdong ePropulsion Technology Limited The ePropulsion eLite outboard motor has a shallow water mode. This allows the outboard to be partially tilted for continued operation in shallow water, such as when approaching a beach or slipway. In shallow water mode reverse gear must not be used, as the propeller may kick up out of the water and cause injury. -
Page 22: Anti-Grounding Mode
Guangdong ePropulsion Technology Limited 3.4 Anti-grounding Mode The ePropulsion eLite has an Anti-grounding Mode, in which the shaft is free to kick up if it encounters an obstruction (eg rock). It’s also useful when running into shallow water, such as approaching a beach. - Page 23 Step 1: Pull the trim lever up and hold it up with your right hand. Figure 3.11 Step 2: Push the beaching lever back towards the trim lever. 广东逸动科 单位:mm Guangdong ePropuls Figure 3.12 Step 3: Release the trim lever, which will now stay in the up position. 单位:mm 单位:mm Figure 3.13...
-
Page 24: Steering Friction Adjustment/Lock
3.5 Steering Friction Adjustment/Lock Steering Friction can be varied by adjustment to the damping screw (at bottom of clamp bracket damping shaft). If this screw is tightened further the steering can also be locked, when using a boat with its own rudder, for example. Step 1: Adjust the heading of the outboard motor as desired. -
Page 25: Installation
3. If there are any cracks in the clamp bracket. Step 1: Check the clamp bracket. Step 2: Place the clamp bracket in the center of the transom and do up the clamp handles. Figure 4.1 广东逸动科技有限公 单位:mm Guangdong ePropulsion Technology Lim Figure 4.2... -
Page 26: Motor Installation
Lanyard Hole Figure 4.3 Step 1: Pull out or rotate the tiller adjustment toggle to unfold the tiller (see section 2.1). 版本 变更记录 ECN编号 设 广东逸动科技有限公司 单位:mm Guangdong ePropulsion Technology Limited 广东逸动科 单位:mm Guangdong ePropul Figure 4.4... -
Page 27: Motor Removal
Step 2: Hold the outboard motor with both hands and align the quick-release mount with the clamp bracket damping shaft, then slowly lower the motor into place. 版本 变更记录 ECN编号 广东 单位:mm Guangd Figure 4.5 Step 3: Check the motor has seated down correctly, ie doesn’t wobble, can’t be pushed upwards if knocked etc. - Page 28 Step 2: Hold the outboard motor with both hands and slowly lift it upwards. Quick Re Figure 4.7 单位:mm Quick Release Button...
-
Page 29: Operation
4. Ensure the throttle is in neutral position. 5. Ensure the throttle can move smoothly. 5.2 Starting The ePropulsion eLite electric outboard motor has two working modes: Standard mode and Sport mode. Standard mode: The maximum output power of the outboard motor is 500W. - Page 30 Figure 5.2 查看剩余电量 切换显示功率/电 开机 Step 3: Press and hold the power button for 2 seconds to turn on the outboard motor. 广东逸动科技有限公司 单位:mm Guangdong ePropulsion Technology Limited 警 位 警 量百分比 态 Figure 5.3 Step 4: Turn the throttle handle to move forward or backward.
-
Page 31: Sport Mode
5.2.2 Sport Mode To enter Sport mode, quickly double-press the power button while the ePropulsion eLite electric outboard motor is switched on. Double-press again to exit Sport mode. Sport mode can increase the maximum input power from 500W to 750W (when there is sufficient battery capacity), and the screen will display the letter S as shown below. -
Page 32: Tilt Up And Release
5.4 Tilt Up and Release The ePropulsion eLite Electric Outboard Motor has a trim and tilt function. If the outboard motor is going to be stopped for a period of time or the boat is going to be moored in shallow water, the outboard motor should be tilted up. -
Page 33: Motor Tilt
Figure 5.10 5.4.2 Motor Release 广东逸动科技有限公司 Step 1: Hold the motor main part steady with one hand and lift the trim lever upwards as high 单位:mm Guangdong ePropulsion Technology Limited as it will go with the other hand. Figure 5.11... - Page 34 Step 2: Keeping it under control (don’t let it just drop), allow the outboard to swing back down into the water. Check that it is in the desired position, ie propeller vertical when boat is loaded. Figure 5.12 广东逸动科技有限公司 单位:mm Guangdong ePropulsion Technology Limited...
-
Page 35: Interface
6 Interface 6.1显示屏概览(英文) 6.1 Display Panel Start Indicator Gear Overtemperature alarm Minor Fault alarm Low Battery alarm Power unit Power/Battery Capacity/Error Code Serious Fault alarm Remaining Battery Battery Capacity indicator Sport Mode Kill Switch Charging Figure 6.1 6.2 Power Button 6.1显示屏概览... - Page 36 .1显示屏概览 查看剩余电量 切 开机 Items Function Figure 6.1显示屏概览 查看剩余电量 开机 开机进度条 Long press power 普通故障报警 button for 2s Power on W：功率单位 严重故障报警 when power is off %：剩余电量百分比 电量条 运动模式状态 开机进度条 剩余电量 切换显示功率/电量 开机 油门档位 过温警告 普通故障报警 低电量报警 W：功率单位 功率/电量/故障代码 严重故障报警 %：剩余电量百分比...
-
Page 37: Kill Switch
进入安全开关 丢失模式 进入运动模式 关机 Items Function Figure Long press power button for 2s Shutdown when power is on 进入安全开关 丢失模式 关机 6.4电量提醒 Enter kill switch lost mode Long press power Kill switch lost mode is button for 6s 100% exited automatically if kill when power is on switch is in place. - Page 38 电量条 运动模式状态 The ePropulsion eLite Electric Outboard Motor kill switch has interactive features with the outboard. When operating the outboard motor, if the kill switch is detached from the kill switch hole, the 进入安全开关 outboard motor will immediately stop working and make a beeping noise. The kill switch icon 丢失模式...
-
Page 39: Battery Indicator
开机 进入安全开关 丢失模式 关机 The ePropulsion eLite electric outboard motor has a battery reminder function. When the remaining battery level is at 50%, 20%, 10%, or 5%, the outboard motor will provide reminders through the screen and buzzer. Standard Sport... -
Page 40: Troubleshooting
Automatically 障说明 switches to battery level 6.4电量提醒 温度报警，限制功率 display, and 进入安全开关 普通故障报警，限制功率 低电量报警，限制功率 丢失模式 关机 100% the remaining 故障代码 严重故障报警，系统停机 battery bar Sport blinks 3 times. mode Limited After blinking, is not to 340W suppor- it automatically switches back to the previous interface. -
Page 41: Fault Indicator
Check if the propeller is entangled. Remove the Propeller E25 29 entanglement. If the problem persists, please Entangled contact an authorized ePropulsion dealer. Stop using, restart to check if it returns to normal. If Other the problem persists, please contact an authorized ePropulsion dealer. -
Page 42: Battery
7 Battery 7.1 AC-DC Charging The ePropulsion eLite Electric Outboard Motor is equipped with a 378Wh lithium battery that can be charged using an AC-DC charger. The AC-DC charger can fully charge the battery in 4 hours. The charging steps are as follows: Step 1: Press the power button to check the remaining battery level. -
Page 43: Charging Indicator
Step 3: Connect the charger plug to the socket. The charger indicator light will turn green, the outboard display will light up with a charging sound, and it will display the remaining battery level and charging icon, as shown in the figure below: C-DC充电... -
Page 44: Usb Type-C Output
8 USB Type-C Output The ePropulsion eLite Electric Outboard Motor has a USB Type-C socket, which can be used to charge devices such as mobile phones. It turns on when the outboard is turned on, supports PD and QC3+ fast charging protocols, and can provide a maximum charging power of 22W. -
Page 45: Maintenance
5. Perform maintenance or repairs under the guidance of a professional or authorized dealer. 6. If any parts of the outboard motor are damaged or need to be replaced, be sure to use ePropulsion's original parts. 7. Store the outboard motor in a cool and dry place. -
Page 46: Maintenance Of Electrical Contacts
1. Always ensure that the outboard motor is turned off when inspecting, removing, or installing the propeller. Otherwise, serious injury may occur to the operator or nearby individuals. 2. The propeller blades are sharp, it is recommended to wear gloves during inspection/ removal/installation. -
Page 47: Transportation And Storage
10 Transportation and Storage 10.1 Portable The ePropulsion eLite is designed so that it can be carried by the tiller when folded down in line with the shaft (-90 degree position). 1. Before carrying the outboard motor, make sure to remove the kill switch from the kill switch hole. -
Page 48: Outboard Bag
2. If putting the motor down, make sure the outboard is placed horizontally (with the "eLite" logo facing up) on a solid surface. Do not place or balance it vertically or at an angle, as this risks it falling over and becoming damaged or causing damage. -
Page 49: Emergency Situations/Actions
In such a situation: 1. Stop it immediately and turn it off with the power button. 2. Return the outboard to an authorised ePropulsion dealer. Tell them what has happened to it so that they can inspect/repair it before further use. -
Page 50: Warranty
In all warranty cases, ePropulsion will only bear the repair or replacement cost for items that are covered by the Limited Warranty. Any costs not covered by the Limited Warranty – such as those related to product installation, disassembly, transportation, financing, rental, etc –... -
Page 51: Scope Of Warranty
The process shown below must be followed in order to make a Limited Warranty claim: 1. Contact your nearest ePropulsion Service Partner with details of the problem. They will advise if such defects are covered by the Limited Warranty or any additional rights you may have from your purchase. - Page 52 4. The ePropulsion Service Partner will examine and diagnose the defective products to check the validity of the warranty claim. 5. If your warranty claim is accepted, the Product or its defective components/parts will be either repaired or replaced free of charge. Note that any delivery cost incurred in the process shall be borne by you.
- Page 54 (*In order to validate warranty, please fill in this form first and read the Warranty Policies.) OWNER INFO. Owner Name Address Phone Email DEALER INFO. Store Name Address Phone Email PRODUCT INFO. Date of Purchase (mm/dd/yyyy) Serial No.
- Page 56 Thanks for reading this user manual. If you have any concerns or find any problems while reading, please don't hesitate to contact us. We are delighted to offer service for you. Guangdong ePropulsion Technology Limited Webseite: www.epropulsion.com E-Mail: service@epropulsion.com...
