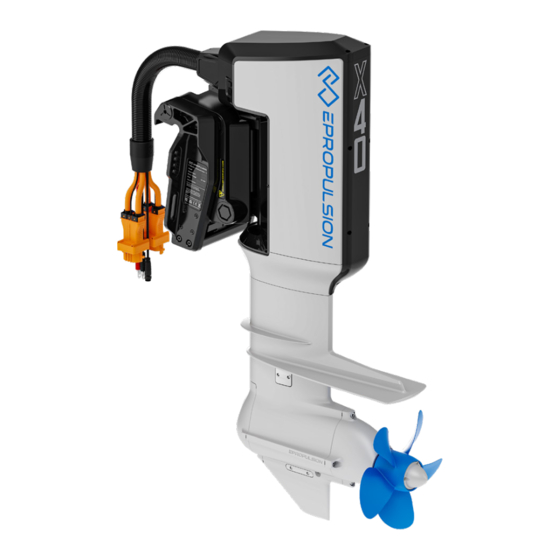

X40 User Manual
Model: X40-L, X40-XL
2023.11 Version 1.1
Copyright © ePropulsion Technology Limited

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ePropulsion X Series

Summary of Contents for ePropulsion X Series

  • Page 1 X40 User Manual Model: X40-L, X40-XL 2023.11 Version 1.1 Copyright © ePropulsion Technology Limited...

  • Page 3: Thank You

    THANK YOU Thank you for purchasing a product from ePropulsion, world leaders in clean, safe and reliable electric marine propulsion systems. We are sure you'll be pleased with your new motor and welcome your feedback at www.epropulsion.com Conditions of Use Before using this product, please read this user manual thoroughly to understand how to use the product correctly and safely.
  • Page 4 Please read and follow the instructions following the safety warning signs. Caution: When installing, operating, maintaining or servicing ePropulsion products, there are many safety risks. You need to be alert, perform relevant operations reasonably, and pay attention to safety. 13mm Entanglement hazard: Rotating parts can cause severe injury or death.

  • Page 5: Product Serial Number

    Product Serial Number The serial number is located as shown below. Please note and keep in a safe place, as it may be needed when purchasing accessories, or if you need service or warranty, or if your motor is sto- len.

  • Page 6: Table Of Contents

    Table of Contents THANK YOU ......................1 Conditions of Use ....................1 Safety Warning ....................... 1 Product Serial Number ................... 3 1 Product Introduction .................... 8 1.1 In the Package ......................8 1.1.1 X40 Packaging List ..................8 1.1.2 Optional Accessory List ................10 1.1.3 Installation Tools List ................
  • Page 7 X40 Examples System Setup ................31 4.1.1 Single Motor System Connection ............. 31 4.1.2 Twin Motor System Connection ............... 32 4.2 High Voltage Cables Connection ................ 33 4.2.1 Making the Power Cables ................ 33 4.2.2 Connecting Cables to the bus box ............34 4.2.2.1 Required accessories and tools..........
  • Page 8 5.6.3 General settings ..................65 5.6.3.1 System firmware information ............. 65 5.6.3.2 Maintenance - All maintenance timing tips........ 66 5.6.3.3 ePropulsion Connectivity Service ..........67 5.7 Operation ......................69 5.7.1 Checks before starting ................69 5.7.2 Starting the Outboard Motor ..............69 5.7.3 Adjusting the Power .................
  • Page 9 5.13 Other Interfaces ....................83 5.13.1 Connection to external sound or light alarm ........83 5.13.2 Connection to external NMEA 2000 devices ........84 6 Emergency Situations ..................85 6.1 Collision ........................ 85 6.2 Swamped or Submerged Outboard ..............85 6.3 Overtemperature Protection ................

  • Page 10: Product Introduction

    1 Product Introduction The X40 Electric Outboard Motor is an electric propulsion system with an input power of 40kW. It can be controlled by using the smart tiller, digital helm, smart throttle, and smart dis- play 5''. The X40 Electric Outboard Motor is environmentally friendly, clean, and efficient. It is available in two models: X40-L and X40-XL.
  • Page 11 Items Qty. Figure Function eSSA Extend the Communication communication Extension Cable distance of the CAN communication cable Heat Shrink Protect the main power Tubing cable after stripping it black 红色 Terminals to fit on cut Cable connector ends of 96V power 黑色...

  • Page 12: Optional Accessory List

    Other accessories not included in the package are also required to operate the outboard mo- tor such as propellers, smart tiller, digital helm, smart throttle, smart display 5'', G102 battery, battery charger, and communication cables. Users can buy official accessories provided by ePropulsion Technology authorized dealers. Items Figure...
  • Page 13 Suitable for lighter boats X20/X40 Propeller at higher speeds, left hand 13 3/8'' x 16 3/4" rotation. For use in twin or multiple motor installations. ePropulsion LiFePo4 system G102 Battery battery, 10kWh capacity. and Cables Provides safe and reliable electrical power.
  • Page 14 Items Figure Function Start, stop the motor and Smart Throttle control the power output Display system information Smart Display 5'' such as power, speed, battery level and set system functions DC-DC Converter to charge DC-DC the 12V battery from the high Converter voltage batteries For use if signal from motor's...
  • Page 15 The maximum output power of the DC-DC Converter is 500W. When selecting the sys- tem's 12V equipment, ensure this charging capacity meets the battery's requirements. When selecting and purchasing propellers, it is recommended to consult ePropulsion authorized dealers and consider the following references: If the expected speed is 25km/h or less, it is recommended to choose the X20/X40 Pro- •...

  • Page 16: Installation Tools List

    1.1.3 Installation Tools List Before installing the outboard motor, the user or installation engineer needs to prepare the fol- lowing tools. Tool Specification Qty. Purpose To disassemble the outboard's 4mm Allen key 4mm, suitable for M5 hexagon top cover, facilitating the (hex key or hex installation of eye bolts and socket cap screws...

  • Page 17: Parts And Diagram

    Tool Specification Qty. Purpose Drill holes in the boat for Electric Drill Hole requirement: φ13mm outboard installation Drill holes in the boat for 13mm drill bit Hole requirement: φ13mm outboard installation 100mm Hole Meet the hole size: 100mm Make holes for cable routing Seal up holes to prevent water Sealant Structural adhesive...
  • Page 18 Coolant Filler Cap Coolant Filler Cap Filler Port Notch Filler Port Notch Coolant Level Coolant Level Coolant Filler Cap Removable eye Removable eye bolts for lifting bolts for lifting Filler Port Notch Coolant Level Removable eye bolts for lifting Figure 1-2 Communication Interface Communication Interface Communication Interface...

  • Page 19: Specification

    1.3 Specification Model X40-L / X40-XL Rated input power 40 kW Recommended battery ePropulsion Lithium Iron Phosphate Battery Rated input voltage 96 Vdc Input voltage range (high voltage) 86-115Vdc Input voltage range (low voltage) 10.5-16Vdc Weight L: 104 kg XL: 106 kg...

  • Page 20: Model And Shaft Length Selection

    Figure 1-4 1.5 Important Notes 1.5.1 Motor Selection Please follow the instructions of the boat manufacturer and ePropulsion authorised dealer in choosing a suitable outboard motor. Do not exceed the maximum power permitted, and do not overload the motor. 1.5.2 Motor Installation...

  • Page 21: Users

    1.5.3 Users 1. This product must only be operated by adults who have fully read and understood this manual. ePropulsion accepts no liability for any damage or malfunction caused by operations that contradict the content of this manual. 2. You should only use this motor system if you are also familiar with all other aspects of operating your boat.

  • Page 22: Specific To This Installation

    effects of wind, tide and other variables that may affect range. 6. Always report your voyage plan to family, friends and authorities where relevant. 7. Do not operate the boat under the influence of alcohol or drugs. About 50% of boating accidents are related to alcohol consumption During Operation: 1. All members of the crew should be equipped with, and wear, a PFD (personal flotation device, eg life jacket, buoyancy aid).

  • Page 23: Declaration Of Conformity

    Product: Electric Outboard Motor Model: X40, X40-L,X40-XL We Guangdong ePropulsion Technology Limited, hereby, declare that this equip ment is in compliance with the applicable Directives and European Norms, and amendments. The object of the declaration is in conformity with the following directives:...

  • Page 24: Correct Disposal Of This Product

    Note: This equipment has been tested and found to comply with the limits for a Class B digital de- vice,  pursuant  to  part  15  of  the  FCC  Rules.  These  limits  are  designed  to  provide  reason- able protection against harmful interference in a residential installation. This equipment gen- erates, uses and can radiate radio frequency energy and, if not installed and used in accor- dance with the instructions, may cause harmful interference to radio communications. Howev- er, there is no guarantee that interference will not occur in a particular installation. If this equip- ment  does  cause  harmful  interference  to  radio  or  television  reception,  which  can  be  deter- mined by turning the equipment off and on, the user is encouraged to try to correct the interfer- ence by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiv- er is connected.

  • Page 25: Unpacking

    2 Unpacking 2.1 Safety Notice Use appropriate safety equipment, including gloves, safety shoes, and other protective tools. Familiarize yourself with all safety measures before proceeding with the operation. Due to the product's substantial weight, at least two people are required for handling. 2.2 Tools and Equipment Required for Unpacking Prepare unboxing tools, such as a rubber hammer, phillips screwdriver, etc.
  • Page 26 Step 3 Pry open the fasteners between the wooden box and the base, then lift the entire wooden box off the base. Figure 2.2 Step 4 Remove the top cover and screw in the two lifting eye bolts. Attach the lifting strap to the lifting eyes.

  • Page 27: Disposal Of Packaging Materials

    Please check the product for any damage or missing parts. If there are any issues, please contact customer support. During the unpacking process, be careful to avoid damaging the product. Check all acces- sories and ensure they are complete. 2.5 Disposal of packaging materials 1.

  • Page 28: Series Outboard Motor Installation

    3 X-Series Outboard Motor Installation The quality of the installation plays a crucial role in the overall reliability of the entire system. Key aspects such as securing the outboard to the boat, propeller installation, and wiring connec- tions must be carefully considered and adhered to in order to ensure stable and reliable system operation.

  • Page 29: Outboard Motor Installation

    (not sup- 广东逸动科技有限公司 plied, as boat specific). 单位:mm Guangdong ePropulsion Technology Limited 100mm Figure 3.2 Step 2: Removing the Outboard Cover Before lifting, tidy up the cables and secure them to the motor. Remove the four M5 screws from the outboard motor cover.
  • Page 30 Top Cover 18mm 13mm 广东逸动科技有限公司 单位:mm Guangdong ePropulsion Technology Limited Figure 3.4 Lifting objects hazard: when hoisting the outboard keep well clear of people and objects 13mm that may be crushed or damaged in the event of a fall. 88mm...

  • Page 31: Propeller Installation/Replacement

    The top of the outboard contains an internal 4G antenna and GPS module. To avoid signal loss, do not cover this area. 3.3 Propeller Installation/Replacement Steps 1 to 4 apply to propeller replacement, steps 5 to 8 apply to both propeller replacement and first installation: 1.
  • Page 32 It is mandatory to shut down and disconnect the power supply of the outboard motor be- fore removing and installing the propeller. Caution: There are various safety risks during the installation process, so it is essential to be vigilant and perform operations with caution to ensure safety. During trial runs, please stay away from the propeller to avoid any risk of being cut or in- jured.

  • Page 33: Connections

    4 Connections 4.1 X40 Examples System Setup 4.1.1 Single Motor System Connection 14. eSSA Communication 3-way T Connector 15. Outboard Communication Cable (supplied with Motor) 16. eSSA Communication 5-way T Connector 1. X40 Electric Outboard Motor 17. G102-100 Battery Grounding Line 18.

  • Page 34: Twin Motor System Connection

    Whether the negative pole of the 12V battery is grounded needs to be adjusted according to local regulations. The X40 system can support up to four motors and two consoles. For setups not shown here, please contact your ePropulsion dealer for assistance.

  • Page 35: High Voltage Cables Connection

    4.2 High Voltage Cables Connection 4.2.1 Making the Power Cables The 96V power cable included is 5m long, with the end connectors for the battery and motor already fitted. You need to cut it to allow for inclusion of the bus box, with the cut position deter- mined by the relative positions of the motor, bus box and battery.

  • Page 36: Connecting Cables To The Bus Box

    ≤0.3mm 3. Fit heat shrink tubing over the joints between the terminals and the inner cables, and (separately) over the shielding layer. Leaving the joints or the shielding exposed to air may result in insulation and system failure. Please use the crimping tool corresponding to the specifications of the terminal to ensure a proper crimping process.
  • Page 37 (2) Connect the positive cables for Motor, Battery, Charger & DC-DC Module 1. Undo the terminal nuts, and remove the spring and flat washers 2. Install the positive cables (red sleeves) to the terminals on the lower copper bar. The bat- tery cable goes to BAT+, the motor cable goest to MOT+, the DC-DC module goes to 96V-2+, and the charger cable goes to CHG+ The terminal should go on first, followed by the flat washer, the spring washer and the nut.

  • Page 38: Connecting The Dc-Dc Module And 12V Battery

    (5) Bus Box installation The bus box should be fitted to a flat surface, as far from sources of moisture and heat as is reasonably practical. Depending on the mounting surface, M6 screws or bolts can be used to fix it in place. M6 locking torque is 8N.m. IMPORTANT.

  • Page 39: Installation Steps

    4.2.3.2 Installation Steps Step 1: Connecting the Bus Bar with the DC-DC Module See 4.2.2 if not already done. Figure 4.7 Step 2: Connecting the DC-DC Module Communication Cable Use the 3-way T connector included in the DC-DC package to connect the DC-DC communica- tion cable to the outboard motor's communication cable.

  • Page 40: Connecting The G102-100 Battery Bank

    Step 3: Connecting the DC-DC Output and 12V Battery Figure 4.9 When connecting DC-DC and 12V battery, pay attention to avoid short circuits. 4.2.4 Connecting the G102-100 Battery Bank 4.2.4.1 Required Accessories and Tools ① G102-100 battery bank (at least 4 G102 batteries are needed, connected in parallel, to operate X40 motor) ②...

  • Page 41: Connecting The Outboard Motor's Main Power And 12 Volt Cables

    4.2.5 Connecting the outboard motor's Main Power and 12 volt Ca- bles 4.2.5.1 Required Accessories and Tools ① Outboard motor ② Bus box and 96V Motor power cable connected in 4.2.2 ③ 2nd 96V Motor power cable not cut or connected to bus box ④...
  • Page 42 Press the black handle down firmly to secure the connector. Close the locking latch as shown in figure 4.15. Handle Latch Connector fixing hole Figure 4.15 High-voltage interlock connector - Installation step 5 Step 2: Connecting the 2nd High Voltage Power Cable The 2nd 96V power cable (supplied with X40) does not need to be cut, nor routed via the bus box.

  • Page 43: Connection Of Communication Devices (Helm, Throttle Etc)

    This example is for a single-outboard system with a single group of G102 batteries. The setup and connections for other scenarios should be based on the "System Device Con- nection Plan." Contact an authorised ePropulsion dealer to purchase accessories and for further information. Professional installation recommended.

  • Page 44: Smart Throttle Connection

    Digital helm Smart display CAN comm cables eSSA Communication CAN communication cable (to motor) Cable 1m Smart throttle eSSA Communication 5-way T-connector eSSA Communication eSSA Communication 3-way T-connector Terminators Figure 4.16 4.3.1.2.2 Smart throttle connection Each smart throttle has a BUS port and DUAL port at the bottom. when being used Connect to system as a dual throttle...

  • Page 45: Grounding

    120mm 4.4 Grounding In order to ensure safety and stability of system operation, the X series outboard motor (with a 5m grounding line), DCDC module, G102-100 battery, and 12V battery (purchased by the user) must be grounded during system installation.

  • Page 46: External 4G & Gps Antenna (If Required)

    4.5 External 4G & GPS Antenna (if required) The X-series outboard motor has integrated 4G and GPS modules under the top cover. Avoid covering this area if possible. If the installation does affect signal strength, external 4G and/or GPS modules can be used (not supplied, available as accessories). 4.5.1 Installation of the 4G Antenna Step 1: Undo the four screws in the top cover and remove.

  • Page 47: Installation Of The External Gps Module

    Step 4: Fix the 4G antenna on the boat (outdoors). There are two fixing options, as shown in the follow- ing images. Antenn Antenn Steel expansion bolt M8*50 (4PCS User provided) Clip Non-concrete wall Lead out Lead out ∅ ∅ Holding rod low loss low loss...
  • Page 48 • 3M Adhesive Attachment Attach the double-sided adhesive pad to the back of the GPS module as shown below. Make sure the chosen location is clean and dry, then stick the module in place. The bond will take a few hours to acquire full strength. Fixed adhesive sticker External GPS module Figure 4.20 GPS external module adhesive pad fixing...

  • Page 49: Communication Terminator Connection

    4.6 Communication Terminator Connection Communication terminators are needed to ensure stable communication within the system. Dif- ferent combinations are required, depending on how many motors are in the system and wheth- er an external GPS module is connected, as shown in the table below. The resistance value of the terminator is marked on the tail.

  • Page 50: Operation

    5 Operation 5.1 Smart Throttle Button Functions (single & double throttles) Single-throttle operation Button Function Press and hold down this button for 1 second to power the system on or off. Power Switch console (when two throttles are fitted): When the system is turned on, press the Power button twice on the inactive console to activate it.
  • Page 51 Dual-throttle operation Button Function Press and hold down this button for 1 second to power the system on or off. Power Switch console: When the system is turned on, press the Power button twice on the inactive console to activate it. Direction holding function or anchor mode: Press twice to enter Hold Hold mode, and when in Hold mode press once to exit.This...

  • Page 52: Starting The System

    Kill Switch Notes Kill Switch can be placed on either end of the Smart Throttle, depending which way throttle is facing. Motor will not work without kill switch in place. Kill switch should be removed when motor is turned off. In an emergency, motor can be stopped by pulling kill switch off throttle.

  • Page 53: System Problem Feedback Method After Startup

    5.2.2 System problem feedback method after startup If the smart throttle chirps after the system is started and the display displays an error message, refer to Troubleshooting (section 5.11) to solve the problem. 5.3 Perform initial configuration Step 1: Read the system devices After all accessories are assembled, power on, turn on the smart throttle, and the Smart display will automatically read the Serial Numbers (SN) of the devices in the system.
  • Page 54 1. Configuration display When there are two consoles, the display will display two consoles. By default, the console where the current display is located is Console A. 2. Configure Digital Helm Manually turn the steering wheel more than half a turn to configure the digital helm. 3.
  • Page 55 4. After console A is configured, the remaining parts will be automatically matched to console B. 5. Configure motors Click the SN of the motors to configure them to the port and starboard sides of the boat.

  • Page 56: Home Page

    5.4 Home Page 16 11 Function Description Setting page Click to go to the setting page. Home page Click to go to the home page. Propulsion page Click to go to the propulsion page. Warning When the system fails, it will prompt a fault icon. System status READY indicates that the system is ready to start.
  • Page 57 Single motor trim 1. Click or drag up the trim button to view the first-level page displaying the real-time motor tilt angle. 2. Continue dragging up the trim button to view the second-level page. Manual Trim Adjustment: Manually click or drag the bar to adjust the motor's tilt angle. One-Step Tilt: Click the one-step tilt button, and the outboard will automatically tilt to the top.
  • Page 58 Multiple motors trim 1. Click or drag up the trim button to view the first-level page displaying the real-time motor tilt angle. 2. Continue dragging up the trim button to view the second-level page. Synchronisation: When two or more motors are synchronised (Sync button), dragging any of the tilt bars will adjust all motors together.

  • Page 59: Propulsion Page

    5.5 Propulsion Page The propulsion system page is accessed by clicking the boat icon, just to the right of top centre on the screen. 5.5.1 Control Console Click on the console icon to view the accessories for each console.

  • Page 60: Traction Battery

    If an accessory fails, its icon will turn orange or red. Click the fault icon to view the problem in more detail. 5.5.2 Traction Battery Click on the Traction Battery icon to view the remaining power, voltage, and current.

  • Page 61: Motor(S)

    5.5.3 Motor(s) Click on the Motor icon(s) to view current power, rotational speed and cumulative run time. 5.6 Setting The Settings page is accessed by clicking the gear icon, just to the left of top centre on the screen. This covers three groups of settings: Outboard, Control and General.

  • Page 62: Outboard Setting

    If enabled, the outboard will reverse to charge the battery when the boat Hydrogeneration is propelled by other means, eg sailing. This will only work if connected to ePropulsion batteries. Click to switch the motor on or off. If the switch springs back, the setting Switch has failed.

  • Page 63: Steering Settings

    5.6.1.2 Steering Settings Function Description Adjust steering angle Adjust the maximum steering angle left and right. 5.6.2 Control console Settings 5.6.2.1 Smart throttle settings 1. Single-throttle Settings...
  • Page 64 Function Description Click and set the smart throttle installation mode to starboard Starboard installation. If it springs back, the setting fails. Click and set the smart throttle installation mode to port installation. Port If it springs back, the setting fails. 2.

  • Page 65: Display Settings

    This will change the display on the home page. Switch speed and distance units between knots (nautical miles per Units hour), km/h (kilometres per hour) and mph (miles per hour). This will change the display on the home page and ePropulsion setting page.

  • Page 66: Helm Settings

    5.6.2.3 Helm Settings Function Description Force feedback NOTE: this function is only available with the PRO helm Adjust the number of turns required to turn the steering from lock to Number of turns lock...

  • Page 67: General Settings

    5.6.3 General settings 5.6.3.1 System firmware information Function Description System version Display the system/software version. Serial Click Device List to go to the device serial number list page. You can number view all device SN and software and hardware version. When there is a new version available, you will be prompted with the content of the new version and the estimated time to update..

  • Page 68: Maintenance - All Maintenance Timing Tips

    Device list page 1. Click Reset to reset the device original factory settings. 2. Device List displays the SN and software and hardware versions of all components of the propulsion. 5.6.3.2 Maintenance - All maintenance timing tips The system automatically calculates the maintenance time based on various maintenance items.

  • Page 69: Epropulsion Connectivity Service

    X40 offers connectivity capabilities by communicating with the ePropulsion cloud through its 4G antenna. You can link your product to the ePropulsion Link, a user-friendly software designed for personal boat owners, enabling them to monitor their boat's status remotely on their mobile devices.
  • Page 70 To check if a new software version is available, access the boat display through the following path: Settings > General > System Info. If your ePropulsion system is connected to the ePropulsion Link, you will also receive notifica- tions about new software versions within the ePropulsion Link. OTA access can be found on the propulsion system page.

  • Page 71: Operation

    Link. 5.7 Operation 5.7.1 Checks before starting 1. Ensure the propeller is correctly installed on the outboard motor.

  • Page 72: Steering Control

    If you pull the throttle directly from forward to reverse, the motor will stop briefly before entering reverse gear. This is to protect the gearbox from damage. Neutral Forward Neutral Forward Backward Backward Port Starboard Figure 5.2 5.7.4 Steering Control 5.7.4.1 Steering Control with Digital helm Secure the digital helm on the dashboard using screws, then connect the system's CAN com- munication cable to the communication interface at the bottom of the digital helm (see section...
  • Page 73 • Tilt Adjustment Button on the Motor Tilt adjustment button on the motor Up button Lower button Figure 5.4 •Tilt Adjustment Button on the Smart Throttle 广东逸动科技有限公司 Remote Control 单位:mm Guangdong ePropulsion Technology Limited Tilt Adjustment Button Figure 5.5 广东逸动科技有限公司 单位:mm Guangdong ePropulsion Technology Limited...
  • Page 74 • Tilt Adjustment Button on the Display Figure 5.6 5.7.5.2 Adjusting the Boat's Trim Angle When the boat is planing, raising the bow appropriately reduces resistance, improves stability, and enhances efficiency. Typically, the boat's centerline is raised by 3° to 5°. If the bow is raised too far, the boat tends to turn to one side or the other, requiring compensation during steering.
  • Page 75 Excessive inward trim makes the boat "plow" through the water, leading to difficulty in acceler- ating. Running at high speeds with excessive inward trim can also make the boat unstable. The resistance at the bow significantly increases, making steering difficult and hazardous. 5.7.5.3 Cruising in Shallow Water The outboard motor can be partially tilted upward to operate in shallow waters.

  • Page 76: Hydro Generation Function

    4. Boat speed is above 6km/h or the shaft rotation speed remains above 800rpm for 4 seconds. 5. ePropulsion batteries are connected, including a communication cable (as well as main pow- er cables etc). It will not work with other manufacturer's batteries.

  • Page 77: Idle Mode, Sleep

    8000rpm). 5. The battery level is higher than 90%. 6. Batteries from a supplier other than ePropulsion are in use. 5.9 Idle Mode, Sleep For convenience and enhenecing experience in various scenarios, the X-series outboard motor is equipped with idle mode, sleep mode, and wake-up function.

  • Page 78: Cautions

    In the event of system malfunctions, we will upload the fault information through the boat network, and registered users can view the relevant information on the App or other platforms. Please refer to section 5.11 for fault handling and contact the after-sales service and dealers to address any issues.

  • Page 79: Troubleshooting

    5.11 Troubleshooting 5.11.1 Mechanical Faults/Solutions NOTE: most "abnormalities" are caused by external factors such as weed or rope around pro- peller, foreign objects caught in steering mechanism, etc. Please check for such issues before assuming there is a mechanical fault! Failure Possible Reasons Possible Solutions...

  • Page 80: System Faults/Solutions

    5.11.2 System Faults/Solutions Fault position Fault name Fault code Solution 1. Check the external wiring. Encoder fault P101003 2. Replace the rotary encoder. 3. Replace the motor controller. 1. Check the external wiring. Power tube pass- P100F03 2. Check the insulation of the motor. through failure 3.
  • Page 81 Fault position Fault name Fault code Suggested measures 1. Overhaul the motor or drive system. The motor 2. Check whether the heat dissipation is seriously P100203 channel is blocked. overheated 3. Check coolant level 1. Check the operating conditions. MOS general P100402 2.
  • Page 82 Fault position Fault name Fault code Suggested measures Auxiliary power 1. Check the external input 12V power P130B11 overvoltage supply Auxiliary 1. Check the external input 12V power power supply P130C11 supply undervoltage 1. Check the BMS line and cable 2.

  • Page 83: Control Failures & Limp Home Modes

    Fault position Fault name Fault code Suggested measures 1. Keep away from strong magnetic Throttle fields and recalibrate calibration data H120203 2. If it occurs repeatedly, contact after- abnormal sales processing Wired remote Abnormal throttle 1. Keep away from strong magnetic operation box H120003 angle...

  • Page 84: Temporary Running Mode

    Fault position Trigger condition Processing strategy Low SOC Linear power drop High voltage interlock X-ECU failure Close Secondary failure Reduce power by 50% operation Stop the outboard first and push the throttle Level three failure again, then limit the power to 10kW, and manually control the steering Electric Secondary failure...

  • Page 85: Manual Trim

    (2) Connect the sound and light alarm connector as shown in the diagram and tighten it. (3) Secure the sound and light alarm wire in the cable groove. (4) Reinstall the upper cover. Example of Sound and Light Cable Tray Cable Sound and Light Alarm Interface Alarm Figure 5.9 广东逸动科技有限公司 单位:mm Guangdong ePropulsion Technology Limited...

  • Page 86: Connection To External Nmea 2000 Devices

    5.13.2 Connection to external NMEA 2000 devices The X-series outboard motor supports communication with external devices using the NMEA 2000 protocol. Follow these steps to connect the NMEA2000 device: (1) Remove the outboard's upper cover. (2) Connect the NMEA2000 connector as shown in the diagram and tighten it. (3) Secure the NMEA2000 communication cable in the cable groove.

  • Page 87: Emergency Situations

    6.2 Swamped or Submerged Outboard If the outboard is swamped or submerged, then turn off the main power switch and disconnect the battery. The outboard should be thoroughly inspected (by an authorised ePropulsion dealer), and repaired as necessary, before further use.

  • Page 88: Maintenance

    7 Maintenance 7.1 Maintenance 7.1.1 Routine maintenance Maintenance Maintenance items Maintenance methods frequency All parts of the outboard that have been Fresh water flushing underwater, or splashed, should be rinsed After each use after use with fresh water after each use Please lift the outboard after each use.

  • Page 89: Outboard Maintenance

    7.1.2 Outboard maintenance Maintenance cycle Mainten Ongoing First maintenance -ance maintenance Method of operation Main work items 1000 hours hours hours hours hours hours (Or 3 (Or 6 (Or 1 (Or 6 (Or 1 (Or 4 months) months) year) months) year) years) Top up tilt...

  • Page 90: Partial Maintenance And Care Guidelines

    Tilt the outboard motor so that the oil drain bolt is at the lowest point. Place a pan under the lower oil drain bolt and remove it. Then remove the two oil filling bolts, and allow the gear oil to drain completely. oil filling bolts oil drain bolt Figure 7.1 广东逸动科技有限公司 单位:mm Guangdong ePropulsion Technology Limited...
  • Page 91 Figure 7.2 Step 5: 广东逸动科技有限公司 单位:mm Guangdong ePropulsion Technology Limited Pour 500 ml of new gear oil into one of the oil filling holes (the other is to let air escape). Use a funnel to inject 500ml of gear oil Figure 7.3...

  • Page 92: Anode Inspection & Replacement

    Step 6: Insert and do up the oil filling bolts. Tighten the oil filling bolts Figure 7.4 Step 7: Refer to 3.1.3, and install the propeller. When adding gear oil, please add exactly 500 ml. Too little oil can result in insufficient 广东逸动...

  • Page 93: Coolant Filler

    7.2.3 Coolant Filler 广东逸动科技有限公司 单位:mm Guangdong ePropulsion Technology Limited If the motor is over-temperature, and periodically, check the coolant level. With the outboard vertical, the level should be above the top of the coolant window. If it is too low, top up.

  • Page 94: Propeller

    7.2.4 Propeller 广东逸动科技有限公司 单位:mm Guangdong ePropulsion Technology Limited The propeller is an important component of the outboard motor. To ensure safe navigation and optimal performance, the propeller should be regularly removed and inspected. During the inspection, pay attention to the following: (1) Check the propeller blades for wear or other damage.

  • Page 95: Check Grounding Wires

    Use a grease gun for grease lubrication Grease lubrication Grease lubrication Figure 7.8 7.2.7 Check Grounding Wires Inspect each grounding wire to ensure it is securely fastened, as shown in the diagram below. Grounding wire of clamp Grounding wire Grounding wire of clamp of trim &...

  • Page 96: Limited Warranty

    In all warranty cases, ePropulsion will only bear the repair or replacement cost for items that are covered by the Limited Warranty. Any costs not covered by the Limited Warranty – such as those related to product installation, disassembly, transportation, financing, rental, etc –...

  • Page 97: Warranty Exclusions

    • Due to failure of, or damage caused by, any 3rd party products; • The high-voltage batteries have been repositioned in the boat, without contacting ePropulsion service. Repositioning may result in changes to cabling, and other risks to system operation;...

  • Page 98: Limited Warranty Claim Procedures

    6. If your warranty claim is rejected, a repair/replacement cost and fee with round trip delivery cost will be estimated and sent to you for confirmation. ePropulsion Service Partners will only begin the work after your written confirmation that you wish to proceed with the repair/...
  • Page 101 (*In order to validate warranty, please fill in this form first and read the Warranty Policies.) OWNER INFO. Owner Name Address Phone Email DEALER INFO. Store Name Address Phone Email PRODUCT INFO. Date of Purchase (mm/dd/yyyy) Serial No.
  • Page 104 Thanks for reading this user manual. If you have any concerns or find any problems while reading, please don't hesitate to contact us. We are delighted to offer service for you. Guangdong ePropulsion Technology Limited Webseite: www.epropulsion.com E-Mail: service@epropulsion.com...
