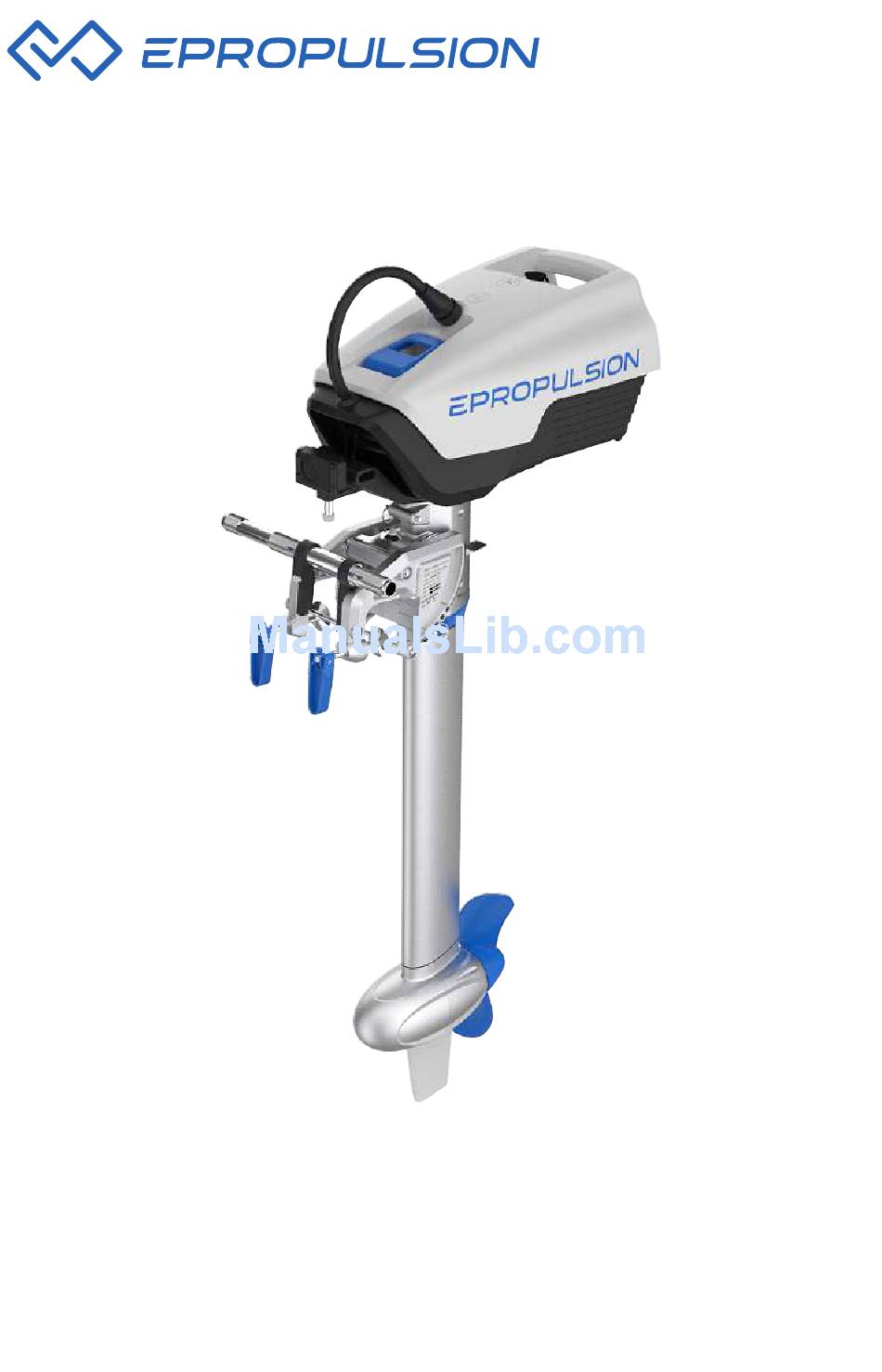

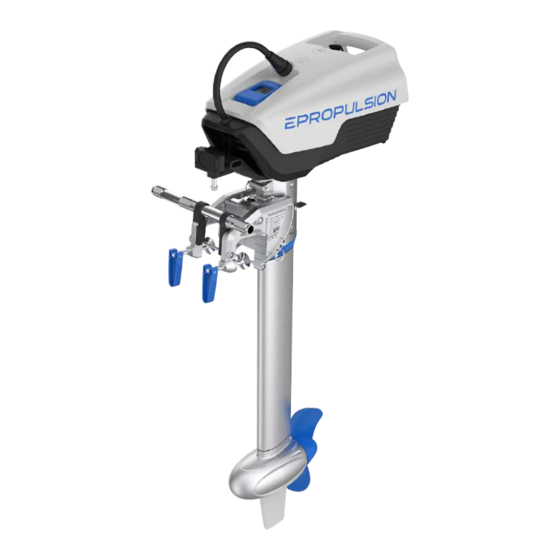

SPIRIT 1.0R USER MANUAL
March, 2018 Version 1.1
Copyright © 2018 ePropulsion All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPIRIT 1.0R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ePropulsion SPIRIT 1.0R

Summary of Contents for ePropulsion SPIRIT 1.0R

  • Page 1 SPIRIT 1.0R USER MANUAL March, 2018 Version 1.1 Copyright © 2018 ePropulsion All Rights Reserved...

  • Page 3: Acknowledgement

    By using this product, you hereby agree that you have fully understood and accepted all the contents of this manual. ePropulsion accepts no liability for any damage or injury caused by operations that contradict this manual.

  • Page 4: Product Identification

    Storage: 15℃~25℃（59℉~77℉） READ USER MANUAL FIRST DO NOT DISASSEMBLE KEEP AWAY FROM FIRE/HEAT SOURCE ONLY CHARGE WITH SPIRIT CHARGER DO NOT DISCARD AS HOUSEHOLD WASTE SPIRIT 1.0R Model: SPIRIT 1.0 Remote Control FCC ID:2AKHE-EOM Serial No.: DSRCXXXXXXX Figure 0-1 Figure 0-2...

  • Page 5: Table Of Contents

    Table of Contents Acknowledgement ..................1 Using this manual ..................1 Symbols ...................... 1 Product Identification ................2 1 Product Overview ................5 1.1 In the Package ..................5 1.2 Parts and Diagram ................7 1.3 Specifications ..................8 1.4 Declaration of Conformity ..............10 2 Important Notes before Start ..............
  • Page 6 10.1 Notes ....................37 10.2 Propeller Maintenance ..............37 10.3 Replacing the Anode ................ 38 10.4 Maintenance Time Table ..............38 11 Transportation and Storage ..............40 11.1 Transportation ................... 40 11.2 Placement ..................40 11.3 Storage ..................... 40 12 Emergency Situations ................41 12.1 Impact Damage ................

  • Page 7: Product Overview

    1 Product Overview SPIRIT 1.0R is an 1kw (3hp equivalent) electric outboard with high overall efficiency. The self-contained battery is detachable and will float if it falls into water. Wireless remote control is free and flexible. It is is an ideal option for medium and small sized boats.
  • Page 8 Items Qty./Unit Figure Battery 1 set Charger Kill 2 sets Switch Steering 2 sets Lock Pin Link Arm 1 set Remote 1 piece Control 2× 6mm Fixing 1 set Guide 41mm Plotting Scale - 1:1 Screw Size - M6×12mm User Manual Warranty &...

  • Page 9: Parts And Diagram

    Save the ePropulsion original package for the outboard storage. Other accessories mentioned in this manual need to be purchased additionally from ePropulsion authorized dealers. There are three types of chargers for SPIRIT Battery: standard charger (included in the package), fast charger and solar charger (require separate purchase from ePropulsion authorized dealers).

  • Page 10: Specifications

    1.3 Specifications SPIRIT 1.0R-L / SPIRIT 1.0R-S Type Electric Maximum Input Power Rated Current 24.6A Comparable Petrol Outboard Maximum Overall Efficiency Rated Rotation Speed 1200rpm Control System Remote control Communication Wirelss Communication Distance ≤10m 10.9Kg / 24lbs (S) Weight (without battery) 11.2Kg / 24.7lbs (L)
  • Page 11 SPIRIT Battery Charging Time ~ 6Hr Cycle Life ≥500 cycles (80% of Rated Capacity) Charging: 0°C ~ 45°C (32°F ~ 113°F) Temperature Range Discharging: -20°C ~ 60°C (-4°F ~ 140°F) Storage: 15°C ~ 25°C (59°F ~ 77°F) Dimension (L×W×H) 416mm×275mm×202mm Weight 8.5Kg / 18.7bls SPIRIT Standard Charger...

  • Page 12: Declaration Of Conformity

    1.4 Declaration of Conformity Object of the Declaration: Product: SPIRIT 1.0R Model: SPIRIT 1.0R-S, SPIRIT 1.0R-L, SPIRIT 1.0R-XS Company Name: Dongguan ePropulsion Intelligence Technology Limited Address: Room 202, Bldg.17A, Headquarter No.1, 4th XinZhu Road, SongShan Lake District, Dong Guan, Guang Dong, China...
  • Page 13 The manufacturer is not responsible for any radio or TV itnerference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. Signature: Shizheng Tao, Chief Executive Officer & Cofounder of Dongguan ePropulsion Intelligence Technology Limited...

  • Page 14: Important Notes Before Start

    2 Important Notes before Start For safety, please read the following instructions and notes before using this product. By using this product you hereby: 1) agree to these notes and instructions; 2) agree not to use this product for purposes that infringe upon or contravene laws and regulations;...

  • Page 15: Battery

    To keep electric connectors in good condition, please spray the connectors about every 3 months with contact spray. To store the outboard motor, put the machine in original ePropulsion package and keep it in a dry and ventilated place without direct sun exposure.
  • Page 16 Use the port cap to avoid accidental short-circuit. Never discharge the battery below 33V. Store the battery in dry environment. Charge the battery immediately after full discharge. Before long-term storage, make sure the residual battery level is 60% around, store the battery at 18°C ~ 28°C (64.4°F ~ 82.4°F). If the residual battery is more than 60% for over ten days without activity, self-discharge will occur to the battery with a small current around 100mA until the battery level drops to 60% around.

  • Page 17: Installation

    3 Installation Step1: Hang the electric outboard motor on the transom of your boat and tighten the two clamp handles. Figure 3-1 Figure 3-2 Ensure to mount the outboard on the centerline of your boat. If the boat shape is asymmetric, please consult your dealer to get proper solution. Center line Figure 3-3 The mounting height of the outboard affects the running speed seriously.
  • Page 18 ≥150mm below the bottom of the boat. Usually, if 400mm≥transom height≥300mm, it’s recommended to select a shortshaft SPIRIT 1.0R, while if 500mm≥transom height≥400mm, it’s recommended to select a longshaft SPIRIT 1.0R. The below Figure 3-4 shows the suitable transom height for a shortshaft SPIRIT 1.0R. Transom Height 400mm≥H≥300mm...
  • Page 19 Slot Block Figure 3-5 Step3: Plug the power cable in the power port and tighten the connector. Figure 3-6 Figure 3-7 Make sure the power cable connector and socket are dr y before connecting to avoid short-circuit. Please spray and clean the connectors about every 3 months with contact spray.

  • Page 20: Operation

    4 Operation 4.1 Checklist before Start 1. Check and ensure the battery has enough power. 2. Ensure the outboard is correctly and firmly installed on the boat. 3. Ensure the propeller is correctly and firmly installed on the outboard. 4. Ensure the battery is correctly and firmly installed on the outboard. 5.

  • Page 21: Stopping

    The kill switch has magnetic field, keep it 50cm/20inch away from pacemakers and other medical implants. The magnetic field of kill switch may interfere with some electronic instruments, keep it away from these electronic instruments. Keep the kill switch 50cm/20inch away from magnetic cards (e.g. Credit cards) and other magnetic media.
  • Page 22 ③ ④ • Switch off the power button. • Disconnect the power cable. In normal operating procedure, it’s recommended to stop the outboard as following steps. Rotate the throttle to neutral position. Wait until the outboard stops, then remove the kill switch. Press and hold (≥2secs) the "...

  • Page 23: Tilting Up The Outboard Motor

    4.5 Tilting up the Outboard Motor To tilt up, first screw off the lock nut to disconnect the Link Arm and Steering Tube. Then pull up the trim release lever and take the battery handle to tilt up the outboard motor to the maximum height. After a "click" sound, release the battery handle and the outboard will tilt up to 75°...

  • Page 24: Remote Control

    5 Remote Control The LCD screen presents real-time cruising information during operation. 5.1 LCD Display Overheat Alert Kill Switch Status Indicator Battery Level Indicator Battery Level/Voltage Travelled Time/ Remaining Time Time Throttle Rest Indicator Throttle Power Figure 5-1 Button Function 1.
  • Page 25 1. On any setting page, press " " button to view options for current setting . 2. If the home page displays in power-on state, long press " " button for 10s to enter the throttle calibration page. 3. On home page, press " "...

  • Page 26: Connecting Remote Control To The Outboard

    5.2 Connecting Remote Control to the Outboard For SPIRIT 1.0R wireless type, the remote control and the outboard are paired prior to delivery. However, if the remote control or the wireless outboard is replaced with a new one, the original wireless communication will break and the screen will display like the figure below.

  • Page 27: Power Adjusting

    Pairing the remote to the outboard: Step 1: Break the battery connection and turn off the remote control. Hold the remote control within 0.5 meter of SPIRIT 1.0R (head part). Step 2: Press and hold the " " button to switch on.

  • Page 28: Charging The Remote Control

    Forward NEUTRAL Backward Figure 5-5 Before switching on the remote, please set the throttle to neutral position. If you find a flickering “RESET” on the display, you are reminded to reset the throttle to neutral position. If you pull the throttle from the forward position to the backward position directly, the motor will first stop shortly then start turning to the reverse direction.

  • Page 29: Recalibration

    5.5 Recalibration The throttle position sensor should be recalibrated if the error code E30 shows. Figure 5-8 Recalibration process LCD Displaying Step1: Long press " " button for 10s until “CAL FO” displays. Step2: Push the throttle to the maximum forward power position, then press "...

  • Page 30: Error Codes And Solutions

    Step5: Push/Turn the throttle to ZERO position and press " " button and return to the main page. Carry out the calibration procedures strictly as the above sequence. 5.6 Error Codes and Solutions When the outboard is running in abnormal conditions or malfunctioning, a warning message will display with an error code.
  • Page 31 Refer to section 5.5 Recalibration Required System running Please restart the remote control and the outboard. failure If you are not using an ePropulsion charger, please Charger Fault change an ePropulsion charger. If this error still persists, please contact your dealer. Battery Cell Ensure the cell temperature is 0°C~45°C.

  • Page 32: Battery Charging

    6 Battery Charging Charge the battery when the battery is of low or empty charge level. It is recommended to charge the battery after detaching it from the outboard though it is allowed to operate and charge the outboard simultaneously. Step1: Power off the remote control then disconnect the power cable.
  • Page 33 Abnormal Indicator Description Status 1. Make sure the AC socket has power output. 2. Disconnect the battery with charger, if the charger indicator becomes solid green, there may be a fault in battery, please contact your Charger Light out indicator dealer.

  • Page 34: Trim Angle Adjusting

    7 Trim Angle Adjusting SPIRIT 1.0R has four trim angle options: 21°, 14°, 7° and 0°. The trim angle should be adjusted based on the boat type and the running speed to achieve higher efficiency. It is recommended to try different trim angles at your desired running speed to achieve the best performance.
  • Page 35 Step3: Put the trim pin into the desired position. Figure 7-3 Step4: Pull the trim release lever again to lay down the outboard motor, and the outboard motor will stay at the desired trim angle. Figure 7-4 Step5: Try to tilt up the outboard and test if the angle is successfully fixed. It is recommended to try different trim angles to help find the best working trim angle for the boat and operating conditions.

  • Page 36: Propeller Assembly

    8 Propeller Assembly The outboard performance is seriously affected by the type of propeller. Users can select a proper propeller according to different application conditions. For a larger load boat and a low running speed, a lower-pitch propeller is more suitable.

  • Page 37: Anti-Grounding Mode

    9 Anti-grounding Mode When the boat runs in shallow water or in complicated underwater conditions, it may meet grounding dangers. Setting the outboard to anti-grounding mode will protect the outboard motor from damage if the outboard hits submerged reefs or rocks. In anti-grounding mode, the underwater part of the outboard is flexible in tilting direction and the motor will automatically tilt up if it hits something underwater.
  • Page 38 Step2: Release the beaching pin and the trim release lever will stay at the position shown in the figure below. And then the anti-grounding mode is activated. Trim Release Lever Figure 9-3 To inactivate the anti-grounding mode Pull the beaching pin again and make the trim release lever return to horizontal position, the anti-grounding protection will be disabled and the outboard will work in normal state.

  • Page 39: Maintenance

    Disconnect the battery from outboard before maintenance. Conduct the maintenance under instructions of professional experts or your dealer. Only use ePropulsion original components for replacement and maintenance. 10.2 Propeller Maintenance Ensure the battery is disconnected before each check, as a rotating propeller is dangerous.

  • Page 40: Replacing The Anode

    10.3 Replacing the Anode Please refer to the figure below to replace a new anode if necessary. Anode Figure 10-1 10.4 Maintenance Time Table Regularly maintained in proper manner and used in normal condition, the outboard can work at its optimal state. The following table shows a general maintenance frequency, which however may vary according to operating conditions.
  • Page 41 Greasing Map Right Left Greasing as the right side...

  • Page 42: Transportation And Storage

    11 Transportation and Storage 11.1 Transportation For long distance transport, please use the ePropulsion original package to pack the outboard before transportation. Figure 11-1 11.2 Placement When place the outboard on the ground, ensure the ground is flat and clean.

  • Page 43: Emergency Situations

    1. Stop the outboard immediately. 2. Check the propeller and other components before you start the motor again. 3. Return to the nearest harbor or beach. 4. If the motor is damaged, find your dealer or ePropulsion service center for help. 12.2 Sodden Outboard If the outboard is sodden, stop it immediately and disconnect the battery.

  • Page 44: Warranty

    13 Warranty The ePropulsion limited warranty is provided for the first end purchaser of an ePropulsion product. Consumers are entitled to a free repair or replacement of defective parts or parts which do not conform with the sales contract. This warranty operates in addition to your statutory rights under your local consumer law.

  • Page 45: Out Of Warranty

    Free warrenty is not transferable and will not be reissued. Within the limits of the applicable laws, the warranty policies of ePropulsion may update without prior notice. The latest version is available at our website www.epropulsion.com.
  • Page 46 6. In case your warranty claim be rejected, an estimated repair charge with round trip delivery cost will be sent for confirmation. ePropulsion authorized ser vice point will conduct maintenance accordingly only after your confirmation.
  • Page 48 Thanks for reading this user manual. If you have any concerns or find any problems while reading, please don't hesitate to contact us. We are delighted to offer service for you. ePropulsion Innovation (HK) Ltd. Website: www.epropulsion.com Email: service@epropulsion.com...
