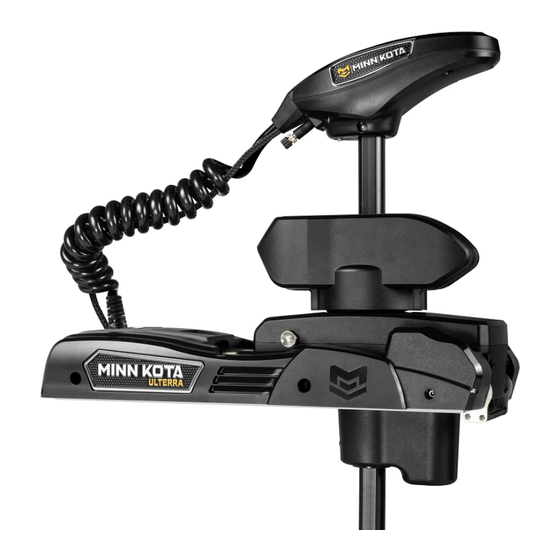

MINN KOTA ULTERRA QUEST Quick Reference Manual

For all QUEST series Ulterra and Riptide Instinct trolling motors.
EMERGENCY STOW PROCEDURES
NOTICE: Keep this Quick Reference Guide
on your boat.
Stowing from the Mount
In the unlikely event the Wireless Remote,
One-Boat Network app, or Foot Pedal becomes
non-functioning, the motor can be stowed from the
Indicator Panel at the base of the Mount.
System System
Indicator Panel Indicator Panel
Status Status
LED LED
Power Power
Button Button
a. Locate the Indicator Panel at the base
of the Mount.
b. Ensure that the motor is on by checking that
the System Status LED is illuminated blue.
c. Press and hold the Power Button on the
Indicator Panel for ten seconds.
d. The blue and orange LEDs next to the System
Status (blue) and Stowed (orange) Indicators
will flash alternately, and the motor will begin
to stow.
WARNING
During this procedure, the motor will go into an
automated sequence. Keep fingers clear of all
hinges, pivot points and all moving parts. Ensure
that the motor or parts of the motor do not contact
the boat, trailer, persons, or any other obstruction.
NOTICE: If the motor batteries lose power
to the level that the motor will not stow, the
motor will most likely stall at a 45 degree
angle. If this occurs, reengage power,
deploy the motor, trim motor to its highest
setting, and turn power off until batteries
can be recharged. Once batteries are
charged, attempt to stow again.
MANUAL STOW BYPASS
If the motor loses power or will
not stow by any other method, a
Manual Stow Bypass procedure
can be used to stow the motor.
The Manual Stow Bypass
involves two steps:
1. Manually Trim the Motor
2. Manually Stow the Motor
WARNING
While servicing the motor, stay clear of pinch
points and do not wear loose-fitting clothing or
loose-fitting jewelry.
Manually Trim the Motor
a. With the motor deployed, locate the Trim
Release Lever on the side of the Trim Housing.
b. Firmly grasp the Shaft of the motor. While lifting
up on the Shaft, open the Trim Release Lever.
Part #2207126
ULTERRA® QUEST™ & RIPTIDE INSTINCT™ QUEST™
b
Trim Trim
Housing Housing
WARNING
Moving parts can cut or crush. When using the Trim
Release Lever or moving the Shaft, keep fingers
clear of all hinges, pivot points, and moving parts.
Use caution when mechanical parts are in motion.
c. Manually trim the motor by pulling the Shaft
upward. Stop lifting when there are roughly
SYSTEM STATUS SYSTEM STATUS ten inches of Shaft remaining below the
SYSTEM STATUS
Steering Housing.
d. Rotate the Shaft so that the Prop faces Port.
The Lower Unit should be perpendicular to
the Mount.
c
10" 10"
e. Close the Trim Release Lever to secure the
Shaft in place.
e
Trim Trim
Housing Housing
Manually Stow the Motor
NOTICE:
beginning this procedure.
a. Locate the Quick Release Lever on the
Steering Housing, above the Tilt Shaft near
the center of the Mount. Open the Quick
Release Lever by lifting upward.
Scan to find
additional help.
a
Tilt Shaft Tilt Shaft
b. Locate the Quick Release Pin on the side of
the Steering Housing. Push in the center of
the Pin. While keeping the center of the Pin
pushed in, pull the Pin completely out of the
Steering Housing.
Shaft Shaft
Trim Trim
Release Release
Lever Lever
d
Prop Prop
Port Port
Shaft Shaft
Trim Trim
Release Release
Lever Lever
Complete the Manual Trim before
Quick Release Quick Release
Lever Lever
ECN 43773
QUICK REFERENCE GUIDE
b
NOTICE: Do not lose the Quick Release
Pin. Motor cannot function without the Pin.
c. Locate the Latch Bracket Handle on the back
of the Steering Housing, near the Motor Ramps.
d. Firmly grasp the Shaft and raise the Latch
Bracket Handle. While holding both the Shaft
and Latch Bracket Handle, pivot the trolling
motor into the stowed position.
d
Latch Latch
Bracket Bracket
Handle Handle
Motor Motor
Ramp Ramp
e. With the motor in the stowed position, release
the Latch Bracket Handle, while maintaining a
hold on the Shaft.
f. Locate the Trim Release Lever on the side of
the Trim Housing. While holding the Shaft,
open the Trim Release Lever.
f
Lower Unit Lower Unit
Motor Motor
Ramp Ramp
g. Pull the Lower Unit fully onto the Motor
Ramps. Secure the lower unit on the Motor
Ramps and close the Trim Release Lever to
lock the motor in the stowed position.
g
Lower Unit Lower Unit
Motor Motor
Ramp Ramp
NOTICE: Once on shore, take the motor
to an Authorized Service Provider or use
the Minn Kota Help Center at
johnsonoutdoors.com.
Rev A
Quick Quick
Release Pin Release Pin
Shaft Shaft
Trim Trim
Release Release
Lever Lever
Trim Trim
Release Release
Lever Lever
minnkota.
08/23
