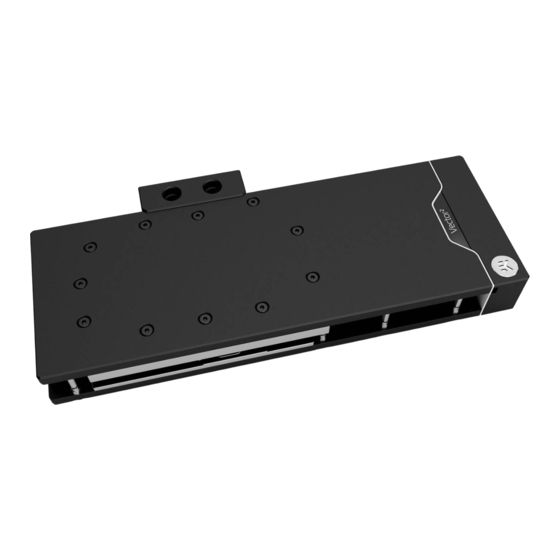

- Page 1 EK-Quantum Vector XC3 RTX 3070 D-RGB GPU WATER BLOCK USER GUIDE...
- Page 2 Before you start using this product, please follow these basic guidelines: Please carefully read the manual before beginning with the installation process! Please remove your graphics card from the computer to assure the safest mounting process in order to prevent any possible damages to your GPU and/or graphics card circuit board (PCB).
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS WATER BLOCK DIMENSIONS WATER BLOCK SPECIFICATIONS AND MAIN PARTS NICKEL + PLEXI CONFIGURATION WATER BLOCK SPECIFICATIONS AND MAIN PARTS NICKEL + ACETAL CONFIGURATION PREPARING THE GRAPHICS CARD REMOVING THE STOCK COOLER CLEANING THE PCB CUTTING AND PLACING THERMAL PADS APPLYING THERMAL COMPOUND INSTALLING THE WATER BLOCK PLACING THE BLOCK ON THE GRAPHICS CARD... -
Page 4: Box Contents
Universal Mounting Mechanism – You may not need every screw from this package. M2.5x4 AX1 Screw (16 pcs) M2.5x6 AX1 Screw (13 pcs) EK-Quantum Vector XC3 RTX 3070 M2.5x8 AX1 Screw (2 pcs) PVC Washer M2.5 (16 pcs) EK-Plug G1/4 (2 pcs) -
Page 5: Water Block Dimensions
WATER BLOCK DIMENSIONS 276.95 mm 97.73 mm 68.73 mm 22.45 mm 20.60 mm - 5 -... -
Page 6: Water Block Specifications And Main Parts Nickel + Plexi Configuration
WATER BLOCK SPECIFICATIONS AND MAIN PARTS NICKEL + PLEXI CONFIGURATION Technical Specifications: - Dimensions (LxHxW): 277 x 125 x 22.5 mm - D-RGB (Addressable RGB) Cable - Length: 500 mm SCREW M4x27 - DIN7984 - D-RGB LED Count: 5 - D-RGB Connector: Standard 3-Pin (+5V, Data, Blocked, Ground) TERMINAL ACETAL O-RING 15x1 EK RGB BADGE... -
Page 7: Water Block Specifications And Main Parts Nickel + Acetal Configuration
WATER BLOCK SPECIFICATIONS AND MAIN PARTS NICKEL + ACETAL CONFIGURATION Technical Specifications: - Dimensions (LxHxW): 277 x 125 x 22.5 mm - D-RGB (Addressable RGB) Cable - Length: 500 mm SCREW M4x27 - DIN7984 - D-RGB LED Count: 12 - D-RGB Connector: Standard 3-Pin (+5V, Data, Blocked, Ground) TERMINAL ACETAL O-RING 15x1 EK RGB BADGE... -
Page 8: Preparing The Graphics Card
Always remove the stock cooler slowly - it might be firmly glued to the PCB with thermal pads. Pay attention to the following steps when installing the EK-Quantum STEP 1 Vector XC3 RTX 3070 water block onto your graphics card. -
Page 9: Cutting And Placing Thermal Pads
CUTTING AND PLACING THERMAL PADS STEP 1 Your GPU water block comes with thermal pads that have to be cut into smaller pieces to cover all the VRM components, such as COILs, Thermal Pad F – 1.0 mm (120 x 16 mm) MOSFETs, and drivers. -
Page 10: Applying Thermal Compound
APPLYING THERMAL COMPOUND STEP 1 Apply the enclosed EK-TIM Ectotherm thermal grease (thermal compound) on the GPU heat spreader – IHS – as shown in the image. The layer of the thermal compound must be thin and even over the entire surface of the IHS. The excessive or uneven application of thermal grease may lead to poor performance! For this Step, you will need:... -
Page 11: Attaching The Block To The Graphics Card
STEP 2 ATTACHING THE BLOCK TO THE GRAPHICS CARD Use twelve (12) M2.5 X 4 AX1 screws and ten (10) M2.5 PVC WITHOUT PVC WASHERS washers. For one screw going into the PCB bracket you will need M2.5 Nut to attach it. Tighten the screws evenly using the Phillips M2.5 x 4 AX1 SCREW head screwdriver. -
Page 12: Checking For Contact
CHECKING FOR CONTACT If necessary, temporarily remove the water block to check for uniform surface contact between the block and components. Pay special attention to the VRM section of the graphics card. Check whether the water block makes contact with the intended integrated circuit. Then repeat Steps from the previous section to re-attach the block. -
Page 13: Fittings And Tubing
FITTINGS AND TUBING STEP 1 EK-FITTING Screw-in two (2) G1/4 threaded male fittings. Attach the liquid cooling tubes and connect the water block to the cooling loop. Do not forget to plug the remaining two openings with enclosed EK-Plug G1/4 or its equivalent. EK recommends using EK fittings with all EK water blocks. -
Page 14: Replacing The Led Strip (Optional)
REPLACING THE LED STRIP (Optional) STEP 1 If you want to replace the D-RGB LED strip, you must remove the three (3) M2.5x8 screws shown in the picture. Remove the stickout AX1 - M2.5x8 SCREW and replace the LED strip. Once you have replaced the LED strip, align the holes on the stickout with holes on the top plate, and tighten the standoffs evenly. -
Page 15: Support And Service
SUPPORT AND SERVICE In case you need assistance, please contact: https://www.ekwb.com/customer-support/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
