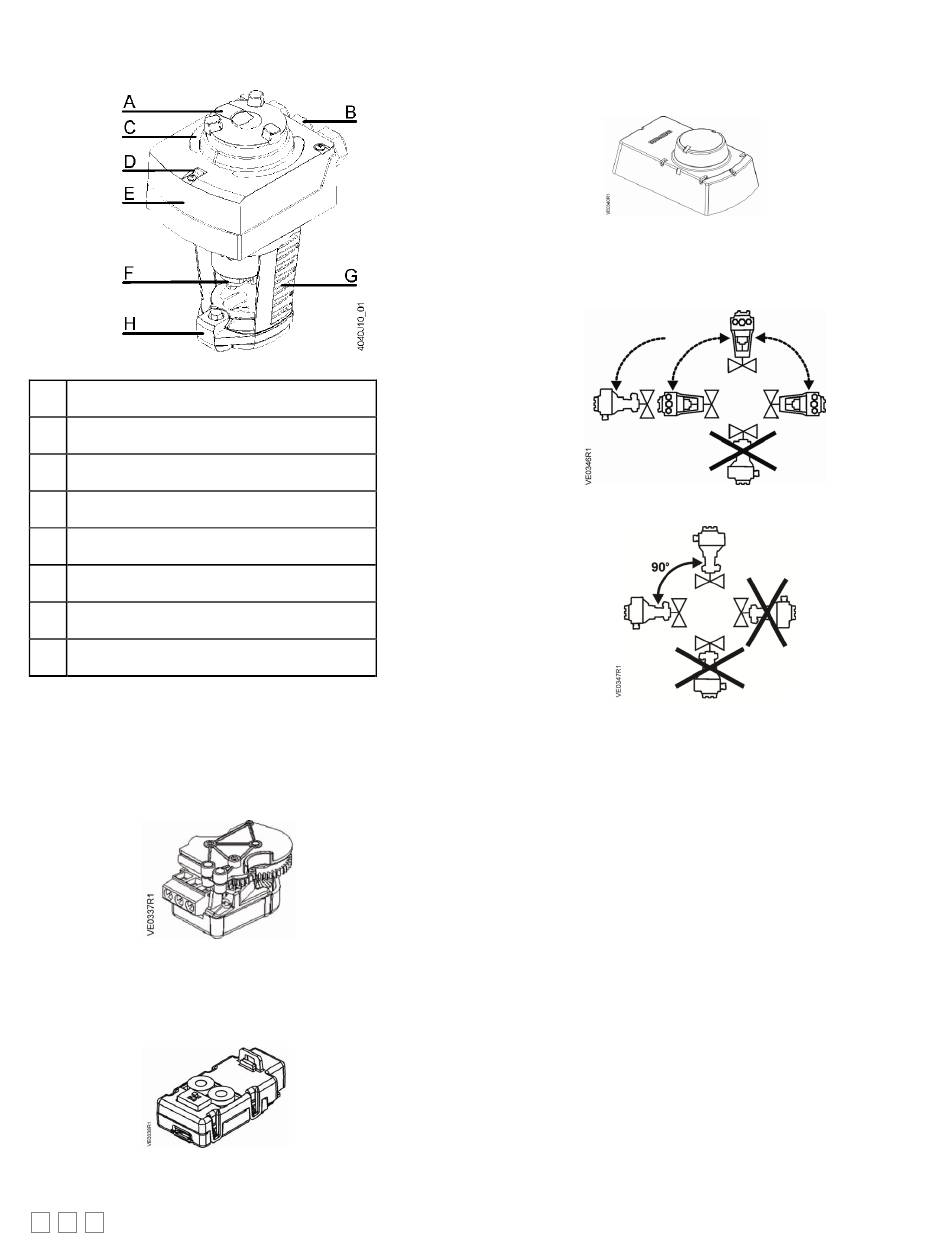

Components
A Manual adjuster (with slide switch)
B Wiring knockouts
C Position indication
D Status indication
E Housing cover
F Valve stem coupling
G Yoke
H Bonnet connection U-bracket
Accessories
Auxiliary switch
VA-ASC10.51 Auxiliary switch VA-ASC10.51 switches on or off
when a certain position is reached. The switching
point can lie between 0 to 100%.
Function Function module VA-AZX61.1 offers the following
module choices for changing control:
VA-AZX61.1
•
Changeover of acting direction
•
Sequence control (adjustable start and span)
2/9
Weather Shield
VA-ASK39.1
Weather Shield VA-ASK39.1 protects the actuator
when installed outdoors. Provides NEMA 3R
protection.

Mounting Positions

Figure 2: Acceptable Indoor Mounting Positions
Figure 3: Acceptable Outdoor Mounting Positions with Weather Shield for
NEMA 3R Protection
The vertical position is the recommended position for mounting. Figure 2
and 3 show the acceptable mounting positions.
Allow 8 inches (200 mm) above and on the wiring side of the actuator,
and four inches (100 mm) on all other sides of the actuator. This service
envelope is the minimum space required to access and service the
actuator. See Dimensions for actuator dimensions and the recommended
service envelope.
