EtherWAN EX41941 Installation Manual

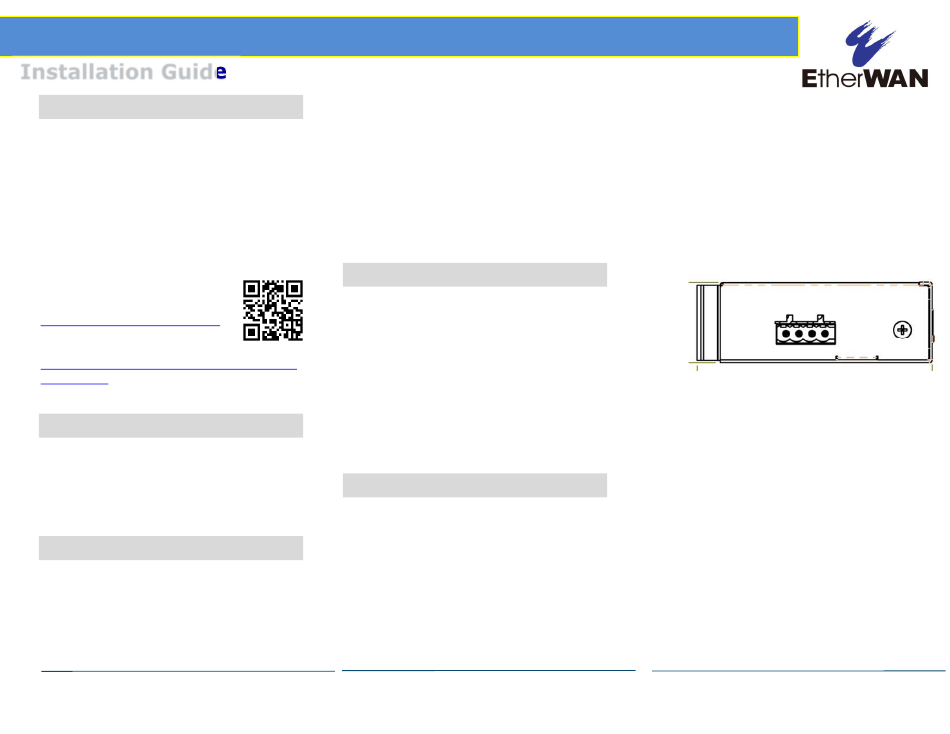

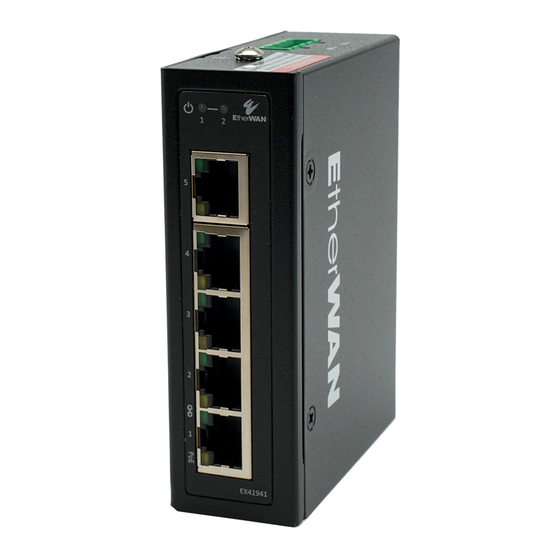

EX41941 Hardened PoE Switch
Installation Guide
1

Unpacking

Unpack the items. Your package should
include:
One EX41941 PoE switch

Power input terminal block

 Wall and DIN-Rail mounting hardware
brackets
If items are missing or damaged, notify your
EtherWAN representative. Keep the carton
and packing material.
More information available at:
https://www.etherwan.com/us
For warranty information, visit:
https://www.etherwan.com/us/support/war
ranty-policy
2

Equipment Needed

 Category 5e or better cable for RJ-45
ports
48VDC power supply with voltage

adjustable up to 56VDC and power output
to handle 120W PoE power budget.
3

Select a Location

 DIN-rail installations: Attach the bracket
on the unit using the included screws and
then mount on a DIN-rail.
Wall installations: Attach the brackets on

the unit using the included screws and
then mount on a wall.
EX41941
8/2/2022
 Identify a power source within 6 feet (1.8
meters).
 Choose a dry area with ambient
temperature between -40 and 75ºC (-40
and 167ºF).
Keep away from heat sources, sunlight,

warm air exhausts, hot-air vents, and
heaters.
 Make sure there is adequate airflow.
4

Connect to the Ports

The EX41941 has the following ports:
4 10/100/1000 Mbps PoE ports

1 10/100/1000 Mbps RJ-45 uplink port

10/100/1000BASE-T Ports
Ports 1 to 4 are gigabit copper ports that are
compliant with IEEE 802.3af/at PoE protocol,
with up to 30W power output per port. Port 5
is a gigabit copper port that can be utilized
for data uplink.
5

Connect Power

Terminal Block
Connect the unit to a suitable power supply
using appropriate wire, 18-24 AWG, rated for
105°C or higher.
Copyright 2022 EtherWAN Systems, Inc.
All Rights Reserved
Redundant power is supported. However,
only one power input is required to operate
the unit.
1. Connect power wires to the
appropriate V1+/- or V2+/- pins on
the terminal block.
2. Connect the grounding wire to the
ground screw.
3. Plug the terminal block into the
socket.
+V1- +V2-
Page
1
