Quick Start Guide
This quick start guide describes how to install and use the
Hardened PoE Ethernet Switch.
for harsh environments constrained by space.

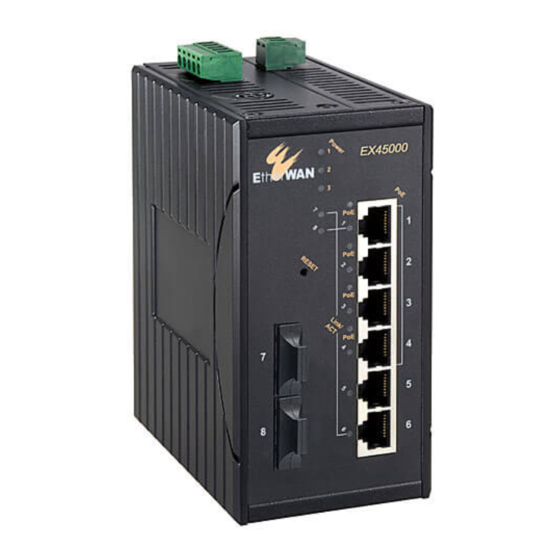

Physical Description

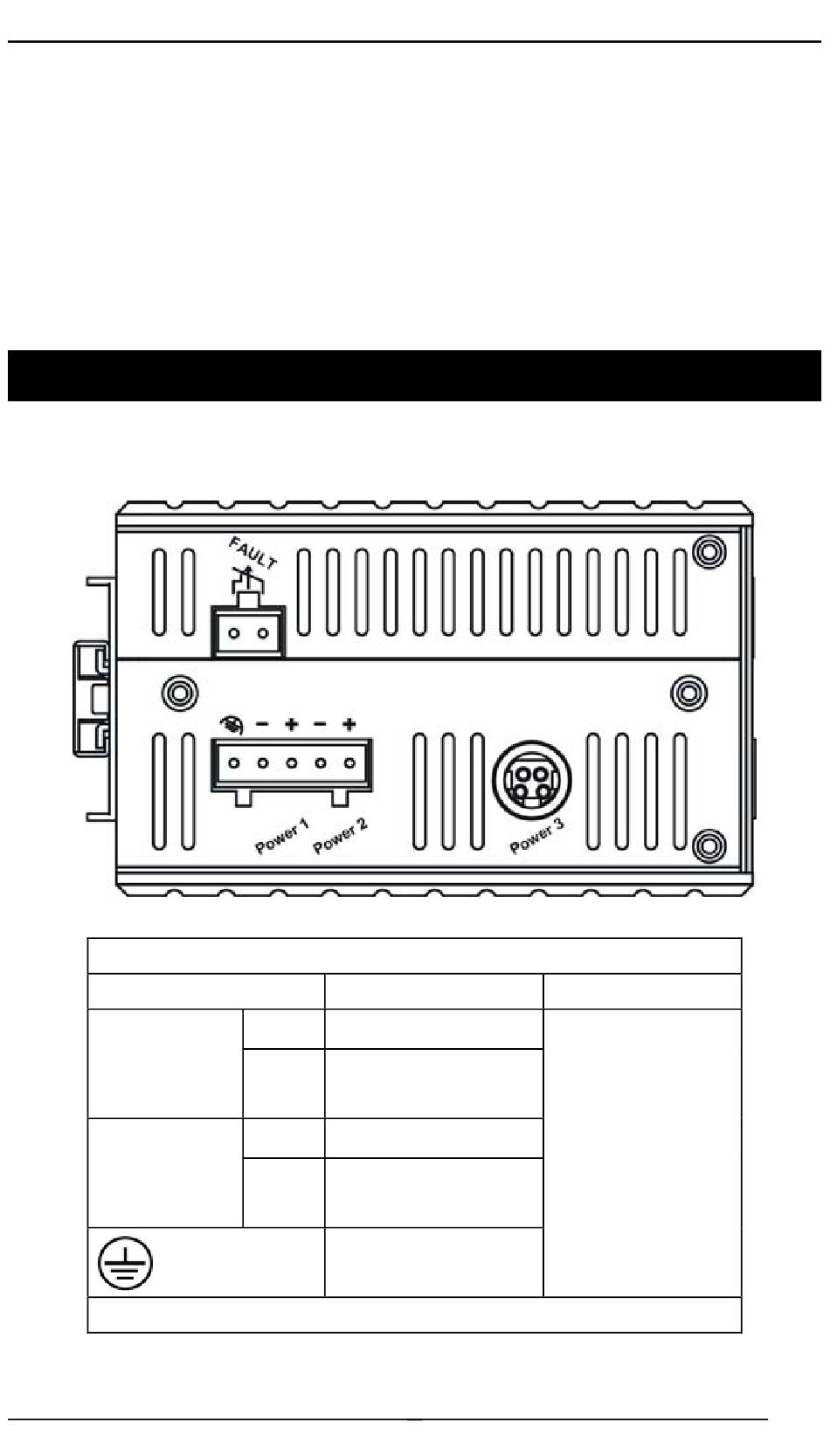

The Terminal Block and Power inputs
Power Input Assignment
Power3
Power2
Power1
Relay Alarm Assignment
Hardened PoE Ethernet Switch
48VDC
＋
48VDC
Power
－
Ground
＋
48VDC
Power
－
Ground
Earth
Ground
This is the switch of choice
DC Jack
Terminal
Block
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EX45000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for EtherWAN EX45000 Series

Summary of Contents for EtherWAN EX45000 Series

  • Page 1 Hardened PoE Ethernet Switch Quick Start Guide This quick start guide describes how to install and use the Hardened PoE Ethernet Switch. This is the switch of choice for harsh environments constrained by space. Physical Description The Terminal Block and Power inputs Power Input Assignment Power3 48VDC...

  • Page 2: The 10/100Base-Tx And 100Base-Fx Connectors

    Hardened PoE Ethernet Switch *Relay warning signal disable for following: The relay contact closes if Power1 and Power2 are both failed but Power3 on. FAULT The relay contact closes if Power3 is failed but Power1 and Power2 are both on. DC Terminal Block Power Inputs: There are two pairs of power inputs can be used to power up this switch.

  • Page 3: The Port Status Leds

    Hardened PoE Ethernet Switch 3. The WDM 100Base-FX Connections The fiber port pinouts: Only one single-mode optical fiber is required to transmit and receive data. The Port Status LEDs...
  • Page 4 Hardened PoE Ethernet Switch State Indication 10/100Base-TX, 100Base-FX Steady A valid network connection established. Link/ACT (Green) Transmitting or receiving data. Flashing ACT stands for ACTIVITY.

  • Page 5: Functional Description

    Hardened PoE Ethernet Switch Functional Description • Meets IEC61000-6-2 EMC Generic Standard Immunity for industrial environment. • Supports IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE). • Supports IEEE802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps, Full/Half-duplex, Auto-Negotiation, Auto MDI/MDIX. • 100Base-FX: Multi/Single mode SC or ST type, WDM Single mode SC type.
  • Page 6 Hardened PoE Ethernet Switch...

  • Page 7: Preface

    Hardened PoE Ethernet Switch Preface A member of the growing family of rugged switches, this Hardened PoE Ethernet Switch addresses a need for a smaller switch. This switch provides an affordable solution for rugged and outdoor environment, transportation road-side cabinet, industrial floor shop, multitenant dwellings or Fiber To The Home (FTTH) applications.

  • Page 8: Table Of Contents

    Hardened PoE Ethernet Switch Table of Contents UICK TART UIDE HYSICAL ESCRIPTION The Terminal Block and Power inputs The 10/100Base-TX and 100Base-FX Connectors The Port Status LEDs UNCTIONAL ESCRIPTION SSEMBLY TARTUP ISMANTLING REFACE ABLE OF ONTENTS RODUCT VERVIEW ARDENED THERNET WITCH ACKAGE ONTENTS...

  • Page 9: Product Overview

    Hardened PoE Ethernet Switch Product Overview Hardened PoE Ethernet Switch Package Contents When you unpack the product package, you shall find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to your authorized reseller.

  • Page 10: Product Highlights

    Hardened PoE Ethernet Switch Product Highlights Basic Features • Meets NEMA TS1 & TS2 Environmental requirements such as temperature, shock, and vibration for traffic control equipment. • Meets IEC61000-6-2 EMC Generic Standard Immunity for industrial environment. • Supports IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE).

  • Page 11: Front Panel Display

    Hardened PoE Ethernet Switch Front Panel Display Status LEDs State Indication POWER Switch is properly connected to power and Power 1 Steady turned on. Power 2 Switch is not connected to power and is Power 3 turned off. (Green) 10/100TX or 100FX Steady A valid network connection established.

  • Page 12: Physical Ports

    Hardened PoE Ethernet Switch Physical Ports This switch provides: • Eight 10/100Base-TX ports • Seven 10/100Base-TX ports + one 100Base-FX port • Six 10/100Base-TX ports + two 100Base-FX ports CONNECTIVITY • RJ-45 connectors • SC or ST connector on 100Base-FX fiber port.

  • Page 13: Installation

    Hardened PoE Ethernet Switch Installation This chapter gives step-by-step instructions about how to install the switch: Selecting a Site for the Switch As with any electric device, you should place the switch where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference.
  • Page 14 Hardened PoE Ethernet Switch DIN Rail Mounting Fix the DIN rail attachment plate to the back panel of the switch. Installation: Place the switch on the DIN rail from above using the slot. Push the front of the switch toward the mounting surface until it audibly snaps into place.

  • Page 15: Connecting To Power

    Hardened PoE Ethernet Switch Connecting to Power Redundant DC Terminal Block Power Inputs and 48VDC DC Jack: Redundant DC Terminal Block Power Inputs There are two pairs of power inputs can be used to power up this device. You only need to have one power input connected to run the switch.

  • Page 16: Alarms For Power And Port Link Failure

    Hardened PoE Ethernet Switch Alarms for Power and Port Link Failure Step 1: There are two pins on the terminal block are used for power failure detection. It provides the normally closed output when the power source is active. Use this as a dry contact application to send a signal for power failure detection.

  • Page 17: Connecting To Your

    Hardened PoE Ethernet Switch Connecting to Your Network Cable Type & Length It is necessary to follow the cable specifications below when connecting the switch to your network. Use appropriate cables that meet your speed and cabling requirements. Cable pecifications Speed Connector Port Speed...

  • Page 18: Cabling

    Hardened PoE Ethernet Switch Cabling Step 1: First, ensure the power of the switch and end devices is turned off. <Note> Always ensure that the power is off before any installation. Step 2: Prepare cable with corresponding connectors for each type of port in use.

  • Page 19: Specifications

    Hardened PoE Ethernet Switch Specifications 10/100Base-TX auto-negotiating ports with Hardened PoE RJ-45 connectors, 100Base-FX fiber ports Ethernet Switch Applicable IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/FX Standards Switching Method Store-and-Forward Forwarding Rate 10Base-T: 10 / 20Mbps half / full-duplex 100Base-TX/FX: 100 / 200Mbps half / full-duplex Performance 14,880pps for 10Mbps 148,810pps for 100Mbps...
  • Page 20 Hardened PoE Ethernet Switch EN61000-6-2: EN61000-4-2 (ESD Standard) EN61000-4-3 (Radiated FRI Standards) EN61000-4-4 (Burst Standards) EN61000-4-5 (Surge Standards) EN61000-4-6 (Induced RFI Standards) EN61000-4-8 (Magnetic Field Standards) EN61000-4-11 (Voltage Dips Standards) Environmental Test Compliance IEC60068-2-6 Fc (Vibration Resistance) IEC60068-2-27 Ea (Shock) IEC60068-2-32 Ed (Free Fall) NEMA TS1/2 Environmental requirements for traffic control equipment...
