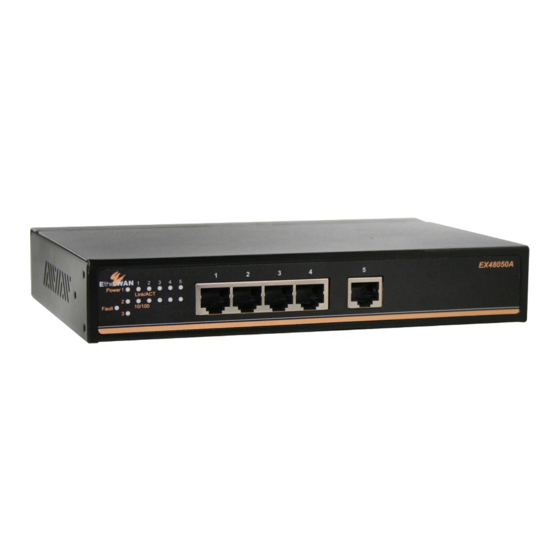

Hardened PoE Ethernet Switch
Quick Start Guide
This quick start guide describes how to install and use the
Hardened PoE Ethernet Switch.
This is the switch of choice
for harsh environments constrained by space.

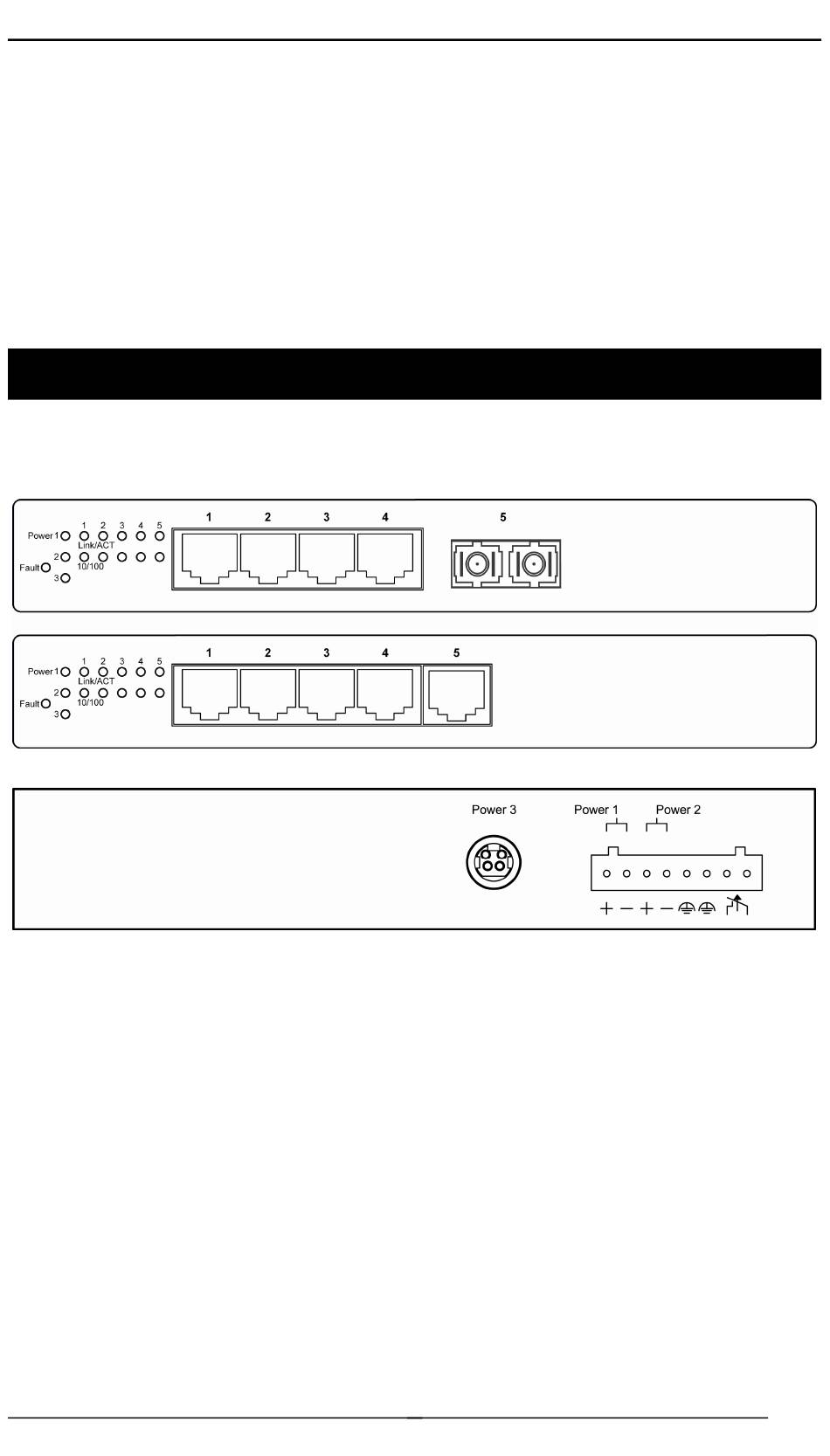

Physical Description

The Port Status LEDs and Power inputs

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EX48000A Series and is the answer not in the manual?

Questions and answers

Related Manuals for EtherWAN EX48000A Series

Summary of Contents for EtherWAN EX48000A Series

  • Page 1: The Port Status Leds And Power Inputs

    Hardened PoE Ethernet Switch Quick Start Guide This quick start guide describes how to install and use the Hardened PoE Ethernet Switch. This is the switch of choice for harsh environments constrained by space. Physical Description The Port Status LEDs and Power inputs...

  • Page 2: The 10/100Base-Tx And 100Base-Fx/Bx Connectors

    Hardened PoE Ethernet Switch State Indication Power1 Steady Power on. Power2 Power off. Power3 Steady Power redundant system failure occurred. Fault Power redundant system failure is not occurred. 10/100Base-TX, 100Base-FX/BX Steady A valid network connection established. Link/ACT Transmitting or receiving data. Flashing ACT stands for ACTIVITY.
  • Page 3 Hardened PoE Ethernet Switch PoE Ports (Port 1-4) Non-PoE Port (Port 5) Output Transmit Data + Output Transmit Data + Output Transmit Data - Output Transmit Data - Input Receive Data + Input Receive Data + Positive (VCC+) Positive (VCC+) Input Receive Data - Input Receive Data - Negative (VCC-)

  • Page 4: Functional Description

    Hardened PoE Ethernet Switch Functional Description • Meets NEMA TS1 & TS2 Environmental requirements: temperature, shock, and vibration for traffic control equipment. • Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for industrial environment. • Supports IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE).

  • Page 5: Preface

    Hardened PoE Ethernet Switch Preface A member of the growing family of rugged switches, this Hardened PoE Ethernet Switch addresses a need for a smaller switch. This switch provides an affordable solution for rugged and outdoor environment, transportation road-side cabinet, industrial floor shop, multitenant dwellings or Fiber To The Home (FTTH) applications.

  • Page 6: Table Of Contents

    Hardened PoE Ethernet Switch Table of Contents UICK TART UIDE HYSICAL ESCRIPTION The Port Status LEDs and Power inputs The 10/100Base-TX and 100Base-FX/BX Connectors UNCTIONAL ESCRIPTION REFACE ABLE OF ONTENTS RODUCT VERVIEW ARDENED THERNET WITCH ACKAGE ONTENTS RODUCT IGHLIGHTS Basic Features RONT ANEL ISPLAY...

  • Page 7: Product Overview

    Hardened PoE Ethernet Switch Product Overview Hardened PoE Ethernet Switch Package Contents When you unpack the product package, you shall find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to your authorized reseller.

  • Page 8: Product Highlights

    Hardened PoE Ethernet Switch Product Highlights Basic Features • Meets NEMA TS1 & TS2 Environmental requirements: temperature, shock, and vibration for traffic control equipment. • Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for industrial environment. • Supports IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE).

  • Page 9: Front Panel Display

    Hardened PoE Ethernet Switch Front Panel Display Status LEDs State Indication Power1 Steady Power on. Power2 Power off. Power3 Steady Power redundant system failure occurred. Fault Power redundant system failure is not occurred. 10/100Base-TX, 100Base-FX/BX Steady A valid network connection established. Link/ACT Transmitting or receiving data.

  • Page 10: Physical Ports

    Hardened PoE Ethernet Switch Physical Ports This switch series provides two different combinations of RJ-45 copper and fiber ports as below: • Five 10/100Base-TX ports • Four 10/100Base-TX ports + one 100Base-FX/BX port CONNECTIVITY • RJ-45 connectors • SC or ST connector on 100Base-FX fiber port. •...

  • Page 11: Installation

    Hardened PoE Ethernet Switch Installation This chapter gives step-by-step instructions about how to install the switch: Selecting a Site for the Switch As with any electric device, you should place the switch where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference.

  • Page 12: Connecting To Power

    Hardened PoE Ethernet Switch Connecting to Power Redundant DC Terminal Block Power Inputs and 48VDC DC Jack: Redundant DC Terminal Block Power Inputs There are two pairs of power inputs can be used to power up this device. You only need to have one power input connected to run the switch.

  • Page 13: Alarms For Power And Port Link Failure

    Hardened PoE Ethernet Switch Alarms for Power and Port Link Failure Step 1: There are two pins on the terminal block are used for power failure detection. It provides the normally closed output when the power source is active. Use this as a dry contact application to send a signal for power failure detection.

  • Page 14: Connecting To Your Network

    Hardened PoE Ethernet Switch Connecting to Your Network Cable Type & Length It is necessary to follow the cable specifications below when connecting the switch to your network. Use appropriate cables that meet your speed and cabling requirements. Cable S ecifications Speed Connector Port Speed...

  • Page 15: Cabling

    Hardened PoE Ethernet Switch Cabling Step 1: First, ensure the power of the switch and end devices are turned off. Always ensure that the power is off before any installation. <Note> Step 2: Prepare cable with corresponding connectors for each type of port in use.

  • Page 16: Specifications

    Hardened PoE Ethernet Switch Specifications Hardened PoE 10/100Base-TX auto-negotiating ports with RJ-45 connectors, 100Base-FX/BX fiber ports Ethernet Switch Applicable IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/FX Standards Store-and-Forward Switching Method Forwarding Rate 10Base-T: 10 / 20Mbps half / full-duplex 100Base-TX: 100 / 200Mbps half / full-duplex 100Base-FX/BX: 200Mbps full-duplex 14,880pps for 10Mbps...
  • Page 17 Hardened PoE Ethernet Switch EN61000-6-2: EN61000-4-2 (ESD Standard) EN61000-4-3 (Radiated FRI Standards) EN61000-4-4 (Burst Standards) EN61000-4-5 (Surge Standards) EN61000-4-6 (Induced RFI Standards) EN61000-4-8 (Magnetic Field Standards) Environmental Test Compliance IEC60068-2-6 Fc (Vibration Resistance) IEC60068-2-27 Ea (Shock) IEC60068-2-32 Ed (Free Fall) NEMA TS1/2 Environmental requirements for traffic control equipment...
