EtherWAN EX32908 series Quick Start Manual

EtherWAN EX32908 series Quick Start Manual

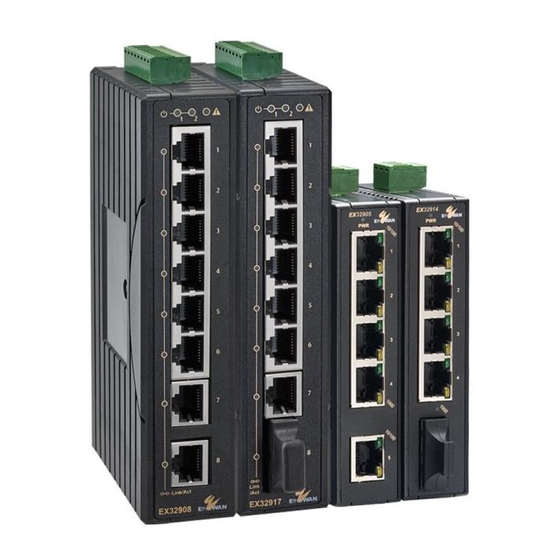

Industrial gigabit ethernet switch

Advertisement

Quick Links

EX32908 series
www.etherwan.com

Quick Start Guide

This quick start guide describes how to install and use the
Industrial Gigabit Ethernet Switch. Capable of operating at
temperature extremes of -10°C to +60°C, this is the switch of
choice for harsh environments constrained by space.

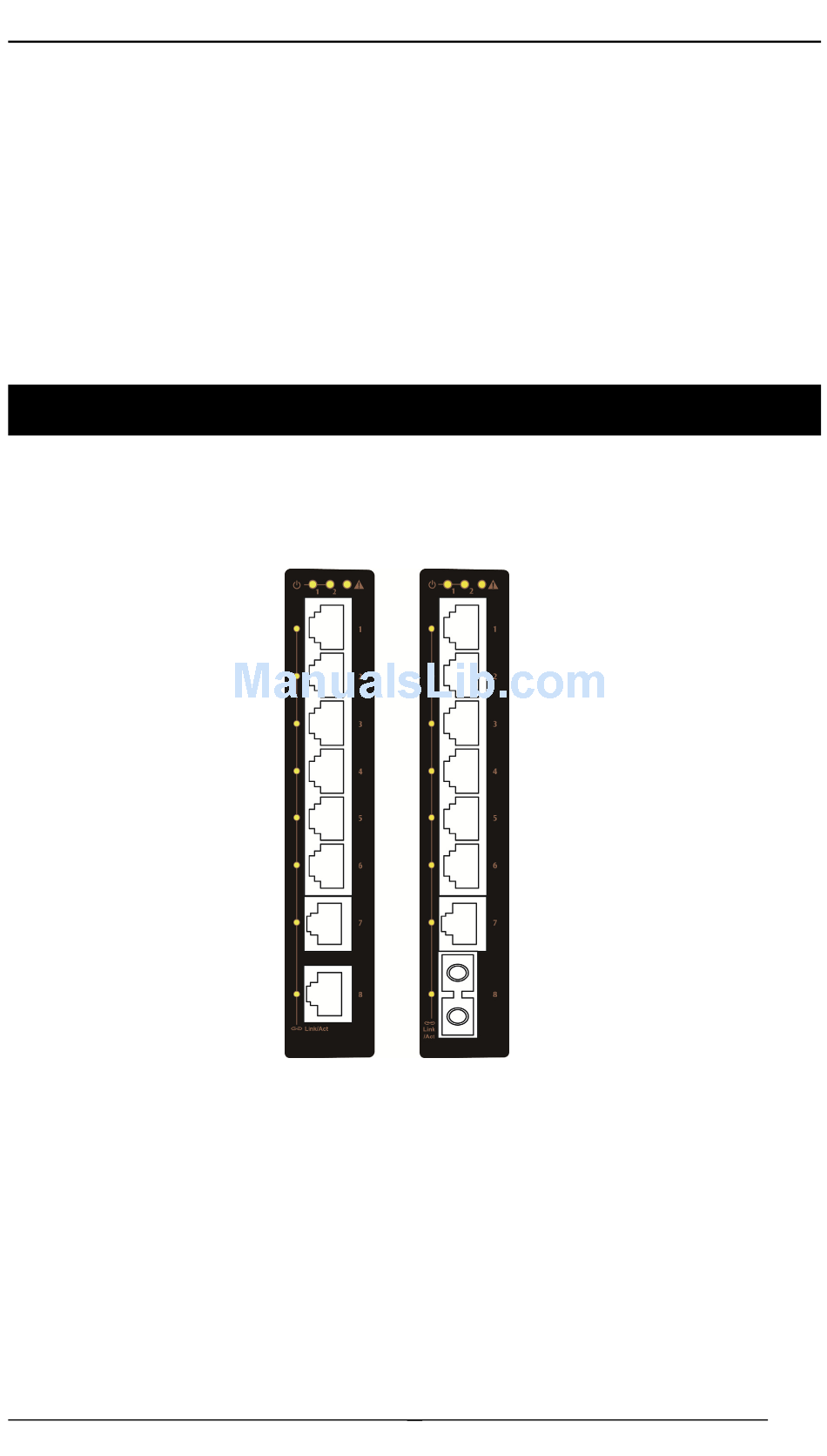

Physical Description
The Port Status LEDs
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EX32908 series and is the answer not in the manual?

Questions and answers

Summary of Contents for EtherWAN EX32908 series

  • Page 1: Quick Start Guide

    EX32908 series www.etherwan.com Quick Start Guide This quick start guide describes how to install and use the Industrial Gigabit Ethernet Switch. Capable of operating at temperature extremes of -10°C to +60°C, this is the switch of choice for harsh environments constrained by space.
  • Page 2: The Terminal Block And Power Inputs

    EX32908 series www.etherwan.com State Indication Steady Power on. Power off. Power (Green) Steady Relay Starts alarm. Relay non-alarm. Fault (Red) Gigabit Ports A valid network connection established. Steady 10/100Mbps: Green, 1000Mbps: Amber. Link/Act Transmitting or receiving data. Blinking Act stands for Activity.
  • Page 3: Dip Switch Settings

    EX32908 series www.etherwan.com DC Terminal Block Power Input: The DC Terminal Block power input can be used to power up this Switch. DIP Switch Settings DIP No. Port 1 Alarm Enable. Port 1 Alarm Disable. Port 2 Alarm Enable. Port 2 Alarm Disable.
  • Page 4 EX32908 series www.etherwan.com Pin Signal Name Signal Definition TP0+ Transmit and Receive Data 0 + TP0- Transmit and Receive Data 0 - TP1+ Transmit and Receive Data 1 + TP2+ Transmit and Receive Data 2 + TP2- Transmit and Receive Data 2 -...
  • Page 5 EX32908 series www.etherwan.com Functional Description  Complies with EN61000-6-2 & EN61000-6-4 EMC Generic standard immunity for industrial environment.  Supports 802.3/802.3u/802.3ab/802.3z/802.3x. Auto-negotiation: 10/100/1000Mbps, Full/Half-duplex. Auto MDI/MDIX.  1000Base-SX/LX: Multi mode SC or ST type, Single mode SC type. 1000Base-BX: WDM Single mode SC type.
  • Page 6 EX32908 series www.etherwan.com Assembly, Startup, and Dismantling  Assembly: Place the switch on the DIN rail from above using the slot. Push the front of the switch toward the mounting surface until it audibly snaps into place.  Startup: Connect the supply voltage to start up the switch via the terminal block.
  • Page 7: Preface

    EX32908 series www.etherwan.com Preface A member of the growing family of rugged switches, this switch addresses a need for a smaller switch. This switch provides an affordable solution for rugged and outdoor environment, transportation road-side cabinet, industrial floor shop, multitenant dwellings or Fiber To The Home (FTTH) applications.
  • Page 8: Table Of Contents

    EX32908 series www.etherwan.com Table of Contents UICK TART UIDE HYSICAL ESCRIPTION The Port Status LEDs The Terminal Block and Power Inputs DIP Switch Settings The Gigabit Ethernet Connectors UNCTIONAL ESCRIPTION SSEMBLY TARTUP ISMANTLING REFACE ABLE OF ONTENTS RODUCT VERVIEW NDUSTRIAL...
  • Page 9: Product Overview

    EX32908 series www.etherwan.com Product Overview Industrial Gigabit Ethernet Switch Package Contents When you unpack the product package, you shall find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to your authorized reseller.
  • Page 10: Basic Features

    EX32908 series www.etherwan.com Product Highlights Basic Features  Complies with EN61000-6-2 & EN61000-6-4 EMC Generic standard immunity for industrial environment.  Supports 802.3/802.3u/802.3ab/802.3z/802.3x. Auto-negotiation: 10/100/1000Mbps, Full/Half-duplex. Auto MDI/MDIX.  1000Base-SX/LX: Multi mode SC or ST type, Single mode SC type. 1000Base-BX: WDM Single mode SC type.
  • Page 11: Port Status Leds

    EX32908 series www.etherwan.com  Slim design with DIN-Rail mount installation. Front Panel Display  Power Status (Power) This LED comes on when the switch is properly connected to power and turned on.  Port Status LEDs...
  • Page 12 EX32908 series www.etherwan.com The LEDs display status for each respective port. State Indication Steady Power on. Power off. Power (Green) Steady Relay Starts alarm. Relay non-alarm. Fault (Red) Gigabit Ports A valid network connection established. Steady 10/100Mbps: Green, 1000Mbps: Amber.
  • Page 13: Installation

    EX32908 series www.etherwan.com Installation This chapter gives step-by-step instructions about how to install the switch: Selecting a Site for the Switch As with any electric device, you should place the switch where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference.
  • Page 14: Din Rail

    EX32908 series www.etherwan.com DIN Rail Mounting Installation: Place the switch on the DIN rail from above using the slot. Push the front of the switch toward the mounting surface until it audibly snaps into place. Removal: Pull out the lower edge and then remove the switch...
  • Page 15: Dc Terminal Block Power Inputs

    EX32908 series www.etherwan.com Connecting to Power DC Terminal Block Power Inputs  Connect the DC power cord to the plug-able terminal block on the switch, and then plug it into a standard DC outlet.  Disconnect the power cord if you want to shut down the switch.
  • Page 16 EX32908 series www.etherwan.com If this connection is made, all of the following conditions must be met:  This equipment shall be connected to directly to the DC supply system earthing electrode conductor or to a bonding jumper from an earthing terminal bar or bus to which the DC supply system earthing electrode conductor is connected.
  • Page 17: Cable Type & Length

    EX32908 series www.etherwan.com Connecting to Your Network Cable Type & Length It is necessary to follow the cable specifications below when connecting the switch to your network. Use appropriate cables that meet your speed and cabling requirements. Cable Specifications Speed...
  • Page 18 EX32908 series www.etherwan.com Cabling Step 1: First, ensure the power of the switch and end devices are turned off. Always ensure that the power is off before any installation. <Note> Step 2: Prepare cable with corresponding connectors for each type of port in use.
  • Page 19: Specifications

    EX32908 series www.etherwan.com Specifications Industrial Compact 10/100/1000Base-TX auto-negotiating ports Switch with RJ-45 connectors, 1000Base-SX/LX/BX fiber port Applicable Standards IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX Forwarding Rate 10Base-T: 10 / 20Mbps Half / Full-duplex 100Base-TX: 100 / 200Mbps Half / Full-duplex...
  • Page 20 EX32908 series www.etherwan.com FCC Part 15, Class A VCCI EN61000-6-4: EN55022, EN61000-3-2, EN61000-3-3 EN61000-6-2: EN61000-4-2 (ESD Standard) EN61000-4-3 (Radiated RFI Standards) EN61000-4-4 (Burst Standards) EN61000-4-5 (Surge Standards) EN61000-4-6 (Induced RFI Standards) EN61000-4-8 (Magnetic Field Standards) Environmental Test IEC60068-2-6 Fc (Vibration Resistance)

This manual is also suitable for:

Ex42908 series
