Summary of Contents for Kontron COMe-mBT10

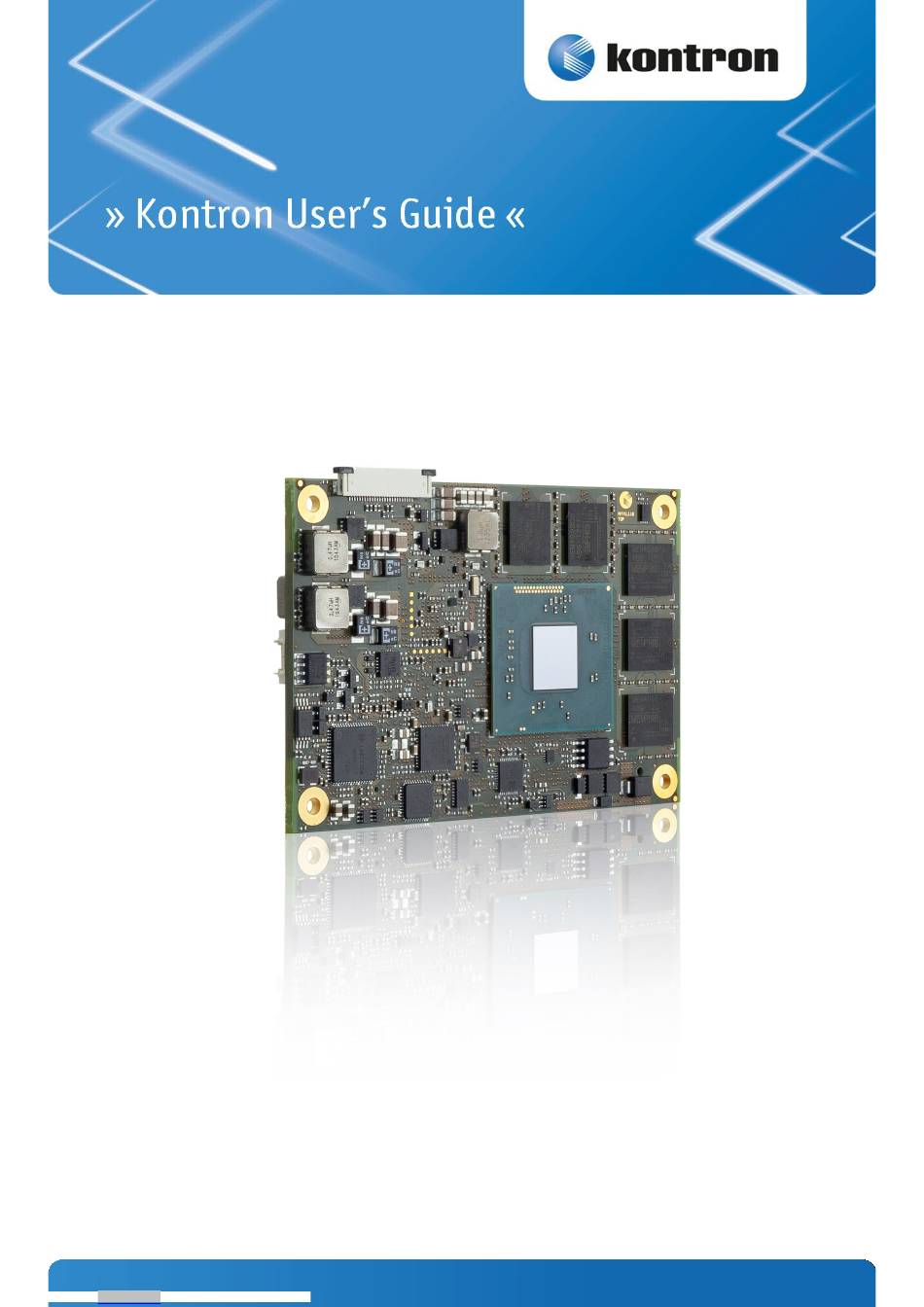

  • Page 1 COMe-mBT10 Document Revision 020 - preliminary www.kontron.com Arrow.com. Downloaded from...
  • Page 2 Arrow.com. Arrow.com. Downloaded from Downloaded from...
  • Page 3: Table Of Contents

    Dimensions........................26 3.11 Onboard Fan Connector........................ 28 3.12 Thermal Management, Heatspreader and Cooling Solutions..............29 Features and Interfaces...............30 Onboard eMMC Flash........................30 Secure Digital Card........................31 S5 Eco Mode..........................32 LPC............................33 www.kontron.com Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from...
  • Page 4 COMe-mBT10 / Serial Peripheral Interface (SPI)....................34 boot............................ 34 M.A.R.S............................ 35 UART............................36 Fast I2C............................ 37 4.10 Dual Staged Watchdog Timer......................38 4.11 Intel® Fast Flash Standby™ / Rapid Start Technology™...............39 4.12 Speedstep Technology........................41 4.13 C-States............................ 42 4.14 Graphics Features........................
  • Page 5: User Information

    “as-is” and is subject to change without notice. For the circuits, descriptions and tables indicated, Kontron assumes no responsibility as far as patents or other rights of third parties are concerned.
  • Page 6: Warranty

    COMe-mBT10 / User Information Warranty For this Kontron Europe GmbH product warranty for defects in material and workmanship exists as long as the warranty period, beginning with the date of shipment, lasts. During the warranty period, Kontron Europe GmbH will decide on its discretion if defective products are to be repaired or replaced.
  • Page 7: Introduction

    Express® form factor standard. The new Kontron COMe-mBT10 COM Express® mini Computer-on-Module family (55 mm x 84 mm) with Type 10 pin-out is equipped with Intel® Atom™ processor E3800 or Intel® Celeron® processors. Several module variants are included in the range, offering wide scalability from low-power single-core Intel®...
  • Page 8: Understanding Com Express® Functionality

    Understanding COM Express® Functionality All Kontron COM Express® basic and compact modules contain two 220pin connectors; each of it has two rows called Row A & B on primary connector and Row C & D on secondary connector. COM Express® Computer-on-modules feature the...
  • Page 9: Com Express® Documentation

    This product manual serves as one of three principal references for a COM Express® design. It documents the specifications and features of . Additional references are available at your Kontron Support or at PICMG®: » The COM Express® Specification defines the COM Express® module form factor, pin-out, and signals. This document is available at the PICMG®...
  • Page 10: Product Specification

    COMe-mBT10 / Product Specification 3 Product Specification Modules & Accessories The COM Express® mini sized Computer-on-Module (MVV1) follows pin-out Type 10 and is compatible to PICMG specification COM.0 Rev 2.1. The , based on Intel's Bay Trail platform, is available in different variants to cover the demand of different performance, price and power: Industrial temperature grade modules (E2: -40°C to +85°C operating)
  • Page 11 COMe-mBT10 / Product Specification Optional hardware features COMe-mBTi10: » TPM » ECC memory (E3800 variants only) » eMMC Flash (E3800 variants only) » eDP on COMe » General Purpose SPI instead of Boot SPI Optional hardware features COMe-mBTc10: » TPM »...
  • Page 12 Cooling & Mounting 34006-0000-99-0 HSP COMe-mBT10 thread (11mm) 34006-0000-99-1 HSP COMe-mBT10 through (11mm) 34006-0000-99-2 HSP COMe-mBT10 slim thread (6.5mm) 34006-0000-99-3 HSP COMe-mBT10 slim through (6.5mm) 34099-0000-99-0 COMe mini Active Uni Cooler (for CPUs up to 10W) 34099-0000-99-1 COMe mini Passive Uni Cooler (for CPUs up to 5W)
  • Page 13: Functional Specification

    COMe-mBT10 / Product Specification Functional Specification Processor The 32nm Intel® Atom™ E3800 / Celeron® (BayTrail-I/M/D) CPU family supports: » Intel® 64 » Enhanced Intel SpeedStep® Technology » Thermal Monitoring Technologies » Execute Disable Bit » Virtualization Technology VT-x » 2 Display Pipes for dual independent displays CPU specifications Intel®...
  • Page 14: Graphics Core

    COMe-mBT10 / Product Specification Graphics Core The integrated Intel® HD Graphics (Gen 7) supports: Graphics Core Render Clock 311-542MHz Clock 667-854MHz Turbo Execution Units / Pixel Pipelines Max Graphics Memory GFX Memory Bandwidth (GB/s) 17.1 GFX Memory Technology DVMT API (DirectX/OpenGL) 11 / 3.0 + OCL 1.1...
  • Page 15: Misc Interfaces And Features

    COMe-mBT10 / Product Specification PCI Express Configuration By default, the supports x1 PCIexpress lane configuration only (Configuration 0). Following x2/x4 configurations are available via Management Engine Softstrap Options with a customized Flash Descriptor. PCIe Port #0 Port #1 Port #2...
  • Page 16: Supported Operating Systems

    COMe-mBT10 / Product Specification Power Consumption and Performance Full Load Power Consumption 5.6 - 12.1W Kontron Performance Index 9020 - 25917 Kontron Performance/Watt 1599 - 2239 Detailed Power Consumption measurements in all states and bechmarks for CPU, Graphics and Memory performance are available in Application Note...
  • Page 17: Block Diagram

    COMe-mBT10 / Product Specification Block Diagram Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
  • Page 18: Electrical Specification

    COMe-mBT10 / Product Specification Electrical Specification 3.4.1 Supply Voltage Following supply voltage is specified at the COM Express® connector: VCC: 4.75 - 20V Standby: 5V DC +/- 5% RTC: 2.5V - 3.3V - 5V Standby voltage is not mandatory for operation.
  • Page 19: Atx Mode

    COMe-mBT10 / Product Specification 3.4.5 ATX Mode By connecting an ATX power supply with VCC and 5VSB, PWR_OK is set to low level and VCC is off. Press the Power Button to enable the ATX PSU setting PWR_OK to high level and powering on VCC. The ATX PSU is controlled by the PS_ON# signal which is generated by SUS_S3# via inversion.
  • Page 20: Power Control

    COMe-mBT10 / Product Specification Power Control Power Supply The supports a power input from 4.75 - 20V. The supply voltage is applied through the VCC pins (VCC) of the module connector. Power Button (PWRBTN#) The power button (Pin B12) is available through the module connector described in the pinout list. To start the module via Power Button the PWRBTN# signal must be at least 50ms (50ms ≤...
  • Page 21: Environmental Specification

    -40°C to +85°C VCC: 4.75 - 20V Please see chapter Product Specification for available variants Operating with Kontron heatspreader plate assembly The operating temperature defines two requirements: » the maximum ambient temperature with ambient being the air surrounding the module.
  • Page 22: Standards And Certifications

    » NWGQ8.E304278 WEEE Directive WEEE Directive 2002/96/EC is not applicable for Computer-on-Modules. Conformal Coating Conformal Coating is available for Kontron Computer-on-Modules and for validated SO-DIMM memory modules. Please contact your local sales or support for further details. Arrow.com. Arrow.com. Arrow.com.
  • Page 23: Shock And Vibration

    The COM Express® mini form factor Computer-on-Modules successfully passed shock and vibration tests according to » IEC/EN 60068-2-6 (Non operating Vibration, sinusoidal, 10Hz-4000Hz, +/-0.15mm, 2g) » IEC/EN 60068-2-27 (Non operating Shock Test, half-sinusoidal, 11ms, 15g) Validated in Kontron reference housing for EMC the follows the requirements for electromagnetic compatibility standards » EN55022 Arrow.com.
  • Page 24: Mtbf

    Estimated RTC battery life (as opposed to battery failures) is not accounted for in the above figures and need to be considered separately. Battery life depends on both temperature and operating conditions. When the Kontron unit has external power; the only battery drain is from leakage paths.
  • Page 25: Mechanical Specification

    The COM Express® specification defines a module height of 13mm from bottom to heatspreader top: Kontron provides standard HSP for the specified height of 13mm and slim-line Heatspreader for a reduced height of 8.5mm for mini sized Computer-on-Modules. Universal Cooling solutions to be mounted on the HSP are 14.3mm (34099- 0000-00-0/1) or 8mm (34099-0000-00-2) in height.
  • Page 26: Module Dimensions

    COMe-mBT10 / Product Specification 3.10 Module Dimensions All dimensions in mm Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from...
  • Page 27: Onboard Fan Connector

    COMe-mBT10 / Product Specification 3.11 Onboard Fan Connector Specification » Part number (Molex) J3: 53261-0371 » Mates with: 51021-0300 » Crimp terminals: 50079-8100 Pin assignment » Pin1: Tacho, Pin2: VCC, Pin3: GND Electrical characteristic Module Input Voltage 4.75 - 13V >13...
  • Page 28: Thermal Management, Heatspreader And Cooling Solutions

    Thermal Management, Heatspreader and Cooling Solutions A heatspreader plate assembly is available from Kontron Europe GmbH for the . The heatspreader plate on top of this assembly is NOT a heat sink. It works as a COM Express®-standard thermal interface to use with a heat sink or external cooling devices.
  • Page 29: Features And Interfaces

    COMe-mBT10 / Features and Interfaces 4 Features and Interfaces Onboard eMMC Flash The features a 12x16mm onboard Kingston NAND Flash drive with capacities of 2-64GB eMMC. The Flash drive supports: » Compliant to JEDEC/eMMC standard version 4.4, 4.41 & 4.5 »...
  • Page 30: Secure Digital Card

    COMe-mBT10 / Features and Interfaces Secure Digital Card The supports an SDIO Interface to be used for micro/mini/standard SD Card sockets. Following SD Cards are validated from Kontron and recommended for use: swissbit® S-200U & S-300U Series Industrial microSD Card »...
  • Page 31: S5 Eco Mode

    COMe-mBT10 / Features and Interfaces S5 Eco Mode Kontron’s new high-efficient power-off state S5 Eco enables lowest power-consumption in soft-off state – less than 1 mA compared to the regular S5 state this means a reduction by at least factor 200! In the “normal”...
  • Page 32: Lpc

    LPC. This leads to limitations for ISA bus and SIO (standard I/O´s like Floppy or LPT interfaces) implementations. All Kontron COM Express® Computer-on-Modules imply BIOS support for following external baseboard LPC Super I/O controller features for the Winbond/Nuvoton 5V 83627HF/G and 3.3V 83627DHG-P:...
  • Page 33: Serial Peripheral Interface (Spi)

    COMe-mBT10 / Features and Interfaces Serial Peripheral Interface (SPI) The Serial Peripheral Interface Bus or SPI bus is a synchronous serial data link standard named by Motorola that operates in full duplex mode. Devices communicate in master/slave mode where the master device initiates the data frame.
  • Page 34: M.a.r.s

    COMe-mBT10 / Features and Interfaces M.A.R.S. The Smart Battery implementation for Kontron Computer-on-Modules called Mobile Application for Rechargeable Systems is a BIOS extension for external Smart Battery Manager or Charger. It includes support for SMBus charger/selector (e.g. Linear Technology LTC1760 Dual Smart Battery System Manager) and provides ACPI compatibility to report battery information to the Operating System.
  • Page 35: Uart

    COMe-mBT10 / Features and Interfaces UART The supports up to two Serial RX/TX only Ports defined in COM Express® specification on Pins A98/A99 for UART0 and Pins A101/A102 for UART1. The implementation of the UART is compatible to 16450 and is supported by default from most operating systems.
  • Page 36: Fast I2C

    COMe-mBT10 / Features and Interfaces Fast I2C The supports a CPLD implemented LPC to I2C bridge using the WISHBONE I2C Master Core provided from opencores.org. The I2C Interface supports transfer rates up to 40kB/s and can be configured in Setup Specification for external I2C: »...
  • Page 37: Dual Staged Watchdog Timer

    B27 on COM Express® Connector offers a signal that can be asserted when a watchdog timer has not been triggered within time. It can be configured to any of the 2 stages. Deassertion of the signal is automatically done after reset. If deassertion during runtime is necessary please ask your Kontron technical support for further help. Arrow.com.
  • Page 38: Intel® Fast Flash Standby™ / Rapid Start Technology

    COMe-mBT10 / Features and Interfaces 4.11 Intel® Fast Flash Standby™ / Rapid Start Technology™ The target of Intel® Fast Flash Standby™ (iFFS) (also known as Intel® Rapid Start Technology™ iRST) is to get a wake-up time from S4 compareable to S3. Normally S4 is caused by OS which stores it's information to the hard disk and does then a normal shutdown.
  • Page 39 COMe-mBT10 / Features and Interfaces Benefits » System transitions from S3 to S4 automatically » Up to 6x battery life compared to Standby » Resume time reduced up to 75% Measured resume times from Power-on to Win7 Log-on Screen on COMe-mCT10: »...
  • Page 40: Speedstep Technology

    COMe-mBT10 / Features and Interfaces 4.12 Speedstep Technology The Intel® processors offer the Intel® Enhanced SpeedStep™ technology that automatically switches between maximum performance mode and battery-optimized mode, depending on the needs of the application being run. It enables you to adapt high performance computing on your applications.
  • Page 41: C-States

    COMe-mBT10 / Features and Interfaces 4.13 C-States New generation platforms include power saving features like SuperLFM, EIST (P-States) or C-States in O/S idle mode. Activated C-States are able to dramatically decrease power consumption in idle mode by reducing the Core Voltage or switching of parts of the CPU Core, the Core Clocks or the CPU Cache.
  • Page 42: Graphics Features

    COMe-mBT10 / Features and Interfaces 4.14 Graphics Features The integrated Intel® HD Graphics (Gen 7) graphics supports following OS dependent featureset: Win8 Win7/WES7 WEC7 Linux (Fedora/Yocto) Linux (Tizen) Android Display Interfaces* HDMI 1.4a, DP 1.1a, eDP 1.3, VGA HDMI, eDP Max HDMI/DVI Resolution 1920×1200...
  • Page 43: Acpi Suspend Modes And Resume Events

    COMe-mBT10 / Features and Interfaces 4.15 ACPI Suspend Modes and Resume Events The supports the S-states S0, S3, S4, S5. S5eco Support: YES The following events resume the system from S3: » USB Keyboard (1) » USB Mouse (1) » Power Button »...
  • Page 44: Usb

    COMe-mBT10 / Features and Interfaces 4.16 The COMe-mBT10 supports up to 8x USB 2.0/1x USB 3.0 with following internal EHCI/xHCI configuration: Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 45: System Resources

    COMe-mBT10 / System Resources 5 System Resources Internal I2C Bus 8-bit Address 7-bit Address Device Comment 0x2C S5eco resistor Do not use under any circumstances 0x2D USB HSIC Hub Do not use under any circumstances 0x60 LVDS bridge Do not use under any circumstances...
  • Page 46: Pinout List

    COMe-mBT10 / Pinout List 6 Pinout List General Signal Description Type Description I/O-3,3 Bi-directional 3,3 V IO-Signal I/O-5T Bi-dir. 3,3V I/O (5V Tolerance) I/O-5 Bi-directional 5V I/O-Signal I-3,3 3,3V Input I/OD Bi-directional Input/Output Open Drain I-5T 3,3V Input (5V Tolerance)
  • Page 47: Connector X1A Row A

    COMe-mBT10 / Pinout List Connector X1A Row A Signal Description Type Termination Comment Power Ground PWR GND GBE0_MDI3- Ethernet Media Dependent Interface 3 - DP-I/O GBE0_MDI3+ Ethernet Media Dependent Interface 3 + DP-I/O GBE0_LINK100# Ethernet Speed LED GBE0_LINK1000# Ethernet Speed LED...
  • Page 48 COMe-mBT10 / Pinout List PCIE_TX3+ PCI Express Lane 3 Transmit + DP-O PCIE_TX3- PCI Express Lane 3 Transmit - DP-O Power Ground PWR GND PCIE_TX2+ PCI Express Lane 2 Transmit + DP-O PCIE_TX2- PCI Express Lane 2 Transmit - DP-O...
  • Page 49: Connector X1A Row B

    USB 3.0 Transmit Pair 1 - DP-I Watch Dog Time-Out event O-3.3 AC/HDA_SDIN2 HD Audio Serial Data In 2 SDIN2 is not supported by COMe-mBT10 AC/HDA_SDIN1 HD Audio Serial Data In 1 I-3.3 PD 20k in CPU AC/HDA_SDIN0 HD Audio Serial Data In 0 I-3.3...
  • Page 50 COMe-mBT10 / Pinout List PCIE_RX3+ PCI Express Lane 3 Receive + DP-I PCIE_RX3- PCI Express Lane 3 Receive - DP-I Power Ground PWR GND PCIE_RX2+ PCI Express Lane 2 Receive + DP-I PCIE_RX2- PCI Express Lane 2 Receive - DP-I...
  • Page 51: Bios Operation

    To determine the BIOS version currently used on the Computer-on-Modules please check System Information Page inside Setup BIOS Update Kontron provides continous BIOS updates for Computer-on-Modules. The updates are provided for download on http://emdcustomersection.kontron.com with detailed change descriptions within the according Product Change Notification (PCN).
  • Page 52: Selecting An Item

    COMe-mBT10 / BIOS Operation Menu Bar The menu bar at the top of the window lists different menus. Use the left/right arrow keys to make a selection. Legend Bar Use the keys listed in the legend bar on the bottom to make your selections or exit the current menu. The table below describes the legend keys and their alternates.
  • Page 53: Corporate Offices

    COMe-mBT10 / BIOS Operation Corporate Offices Europe, Middle East & Africa North America Asia Pacific Oskar-von-Miller-Str. 1 14118 Stowe Drive 17 Building,Block #1,ABP. 85386 Eching/Munich Poway, CA 92064-7147 188 Southern West 4th Ring Germany Beijing 100070, P.R.China Tel.: +49 (0)8165/ 77 777 Tel.: +1 888 294 4558...
