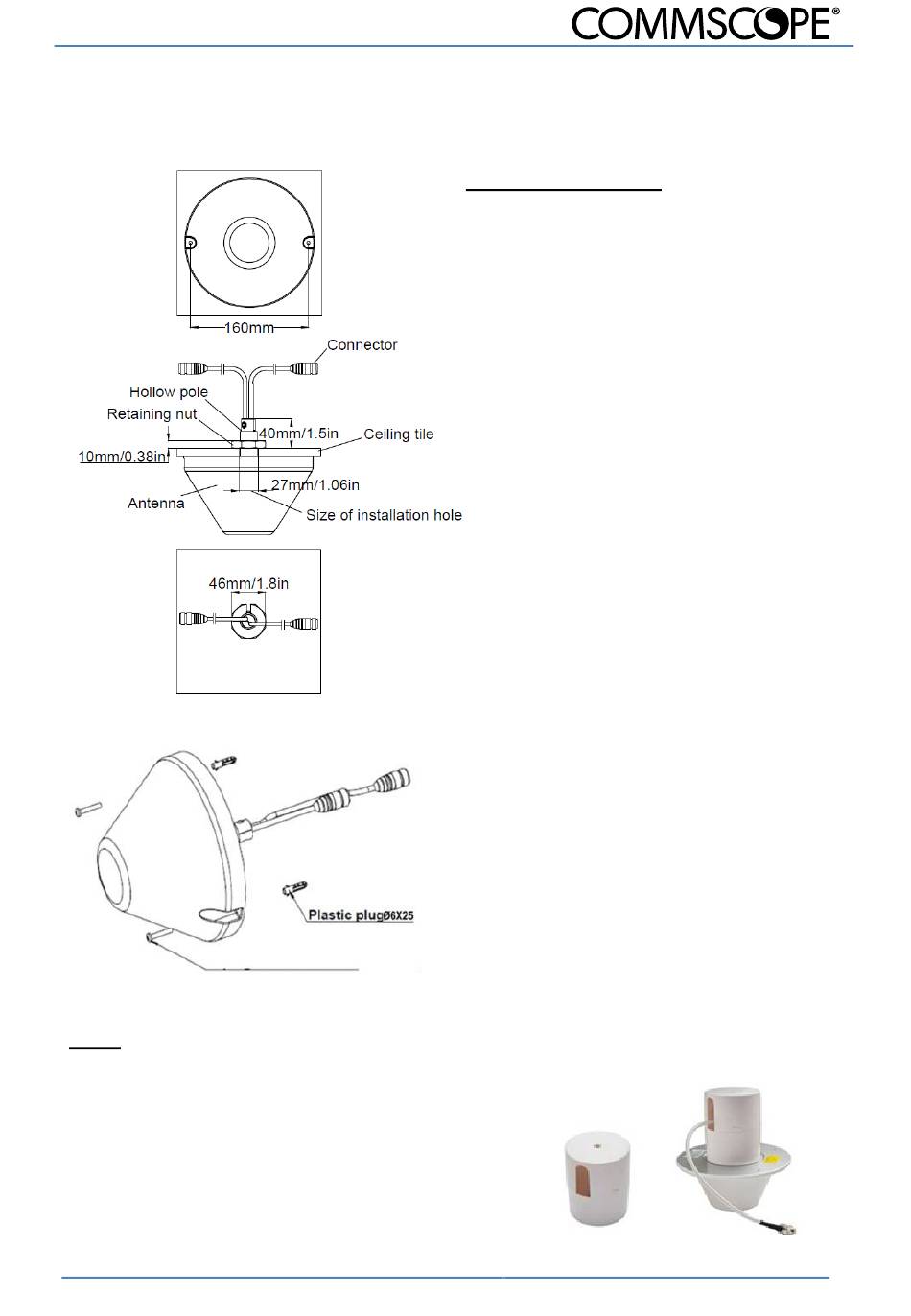

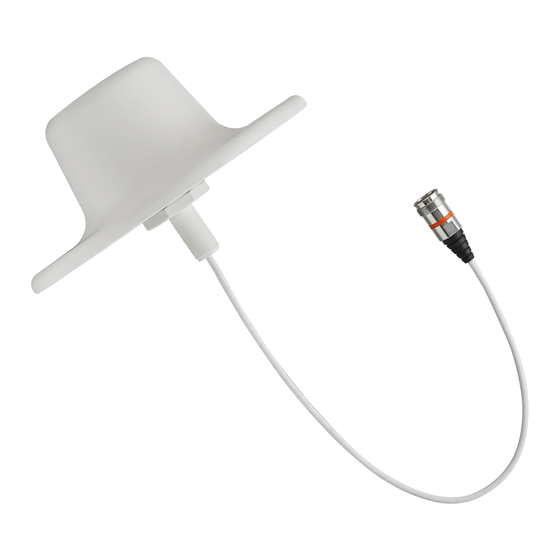

INSTALLATION INSTRUCTION FOR
CMAX-OMF3-43-UWI53 AND CMAX-OMF3-UWI53
Tapping Screw ST4.2X25
Note
1) Cable min. bending radius: 40mm
2) For massive/hard ceilings, please use
Hard Ceiling Mounting Kit 7705125
which serves to guide the jumper to the
side. For this kit, a separate instruction
(M0149AWx) is available:
M0149AGB_InstIns tr_CMAX-OMF 3-Antennas
Installation Steps
1) Cut a hole in the ceiling tile
with the diameter shown in the
left picture.
2) Remove the retaining nut from
the back of the antenna.
3) Feed these two pigtails of this
antenna through the hole in
the ceiling tile.
4) Re-install the retaining nut so
that it is close-fitting to the
ceiling tile.
1) Drill two holes in the ceiling per
pattern of holes in this antenna
shown in the left.
2) Fasten the flat side of this
∅6X25mm)
anchors
(Tapping Screw ST4.2X25mm).
3) Mount this antenna to the
ceiling tile.
Technical Support:
http://www.commscope.com/wisupport
(Plastic
plug
and
screws
