INSTALLATION INSTRUCTION FOR

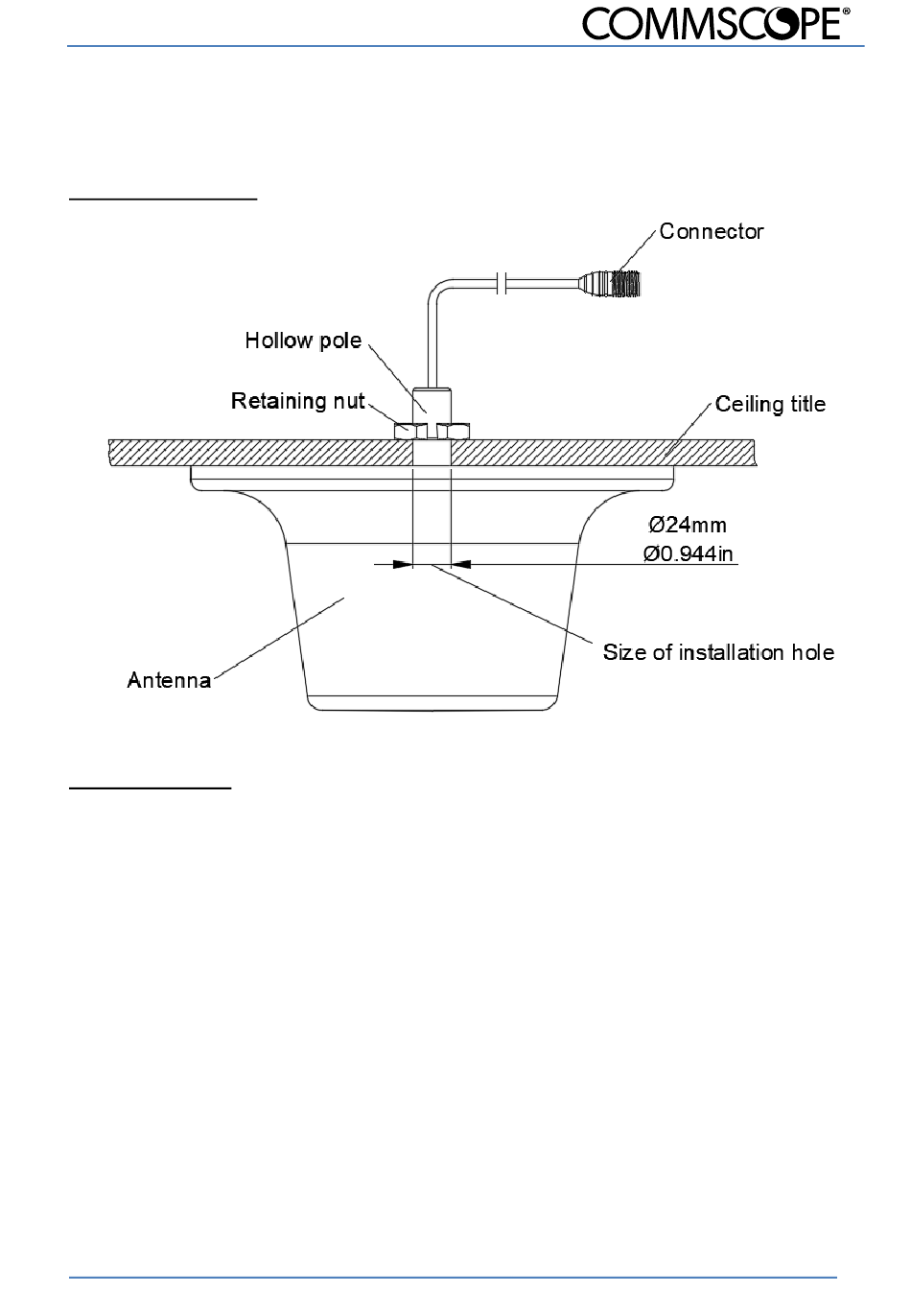

Installation Mode1:
Installation Steps
1)
Drill a hole in the ceiling with the diameter shown above.
2)
Remove the retaining nut from the back of the antenna.
3)
Lead the pigtail through the hole in the ceiling.
4)
Mount the antenna on the ceiling by reinstalling the retaining nut removed before.
Note:
Cable min. bending radius: 40mm
M0153ADA_InstInstr_CM AX-O-TCPUSEWi53
