INSTALLATION INSTRUCTION FOR
CMAX-OMF8-43-UWI53
Installation Steps

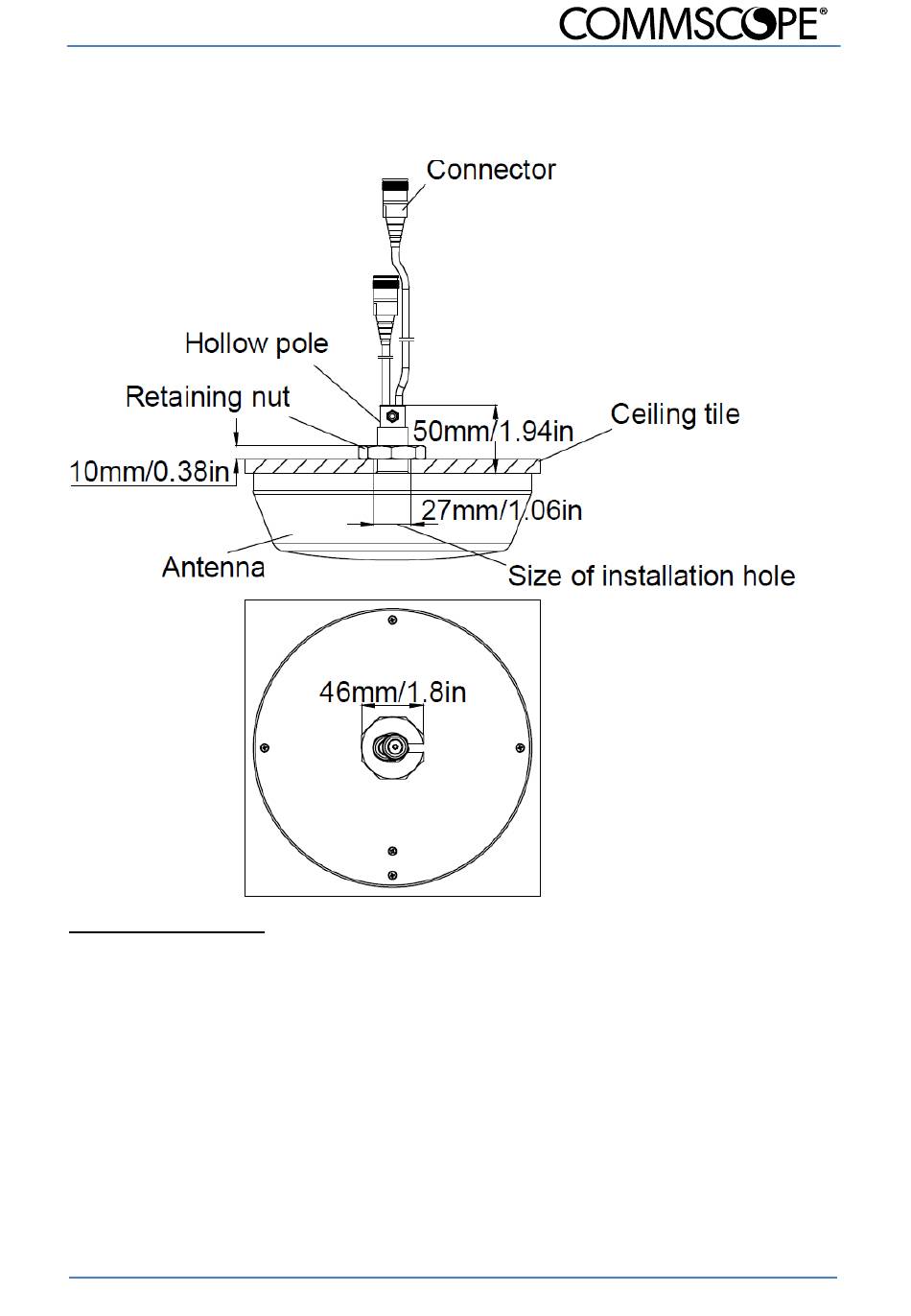

1) Cut a hole in the ceiling tile with the diameter shown above.
2) Remove the retaining nut from the back of the antenna.
3) Feed the pigtails of the antenna through the hole in the ceiling tile.
4) Re-install the retaining nut so that it is close-fitting to the ceiling tile.
Technical Support:
M0149AXA_InstInstr_CMAX-OMF8-43-UWi53
http://www.commscope.com/wisupport
