Installation Of CMAX-O-CPUSEWV53 Antenna

Note: Please read the complete description before starting the installation. Make sure that
connectors are properly sealed against water if no cables are connected to them after
installation.

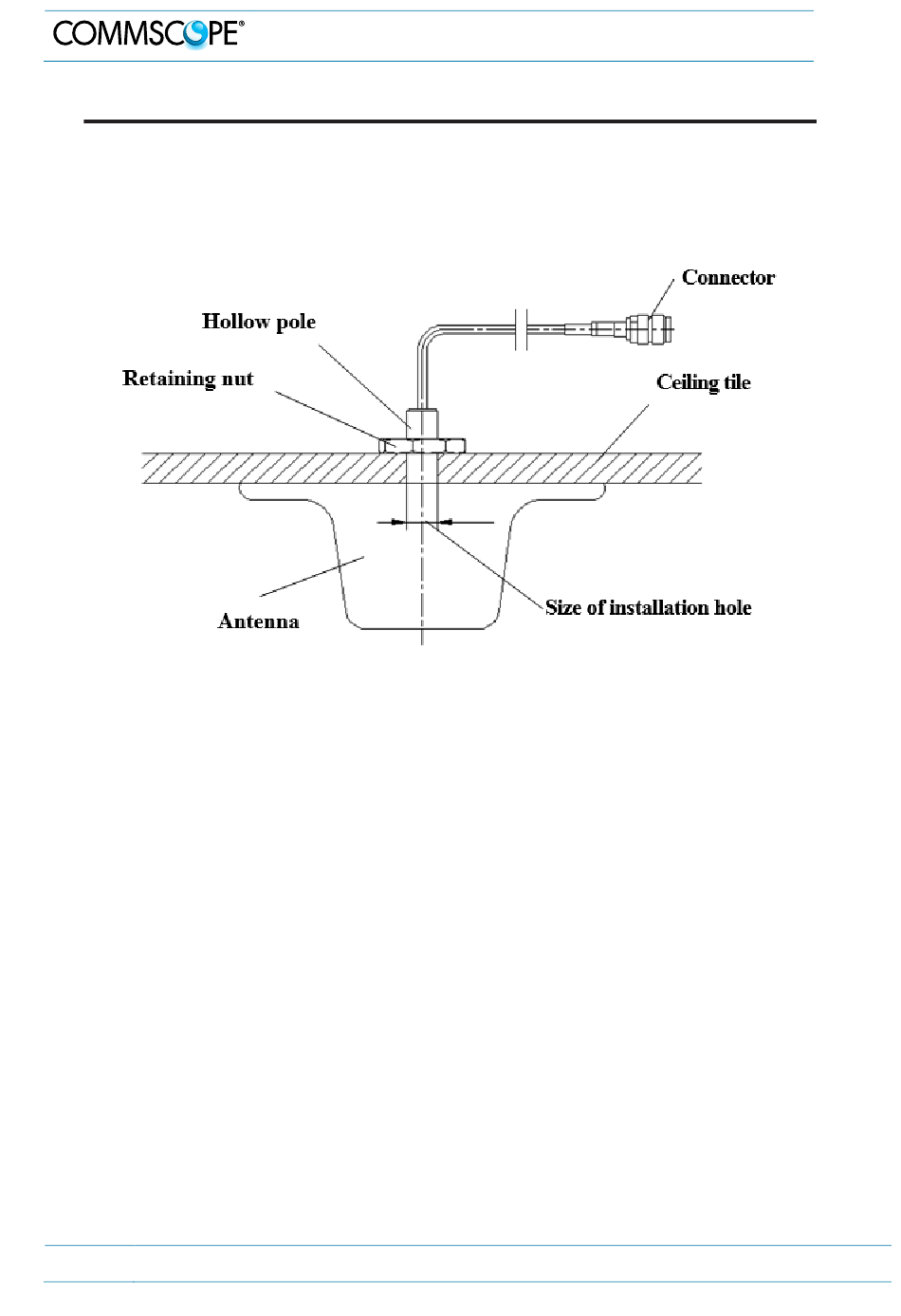

Installation without the Ceiling Mount kit:
1) Cut a hole in the ceiling tile with the diameter shown above.
2) Remove the retaining nut from the back of the antenna (labeled tight part for connector
in the diagram above).
3) Feed the pigtail of the antenna through the hole in the ceiling tile.
4) Re-install the retaining nut so that it is snug against the ceiling tile.
Page 1
Installation instruction CMAX-O-CPUSEWV53
18mm/0.7in
M0149ABB_Installation_CMAX-O-CPUSEWV53-Antenna

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMAX-O-CPUSEWV53 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CommScope CMAX-O-CPUSEWV53

  • Page 1 Installation instruction CMAX-O-CPUSEWV53 Installation Of CMAX-O-CPUSEWV53 Antenna Note: Please read the complete description before starting the installation. Make sure that connectors are properly sealed against water if no cables are connected to them after installation. Installation without the Ceiling Mount kit: 18mm/0.7in...

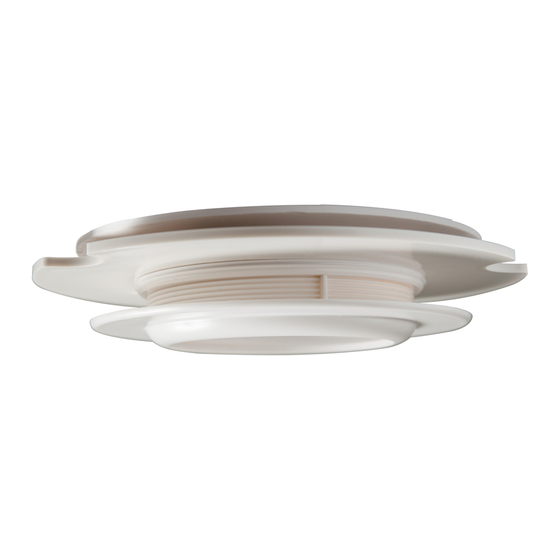

  • Page 2 Installation Instruction for CMAX Antennas Installation with the Ceiling Mount kit, part number: 7760591: Description: Through Omni antenna mounting kit conceals the antenna with only the nose protruding through the ceiling. The base plate is hidden above the false ceiling which results in a 50% reduction of the visible antenna footprint.
  • Page 3 © Copyright 2016 CommScope, Inc. All rights reserved. All information contained in this manual has been revised thoroughly. Yet CommScope accepts no liability for any omissions or faults. CommScope reserves the right to change all hardware and software characteristics without notice.
