INSTALLATION INSTRUCTION FOR
CMAX-OMF6-43-UWI53
Method 1
Installation Steps

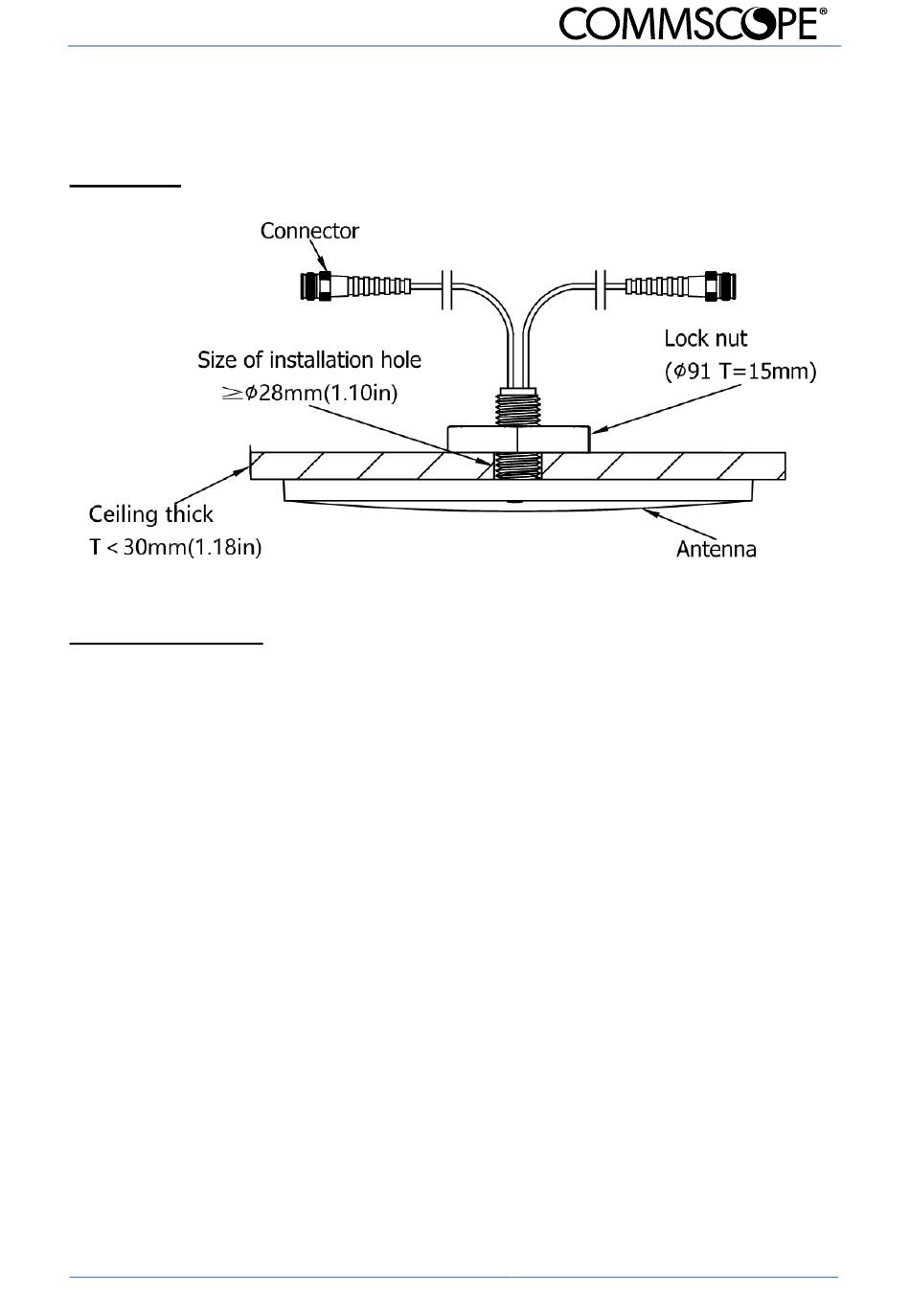

1) Cut a hole in the ceiling tile with the diameter shown above.
2) Remove the retaining nut from the back of the antenna.
3) Feed these two pigtails of this antenna through the hole in the
ceiling tile.
4) Re-install the retaining nut so that it is close-fitting to the ceiling tile.
Technical Support:
M0149AQA_InstInstr_CMAX-OMF6-43-UWI53
http://www.commscope.com/wisupport
