CommScope CMAX-O Series Installation Instruction

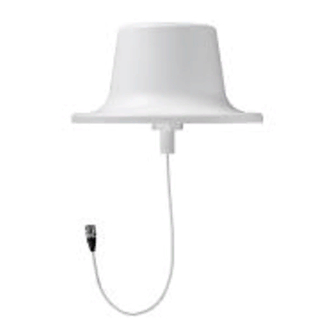

Installation of CMAX-O-CPUSEWV53 /

Note: Please read the complete description before starting the installation. Make sure that

connectors are properly sealed against water if no cables are connected to them after

installation.

Installation without the Ceiling Mount kit:

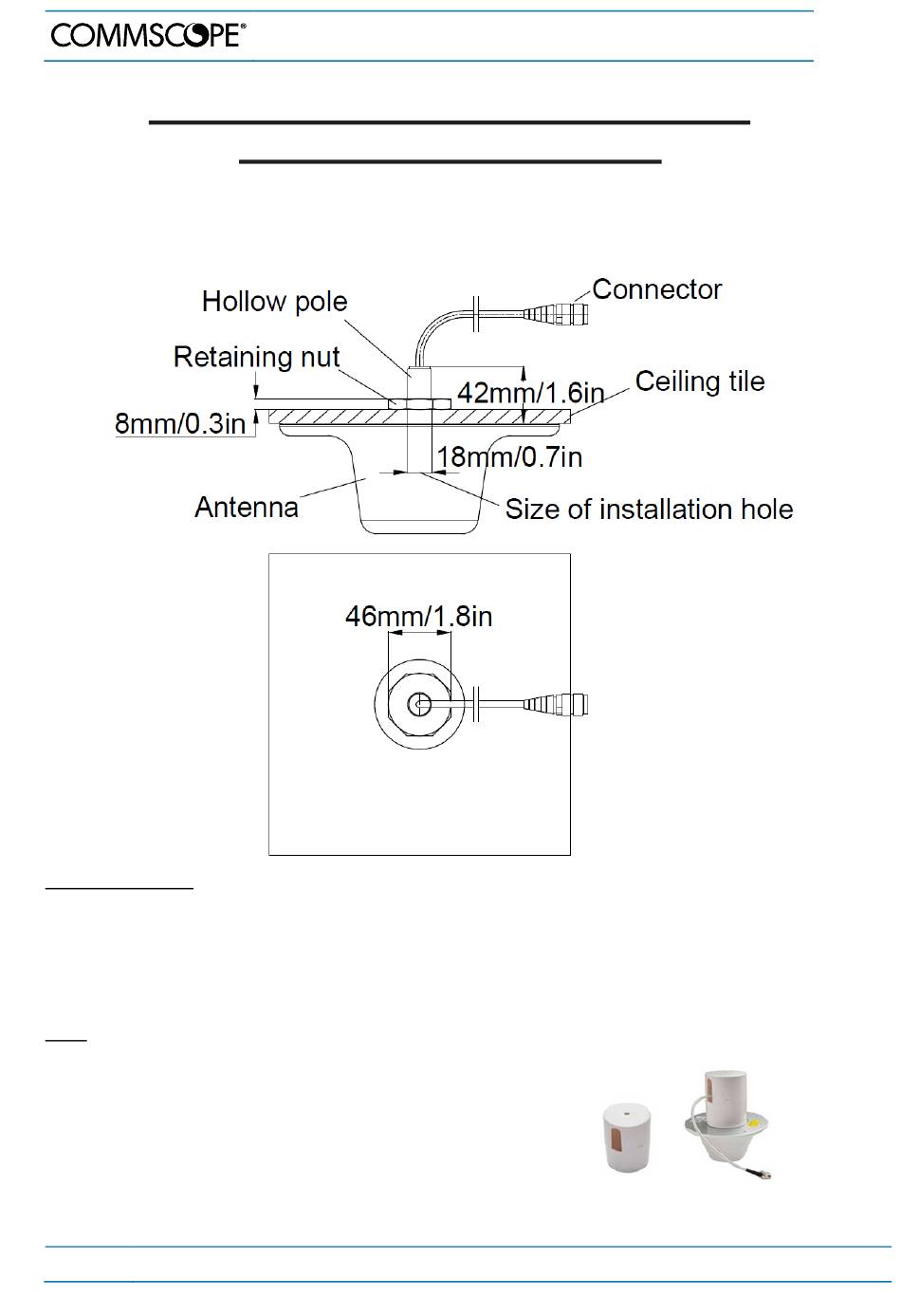

1) Cut a hole in the ceiling tile with the diameter shown above.

2) Remove the retaining nut from the back of the antenna (labeled tight part for connector in the

diagram above).

3) Feed the pigtail of the antenna through the hole in the ceiling tile.

4) Re-install the retaining nut so that it is snug against the ceiling tile.

Note

1) Cable min. bending radius: 40mm

2) For massive/hard ceilings, please use Hard Ceiling

Mounting Kit 7705125 which serves to guide the

jumper to the side. For this kit, a separate instruction

(M0149AWx) is available:

Page 1

Installation instruction CMAX-O-xxx antennas

CMAX-O-UW-I53 Antennas

M0149ABC_Installation_CMAX-O-xxx-Antennas

Table of Contents

Do you have a question about the CMAX-O Series and is the answer not in the manual?

Page 1 Installation instruction CMAX-O-xxx antennas Installation of CMAX-O-CPUSEWV53 / CMAX-O-UW-I53 Antennas Note: Please read the complete description before starting the installation. Make sure that connectors are properly sealed against water if no cables are connected to them after installation. Installation without the Ceiling Mount kit: Installation Steps 1) Cut a hole in the ceiling tile with the diameter shown above.
Page 2 Installation Instruction for CMAX Antennas Installation with the Ceiling Mount kit, part number 7760591: Description: Through Omni antenna mounting kit conceals the antenna with only the nose protruding through the ceiling. The base plate is hidden above the false ceiling which results in a 50% reduction of the visible antenna footprint.
Page 3 © Copyright 2020 CommScope, Inc. All rights reserved. All information contained in this manual has been revised thoroughly. Yet CommScope accepts no liability for any omissions or faults. CommScope reserves the right to change all hardware and software characteristics without notice.
