Series 51 Two Position Controls Service Manual
resolves high pressure for servo supply and low pressure for control pilot also feeds these pressures to an
optional Pressure Compensating Over-Ride (PCOR) valve.

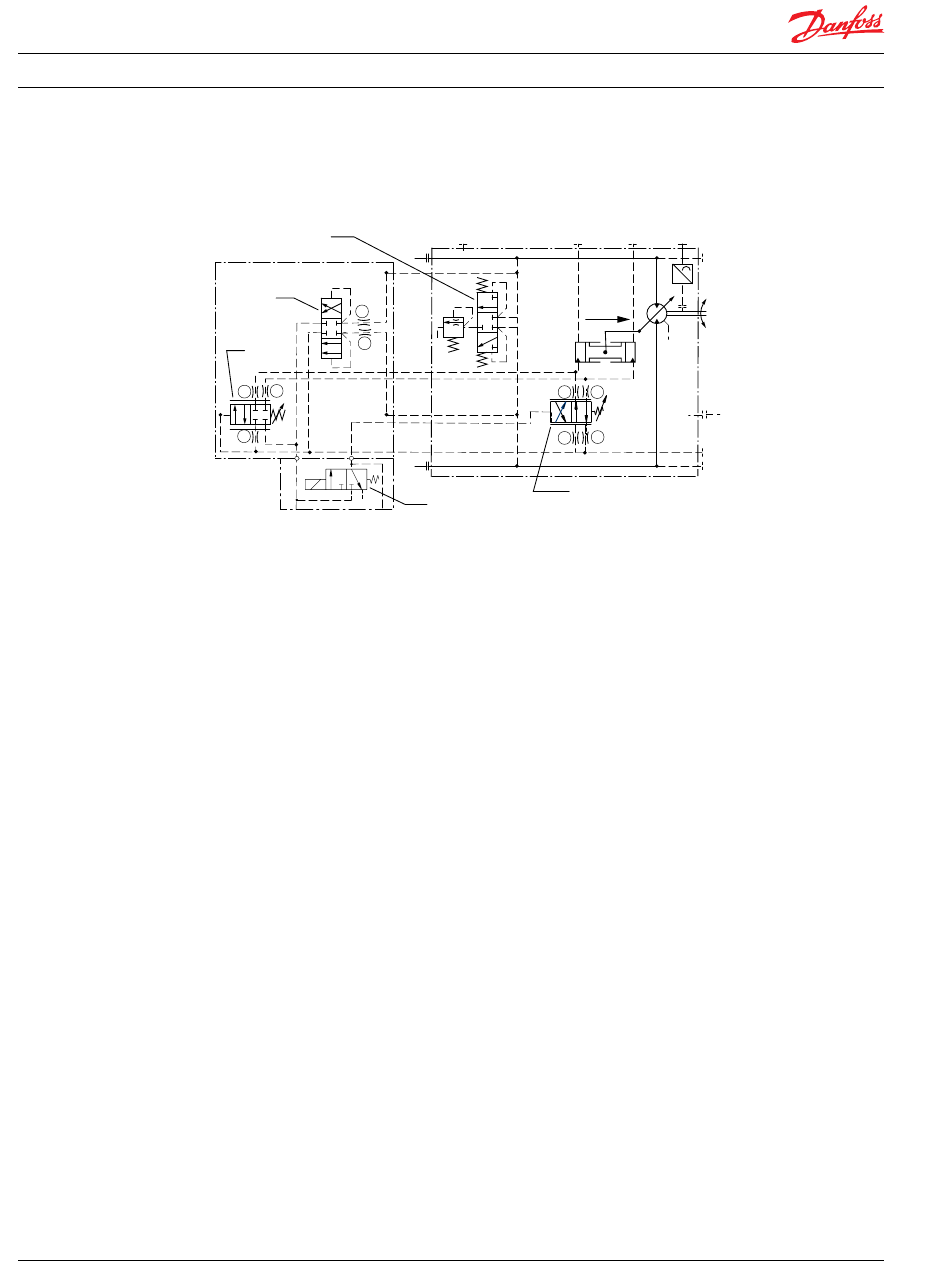

Multifunction block schematic
Loop flush
Shuttle
spool
T4
T6
PCOR
U7 U6
T5
E* F*
X X
M8
M7
11009442 • Rev CA • January 2015
L2 M4
A
max.
disp.
T2 T3
T1
T7
B
4-way valve
Control
M3 N
M1
n
L1
M5
M2
