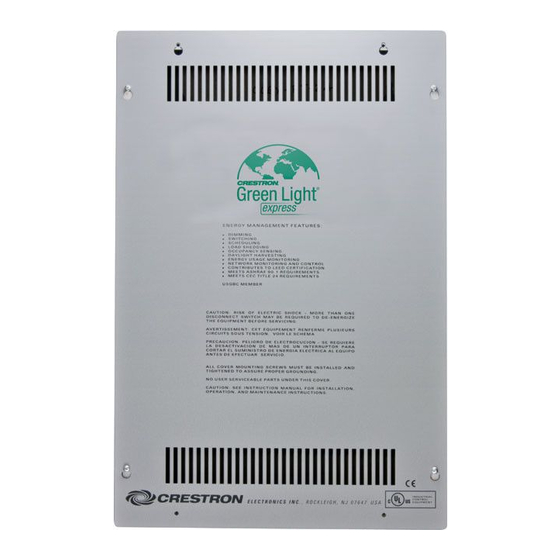

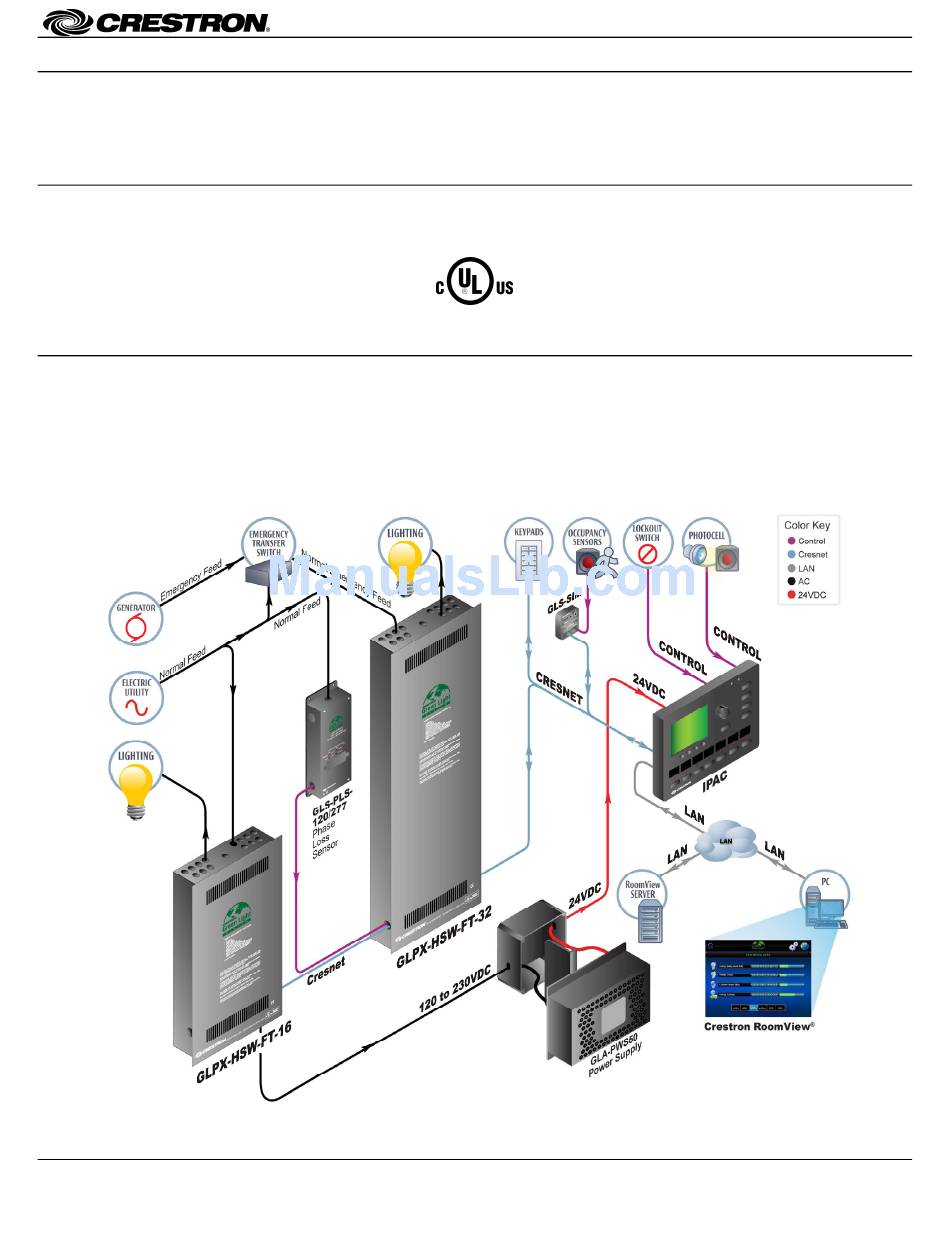

GREEN LIGHT Introduction CRESTRON GREEN LIGHT EXPRESS power switching cabinets come pre-configured with GLXP switching modules already installed. The cabinets only require installation and wiring of feed and load circuits. Regulatory Compliance The cabinet and modules are Listed to applicable UL Standar ds and requirements by Underwriters Laboratories Inc. Application The following diagram shows CRESTRON GREEN LIGHT EXPRESS power switching cabinets in a lighting application that is controlled by an IPAC system.
® Power Switching Cabinet GLPX-HSW-FT CRESTRON GREEN LIGHT EXPRESS Physical Description This section shows the dimensions of the CRESTRON GREEN LIGHT EXPRESS power switching cabinets. Dimensions of GLPX-HSW-FT-8 , -12, -16 Power Switching Cabinets (Front, Side and Bottom View) 24 1/4" (616 mm) KNOCKOUT FOR 3/4”...
Page 3
CRESTRON GREEN LIGHT Dimensions of GLPX-HSW-FT-8 , -12, -16 Power Switching Cabinets (Internal View) 2 1/4” (58 mm) 23 1/2" (597 mm) Installed GLXP modules come with additional tie wrap holders. Installation Guide – DOC. 6888B ® EXPRESS Power Switching Cabinet GLPX-HSW-FT 10 7/8”...
Page 4
® Power Switching Cabinet GLPX-HSW-FT CRESTRON GREEN LIGHT EXPRESS Dimensions of GLPX-HSW-FT-20, -24, -28, -32 Power Switching Cabinets (Front, Side and Bottom View) 39 5/8” (1 m) KNOCKOUT FOR 3/4” (20 mm) CONDUIT (TYPICAL BOTH SIDES) 3 1/16” (78 mm) 1/4”...
Page 5
CRESTRON GREEN LIGHT Dimensions of GLPX-HSW-FT-20, -24, -28, -32 Power Switching Cabinets (Internal View) GROUND LUG 38 7/8” (998 mm) Installed GLXP modules come with additional tie wrap holders. Installation Guide – DOC. 6888B ® EXPRESS Power Switching Cabinet GLPX-HSW-FT 2 1/4”...
Power Switching Cabinet GLPX-HSW-FT Installation Observe the following when installing the cabinet: • The cabinet must be mounted by a licensed electrician in accordance with all national and local codes. Refer to the diagram below for specific requirements. • The cabinet is designed for surface mounting on a wall. •...
Page 7
CRESTRON GREEN LIGHT Wiring NOTE: All wiring must be installed in accordance with all local and national electrical codes. NOTE: Refer to the torque settings specified on pages 8 and 9. STRON GREEN LIGHT EXPRESS cabinets are shipped with The follo wing must be performed after mounting th •...
Page 8
Power Switching Cabinet GLPX-HSW-FT Feed-Through and Load Wiring (Section A) CAUT ION: Bypass jumpers are provided on each output to allow testing and to protect the modules during installation. The jumper shorts the L and SW terminals so that the load circuit is energized when is on.
Page 9
GLS-PLS-120/277 phase-loss sensor, or other devices that provide a dry contact closure (manual switch, fire alarm relay, etc.). NOTE: Interface connectors for NET (x2), POWER (x1), and OVERRIDE (x3) ports are provided.
Page 10
Power Switching Cabinet GLPX-HSW-FT NET Port Wiring When wiring the supplied NET connectors for connection to a Crestron control system or other device on the Cresnet network, use Crestron certified wire such as CRESNET-NP or CRESNET-P. To ensure optimum performance over the full range of your installation topology, use Crestron certified wire. Failure to do so may incur additional charges if support is required to identify performance deficiencies because of using improper wire.
Page 11
CRESTRON GREEN LIGHT Testing nual Control Ligh ting modules can be manually controlled from the front panel. To t oggle the output between off and on, tap the appropriate ON/OFF button. The corresponding LED illuminates and t he output state is shown on the NET ID display (“oF” for off, “On” for on) for two seconds after the button is rele ased.
Power Switching Cabinet GLPX-HSW-FT Problem Solving Troubleshooting The following table provides corrective action for possible trouble s contact a Crestron customer service representative. Troubleshooting TROUBLE Module(s) does not function. Module’s LED is flashing. Unit cannot be taken out of Override mode Further Inquiries If you cannot locate specific information or have questions after reviewing this guide, please take advantage of Crestron's award winning customer service team by calling Crestron at 1-888-CRESTRON [1-...
CRESTRON GREEN LIGHT Appendix A: Setting Module Net IDs The following procedure will normally be performed by an authorized Crestron representative as part of the System Commissioning phase. For perform this step. Only perform this step if instructed by an authorized Crestron representative, or when replacing modules on a system that have already been commissioned (in the latter case the Net ID should be set to match the Net ID of the module being replaced).
Power Switching Cabinet GLPX-HSW-FT Appendix B: Specifications Specifications for the GLXP modules are listed in the following table. GLXP Module Specifications SPECIFICATION Input Voltage Supported Load Types Maximum Load Lighting Mo or Environmental Temperature Humidity Heat Dissipation 14 • GREEN LIGHT ®...
Page 15
® CRESTRON GREEN LIGHT EXPRESS Power Switching Cabinet GLPX-HSW-FT This page is intentionally left blank. EXPRESS Power Switching Cabinet GLPX-HSW-FT • 15 ® Installation Guide – DOC. 6888B GREEN LIGHT...
Power Switching Cabinet GLPX-HSW-FT Return and Warranty Policies Merchandise Returns / Repair Service 1. No merchandise may be returned for credit, exchange or service without prior authorization from CRESTRON. To obtain warranty service for CRESTRON products, contact an authorized CRESTRON dealer. Only authorized CRESTRON dealers may contact the factory and request an RMA (Return Merchandise Authorization) number.
