Crestron DigitalMedia XiO Director DM-XIO-DIR-ENT User Manual

DO GUIDE
DM-XIO-DIR-ENT
DigitalMedia™ XiO Director Virtual Switching Appliance
DO Install the Device
The Crestron DM-XIO-DIR-ENT is designed to be mounted into a rack. The device is shipped from the factory with inner rack rails attached. The two
®
included outer rack rails must be attached to a rack before the device is mounted into the rack. For installation instructions, refer to the "Installing the Outer
Rack Rails" and "Mounting the Device into a Rack" sections that follow.

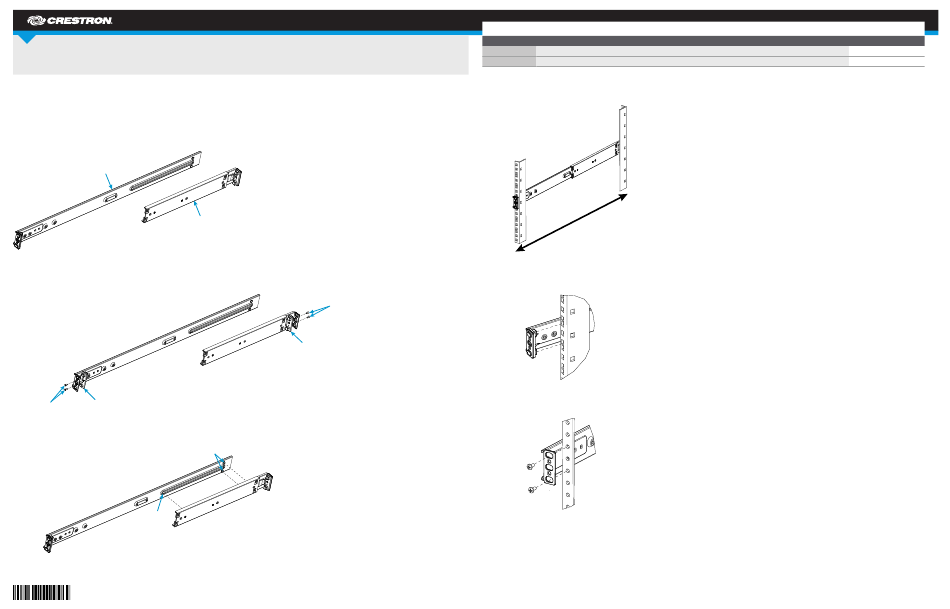

Installing the Outer Rack Rails
The two included outer rack rails can attach to racks with square or round rack holes. Each outer rack rail consists of a long bracket and a short bracket.
Long
bracket
bracket
To install an outer rack rail, do the following:
1. (For attachment to a rack with round rack holes only) Detach the square hole mounting plates from the short and long brackets by removing the two
Phillips screws from the end of each bracket. (The square hole mounting plates are designed for attachment to racks with square rack holes).
Square hole
Phillips
mounting plate
screws
2. Attach the short bracket to the outside of the long bracket by inserting the pin (not shown) on the short bracket into the keyhole of the slot on the
long bracket. The two pins on the long bracket are then positioned into the corresponding keyholes (not shown) of the short bracket.
Keyhole
Short
Phillips
screws
Square hole
mounting plate
Pins
DO Check the Box
QUANTITY PRODUCT
2 Power Cord
2 Rack Rail, Outer
3. Position the long bracket toward the front of the rack and the short bracket toward the rear of the rack, and then adjust the rail by sliding the
brackets to fit the depth of the rack.
4. Do either of the following:
• If the rack has square rack holes, align the square hole mounting plates with the holes in the rack and then push the plates inward so that they
snap into place.
• If the rack has round rack holes, align the rack mounting holes in the rail with the holes in the rack and then attach the rail with four rack
mounting screws (two screws for each end of the rail, not included). Round unthreaded holes can be converted to threaded holes with the use
of cage or clip nuts (not included).
5. Repeat steps 1–4 to attach the remaining rail to the other side of the rack.
PART NUMBER
2050001
2050009
