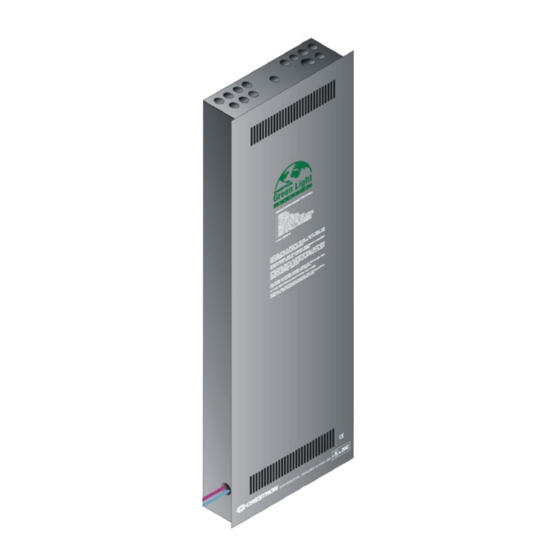

Introduction
CRESTRON GREEN LIGHT EXPRESS power switching cabinets come pre-configured with GLXX switching
modules already installed. The cabinets only require installation and wiring of feed and load circuits.
Regulatory Compliance
The cabinet and modules are Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc.
Application

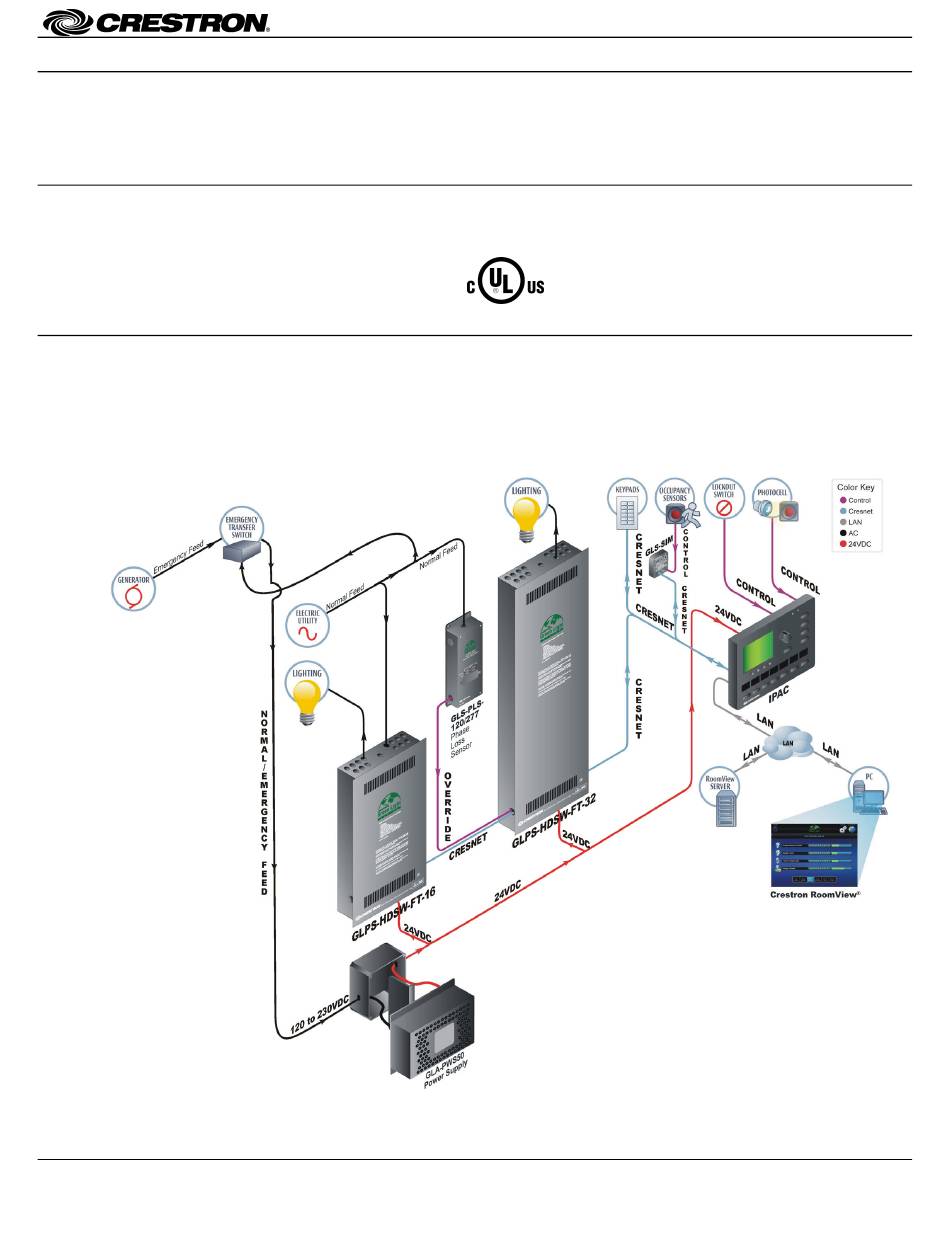

The following diagram shows CRESTRON GREEN LIGHT EXPRESS power switching cabinets in a lighting
application that is controlled by an IPAC system.
CRESTRON GREEN LIGHT EXPRESS Power Switching Cabinets in a Typical Lighting Application
Crestron Electronics, Inc.
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
www.crestron.com
®
GREEN LIGHT
EXPRESS Power Switching Cabinet GLPS-HDSW-FT
Installation Guide – DOC. 6887A
(2025418)
Specifications subject to
change without notice.
04.10
Advertisement
Table of Contents
Related Manuals for Crestron GREEN LIGHT EXPRESS
Summary of Contents for Crestron GREEN LIGHT EXPRESS
- Page 1 The cabinet and modules are Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc. Application The following diagram shows CRESTRON GREEN LIGHT EXPRESS power switching cabinets in a lighting application that is controlled by an IPAC system. CRESTRON GREEN LIGHT EXPRESS Power Switching Cabinets in a Typical Lighting Application Crestron Electronics, Inc.
-
Page 2: Physical Description
Power Switching Cabinet GLPS-HDSW-FT CRESTRON GREEN LIGHT EXPRESS Physical Description This section shows the dimensions of the CRESTRON GREEN LIGHT EXPRESS power switching cabinets. Dimensions of GLPS-HDSW-FT-8 ,-12, -16, -20, -24 Power Switching Cabinets (Front, Side and Bottom View) 24 1/4" (616 mm) KNOCKOUT FOR 3/4”... - Page 3 ® CRESTRON GREEN LIGHT EXPRESS Power Switching Cabinet GLPS-HDSW-FT Dimensions of GLPS-HDSW-FT-8, -12, -16, -20, -24 (shown below) Power Switching Cabinets (Internal View) 2 1/4” (2X) Ø 5/16” (58 mm) (Ø 8 mm) 10 7/8” MOUNTING HOLES (276 mm) 2 1/8” (55 mm) (2x) 11/16”...
- Page 4 ® Power Switching Cabinet GLPS-HDSW-FT CRESTRON GREEN LIGHT EXPRESS Dimensions of GLPS-HDSW-FT-28, -32, -36, -40, -48, -52, -56 Power Switching Cabinets (Front, Side and Bottom View) 39 5/8” (1 m) KNOCKOUT FOR 3/4” (20 mm) CONDUIT (TYPICAL BOTH SIDES) 3 1/16”...
- Page 5 ® CRESTRON GREEN LIGHT EXPRESS Power Switching Cabinet GLPS-HDSW-FT Dimensions of GLPS-HDSW-FT–28, -32, -36, -40, -48,-52, -56 (shown below) Power Switching Cabinets (Internal View) 2 1/4” (2X) Ø 5/16” (58 mm) (Ø 8 mm) 10 7/8” MOUNTING HOLES (276 mm) GROUND 2 1/8”...
-
Page 6: Installation
® Power Switching Cabinet GLPS-HDSW-FT CRESTRON GREEN LIGHT EXPRESS Installation Observe the following when installing the cabinet: • The cabinet must be mounted by a licensed electrician in accordance with all national and local codes. Refer to the diagram below for specific requirements. - Page 7 NOTE: All wiring must be installed in accordance with all local and national electrical codes. NOTE: Refer to the torque settings specified on pages 8 and 9. CRESTRON GREEN LIGHT EXPRESS power switching cabinets come pre-configured with GLXX-HDSW switching modules already installed. The cabinets only require installation and wiring of feed and load circuits.
- Page 8 ® Power Switching Cabinet GLPS-HDSW-FT CRESTRON GREEN LIGHT EXPRESS Feed-Through and Load Wiring (Section A) NOTE: Use copper conductors only – rated 75°C. Wire Gauge and Torque Values TERMINAL CONNECTOR MAX TORQUE STRIP WIRE RANGE LENGTH INPUT 26-10 AWG 5.31 lb-in (0.6 Nm) to 3/8”...
- Page 9 (manual switch, fire alarm relay, etc.). To ensure optimum performance over the full range of your installation topology, use Crestron certified wire. Failure to do so may incur additional charges if support is required to identify performance deficiencies because of using improper wire.
- Page 10 EXPRESS NET Port Wiring When wiring the supplied NET connectors for connection to a Crestron control system or other device on the Cresnet network, use Crestron certified wire such as CRESNET-NP or CRESNET-P. For instructions on network wiring, refer to “Appendix C: Network Wiring” on page 18.
- Page 11 ® CRESTRON GREEN LIGHT EXPRESS Power Switching Cabinet GLPS-HDSW-FT Relays The GLXX-CTRL identifies relays in the sequential order in which they are introduced to the GLXX-HDSW. Relays come pre-installed from the factory. Install additional relays from left to right, starting the top of the cabinet and moving down.
- Page 12 ® Power Switching Cabinet GLPS-HDSW-FT CRESTRON GREEN LIGHT EXPRESS Relay Installation Procedure Insert the output side of the relay into the tab(s) on the mounting strap. Push down on the relay to lock the spring clips into the relay. Refer to the illustration below.
- Page 13 ® CRESTRON GREEN LIGHT EXPRESS Power Switching Cabinet GLPS-HDSW-FT Relay Removal Procedure 1. Disconnect the wiring connector on the relay from the GLXX-HDSW. Disconnecting the Relay from the GLXX-HDSW (Single Pole Relay Shown) 2. To release the relay from the mounting strap, press firmly on the spring clip(s).
- Page 14 OVR LED blinks once. System Operation and Commissioning This cabinet has been designed as a component of a programmed Crestron system. System commissioning by an authorized Crestron representative must be performed to ensure system operation. Once the cabinet has been wired and the modules have been tested, contact Crestron at 1-888-CRESTRON [1-888-273-7876] to schedule commissioning.
-
Page 15: Problem Solving
Crestron's award winning customer service team by calling Crestron at 1-888-CRESTRON [1-888-273-7876]. You can also log onto the online help section of the Crestron website (www.crestron.com/onlinehelp) to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features. -
Page 16: Appendix A: Setting Module Net Ids
Appendix A: Setting Module Net IDs The following procedure will normally be performed by an authorized Crestron representative as part of the System Commissioning phase. For system wiring and basic testing as described on pages 7 and 14, it is not necessary to perform this step. -
Page 17: Appendix B: Specifications
® CRESTRON GREEN LIGHT EXPRESS Power Switching Cabinet GLPS-HDSW-FT Appendix B: Specifications Specifications for the GLXX-HDSW modules are listed in the following table. GLXX-HDSW Module Specifications SPECIFICATION DETAILS Input Voltage 100 – 347 VAC 50/60 Hz Incandescent, HID, magnetic low voltage (MLV),... -
Page 18: Appendix C: Network Wiring
In order to ensure optimum performance over the full range of your installation topology, Crestron Certified Wire and only Crestron Certified Wire may be used. Failure to do so may incur additional charges if support is required to identify performance deficiencies because of using improper wire. - Page 19 Cresnet system is recommended for testing purposes and wiring convenience. NOTE: Crestron recommends the use of C2N-HBLOCK or CNTBLOCK as the preferred method to daisy chain or expand the Cresnet network. If the blocks Front are not available, use the method as shown.
- Page 20 ® Power Switching Cabinet GLPS-HDSW-FT CRESTRON GREEN LIGHT EXPRESS Crestron Network to Mini Network Interconnect Diagram Wire Nuts & Jumper Wires Pair A 22 AWG Twisted Blue = Z White = Y To Control System To Mini Network Device Shield*...
- Page 21 ® CRESTRON GREEN LIGHT EXPRESS Power Switching Cabinet GLPS-HDSW-FT This page is intentionally left blank. EXPRESS Power Switching Cabinet GLPS-HDSW-FT • 21 ® Installation Guide – DOC. 6887A GREEN LIGHT...
-
Page 22: Return And Warranty Policies
(property or economic damages inclusive) arising from the sale or use of this equipment. CRESTRON is not liable for any claim made by a third party or made by the purchaser for a third party.
