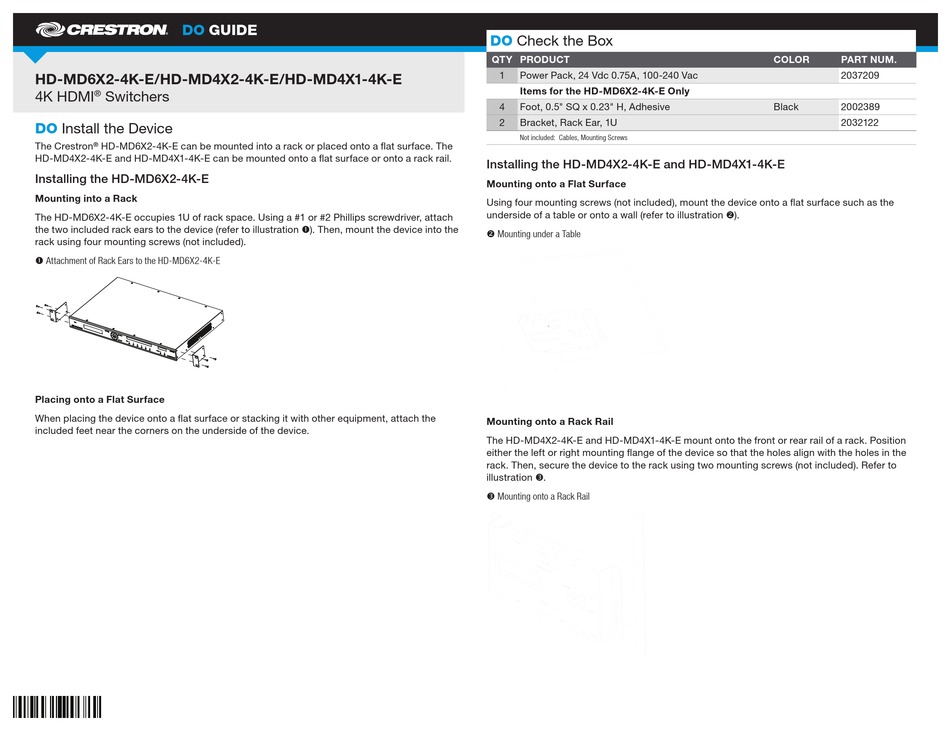

DO GUIDE
HD-MD6X2-4K-E/HD-MD4X2-4K-E/HD-MD4X1-4K-E
4K HDMI Switchers
®
DO Install the Device
The Crestron HD-MD6X2-4K-E can be mounted into a rack or placed onto a flat surface. The
®
HD-MD4X2-4K-E and HD-MD4X1-4K-E can be mounted onto a flat surface or onto a rack rail.
Installing the HD-MD6X2-4K-E
Mounting into a Rack
The HD-MD6X2-4K-E occupies 1U of rack space. Using a #1 or #2 Phillips screwdriver, attach
the two included rack ears to the device (refer to illustration ). Then, mount the device into the
rack using four mounting screws (not included).
 Attachment of Rack Ears to the HD-MD6X2-4K-E
Placing onto a Flat Surface
When placing the device onto a flat surface or stacking it with other equipment, attach the
included feet near the corners on the underside of the device.
DO Check the Box
QTY PRODUCT
1 Power Pack, 24 Vdc 0.75A, 100-240 Vac
Items for the HD-MD6X2-4K-E Only
4 Foot, 0.5" SQ x 0.23" H, Adhesive
2 Bracket, Rack Ear, 1U
Not included: Cables, Mounting Screws
Installing the HD-MD4X2-4K-E and HD-MD4X1-4K-E
Mounting onto a Flat Surface
Using four mounting screws (not included), mount the device onto a flat surface such as the
underside of a table or onto a wall (refer to illustration ).
 Mounting under a Table
Mounting onto a Rack Rail
The HD-MD4X2-4K-E and HD-MD4X1-4K-E mount onto the front or rear rail of a rack. Position
either the left or right mounting flange of the device so that the holes align with the holes in the
rack. Then, secure the device to the rack using two mounting screws (not included). Refer to
illustration .
 Mounting onto a Rack Rail
COLOR PART NUM.
2037209
Black 2002389
2032122
