Crestron HD-RX-201-C-E Do Manual

DO
HD-RX-201-C-E

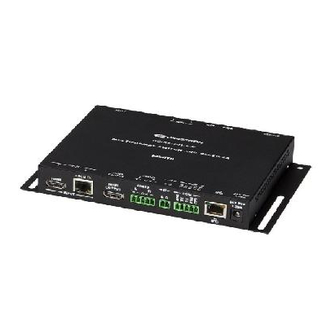

DM Lite Multiformat Switch and Receiver

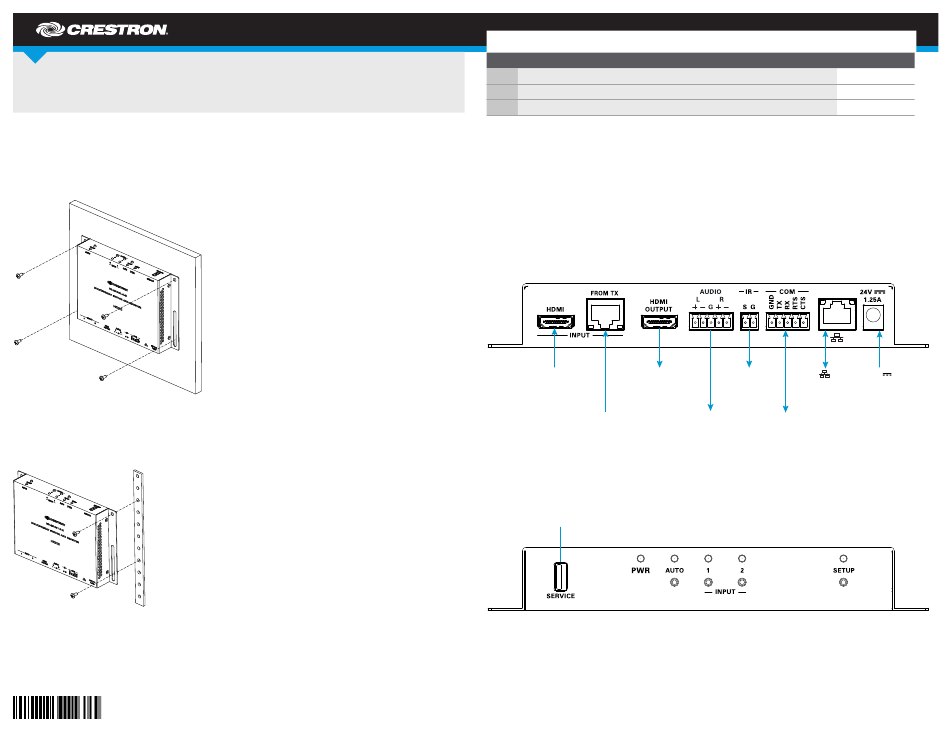

DO Install the Device
Mount the device onto a flat surface or rack rail.
Mount onto a Flat Surface
Using four mounting screws (not included), mount the device onto a flat surface such as a wall.
Mount onto a Rack Rail
Mount the device onto the front or rear rail of a rack. Position either the left or right mounting flange
of the device so that the holes align with the holes in the rack. Then, secure the device to the rack
using two mounting screws (not included).
GUIDE
DO Check the Box
QTY ITEM
1 Connector, 2-Pin
2 Connector, 5-Pin
1 Power Pack, 24 Vdc 1.25 A, 100-240 Vac
DO Connect the Device
Connect the device as required for the application.
NOTES:
• A power pack is included with the HD-RX-201-C-E. If a power pack is also included with
the compatible transmitter, connect a power pack to either the receiver or transmitter.
Do not connect a power pack to both devices simultaneously. Power is transmitted over
the cable that connects the FROM TX port on the receiver to the TO RX port on
the transmitter.
• Cabling that connects the FROM TX port to the TO RX port is designed for intrabuilding
use only.
HDMI: HDMI OUTPUT:
From HDMI To HDMI
®
audio/video display
source
FROM TX:
From TO RX
link output of
DM Lite transmitter
The SERVICE port on the front panel of the device is for factory use only.
SERVICE:
For factory
use only
PART NUM.
IR:
To IR 10BASE-T/
controllable 100BASE-TX
device
Ethernet to
AUDIO:
COM:
local area
Balanced/
To
network
unbalanced stereo
RS-232
line level audio output device
2003574
2003577
2045870
24V
1.25A:
From included
power pack
