GL-IPAC-SW8
Overview
The GL-IPAC-SW8 switching panel provides internal controls for 8 circuits of switched load and is expandable to support up to 64 circuits of switched load by adding external panels and switching modules. It features local inputs for sensors and keypads, along with
an LCD user interface where installers or users can set up the system without having to connect to a computer.
The GL-IPAC-SW8 is perfect for smaller-sized installations, such as retail stores, small office spaces, parking garages, and service stations, which typically require only on/off switching—eliminating the need for a larger, more expensive panel. In addition, the
GL-IPAC-SW8 can be easily integrated with Crestron
Out-of-the-Box Lighting Control
The GL-IPAC-SW8 comes preconfigured for use as the central control processor for a Crestron Green Light
64 switched loads, 16 local and two remote keypads, 24 occupancy and photo sensors, and 100 time clock events.
Keypads with as many as 12 buttons each can be programmed easily to control lighting loads and other functions. Lights can be programmed to turn on and off automatically using the built-in astronomical time clock. Lighting events may be programmed to occur at
specific times or at an offset from sunrise or sunset. Occupancy sensors and photo sensors may also be implemented to enable automatic on/off lighting control based on room occupancy and ambient light levels.
Save Energy
Built-in support for occupancy and photo sensors helps to strike a perfect balance between daylight harvesting and comfort, reducing energy costs. Automatically turn off lights in unoccupied areas to allow natural light level in the space to light the area. Crestron
GLS sensors can be placed strategically in each space to maximize the benefits of energy management.
Easy Deployment
Packaged in one metal enclosure, the GL-IPAC-SW8 can be deployed in small
spaces, including plenum ceilings. The surface-mount GL-IPAC-SW8 can be affixed
to a wall or ceiling rafter, cleanly out of sight. Standard wire-entry knockouts are
provided.
8 internal circuits for switched loads
Expandable to control up to 64 circuits of switched load
Supports 100 to 277 volt applications
16 amp load rating per channel
Built-in astronomical time clock
Positive air gap at each output
Phase-independent channels
Local controls for setup, testing, and verification
Local and remote override capability
Non-volatile power failure memory
Easy access is facilitated from the hinged front cover
For Regulatory Compliance information, refer to Doc. 7401.
QUICKSTART DOC. 7389B (2036222, Sheet 1 of 7)
Crestron Green Light
®
automation solutions for centralized monitoring and remote control of multiple locations.
®
Power Switching system. Right out of the box, the GL-IPAC-SW8 affords easy setup and programming for a complete switching system consisting of up to
®
SPECIFICATION
Load Ratings
Switched
Channels
Per Channel
Switched Load
Types
Relay Lifetime
Resistive rating
General rating
Power Requirements
Main Power
Available Cresnet
Power
Environmental
Temperature
Humidity
Dimensions
Height
Width
Depth
www.crestron.com
01.14
Specifications subject to
change without notice.
Integrated Switching System
DETAILS
Contact Closures
8 internal;
Expandable up to 64 by adding external
Sensor
panels and modules
16 amps @ 120 to 277 Vac, 50/60 Hz
Fluorescent ballast, incandescent,
magnetic low-voltage, electronic low-
voltage, neon/cold cathode, high-intensity
discharge, LED, motor
Cresnet Power
100,000 on/off operations
Switch Ratings
50,000 on/off operations,
16 A @ 120/277 Vac
100-277 Vac, 50/60 Hz, via channel 1
(LINE 1, NEUT)
15 watts at 24 Vdc
Number of Devices
32° to 104° F (0° to 40° C)
10% to 90% RH (non-condensing)
12.13 in (308 mm)
14.13 in (359 mm)
4.06 in (104 mm)
888.273.7876
201.767.3400
SPECIFICATION
DETAILS
(1) 9-pin 3.5 mm terminal block
comprising (8) contact closure inputs and
(1) ground port
(2) 6-pin 3.5 mm terminal blocks
comprising (8) sensor inputs – (4) for
occupancy and (4) for photocell,
(2) 24 Vdc, and (2) ground ports
(provides sensors with power – power is
®
shared with Cresnet
port)
15 watts @ 24 Vdc (shared power for
Cresnet devices, keypads, and sensors)
8 switched channels;
16 amps @ 120 to 277 Vac, 50/60 Hz per
channel;
Fluorescent ballast, incandescent,
magnetic low voltage, electronic low
voltage, neon/cold cathode, high-intensity
discharge, LED, motor
Maximum 64 switched loads,
16 keypads, 24 occupancy sensors,
24 photo sensors, and 100 time clock
events;
Supports up to 8 internally switched
loads;
Supports up to 56 externally switched
loads

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Green Light GL-IPAC-SW8 and is the answer not in the manual?

Questions and answers

Gerardo Conejo
June 27, 2025

This lighting control can be programmed manually or a program is required

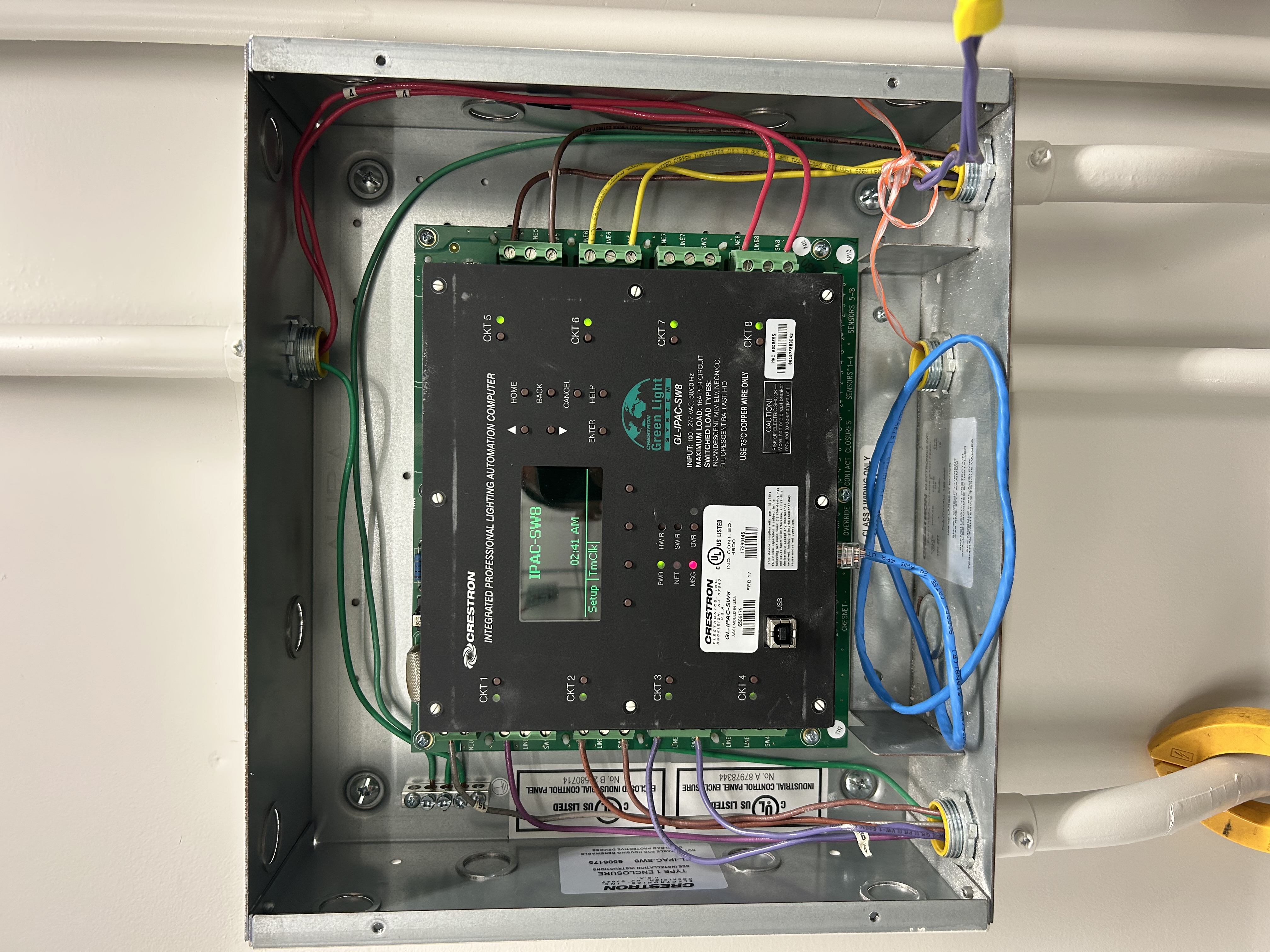

User image 685e195586821

Summary of Contents for Crestron Green Light GL-IPAC-SW8

  • Page 1 Built-in support for occupancy and photo sensors helps to strike a perfect balance between daylight harvesting and comfort, reducing energy costs. Automatically turn off lights in unoccupied areas to allow natural light level in the space to light the area.
  • Page 2 CRESNET (24 Y Z G) is used to power CONTACT CLOSURES CONTACT CLOSURES (1 - 8, G) connects (24 Vdc) and communicate with contact closure or a Crestron to contact closures and are configured 4 5 6 7 8 G From Line...
  • Page 3 GL-IPAC-SW8 Crestron Green Light ® Integrated Switching System Wiring Diagram (Continued) Occupancy Sensor Wired to SENSORS 1-4 Port Cresnet Occupancy Sensor and Photocell Wired Using Cresnet Occupancy Sensor Wired to Cresnet Port Using a GLS-SIM Occupancy sensors can only be wired to the SENSORS 1-4 port.
  • Page 4 GL-IPAC-SW8 Crestron Green Light ® Integrated Switching System Wiring Diagram (Continued) Photocell Wired to SENSORS 5-8 Port Photocells can only be wired to the right SENSORS 5-8 port. Using GLS-PLS-120/277 to Provide Override Control Adding an Additional Lighting Panel A GLS-PLS-120/277 connects to 3-phase inputs and neutral...
  • Page 5: Front Panel Controls

    GL-IPAC-SW8 Crestron Green Light ® Integrated Switching System Front Panel Controls Up and Down Buttons: HOME Button: The following is a detailed overview of the front panel controls Press the up or down button to navigate between items Press button to return to the home on the GL-IPAC-SW8 system.
  • Page 6: Set Current Date

    GL-IPAC-SW8 Crestron Green Light ® Integrated Switching System Setup Follow the procedures below to set up the GL-IPAC-SW8. The following screens allow configuration of the date, time, and Set Current Date daylight savings settings. Press Next from the “System Setup” screen to advance to the “Set Current Date”...
  • Page 7 GL-IPAC-SW8 Crestron Green Light ® Integrated Switching System Setup: Panels (Continued) Cresent Connected Occupancy Sensors Panels: Set External Loads’ IDs Find Sensor B1.1 Occupancy Sensors: “Find Sensor B1.1” Screen Each load in an external panel is controlled by a lighting module installed Set Module ID’s...
  • Page 8 GL-IPAC-SW8 Crestron Green Light ® Integrated Switching System Setup: Occupancy Sensors (Continued) Photo Sensors Photo Sensors: “Photocell List” Screen Occupancy Sensors: “Sensor C0.1 Test” Screen Photo Sensor 5 Sensor C0.1 Test Select Photo Sensors from the “Setup” menu to enter the “Photocell List”...
  • Page 9 GL-IPAC-SW8 Crestron Green Light ® Integrated Switching System Setup: Photo Sensors (Continued) Photo Sensors: “Photocell Assignments” Screen Photocell Assignments The “Photocell Assignments” screen assigns photo sensors to loads. Photo Sensors: “Photocell Setup” Screen – For on/off Configure the photocells in the same manner as the occpuancy Photocell Setup Int.6...
  • Page 10 GL-IPAC-SW8 Crestron Green Light ® Integrated Switching System Setup: Keypads (Continued) Remote Keypads: “Keypad Address Setting” Setup Keypad Address Setting Configure the remote keypad by entering the IP address of the remote Keypads: “Select Btn” Screen control system. Press Edit and then use the up and down buttons to...
  • Page 11 GL-IPAC-SW8 Crestron Green Light ® Integrated Switching System Setup: Contact Closures (Continued) Use the up and down buttons to select the warn time (in minutes). Timeclock Warn Time The selection can range from 1 to 30 minutes. Contact Closures: “Select Loads” Screen Press Next to advance to the “Warn Loads”...
  • Page 12 GL-IPAC-SW8 Crestron Green Light ® Integrated Switching System Setup: Timeclock (Continued) About Use the up and down buttons to highlight the desired load and About: “About” Screen About L1.1 (p,o) = On press ENTER to toggle between Auto, On, and Off (Warn). Press Select About from the “Setup”...
  • Page 13 1500 Sq. Ft. GLPX-HDSW-FT-20 Green Light Express Switching Panel, 20 Circuits GLS-OIR-W-2500 Passive Infrared Wall Mount Occupancy Sensor, GLS-LOL Crestron Green Light Photocell, Open-Loop GLPX-HDSW-FT-24 Green Light Express Switching Panel, 24 Circuits 2500 Sq. Ft. GLS-LEXT Crestron Green Light Photocell, Exterior...
  • Page 14: Troubleshooting

    Crestron, the Crestron logo, Crestron Green Light, Cameo, and Cresnet are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and Use of a Cresnet Hub/Repeater (CNXHUB) is advised whenever the number of names of others.
