- Page 1 CM2-547-MK2 CORIOmaster2™ MK2 CORIOgrapher™ V4.0 and above Quick Start Guide V1.0 Firmware version V600 and above QSG-CM2-547-MK2-V1.0 Aug 2023...
-
Page 2: Table Of Contents
In this guide About CORIOgrapher™ Hardware recommendations About your CORIOmaster2™ MK2 Quick start Set up and test audio Contact us Get more help You can read more online. To open the online help, select Help in CORIOgrapher, or visit help.tvone.com/r/docs/cm2-mk2/home/1. -
Page 3: About Coriographer
About CORIOgrapher™ CORIOgrapher is the software that controls your CORIOmaster2™. You can create up to three video installations, with multiple screens and windows, and add transitions and effects for a state-of-the-art dynamic video installation. CORIOgrapher system requirements CORIOgrapher: Works with PCs running Windows® 10 and 11 Does not work with touch-screen-only devices, including tablets or phones Works with Microsoft Surface Pros and similar touch screen devices... - Page 4 Dashboard CORIOview and CORIOmaster micro only. Standby puts your device into standby mode. Standby Help opens tvONE help for your product. Help Settings is where you configure your system, network, modules, and more. Settings...
-
Page 5: Hardware Recommendations
Hardware recommendations At tvONE, we design our products to the highest quality standards. To get the best results from our products, we recommend that you use the best quality connectors, cables, and adapters. Consider the points below when you choose accessories and position equipment. -
Page 6: About Your Coriomaster2™ Mk2

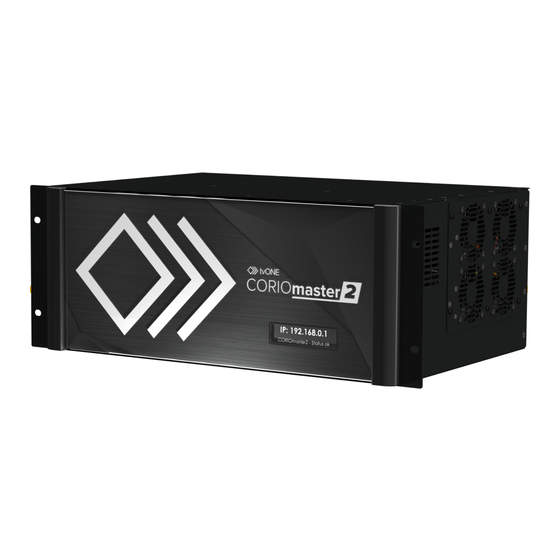

CORIOmaster2 front panel The front panel of your CORIOmaster2 includes a customizable status screen. The status screen can show the IP address of your CORIOmaster2, its status, and the name of the device. tvONE... - Page 7 CORIOmaster2 rear panel Input module (blue) Connect to sources Output module (white) Connect to displays Bonding module Used to fill empty slots in a group Optional audio Optional: connect to audio sources module and/or playback devices Connect to your network with Ethernet Optional: connect to serial controller CPU module...
-
Page 8: Quick Start
Using a mixture of frame rates and/or resolutions can cause video tearing. For best results, make sure all your displays use the same frame rate. c. Power on your CORIOmaster2. 3. Install CORIOdiscover and CORIOgrapher. Download the latest version of CORIOdiscover and CORIOgrapher from help.tvone.com/r/docs/g/software. tvONE... - Page 9 4. Open CORIOgrapher and select your CORIOmaster2. Enter your username and password to log in, and if prompted select Read to load your configuration. The first time you log in, if available make sure the Secure option is cleared. The default username is admin, and the default password is adminpw.
- Page 10 The media player of the Streaming media and 4K playback input module is not available when you work in an offline configuration. 5. Optional: enable secure mode. a. Select Settings > Networking. b. Select Secure connection. c. Select Save > Yes. CORIOmaster2 restarts. d. If available, select Secure and log in. tvONE...
- Page 11 6. Select the Frame Rate for the canvas and Apply. You will see a warning for each display in the Editor if the display resolution does not match the canvas frame rate. Video tearing Using a mixture of frame rates and/or resolutions can cause video tearing. For best results, make sure all your displays use the same frame rate.
- Page 12 Dedicated windows can only be used once per source, and have a locked source and quality. Free windows can use any source, you can change the source playing in the window, and select the quality you want to use. tvONE...
- Page 13 c. Scale the window to cover all your displays. d. Select Take to send the video wall to your CORIOmaster2. 10. Check that your installation looks correct. Make sure that the source for the window is playing, and check that the picture is assembled correctly.
- Page 14 Read more in the Quick Start Guide that came with your module, or in tvONE Help. Read troubleshooting advice in tvONE help. In CORIOgrapher, select Help search, or ask a question. Or visit help.tvone.com/r/docs/cm2-mk2/home/1.
-
Page 15: Set Up And Test Audio
Set up and test audio Your CORIOmaster2™ supports embedded audio in uncompressed PCM format. Testing embedded audio inputs 1. From Editor, select Live changes. 2. Select an audio source from the list. You hear the audio source from all the displays and output devices associated with this canvas. - Page 16 2. From Items, mute all the displays, except the one you want to test. Select to mute a display, and to unmute a display. 3. Select an audio source from the list. You hear the audio source from the display that isn't muted. tvONE...
- Page 17 If your source is a stream with low latency, CORIOmaster2 mutes the audio. The Streaming media and 4K playback input module only supports the following embedded audio formats: Read more about audio in tvONE Help. In CORIOgrapher, select Help search, or ask a question. Or visit help.tvone.com/r/docs/cm2-mk2/home/1. QSG-CM2-547-MK2-V1.0...
-
Page 18: Contact Us
